IBM ProtecTIER DD6 Bedienungsanleitung

Engineering Instructions

Battery Removal and Disposal

Instructions ProtecTIER DD6

for

3958 DD6

IBM PN 17R7241

Written by:

Camilo Espinosa

March 07th, 2016

This document is the property of IBM. Its use is authorized only informational. All questions must be referred to the IBM

Contents

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.1 Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.0 Introduction

1.1 Scope

The purpose of this document is to provide specification followingenvironmentalregulations.

3958-DD6 DOES NOT HAVE FRU SERVICE FOR BATTERY, CUSTOMER OR ENGINEERING SERVICE

SHOULD REQUEST CANISTER FRU AND REPLACE PART FOLLOWING INSTRUCTIONS PROVIDED IN

INSTALLATION MANUAL GA32-0921-13 / 2726100

For details in disposition handing refers to document PRODUCT SAFETY DATA SHEET in ECO M13676.

Remove the system battery:

a) Turn off the canister and remove it from chassis.

b) Carefully remove top cover from canister

c) Remove screws from remaining top cover in rear side of canister, as shown in following picture

d) Locate the battery closer to rear side of canister

e) Remove the system battery

I. If there is rubber cover on the battery holder, use your fingers to lift the battery cover

from the battery connector

II. Use one finger to tilt the battery horizontally out of its socket, pushing it away from the

socket.

Attention: Neither tilt nor push the battery by using excessive force.

III. Use your thumb and index finger to lift the battery from the socket.

Attention: Do not lift the battery by using excessive force. Failing to remove the battery

properly my damage the socket on the system board. Any damage on the socket may

require replacing the system board.

IV. Disposal the battery as required by local ordinances or regulations. See the IBM

Environmental notices and User’s Guide on the IBM Documentation CD for more

information.

Readers’ Comments — We'd Like to Hear from You

IBM Engineering Instructions

Battery Removal and Disposal Instructions

for ProtecTIER 3.4

Part Number 17R7241

We appreciate your comments about this publication. Please comment on specific errors or omissions, accuracy,

organization, subject matter, or completeness of this book. The comments you send should pertain to only the

information in this manual or product and the way in which the information is presented.

For technical questions and information about products and prices, please contact your IBM branch office, your

IBM business partner, or your authorized remarketer.

When you send comments to IBM, you grant IBM a nonexclusive right to use or distribute your comments in any

way it believes appropriate without incurring any obligation to you. IBM or any other organizations will only use

the personal information that you supply to contact you about the issues that you state on this form.

Comments:

Thank you for your support.

Submit your comments using one of these channels:

vSend your comments to the address on the reverse side of this form.

vSend your comments via email to: [email protected]

If you would like a response from IBM, please fill in the following information:

Name Address

Company or Organization

Phone No. Email address

Readers’ Comments — We'd Like to Hear from You IBM® Cut or Fold

Along Line

Cut or Fold

Along Line

Fold and Tape Please do not staple Fold and Tape

NO POSTAGE

NECESSARY

IF MAILED IN THE

UNITED STATES

BUSINESS REPL Y MAIL

FIRST-CLASS MAIL PERMIT NO. 40 ARMONK, NEW YORK

POSTAGE WILL BE PAID BY ADDRESSEE

IBM

Corporation

Information Development, Dept. GZWA

9000 S Rita Road

Tucson, AZ

USA 85744-0001

_________________________________________________________________________________________

___________________________________________________________________________________________________

IBM®

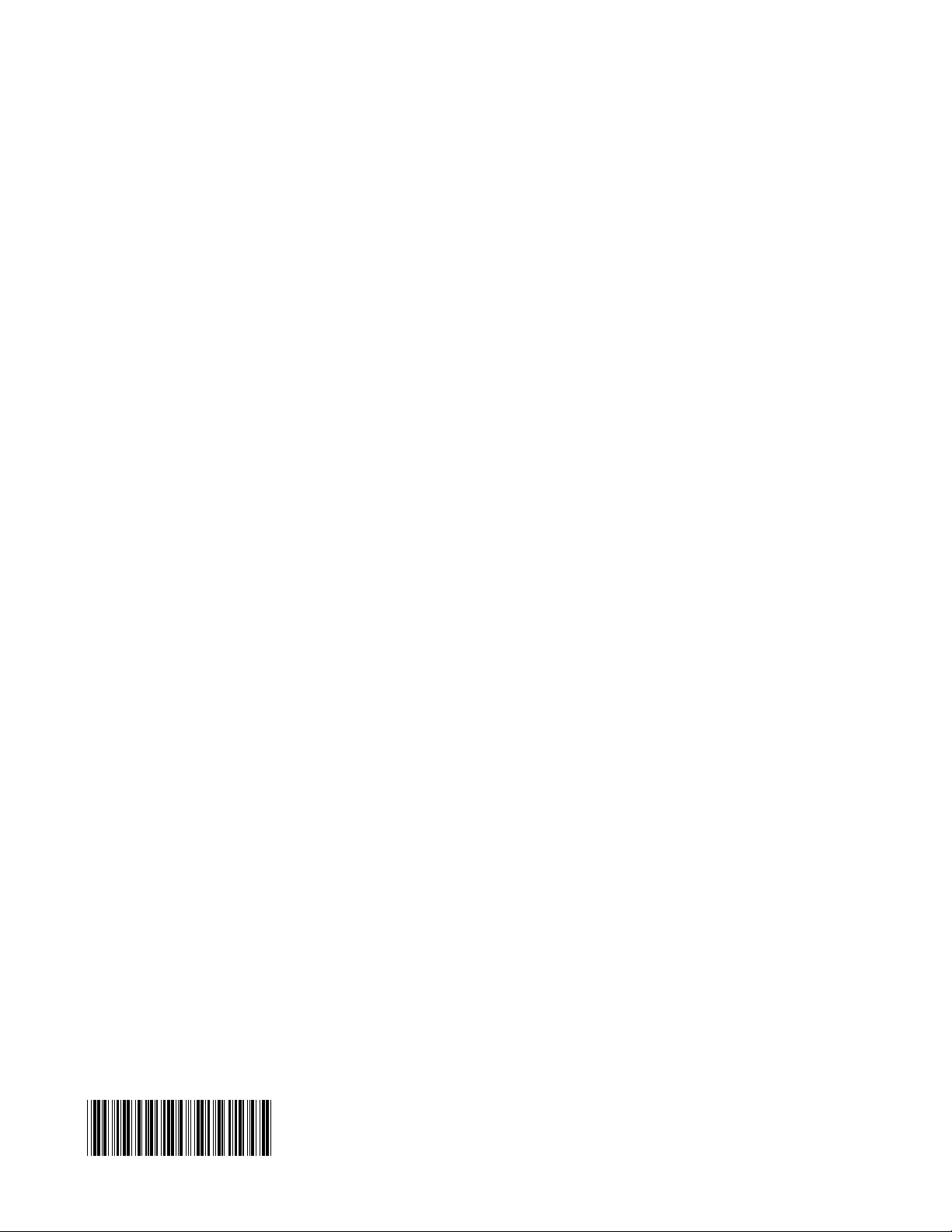

Part Number: 17R7241

Printed in USA

(1P) P/N: 17R7241
