iCatch 4CH Bedienungsanleitung
4CH / 8CH DVR
Quick Start Guide
1. Packing........................................P.2
2. Hard Disk Installation................P.3
3. Front Panel Controls..................P.6
4. Rear Panel Connectors..............P.7
Quick Start Guide P.2
1. DVR
2. Quick Start
3. Battery
4. CD
5. Screws
6. Power Adapter
7. SATA Cord
Note: Standard shipping products do not include HDD
Quick Start Guide P.3
Step１) Take out the screws as pictures show.
Back panel 3 screws
Step 2) Open the cover follow the arrow direction.
Quick Start Guide P.4
Step３) Connect SATA & Power wire to Hard Disk and put it on the rack mount.
Fix HDD screw
Note: After installation, please initialize Hard Disk before starting to record. For more detailed
information, please check out User Manual Utility Setup for reference.
Quick Start Guide P.5
Step 4) Put the cover back and fix it with 3 screws as Step 1 indicated.
Note: After installation, please initialize Hard Disk before starting to record. For more detailed
information, please check out User Manual Utility Setup for reference.
Quick Start Guide P.6
1
23
1. LED Display
POWER: Power is on.
REC: Recording.
LINK: Connected to the internet (in red: Remote user logged in).
2. IR Sensor Input sensor for the remote control.
3. USB 2.0 Port for USB external devices
Quick Start Guide P.7

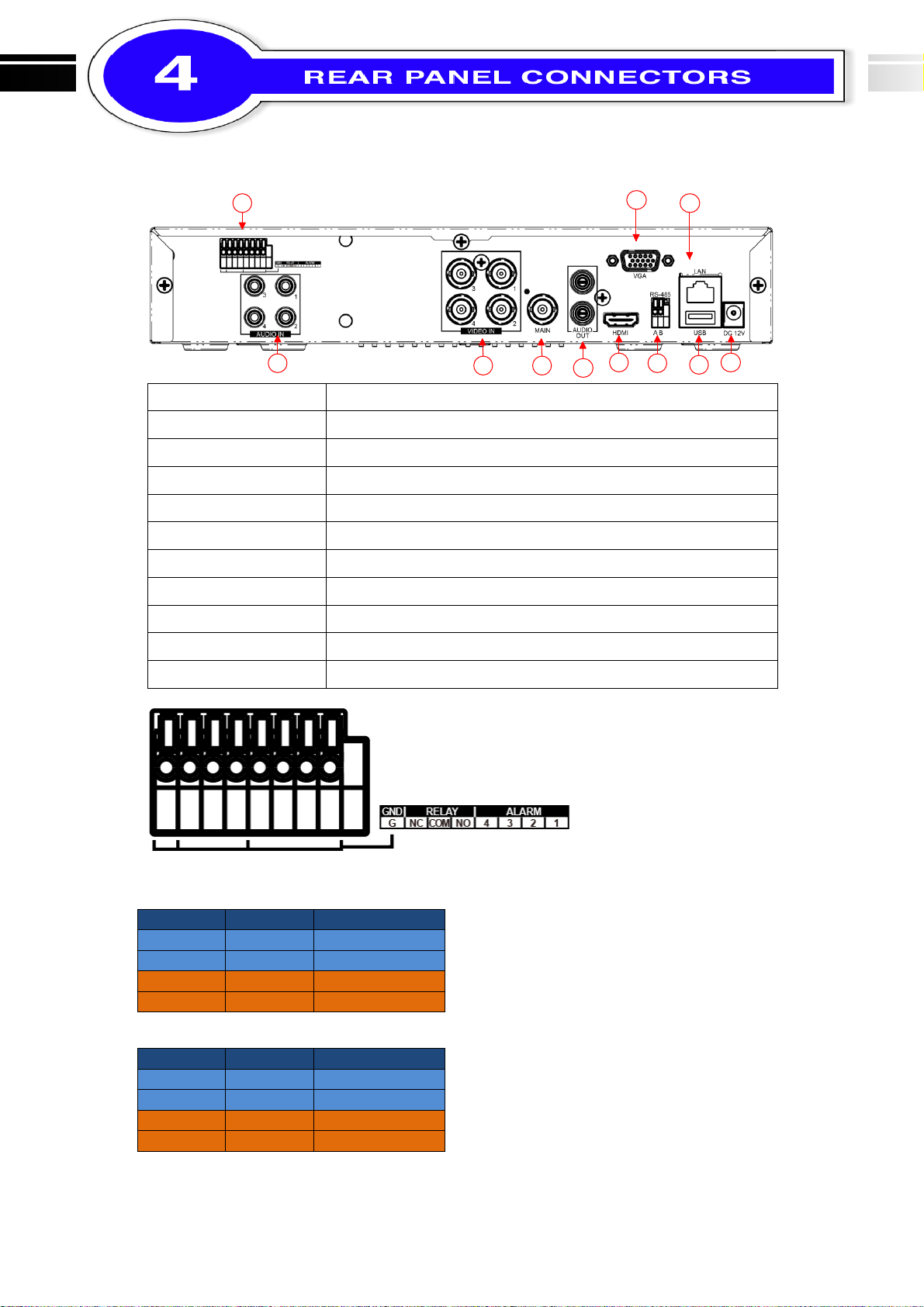

4CH REAR PANEL CONNECTORS
11 10 9
12
45678
3
1. AUDIO IN RCA input port for audio signal.
2. AUDIO OUT RCA output port for audio signal.
3. VIDEO IN BNC input ports for cameras, 4 in total.
4. MAIN BNC Output
5. HDMI HDMI port.
6. RS-485 RS-485 port.
7. USB Port for USB mouse device
8. DC 12V Socket for a DC 12V input.
9. LAN Network port.
10. VGA VGA port.
11. Ext.I/O Extend I/O
*Example
AHD series model
Odd CH Even CH Result
AHD AHD OK
960H / D1 960H / D1 OK
AHD 960H / D1 not serviceable
960H / D1 AHD not serviceable
TVI series model
Odd CH Even CH Result
TVI TVI OK
960H / D1 960H / D1 OK
TVI 960H / D1 not serviceable
960H / D1 TVI not serviceable
Quick Start Guide P.8
8CH REAR PANEL CONNECTORS
11 10 9
12
45678
3
1. AUDIO IN RCA input port for audio signal.
2. AUDIO OUT RCA output port for audio signal.
3. VIDEO IN BNC input ports for cameras, 8 in total.
4. MAIN BNC Output
5. HDMI HDMI port.
6. RS-485 RS-485 port.
7. USB Port for USB mouse device
8. DC 12V Socket for a DC 12V input.
9. LAN Network port.
10. VGA VGA port.
11. Ext.I/O Extend I/O
*Example
AHD series model
Odd CH Even CH Result
AHD AHD OK
960H / D1 960H / D1 OK
AHD 960H / D1 not serviceable
960H / D1 AHD not serviceable
TVI series model
Odd CH Even CH Result
TVI TVI OK
960H / D1 960H / D1 OK
TVI 960H / D1 not serviceable
960H / D1 TVI not serviceable
