ICON WEIDER POWER TOWER Bedienungsanleitung

USER’S MANUAL

Model No. WEBE99712.3

Serial No.

Write the serial number in the

space above for reference.

Serial Number

Decal

weiderfitness.com

CAUTION

Read all precautions and

instructions in this manual before

using this equipment. Keep this

manual for future reference.

To register your product and

activate your warranty today,

go to my.weiderfitness.com.

For service at any time, go to

weiderservice.com.

Or call 1-877-992-5999

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

ACTIVATE YOUR

WARRANTY

CUSTOMER CARE

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

EXERCISE GUIDELINES ....................................................................12

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

TABLE OF CONTENTS

WEIDER is a registered trademark of ICON Health & Fitness, Inc.

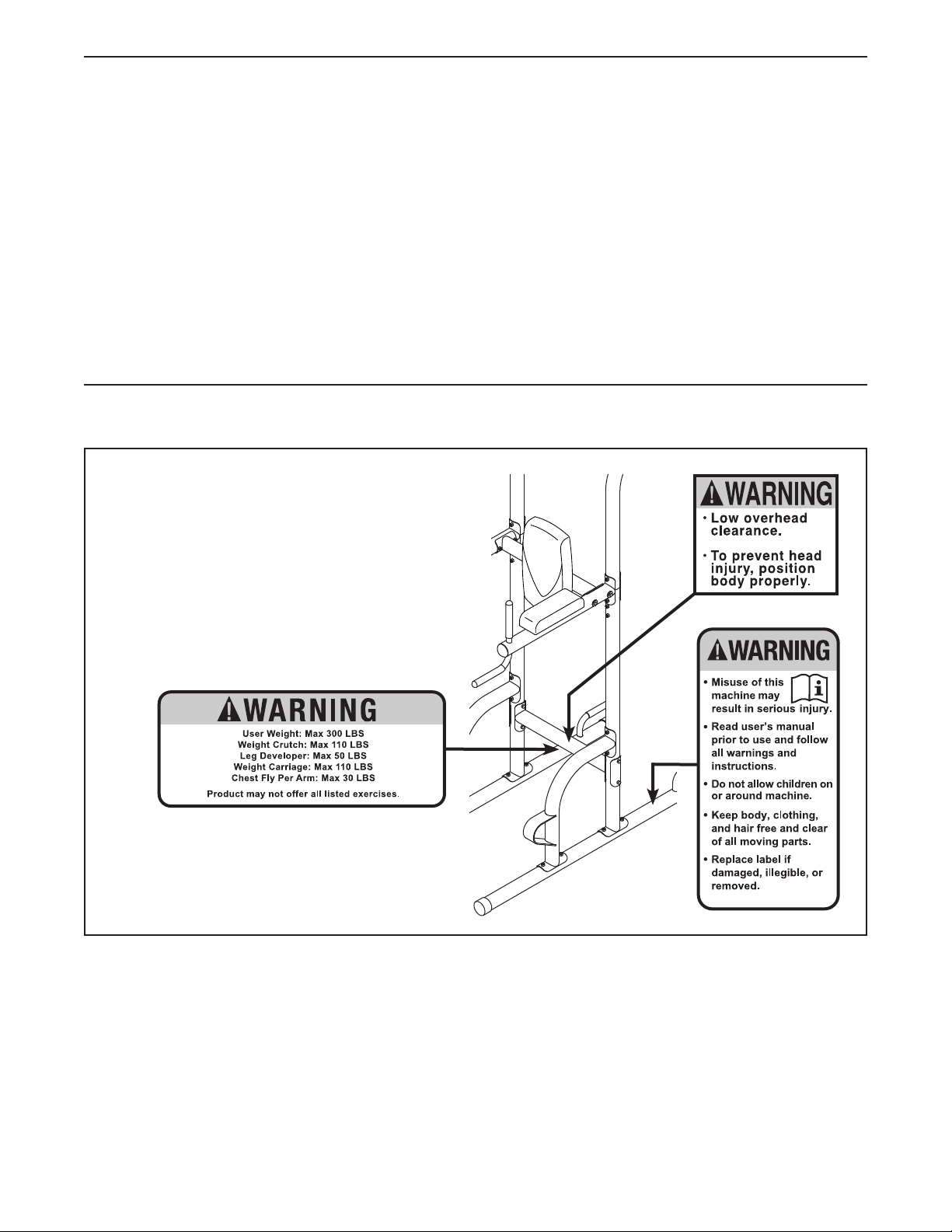

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

WARNING DECAL PLACEMENT

1. It is the responsibility of the owner to

ensure that all users of the exercise rack are

adequately informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

3. The exercise rack is not intended for use by

persons with reduced physical, sensory, or

mental capabilities or lack of experience and

knowledge, unless they are given supervi-

sion or instruction about use of the exercise

rack by someone responsible for their safety.

4. Use the exercise rack only as described in

this manual.

5. The exercise rack is intended for home use

only. Do not use the exercise rack in a com-

mercial, rental, or institutional setting.

6. Keep the exercise rack indoors, away from

moisture and dust. Do not put the exercise

rack in a garage or covered patio, or near

water.

7. Use the exercise rack only on a level surface.

Cover the floor beneath the exercise rack to

protect the floor.

8. Make sure that all parts are properly tight-

ened each time the exercise rack is used.

Replace any worn parts immediately.

9. Keep children under age 13 and pets away

from the exercise rack at all times.

10. The exercise rack is designed to support a

maximum user weight of 300 lbs. (136 kg).

11. Always wear athletic shoes for foot protec-

tion while exercising.

12. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise rack before using your exercise rack.

ICON assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

IMPORTANT PRECAUTIONS

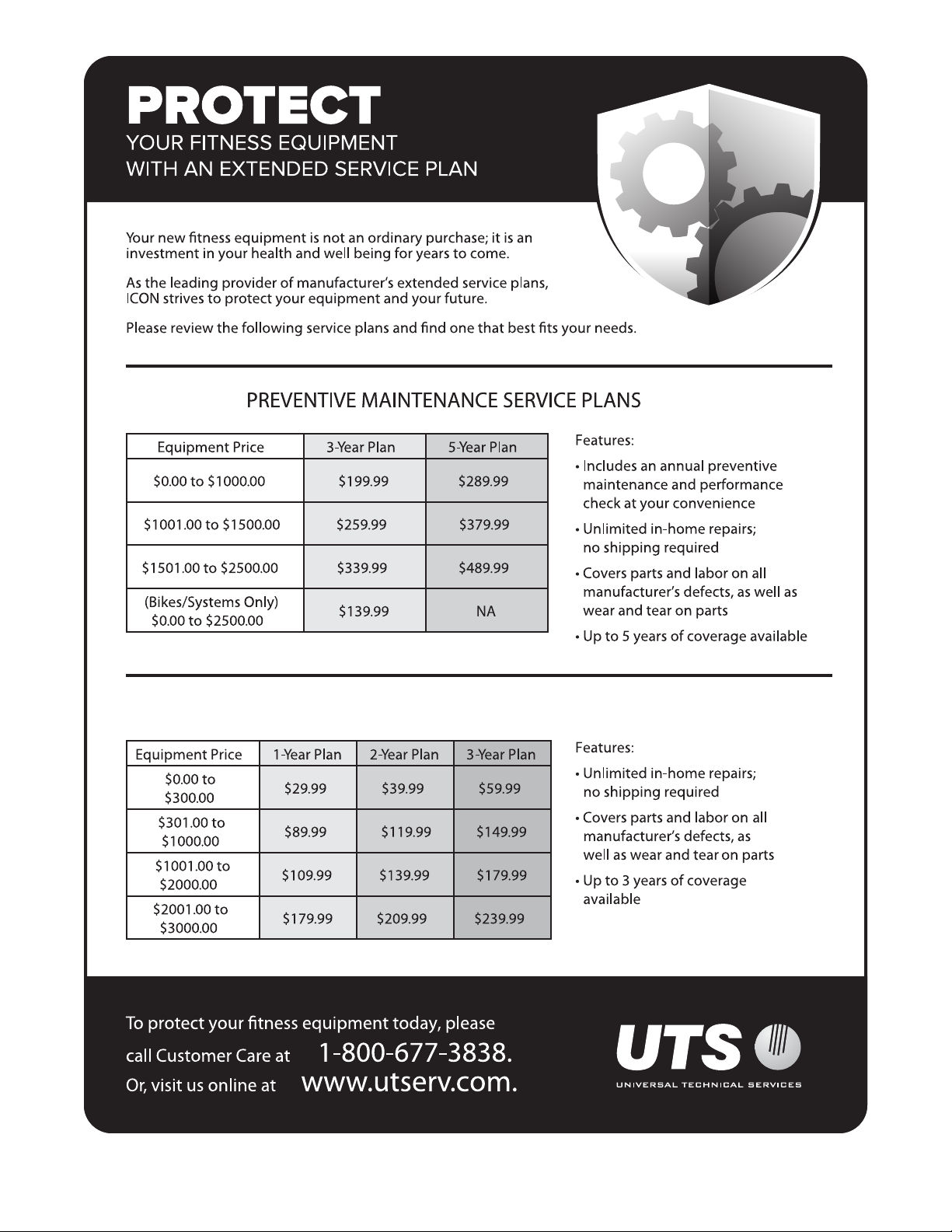

STANDARD SERVICE PLANS

Pull-up Bar

Arm Pad

Dip Arm

Footrest

Backrest

Dip Arm Handles

Push-up Handle

Thank you for selecting the versatile WEIDER®

POWER TOWER exercise rack. The POWER TOWER

exercise rack is designed to help you develop the

major muscle groups of the upper body. Whether your

goal is a shapely figure, dramatic muscle size and

strength, or a healthier cardiovascular system, the

exercise rack will help you achieve the specific results

you want.

For your benefit, read this manual carefully before

using the exercise rack. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

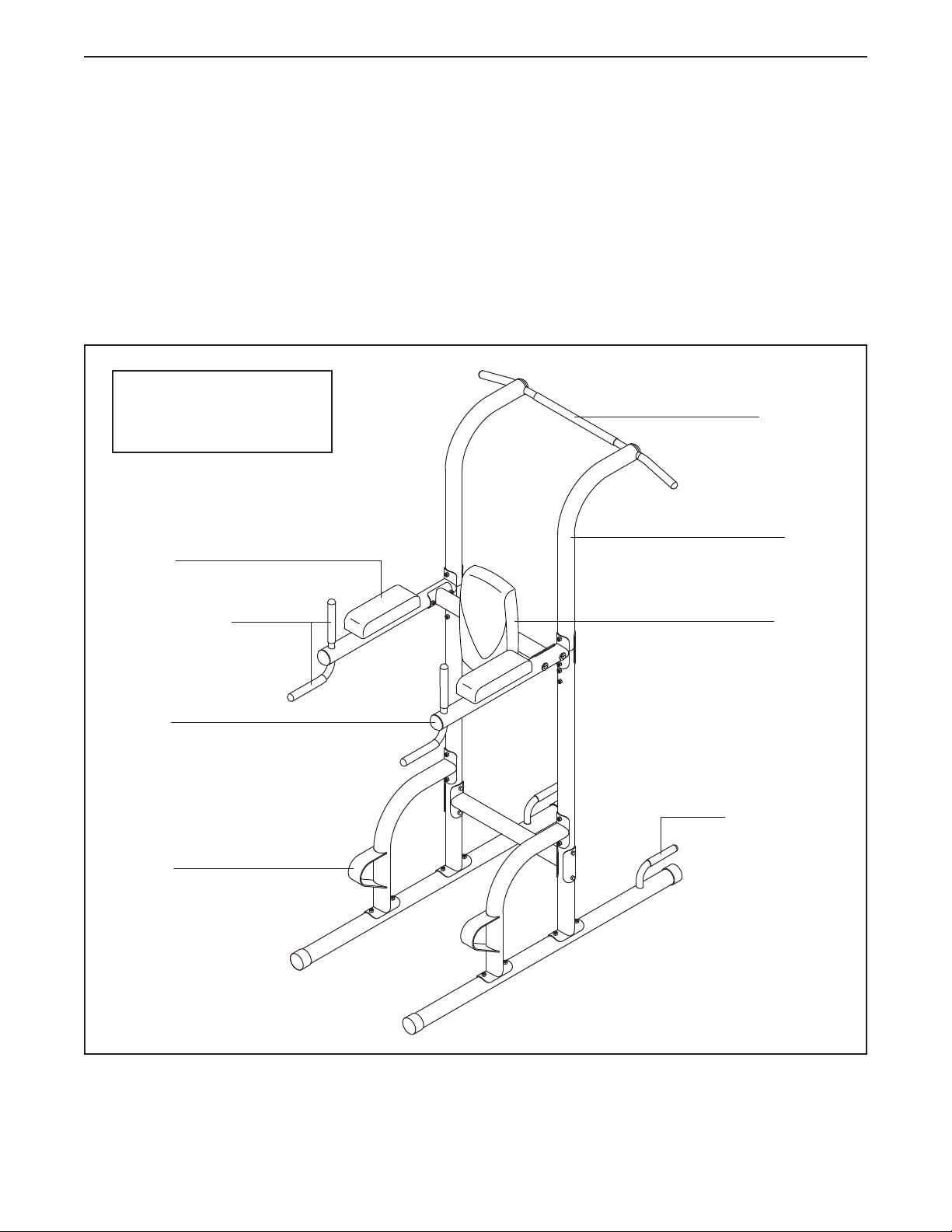

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Upright

BEFORE YOU BEGIN

Length: 4 ft. 9 in. (145 cm)

Width: 3 ft. 5 in. (104 cm)

Height: 7 ft. (213 cm)

PART IDENTIFICATION CHART

M6 Washer

(21)

M8 x 68mm Carriage Bolt (20)

M10 Curved

Washer (26)

M8 Curved

Washer (23)

M8 x 68mm Bolt (24)

M8 x 77mm Bolt (28)

M10 x 50mm Screw (19)

M6 x 73mm Screw (18)

M6 x 16mm

Screw (27)

M8 x 75mm Bolt (17)

M8 Locknut

(22)

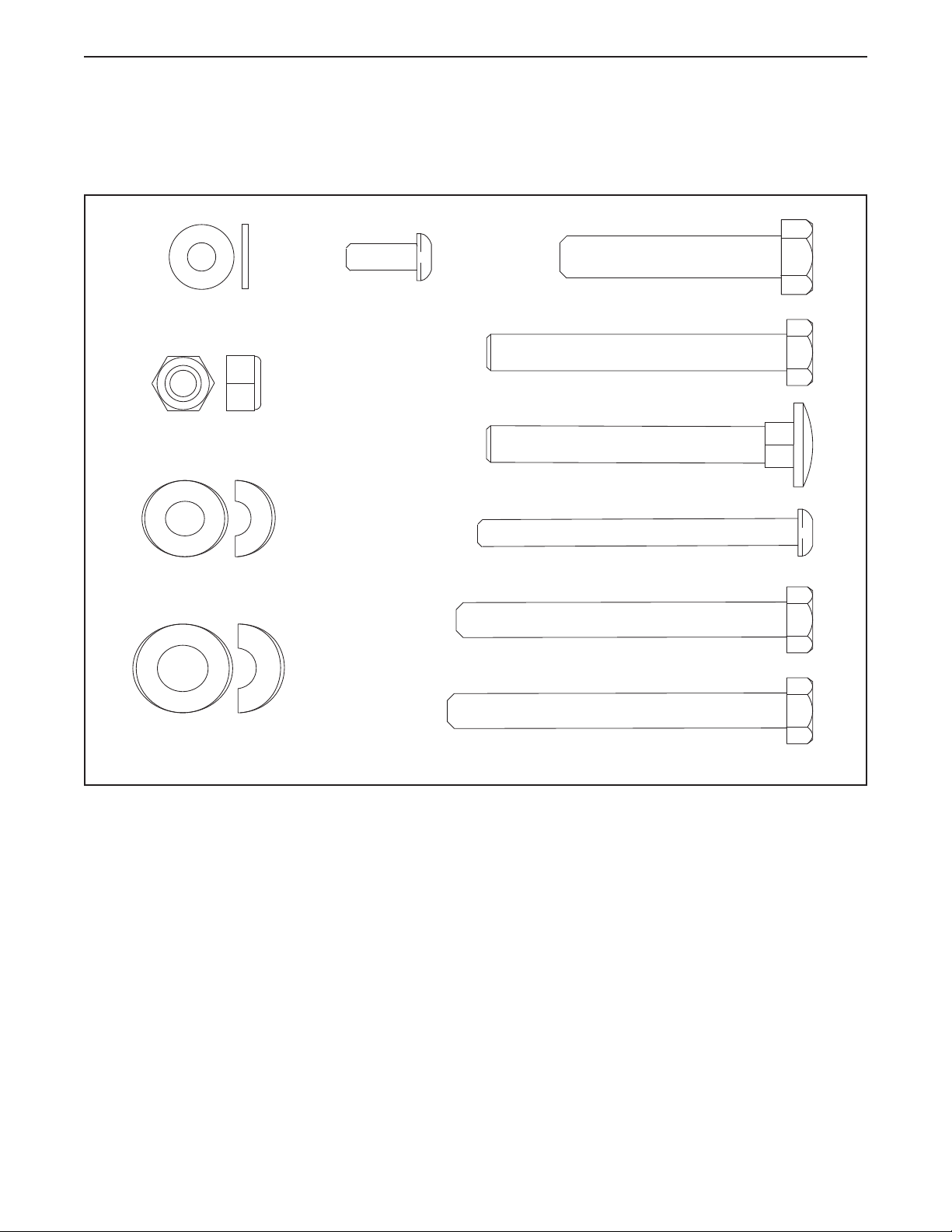

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in

the hardware kit, check to see if it has been preassembled. Extra parts may be included.

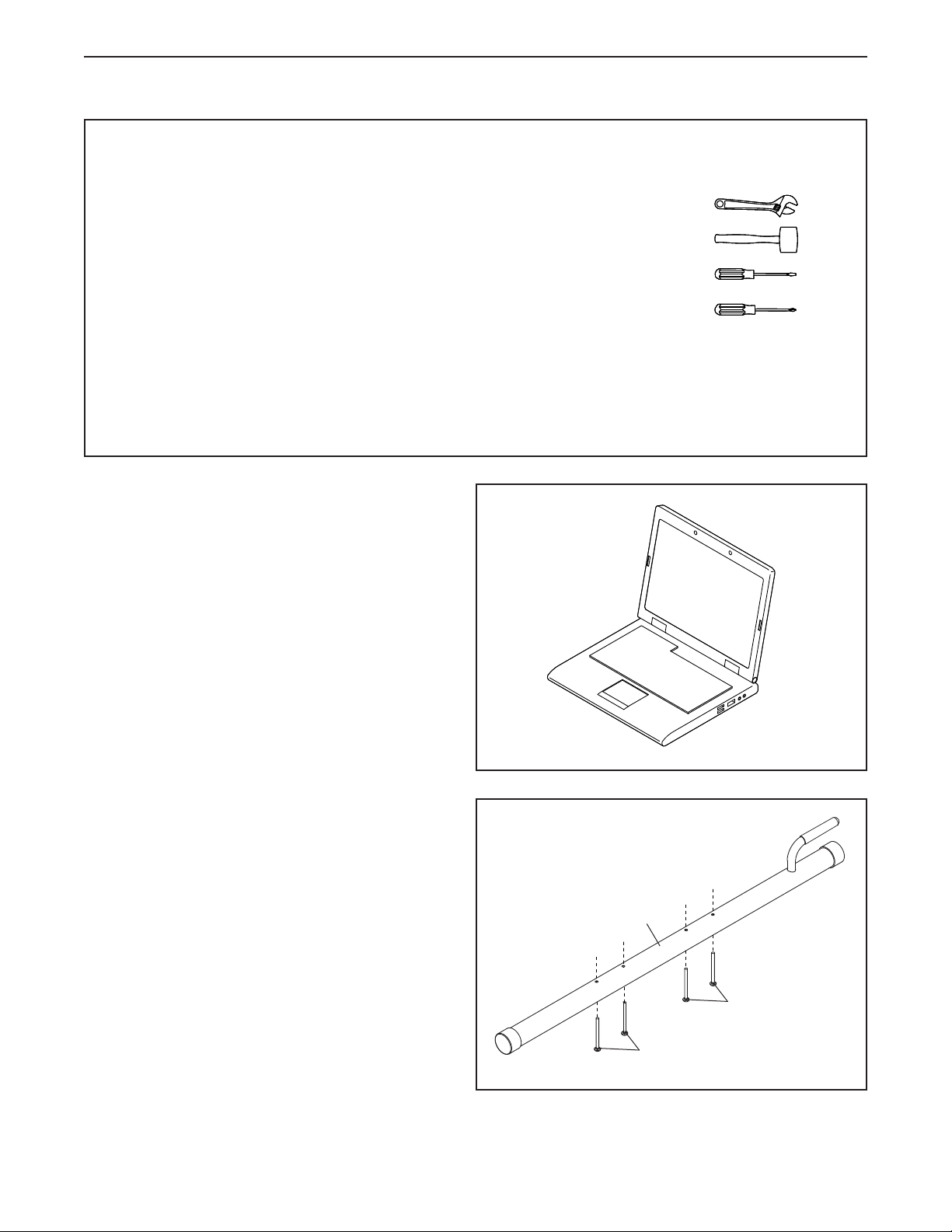

2. Insert four M8 x 68mm Carriage Bolts (20)

upward through a Base (1). Tip: It may be

helpful to place tape on the heads of the

Carriage Bolts to hold them in place until

later steps.

Repeat this step with the other Base (not

shown).

• To hire an authorized service technician to

assemble this product, call 1-800-445-2480.

• Assembly requires two persons.

• Because of its weight and size, the exercise rack

should be assembled in the location where it will

be used. Make sure that there is enough clear-

ance to walk around the exercise rack as you

assemble it.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

• To identify small parts, see page 6.

• The included grease and the following tools (not

included) may be required for assembly:

two adjustable wrenches

one rubber mallet

one standard screwdriver

one Phillips screwdriver

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

1. Go to my.weiderfitness.com on your

computer and register your product.

• documents your ownership

• activates your warranty

• ensures priority customer support if assistance

is ever needed

Note: If you do not have internet access, call

Customer Care (see the front cover of this

manual) and register your product.

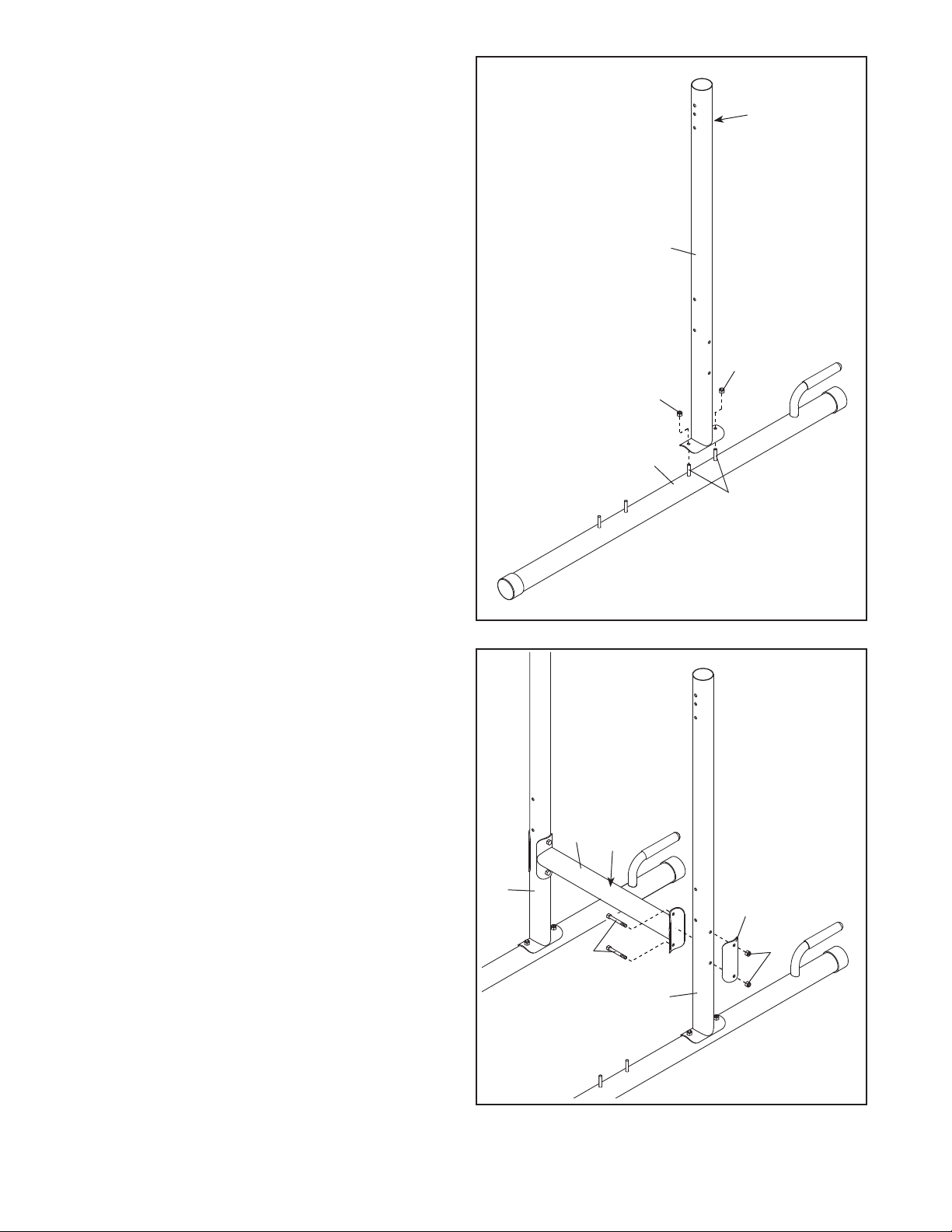

4. Orient the Bottom Crossbar (10) so that the

warning decal (B) is on top.

Attach the Bottom Crossbar (10) to one of the

Uprights (2) with two M8 x 77mm Bolts (28), a

Support Plate (13), and two M8 Locknuts (22);

do not tighten the Locknuts yet.

Attach the Bottom Crossbar (10) to the other

Upright (2) in the same way.

3. Orient one of the Uprights (2) and one of the

Bases (1) as shown; make sure that the

hexagonal holes (A) are on the indicated side

of the Upright.

Attach the Upright (2) to the Base (1) with the

two indicated M8 x 68mm Carriage Bolts (20)

and two M8 Locknuts (22); do not tighten the

Locknuts yet.

Attach the other Upright (not shown) to the

other Base (not shown) in the same way.

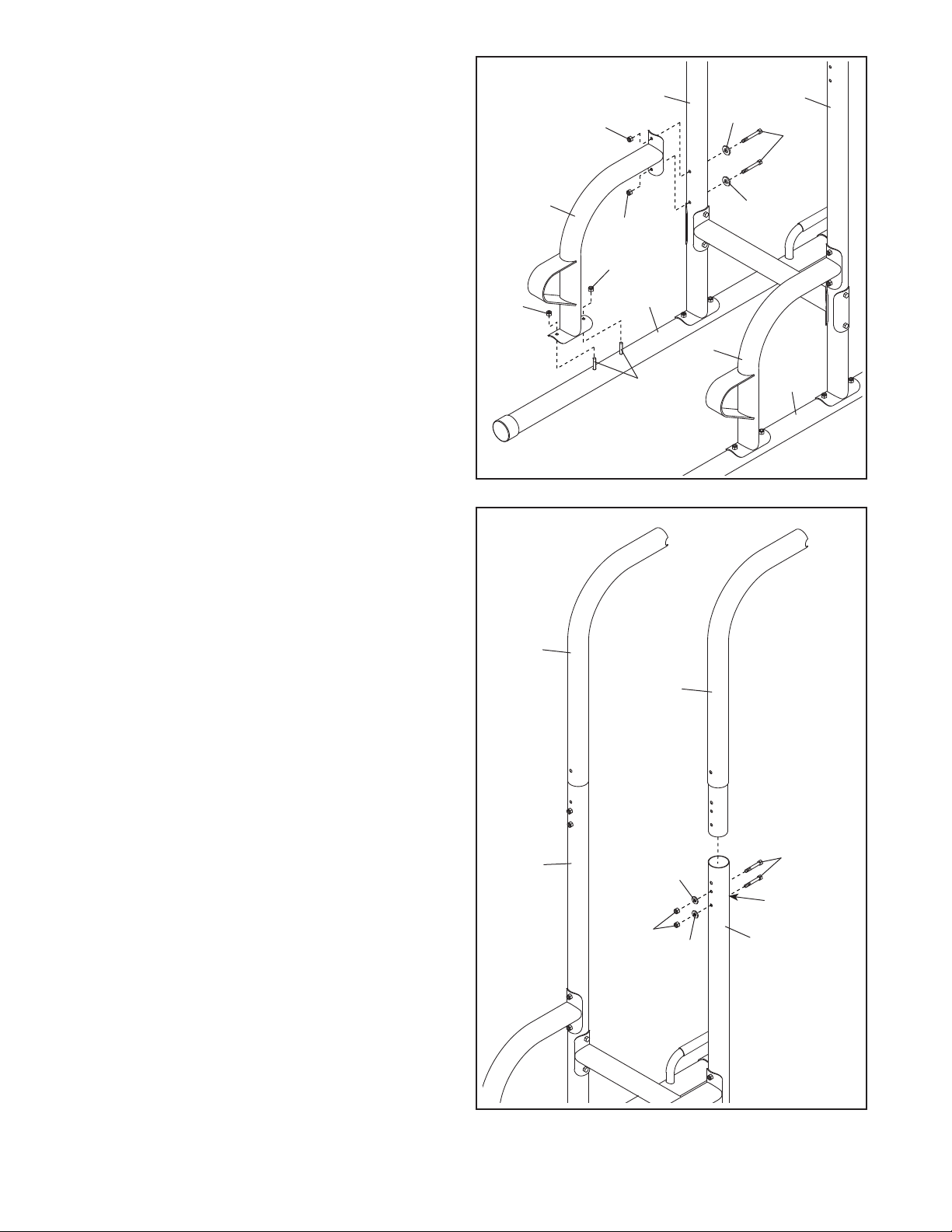

6. Orient one of the Pull-up Frames (3) as shown,

and insert it into one of the Uprights (2). Attach

the Pull-up Frame with two M8 x 68mm Bolts

(24), two M8 Curved Washers (23), and two

M8 Locknuts (22). Note: The Bolts must be

inserted into the lowest set of holes in the

Pull-up Frame and the Upright. Make sure

that the bolt heads are in the hexagonal

holes (C) in the Upright. Do not tighten the

Locknuts yet.

Attach the other Pull-up Frame (3) to the

other Upright (2) in the same way.

5. Attach a Footrest Frame (4) to one of the Bases

(1) with the two indicated M8 x 68mm Carriage

Bolts (20) and two M8 Locknuts (22); do not

tighten the Locknuts yet.

Next, attach the Footrest Frame (4) to the

Upright (2) with two M8 x 75mm Bolts (17), two

M8 Curved Washers (23), and two M8 Locknuts

(22); do not tighten the Locknuts yet.

Attach the other Footrest Frame (4) to the

other Base (1) and the other Upright (2) in the

same way.

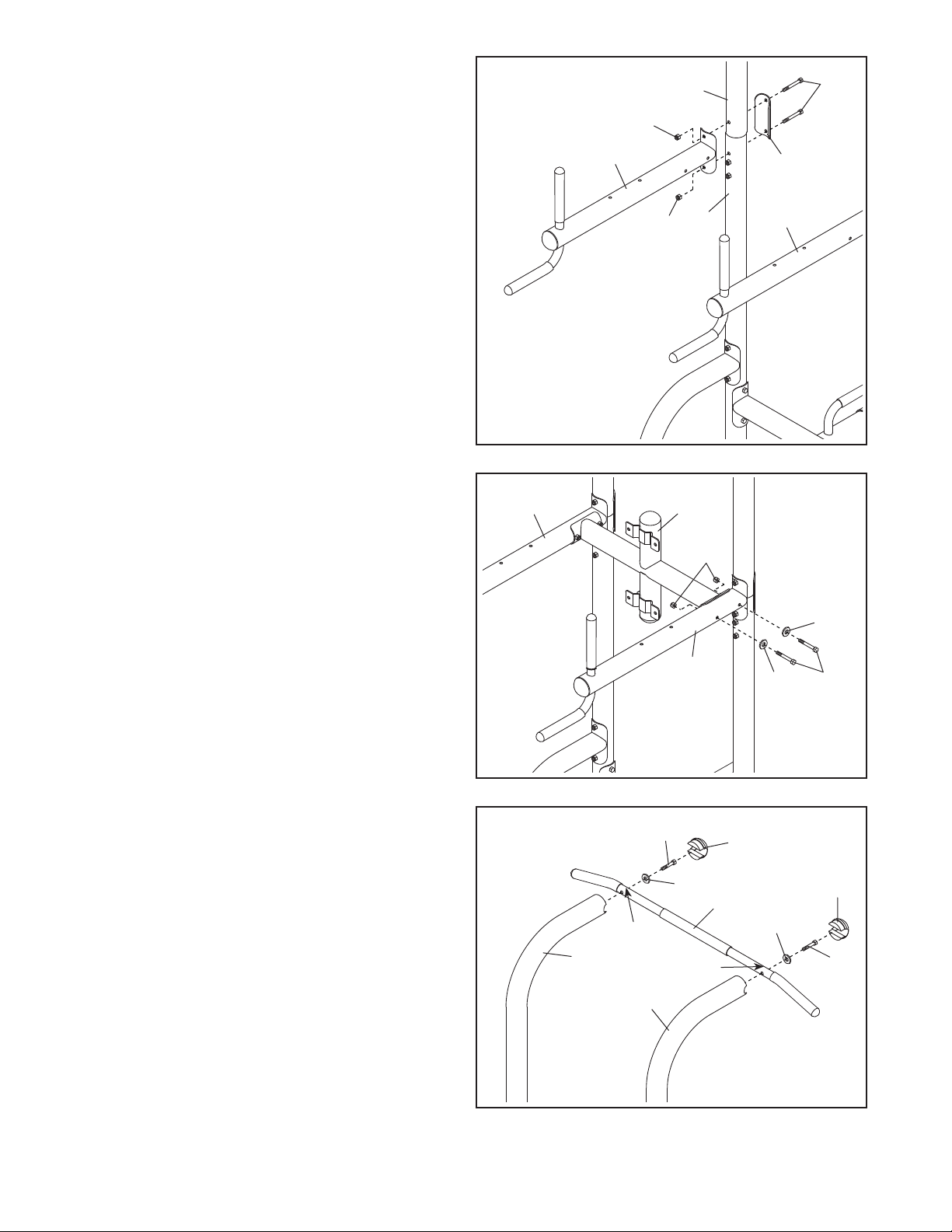

8. Attach the Top Crossbar (7) to one of the Dip

Arms (5) with two M8 x 75mm Bolts (17), two

M8 Curved Washers (23), and two M8 Locknuts

(22); do not tighten the Locknuts yet.

Attach the Top Crossbar (7) to the other Dip

Arm (5) in the same way.

7. Attach a Dip Arm (5) to one of the Pull-up

Frames (3) and one of the Uprights (2) with two

M8 x 77mm Bolts (28), a Support Plate (13),

and two M8 Locknuts (22); do not tighten the

Locknuts yet.

Repeat this step with the other Dip Arm (5). 13

D19

9. Attach the Pull-up Bar (9) to the Pull-up Frames

(3) with two M10 x 50mm Screws (19) and two

M10 Curved Washers (26). Make sure that the

indented holes (D) in the Pull-up Bar are on

the side shown. Then, press the two Rubber

Caps (12) into the ends of the Pull-up Frames.

See steps 3–8. Tighten all of the M8

Locknuts (22).
