Introduction
This user manual will guide you through the use, care and
maintenance
Be sure to read this manual carefully before use.
Ensure that you fully read these instructions before using this product.
This product is a CE Class 1 medical device. It is used as a shower or
toilet chair. It comes with a removable pot. It is suitable for a user
weighing up to 160 kg for the standard version
822165, 260 kg for the XL version 822178 and 300kg for the XXL version
822272. The Aston chair is available with 4 castors with brakes as
standard, and a 24 inch wheel kit is available as an option.
Aluminum structure, polyurethane (PU) comfort pieces, stainless
steel fixings. Suitable for use in a humid environment.
Personal security
-
-
-
-
-
Read these instructions before use.
Check the stability of the chair before use.
Use only on level ground.
When stationary, remember to apply the wheel brakes.
Make sure to unlatch them when you want to roll the chair again.
For any transfer or when the chair is stationary, also
apply the brakes.
Raise the footrests before sitting down or leaving the chair.
Never bend over when you are in the chair.
Maximum weight supported 160 kg for the ref 822165, 260 kg for the ref
-
-
-
-
822178 and 300kg for the ref 822272.
-Make sure that the wheels are at equal height and that the seat is well
stabilized.
Aston Shower Chair Page 2 of 11
Designation of parts
If you wish to purchase spare parts, please contact your distributor with
the serial number on the chair and the date of purchase.

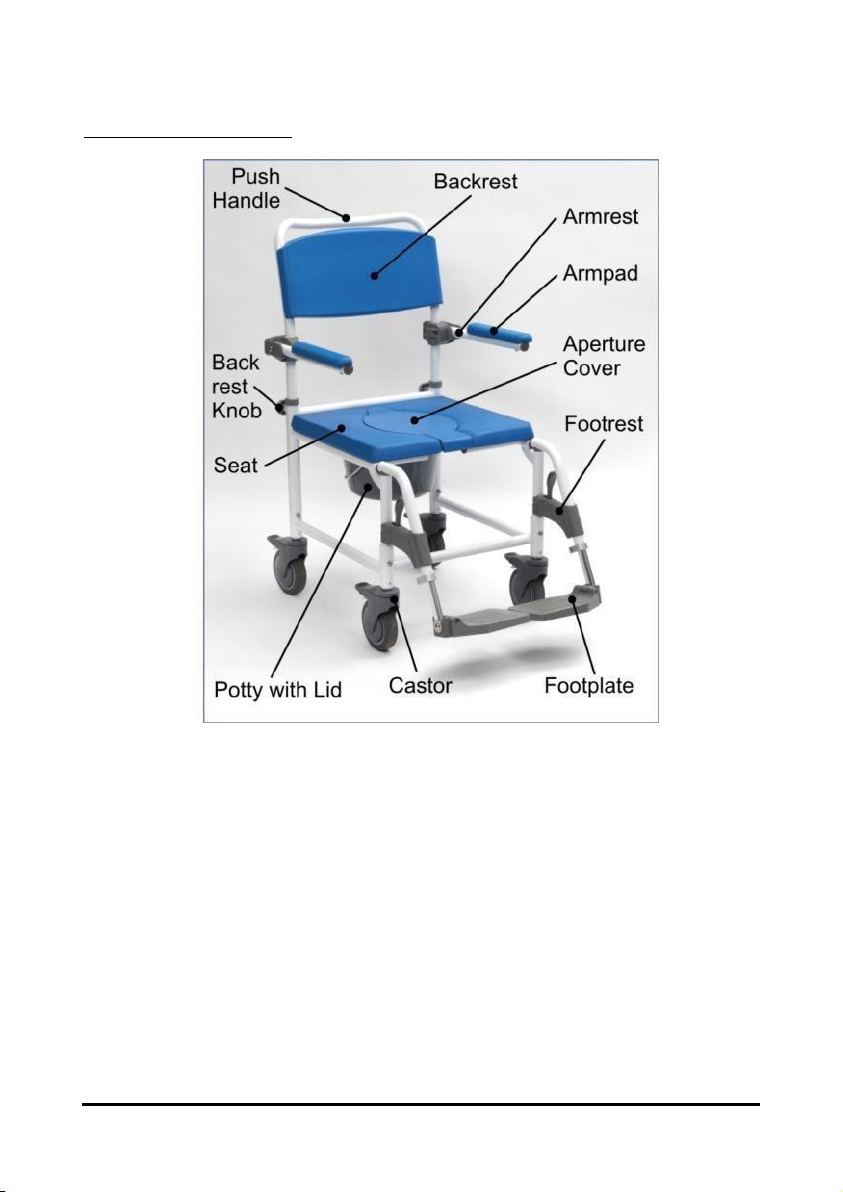

Push handle: push bar / Backrest: backrest / Armrest: arm rest / Armpad:
comfort pad / Aperture Cover: seat fish / Footrest: Footrest / Footplate:
footrest paddle / Castor: wheel / Potty with lid: pot with lid / Seat: seat /
Backrest knob: backrest knob.
Aston Shower Chair Page 3 of 11
Assembly
Insert the backrest into the frame
tubes. (Attached photo)
Lock the backrest using the tightening
knobs located at the back of the seat.
Position the footrests in the tubing
provided for this purpose on the top
of the base frame.
Rotate the footrests towards the
front of the chair until they stop.
You can adjust the height and angle
of these footrests according to the
instructions given below.
If the wheels are not mounted on the frame, install them by following
the adjustment instructions below.
You can also install the seat by fixing it with the clips on the frame and
also position the bucket and the cover.
Aston Shower Chair Page 4 of 11
Adjusting the footrests
Pivoting of the footrests
The footrests swivel for ease of
movement. The pallets are also
raised. Press the lever to release
and rotate the footrests rearward.
To replace them, tilt the footrest
forward again until it clicks into
place.
To completely remove the footrests, you must pivot them completely
backwards in order to be able to remove them.
Adjusting the pallets
1. To adjust the height of the paddles,
use an appropriate Allen wrench to
slightly loosen the screw at the end of
the white tubing. Adjust the desired
height and tighten the screw. (see
photo below
versus).
2. To adjust the angle of the footplates,
proceed in the same way with the screw
at the end of the footplate. (See photo
opposite).
Aston Shower Chair Page 5 of 11
Wheel lock
The wheels can be locked to secure
the seat to prevent it from moving.
To lock the wheels, press down on
the wheel with your foot, as shown
opposite in the photo (Lock).
To unlock, press down with your
foot as shown opposite in the
photo (Un-lock).
LOCK
A-
LOCK
Unless the chair is used with the
24 inch wheels, it is
recommended that the brakes
be applied whenever the chair
is in a static position.
Wheel height adjustment
The height of the chair is adjustable.
All you have to do is unscrew the
nuts located above the wheels on
the chassis (as shown opposite),
adjust the height (which must be
equal for the 4 wheels) and screw
back the nuts
Note: Some models may come
with 'E' clips or screws or nuts. The
'E' clips do not require a
screwdriver to adjust the height,
however, with the screws or nuts
it is necessary to have an Allen key
or a screwdriver.
Aston Shower Chair Page 6 of 11
Pot installation
The pot can be installed or removed
using the rails located on the underside
of the seat. Just slide the pot on the
rails. No one should be seated on the
chair when installing or removing the
potty. The pot can be cleaned in an
autoclave or manually without corrosive
product. It should be cleaned after each
use. A new pot can be ordered from
your dealer.
Aston Shower Chair Page 7 of 11
Use of the seat
The seat consists of 2 parts with a removable part for personal hygiene.
It is strongly recommended to remove the removable 'fish-shaped' part
when showering. This part is not suitable to support the entire weight
of the person.
The seat can be unclipped to facilitate cleaning.
Flip-up armrests
The armrests can be lifted to
facilitate transfer. Note: The wheel
brakes must be applied during
transfer.
Installation of the large rear wheels (option)
Large rear wheels (optional) can be ordered to facilitate the
movement of people.
1. Before installing these large wheels, adjust the height of the 4
wheels to your liking.
2. Position the rear wheels so that the brakes on the wheels are at the
front of the chair and apply the brake. This position is important for
the installation of large wheels.
3. Install the 2 supports which will receive the axles of the large wheels. The
small rear wheels will be approximately 3mm from the ground when the
large wheels are installed. (Figure B)
4. The wheels have an axle with quick release pins. Press the pressure
button located at the end of the wheel axle (outer side) and insert
the wheel axle into the brackets attached to the frames until it
clicks. (Figure B) Make sure the wheels are properly seated on the
frame. Repeat with the other wheel.
5. Install the brakes as shown in Figure C. Make sure the brakes are
functioning properly before use.
Aston Shower Chair Page 8 of 11
24 inch wheel quick coupler
To remove or install the 24 inch rear wheels, simply press the
center button of the hub and push in the axle or remove the wheel.
Use of the brakes
Push the brake lever to engage
the brake (Lock) and reverse to
release the wheels (Un-Lock).
Aston Shower Chair Page 9 of 11
Technical informations
Chair Seated
Length
Width
87 cm
56 cm (standard)
Length
Width
43 cm
46 cm (standard)
75 cm (XL) 80 cm (XXL) 55cm (XL) 60cm (XXL)
Height 97-102 cm Height 48-53 cm
Case
62 cm
Seat hole
17 x 27 cm
Armrest
Total weight
70-75 cm
13.4 kg (standard)
15.5 kg (XL) 19kg (XXL)
Max weight
160 kg (standard)
260 kg (XL) 300kg (XXL)
Maintenance
Before each use, the brakes and tires should be tested
The chair should be stored in a dry place and without direct exposure to the sun.
Polyurethane (PU) parts and parts can be cleaned with an aqueous
decontaminant at 80 ° C. It is not recommended to autoclave the
aluminum parts to avoid damaging the paint.
The Aston chair has an estimated lifespan of 6 years, for home
use.
The chair should be overhauled every year completely, with mandatory
lubrication.
