IKA Oven 125 basic dry Bedienungsanleitung

Operating instructions EN

OVEN 125 basic - dry

OVEN 125 basic - dry glass

Fig. 2

Item Designation

1 Mains switch

2 Door handle

3 Device foot

4 Operator Panel and display

5 USB interface and temperature limit

6 Mains socket

7 Venting ﬂap

Device setup/Dangerous parts

Dangerous parts

Device setup

Fig. 1

Source language: German

Contents

Page

Device setup / Dangerous parts��2

EU Declaration of conformity ��4

Explication of warning symbols ��4

Safety instructions��4

Intended use��6

Useful information ��6

Transportation and storage ��7

Unpacking ��7

Installation��7

Operator panel and display ��11

Setting the temperature limit��12

Commissioning ��12

Menu settings��13

Interface and output��16

Maintenance and cleaning ��17

Error codes ��18

Accessories ��18

Warranty ��18

Technical data��19

Indicates an (extreme) hazardous situation, which, if not avoided, will result in death, serious

injury�

Indicates a hazardous situation, which, if not avoided, can result in death, serious injury�

Indicates a potentially hazardous situation, which, if not avoided, can result in injury�

Indicates practices which, if not avoided, can result in equipment damage�

Indicates a hazardous situation that cause from a hot surface!

Indicates crushing risk to fingers/hand�

Explication of warning symbols

CAUTION

WARNING

CAUTION

NOTICE

DANGER

CAUTION

We declare under our sole responsibility that this product corresponds to the regulations 2006/42/EG, 2014/35/EU, 2014/30/

EU and 2011/65/EU and conforms with the standards or other normative documents: EN 61010-1, EN 61010-2-010,

EN 61326-1, EN 60529, EN ISO 12100 and DIN 12880�

A copy of the complete EU Declaration of Conformity can be requested at sales@ika�com�

EU Declaration of conformity

Safety instructions

General information:

•Read the operating instructions completely before

starting up and follow the safety instructions.

•Keep the operating instructions in a place where they can

be accessed by everyone�

•Ensure that only trained staff work with the device�

•Follow the safety instructions, guidelines, occupational

health and safety and accident prevention regulations�

Transport and installation:

CAUTION

•Ensure that your ﬁngers do not get crushed when setting

down the device�

•Beware of the high dead weight of the device when trans-

porting�

•

Insucient ventilation may result in the formation of explo-

sive mixtures� Only use the device in well ventilated areas�

•Disconnect the mains plug before cleaning, maintenance

and transportation of the unit

Device setup:

DANGER

•Do not use the device in explosive atmospheres, it is not

EX-protected�

• To avoid bodily injury and property damage, observe the

relevant safety and accident prevention measures when

processing hazardous materials�

WARNING

•

Please pay attention to the dangerous spots of the device

in Fig� 2�

CAUTION

•

Media may only be processed or heated with this device in

safe operation without monitoring if their ﬂash point lies

above the set working temperature limit� The set working

temperature limit must be at least 25°C below the ﬂash

point of the medium in use (EN 61010-2)�

•

The working temperature limit must be set in such a way

that the maximum permitted temperature is not exceed-

ed� Check the working temperature limit regularly�

CAUTION

•

There is a crushing risk when opening or closing the door�

Keep your hands away from squeezing edges�

•Set up the device in a spacious area on an even, stable,

clean, non-slip, dry and ﬁreproof surface�

•Secure the device with the anti-tilt device to ensure stabil-

ity while loading and unloading shelves and during opera-

tion� Ensure the anti-tilt bracket is properly ﬁxed, in par-

ticular when the device is stacked�

•The feet of the equipment must be clean and undamaged�

Work with the device:

WARNING

•

Do not start up the device if:

- it is damaged

- cable is damaged�

• The device must have cooled down before loading/un-

loading�

•

Do not move any loaded racks�

•

Heavy loads can lead to tilting of the device� Observe

loading recommendations for the shelves�

•

Never use the device for:

- heating food

- drying living beings

- heating room

•

The device has a temperature limiter (TB) class 1 acc�

DIN 12880� This means that in case of a single failure

the device is switched off at 270°C� The temperature

may be higher for a short time in the area of the heater

and on the walls� So beware of risk of ﬁre or explosion

of unsuitable load�

CAUTION

•

The area around the air outlet nozzle can get very hot at

high operating temperatures�

Power supply/Switching off the device:

• The voltage stated on the type plate must correspond to

the mains voltage�

• The device can only be disconnected by pulling out the

mains plug�

• Socket must be earthed�

• The device will automatically restart in mode B and C fol-

lowing any interruption to the power supply�

• Protect the power cable against kinks�

• Check power cables at regular intervals for possible mate-

rial fatigue�

• Power cable should not come into contact with hot parts�

Heating:

CAUTION

• When high operating temperatures are used, the device

may get very hot, particularly at the openings at the back�

• Risk of burns caused by vapour or hot surfaces� Pay atten-

tion to the residual heat after switching off�

Accessories:

NOTICE

• Use the locking brake when using the roller frame or roller

stand�

• Safe operation is only guaranteed with the accessories de-

scribed in the “Accessories” section

• Only use IKA approved accessories!

• Use only original IKA spare parts!

• Check the device and accessories for damage before each

use� Do not use damaged components�

• Protect the device and accessories from blows and im-

pacts�

Maintenance:

• The device must only be opened by trained specialists,

even during repair� The device must be unplugged from

the power supply before opening� Live parts inside the de-

vice may still be live for some time after unplugging from

the power supply�

Disposal instructions:

• The device, accessories and packaging must be disposed of

in accordance with local and national regulations�

Intended use

Use:

The OVEN 125 basic - dry / OVEN 125 basic - dry glass

is a drying oven for a wide range of heating, drying and heat-

ing application�

The device may only be used for heating up non-explosive

and non-ﬂammable substances and objects� Do not process

substances or objects that might cause explosive vapor�

Range of use:

Indoor environments similar to that a laboratory of research,

teaching, trade or industry�

The safety of you cannot be guaranteed:

- If the device is operated with accessories that are not sup-

plied or recommended by IKA�

- If the device is operated improperly or in contrary to the

IKA speciﬁcations�

- If the device or the printed circuit board are modiﬁed by

third parties�

Useful information

Calibration and adjustment:

This menu shows how offset values can be entered after the respective temperatures are approached and with an external

measuring device cross-checked (calibrated)�

[C]

300

250

200

150

100

3-point calibration and offset

factory calibration

CAL 1

-5K

CAL 3

+5K

CAL 2

+7K resulting offset graph

offset < 10 K

deviation between offset points > 30 K

Individual load and ambient condition might inﬂuent the temperature behaviour of the chamber� To compensate that inﬂu-

ence there’s the option to neutralize by using the 3-point calibration and offset function� This function allows the tempera-

ture to be calibrated and adjusted at three different temperature values�

Use a calibrated reference measuring device in case of adjustment�

The operation can be done at a single, or up to three temperature levels:

CAL 1: Temperature calibration and adjustment at low value of temperature�

CAL 2: Temperature calibration and adjustment at medium value of temperature�

CAL 3: Temperature calibration and adjustment at high value of temperature�

Temperature control detection:

During operating, accidental door openings could cause an unexpected temperature drop and activate the “door”

message and also an alarm tone sounds�

Switch off the display message and stop the alarm sound by pressing any key�

Note: The alarm and key tone can be deactivated at the menu settings�

Moving the device:

When transporting the device

do not use the door handle�

This may damage the device�

The device can be moved:

- with optional accessory (roll stand)�

- on a pallet (transport straps)�

- by hands (4 persons at least)�

Installation

Transportation and storage

Transport the device only by quali-

ﬁed persons with suitable handling

facilities, such as pallet truck and

fork truck!

The device must be protected against mechanical impact,

vibrations, dust deposits and corrosive ambient air during

transportation and storage� It is also important to ensure

that the relative humidity does not exceed 80 %�

The device must be completely emptied before transporta-

tion and storage�

Unpacking

Unpacking:

- Please unpack the device carefully�

- In the case of any damage a detailed report must be

sent immediately (post, rail or forwarder)�

Delivery scope:

OVEN

125 basic - dry or

OVEN

125 basic - dry glass

- 2 shelves

- Screwdriver (for adjustment of temperature limit)

- Tilt protection

- Power cord set

- USB cable

- User guide

- Calibrating certiﬁcation

- Warranty card

- with pallet truck� - by hands / unaided (4 persons)�

The device can be transported:

NOTICE

Setting up:

Fixation against the wall is compulsory!

- Place the device on and even, clean, dry and ﬁreproof surface in well-ventilated environment�

- Keep sucient distance to radiators and other heat sources�

- Keep at least 150 mm between walls and the device�

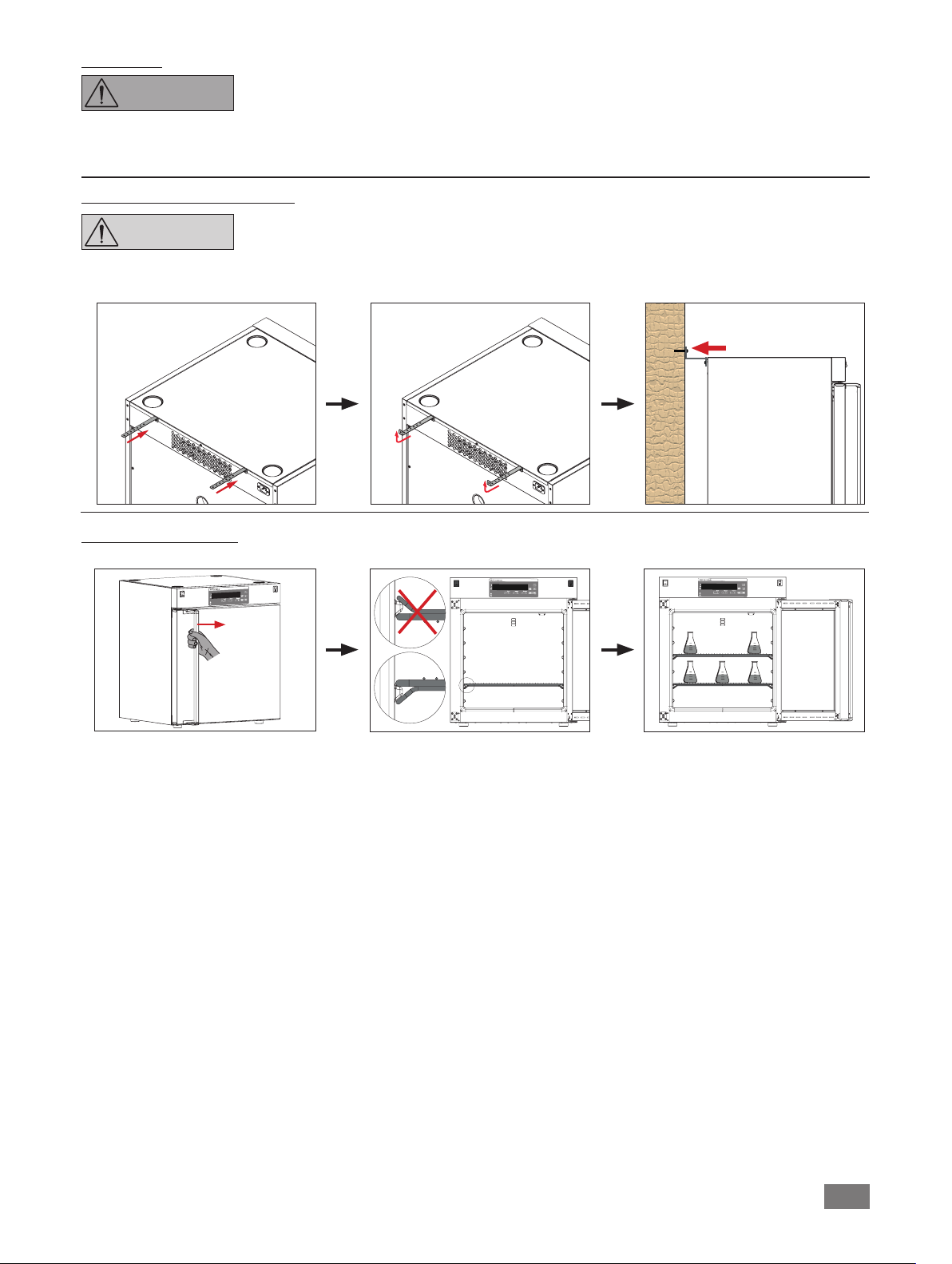

Fixing the device to the wall:

The screws used for ﬁxing is selected according to the wall conditions and is not included�

As indicated in following ﬁgures, attach the device to a wall with the tilt protections included with the device�

Fasten the tilt protections to the rear side of the device�

Inserting the shelves:

- Open the door� - Insert the shelves� - Load shelves evenly�

WARNING

NOTICE

Note: Keep distance between

samples and hot inner surface�

Temperature of the inner wall

may be much higher than set

temperature!

Stacking the device:

Never stack more than two devices�

When stacking the device, four persons are required to lift it�

In order to keep enough space, please use stacking adapter recommend by IKA�

< 150 mm > 150 mm

Stacking

adapter

NOTICE

Changing the door opening direction:

When changing the door opening direction, two persons are required due to the heavy

(about 15 kg) of the door.

Open the door�

Hold the door and loosen the hinge pin with a suitable tool�

Remove the door carefully�

Alternate the position of the keepers and hinges with 4 mm hexagonal wrench�

Reverse and assemble the door� Make sure that the pin is in the correct position during assembling the door�













WARNING

Andere Handbücher für Oven 125 basic dry

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere IKA Laborausrüstung Handbücher

IKA

IKA colorsquid Bedienungsanleitung

IKA

IKA RCT basic safety control Bedienungsanleitung

IKA

IKA Roller 6 digital Bedienungsanleitung

IKA

IKA HB ECO Bedienungsanleitung

IKA

IKA ULTRA-TURRAX Tube Drive P control Bedienungsanleitung

IKA

IKA T25 easy clean digital Bedienungsanleitung

IKA

IKA ULTRA-TURRAX T 18 digital Bedienungsanleitung

IKA

IKA ULTRA-TURRAZ UTL 1000/10 Bedienungsanleitung

IKA

IKA ULTRA-TURRAX T 65 basic Bedienungsanleitung

IKA

IKA HS/KS 260 control Bedienungsanleitung

IKA

IKA 20015943 Bedienungsanleitung

IKA

IKA ULTRA-TURRAX T 18 basic Bedienungsanleitung

IKA

IKA C 5030 Bedienungsanleitung

IKA

IKA MICROSTAR digital Bedienungsanleitung

IKA

IKA C 200 Bedienungsanleitung

IKA

IKA RC 2 GREEN control Bedienungsanleitung

IKA

IKA REO basic C Bedienungsanleitung

IKA

IKA MATRIX Orbital Delta F0.5 Bedienungsanleitung

IKA

IKA KMO 3 basic Bedienungsanleitung

IKA

IKA HG 600 Handbuch

IKA

IKA KS 130 basic Bedienungsanleitung

IKA

IKA IKAMAG Maxi MR 1 Bedienungsanleitung

IKA

IKA A10 basic Bedienungsanleitung

IKA

IKA G-L Bedienungsanleitung

Beliebte Laborausrüstung Handbücher anderer Marken

Qiagen

Qiagen DML 3000 Bedienungsanleitung

Queensgate

Queensgate NANOSCAN OP400 Programmierhandbuch

Conviron

Conviron GEN1000-GE Bedienungsanleitung

Parr Instrument

Parr Instrument 4560 Bedienungsanleitung

Integra

Integra DOSE IT Bedienungsanleitung

Agilent Technologies

Agilent Technologies 5800 ICP-OES Bedienungsanleitung

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Bedienungsanleitung

NI PXI-5422 Handbuch

Collomix

Collomix Aqix Bedienungsanleitung

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Bedienungsanleitung

Ocean Insight

Ocean Insight FLAME-NIR+ Bedienungsanleitung

Parker

Parker ALIGN-MG-NA Bedienungsanleitung

BD 644787 Bedienungsanleitung

DENTAURUM

DENTAURUM Compact Megaplus Bedienungsanleitung

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Bedienungsanleitung

VWR

VWR SAS Super IAQ Bedienungsanleitung

illumina

illumina MiSeqDx Bedienungsanleitung

Yamato

Yamato BM510 Bedienungsanleitung
