Ikan PT3500-HB-TK Bedienungsanleitung

PT3500-HB-TK

Quick Start Guide

15” High Bright Beam Splitter Teleprompter & Hard Case

What’s Included

1 x Teleprompter Base Assembly w/ Glass

1 x PT-CASE Rolling Hard Case

1 x Camera Mount Assembly

1 x Hood

1 x High Bright LCD Monitor w Power Supply

2 x 200mm Riser Rods

1 x PrompterPro 4 Software

1 x 5/32 Hex Key

2 x DRS-01

4 x Cork Strips

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

Assembly Steps

Step 1

Place teleprompter base assembly on a ﬂat surface.

Step 2

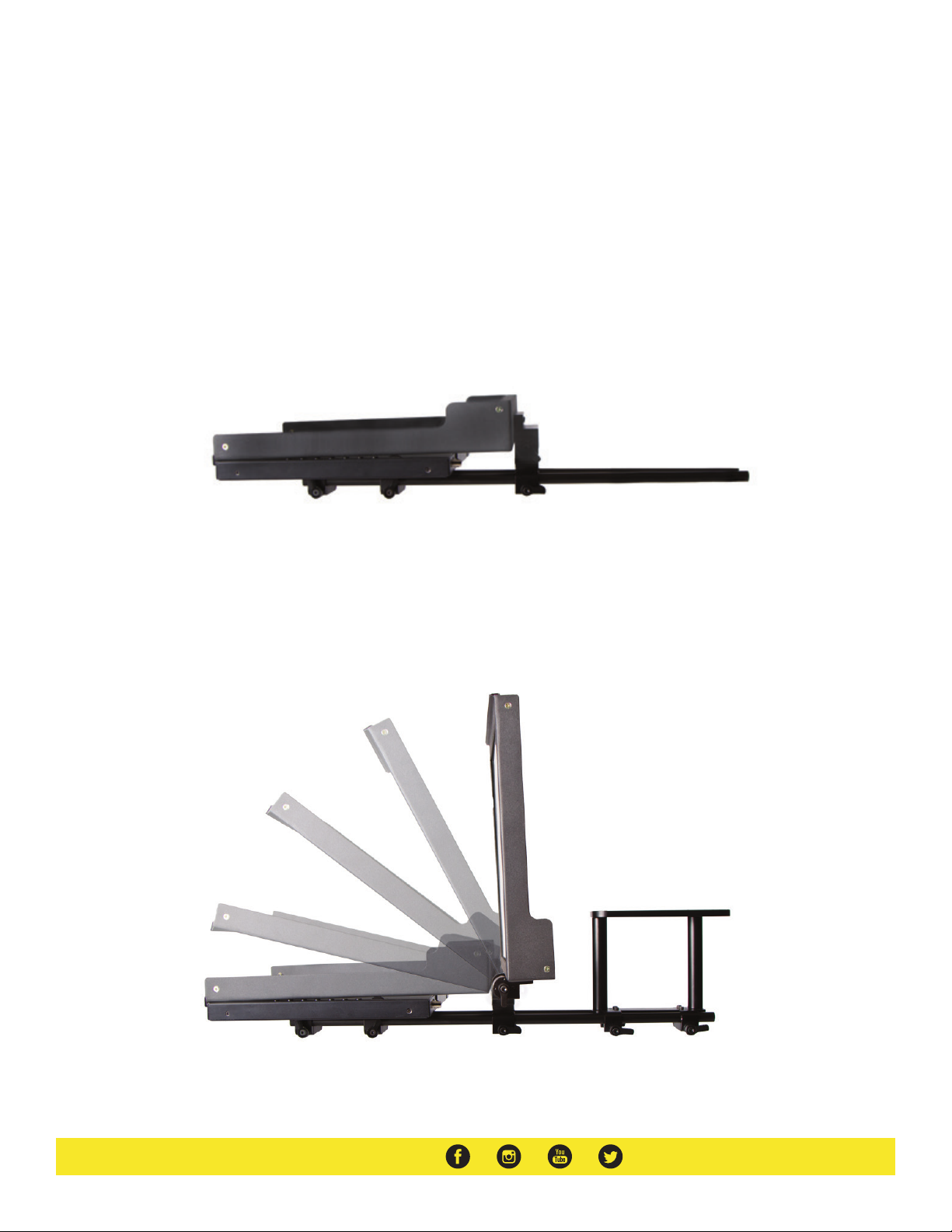

It is recommended to level the glass at a 45˚ angle, however you can position the glass at any angle that suits your needs.

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

Step 3

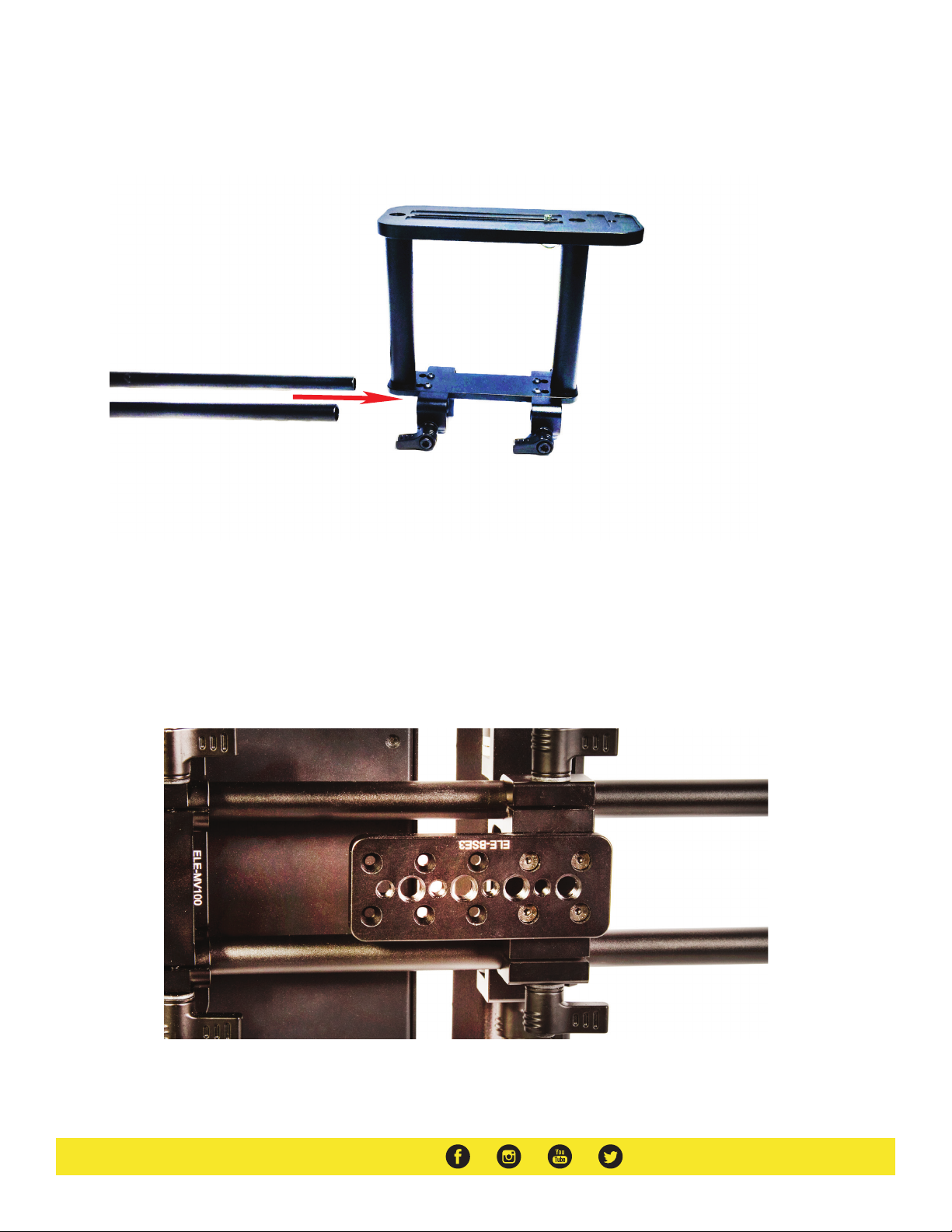

Slide the camera mount assembly onto the 15mm rods.

The tripod mount has 3 sets of holes that allow you to mount the plate either towards the front or rear to help balance the teleprompter better.

For larger cameras it is recommended to have the plate toward the rear.

For smaller cameras it is recommended to have the place toward the front.

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

Step 4

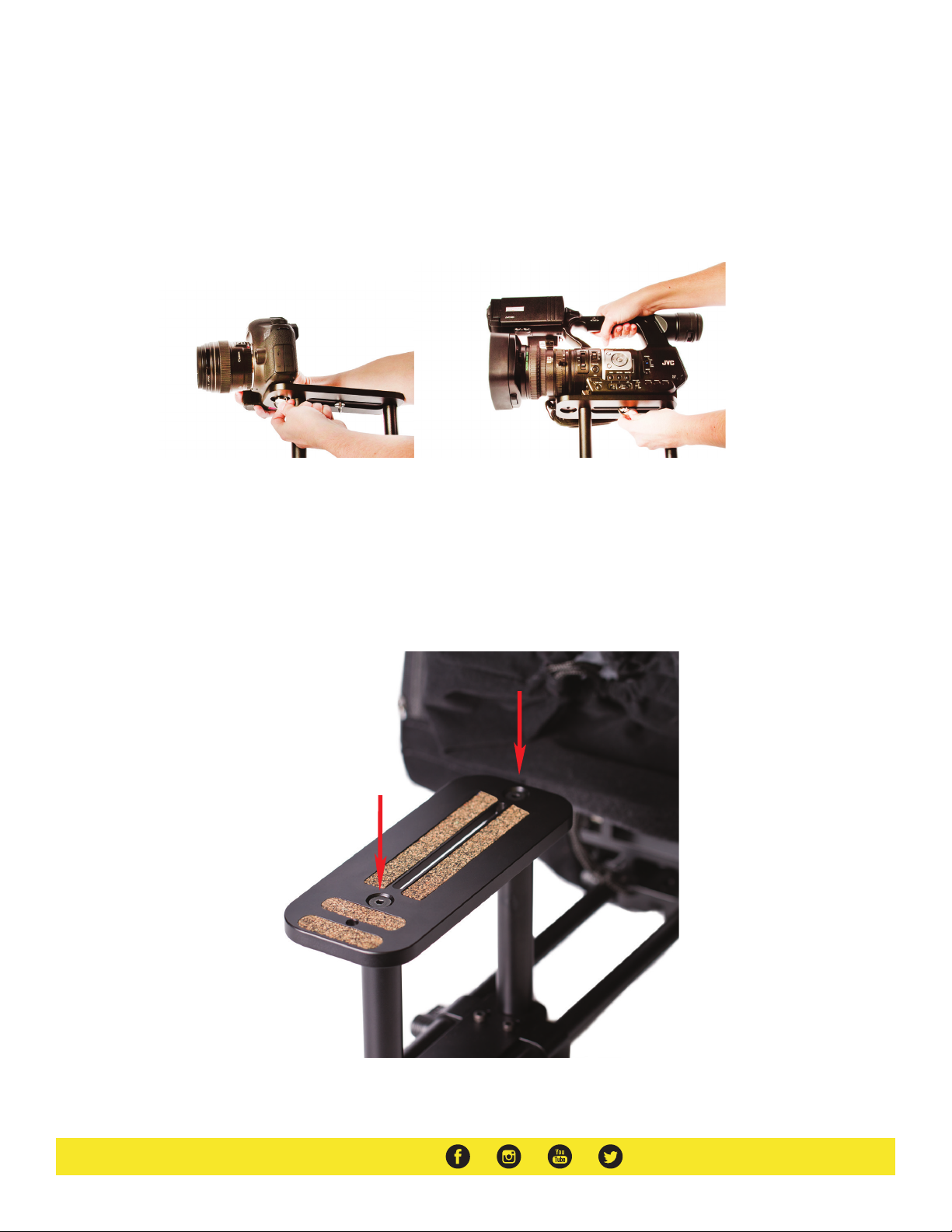

Attach the camera to the mount. Slide the camera mount to the preferred position and secure all thumb screws.

If the camera is required to be positioned higher, you can replace the pre-installed 130mm rods with the 200mm riser rods.

Use the included 5/32” hex key to remove and attach the rods.

DSLR Camcorder

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

Step 5

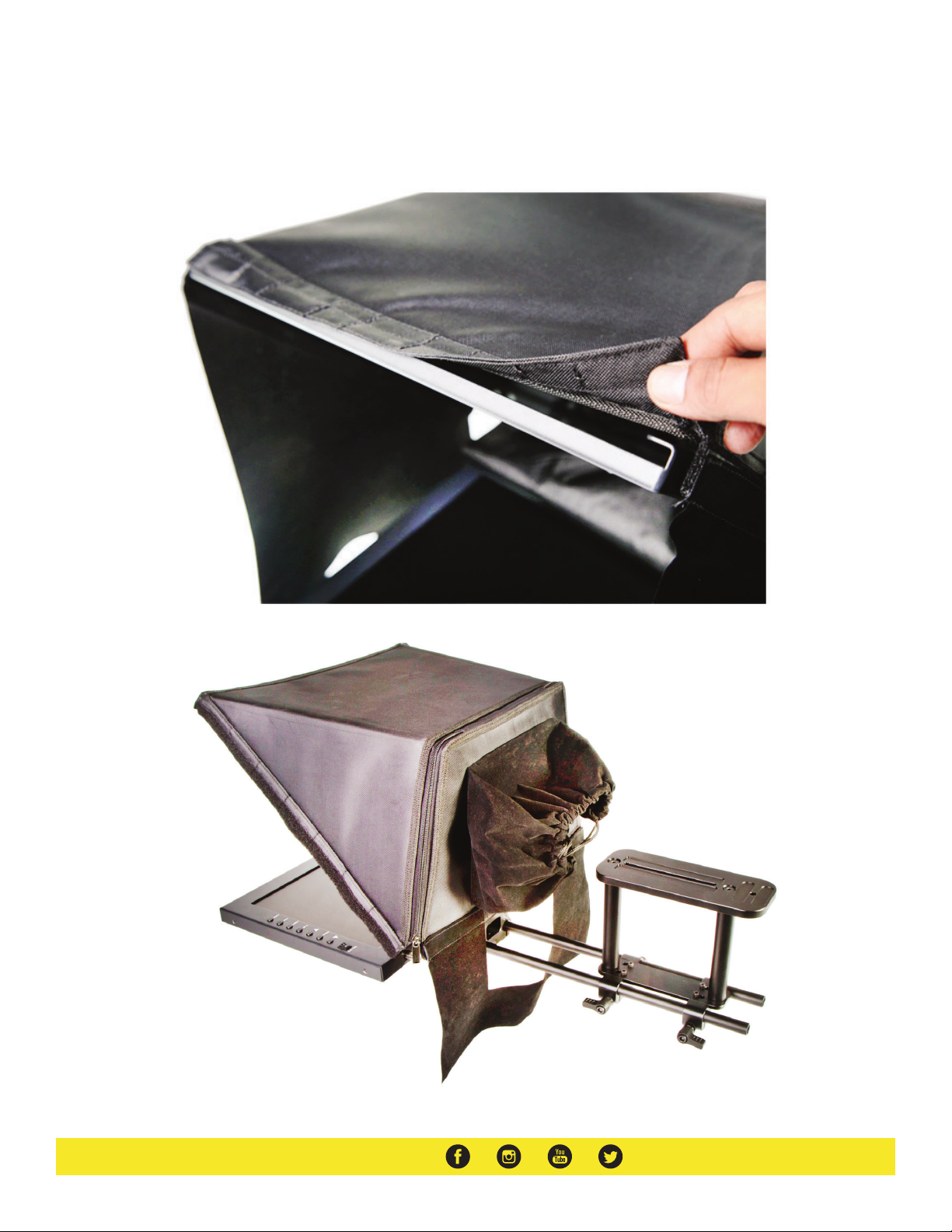

The hood uses magnets to attach to the aluminum frame instead of velcro, making for a quick and reliable attachment/detachment every time.

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

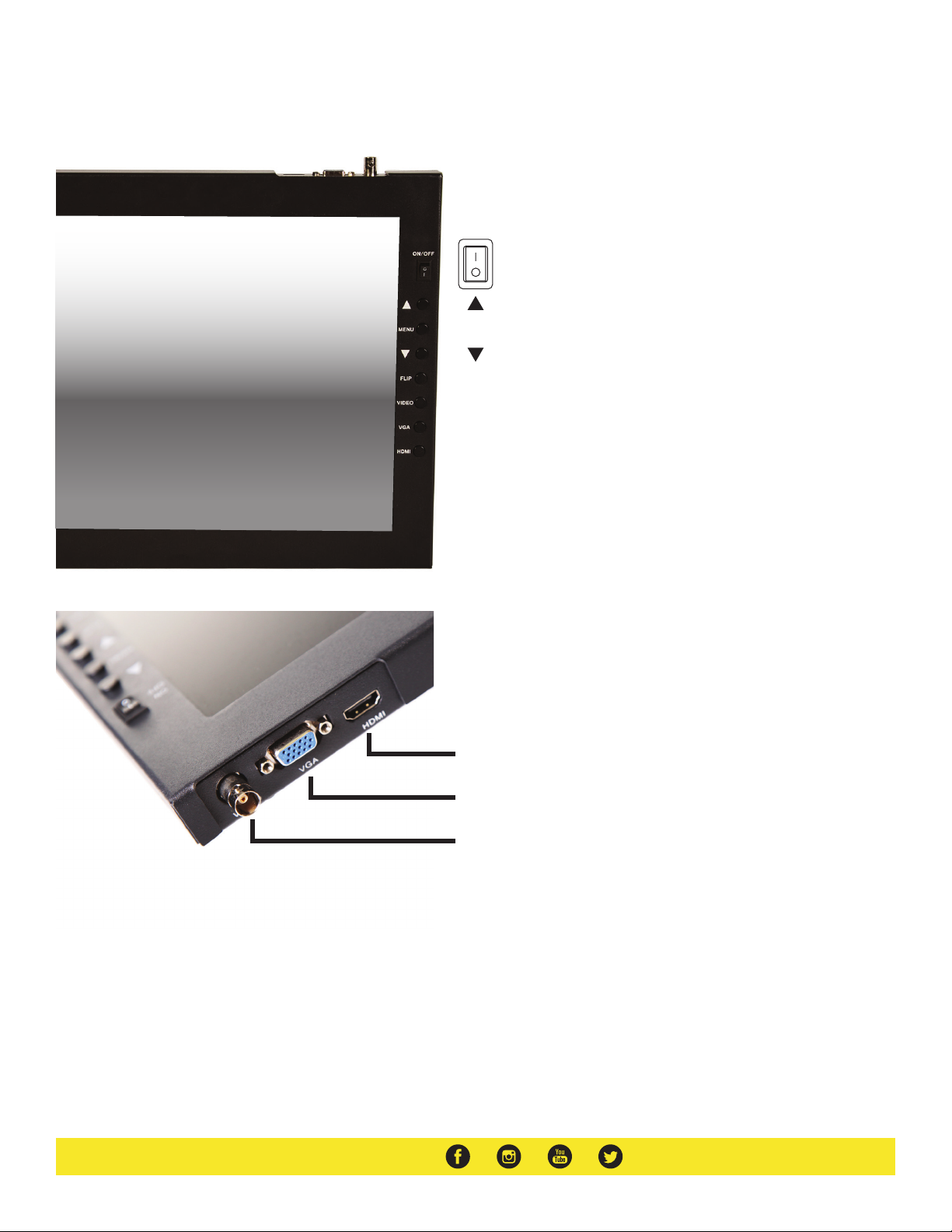

Button Conﬁguration & Signal Inputs

Power Switch

I = On = Off

Toggle up to adjust settings

Toggle down to adjust settings

Flip image horizontally

High-Deﬁnition Multimedia Interface

Input Connection

Video Graphics Array

DE15 Connection

Composite

BNC Input Connection

Acess monitor settings: Brightness, Contrast, etc.

FLIP

HDMI

VGA

VIDEO

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

** DO NOT THROW AWAY FOAM CASE **

Foam Case

To make your teleprompter more portable, we packed it in a reusable, high-quality foam.

The shape and size of the foam was designed to ﬁt into Ikan’s PT-CASE which is included in this Travel Kit.

Glass Removal

Glass can be removed from the frame by removing the two Phillips head screws.

Removal is only recommended for replacement or cleaning purposes.

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

Speciﬁcations

PT3500-HB-TK

Optional Accessories

PT3100-G Replacement Glass for PT3500

Aspect Ratio 4:3

Brightness 1000 cd/m2

Build Material Aluminum / Steel

Contrast Ratio 500:1

Diagonal 15”

Input Signal Composite BNC, VGA, HDMI

Input Voltage DC 12v / 4A

Operating Volts DC 12v / 4A

Power Consumption 10 w

Reading Range 20’

Resolution 1920 x 1080

Supported Video Signals 0-65 C

Viewing Angle 160° (H) / 140° (V)

Shipping Weight 42 lb

Shipping Dimensions 4.1” x 24.6” x 20”

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too

Learn More

More dynamic information at ofﬁcial website: www.ikancorp.com

Support

Contact email: [email protected]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.

• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.

• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.

www.ikancorp.com | 1.713.272.8822 | [email protected] because we’re ﬁlmmakers too
