Impex MD-867W Bedienungsanleitung

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

MD-867W

Retain This

Manual for

Reference

130522

OWNER'S

MANUAL

MARCY DIAMOND ELITE

OLYMPIC BENCH

MD-867W

IMPEX®INC.

2801 S. TOWNE AVE., POMONA, CA 91766

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN....................................................................................……….. 1

IMPORTANT SAFETY NOTICES...................................................................……….. 2

HARDWARE PACK……….....….....................................................................……….. 4

ASSEMBLY INSTRUCTIONS.........................................................................……….. 6

EXPLODED DIAGRAM…………………………………………………………………….. 11

PARTS LIST………….………….......................................................................………. 12

WARRANTY.................................................................................................…………. 13

ORDERING PARTS.......................................................................................………… 13

BEFORE YOU BEGIN

Thank you for selecting the Marcy Diamond Elite MD-867W BENCH by

IMPEX®INC. For your safety and benefit, read this manual carefully before

using the machine. As a manufacturer, we are committed to provide you

complete customer satisfaction. If you have any questions, or find there are

missing or damaged parts, we guarantee you complete satisfaction

through direct assistance from our factory. To avoid unnecessary delays,

please call our TOLL-FREE customer service number. Our Customer

Service Agents will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. – Fri. 9 a.m. – 5 p.m. PST

www.impex-fitness.com

info@impex-fitness.com

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

CARE AND MAINTENANCE

1. Inspect and tighten all parts before using the machine.

2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.

DO NOT use solvents.

3. Maximum on Bar Catch: 300 lbs

4. Maximum weight on Leg Developer: 100 lbs

5. Maximum user weights: 300 lbs

4. Maximum weight capacity 600 lbs (include user’s weight).

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE

AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ

ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

WARNING LABEL PLACEMENT

The Warning Label shown here has been placed on the Cross Brace. If the label is missing or illegible,

please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown

HARDWARE PACK

NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

HARDWARE PACK

ASSEMBLY INSTRUCTION

Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen

Wrenches.

NOTE: It is strongly recommended that two or more people assemble this machine to

avoid possible injury.

STEP 1 (See Diagram 1)

A.) Do not tighten all nuts and bolts until instructed to do so.

B.) Attach the Left Diagonal Support (#8) to the Left Upright Beam (#1) from rear. Attach the

Cross Brace (#5) to the Left Upright Beam from the other side. Secure them together with four

M10 x 3 ¾”Carriage Bolts (#46), four Ø ¾” Washers (#55), and four M10 Aircraft Nuts (#58).

Repeat the same step to install the other side of Cross Brace, Right Diagonal Support (#9),

and Right Upright Beam (#2) together.

C.)Place the Backrest Adjustment Bar (#6) onto the selected slot on the Upright Beams to obtain

the desired Backrest incline. DIAGRAM 1

STEP 2 (See Diagram 2)

A.) Do not tighten Nuts and Bolts until instructed to do so.

B.) Attach the Main Seat Support (#4) to the Cross Brace (#5). Secure it with four M10 x 2 3/8”

Carriage Bolts (#49), one 5 ½” x 3” Bracket (#21), four Ø ¾” Washers (#55), and four M10

Aircraft Nuts (#58).

C.)Slide the Sliding Block (#14) onto the Main Seat Support. Use a M18 Lock Knob (#39) to

lock the Sliding Block in position.

D.)Attach the Front Post (#3) to the Main Seat Support. Secure it with one M10 x 4” Carriage

Bolt (#47), one Ø ¾” Washer (#55), and one M10 Aircraft Nut (#58) from side. Secure it

with two M10 x 2 1/8” Carriage Bolts (#48), two Ø ¾” Washers (#55), and two M10 Aircraft

Nuts (#58) from top.

E.) Attach two Squat Bar Catches (#7), two Safety Catches (#15) and two Bar Holders (#16) to

Left and Right Upright Beam (#1 & #2).

F.) Attach two Olympic Sleeves (#26) to the weight post on Left and Right Diagonal Support

(#8 & #9).

G.)Securely tighten all Nuts and Bolts installed in Step-1 and Step-2. DIAGRM 2

STEP 3 (See Diagram 3)

A.) Attach the Seat Incline Support (#18) to the opening on Seat Bracket (#17). Secure it with

one M10 x 5” Allen Bolt (#51), two Ø ¾” Washers (#55), and one M10 Aircraft Nut (#58).

Do not tighten the Nut and Bolt yet.

B.) Attach the Seat Bracket to the pivot on the Sliding Block (#14). Attach the two Backrest

Supports (#19) to the Seat Bracket from each side. Secure them together with One M12

x 7 1/8” Hex Bolt (#50), two Ø 1” Washers (#57), and one M12 aircraft Nut (#33).

C.) Attach the Backrest Board (#22) to the Backrest Supports. Secure it with four M8 x 1 5/8”

Allen Bolts (#54) and four Ø 5/8” Washers (#56).

D.) Attach the Seat Pad (#23) to Seat Bracket. Secure it with four M8 x 1 5/8” Allen Bolts

(#54) and four Ø 5/8” Washers (#56).

E.) Securely tighten Nut and Bolt installed in A & B. DIAGRAM 3

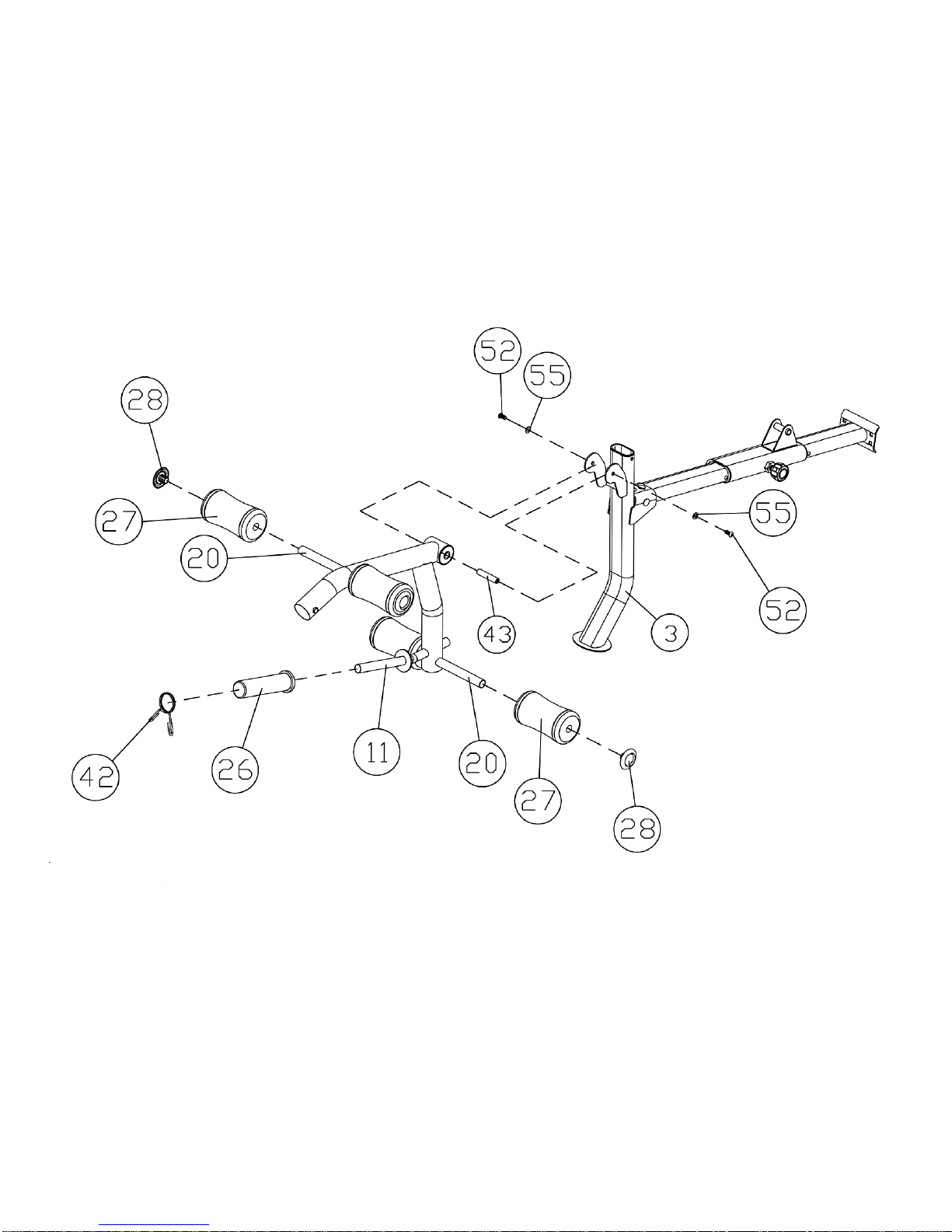

STEP 4 (See Diagram 4)

A.) Attach the Leg Developer (#11) to the Front Post (#3). Secure it with an Axle (#43), two

M10 x 3/4” Allen Bolts (#52) and two ∅¾” Washers (#55).

B.) Insert two Foam Tubes (#20) halfway through the holes on the Leg Developer. Push four

Foam Rolls (#27) onto the Tubes from both ends. Plug four Foam Roll End Caps (#28)

into the ends.

C.)Slide an Olympic Sleeve (#26) onto the weight post on the Leg Developer. Attach a Spring

Clip (#42) to the Sleeve. DIAGRAM 4
