Infinova V3061 Series Montageanleitung

V3061 Series

Embedded Network Digital Video Recorder

Installation/Operation Instructions

This manual is applicable for the installation and operation of Infinova V3061 series Embedded

Network Digital Video Recorders.

V3061 series DVR employs high performance power PC hardware structure, embedded Linux system

and dual 1000M network port design to provide an excellent digital product for surveillance industry.

This series DVR supports up to 16-ch video recording at D1 resolution, which can meet the demand of

any surveillance system.

Notice

This manual may not be reproduced in any form or by any means to create any derivative such as translation, transformation, or adaptation

without the prior written permission of Infinova.

Infinova reserves the right to change this manual and the specifications without prior notice. The most recent product specifications and

user documentation for all Infinova products are available on our website www.infinova.com

Trademarks

Infinova

®is a trademark of Infinova.

All other trademarks that may appear belong to their respective proprietors.

FCC Warning

V3061 series Network Digital Video Recorders all comply with Part 15 of the FCC rules.

Operation is subject to the following two conditions.

yThis device may not cause harmful interference.

yThis device must accept any interference received, including interference that may cause undesired operation.

V3061 series Network Digital Video Recorders have been tested and found to comply with the limits for Class A digital device, pursuant to

Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is

operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation.

Read this manual carefully before installation. This manual should be saved for future use.

Important Safety Instructions and Warnings

zElectronic devices must be kept away from water, fire or high magnetic radiation.

zClean with a dry cloth.

zProvide adequate ventilation.

zUnplug the power supply when the device is not to be used for an extended period of time.

zOnly use components and parts recommended by manufacturer.

zPosition power source and related wires to assure they will be kept away from ground and access way.

zRefer all service matters to qualified personnel.

zSave product packaging to ensure availability of proper shipping containers for future transportation.

Indicates that the un-insulated components within the product may carry a voltage harmful to humans.

Indicates operations that should be conducted in strict compliance with instructions and guidelines contained in this manual.

Warning: To avoid risk of fire and electric shock, keep indoor products away from rain and moisture!

Related Documentations

y<V3082 Series Client Software for Embedded DVR Manual>

y<V3061 Series Embedded DVR Quick Operation Guide>

y<V3061 Series Embedded DVR Quick Installation Manual>

Install Environment and Notes

Install Environment

zWorking temperature of DVR: -10ć50ćˈstorage temperature -20ć70ć.

zDVR should be placed flatly during installation or operation, avoid slantways or inversed placement.

zAvoid placement and installation in high temperature and high humidity.

zFor better heat-radiation, cooling fan is designed inside the DVR. Further, install the device in the place with good ventilation and

dust-free condition.

zTo ensure a better heat-radiation, the distance between the DVR back panel and the other DVR or the wall should be more than 6CM.

zDo not move DVR in the place with sharp temperature contrast to avoid condensation inside the device which will shorten the lifespan

of the machine.

zInstall the thunder protection devices for the DVR applied in thundery areas to prevent the thunder-caused hardware damages.

zDVR should be for indoor use only.

Notes

zDon't touch the power button or DVR with wet hands or wet stuff.

zAfter the installation, to avoid the interference of the video/audio signals and the damages caused by the static electricity, please make

sure that DVR and the housing are well grounded (refer to the grounding interface on the rear panel).

zMake sure that the voltage of the power supply is stable. Do not close the DVR directly by turning off the general switch. It's

recommended to use the DVR in conjunction with an UPS.

zAvoid splashing down the liquid or metal on DVR, which may cause short circuit even fire inside DVR.

zInstall the harddisk correctly before use, or else, you can't make any record operation.

zThe dust of the mainboard may cause short circuit after being damped, therefore, to maintain a long life usage of the device, please clean

the mainboard, inserts, housing and cooling fan regularly.

zTry not to apply TV set at the local video output interface (VIDEO OUT), otherwise, the output circuit of the DVR (VIDEO OUT) is apt

to damages.

zWhen shut down the DVR, do not turn off the power switch directly. Please firstly close the current recording, then complete the

software shut down via menu, and at last close the power switch on the rear panel. In this way, the possible hardware damages are

avoided.

zDVR is able to auto-check the harddisk, when a new harddisk without formatting or a nonsupport file system of the harddisk, system

will alarm to user, the record could be taken only after the harddisk is formatted. If the harddisk has been used before and meanwhile it

has subareas record, please delete the subareas on PC first, and then format the harddisk in DVR. Otherwise, the normal record will be

influenced.

zDo not conduct the hardware hot-swapping operation with electricity. (Except the hardware supporting hot-swapping)

zChange the damaged harddisk to insure the integrality of the record data(The information of the harddisk error is in the log)

zIt's better to use the recommended HDDs only. Please visit below link for the list of the HDDs recommended by Infinova:

http://www.infinova.com/admin/product/PDF/ListofRecommendedDVRBackupDevices.pdf.

Table of Contents

Chapter 1 System Overview..........................................................1

1.1 Product Description...............................................................1

1.2 Front Panel Introduction........................................................2

1.3 Remote Controller Introduction ............................................4

Chapter 2 Installation and Connection ........................................6

2.1 Counter-check Device and Accessories.................................6

2.2 Install Hard Disk ...................................................................6

2.3 Rear Panel Introduction.........................................................7

2.4 Alarm Input/output Connection Method Introduction...........8

2.5 Ethernet connection cable making method............................9

2.6 RS-232 connection cable making method.............................9

2.7 Install writer........................................................................10

Chapter 3 System Menu Introduction........................................ 11

3.1 Menu operation ...................................................................11

3.1.1 Cursor switching..........................................................11

3.1.2 Option box...................................................................11

3.1.3 List box........................................................................12

3.1.4 Editing box ..................................................................12

3.1.5 Buttons ........................................................................12

3.1.6 Input method................................................................12

3.2 Menu structure ....................................................................13

Chapter 4 Main Functions Introduction....................................14

4.1 Turn on DVR.......................................................................14

4.2 User login and Authority.....................................................14

4.2.1 User login ....................................................................14

4.2.2 User Authority .............................................................15

4.3 Preview ...............................................................................15

4.3.1 Switch preview modes.................................................15

4.3.2 Preview setting ............................................................15

4.4 PTZ control .........................................................................15

4.4.1 PTZ parameters setting................................................16

4.4.2 PTZ direction control ..................................................16

4.4.3 Set and call preset........................................................16

4.4.4 Set and call pattern ......................................................16

4.5 Alarm ..................................................................................17

4.5.1 Channel Alarm.............................................................17

4.5.2 Alarm input..................................................................19

4.5.3 Abnormity alarm..........................................................19

4.6 Alarm management .............................................................19

4.7 Recording............................................................................20

4.7.1 Manual recording ........................................................20

4.7.2 Scheduled recording....................................................20

4.7.3 Alarm recording...........................................................21

4.8 Playback..............................................................................21

4.9 Power off.............................................................................23

Chapter 5 Other Settings ............................................................24

5.1 Preview settings ..................................................................24

5.2 Network settings .................................................................25

5.3 Serial port settings...............................................................26

5.4 User management................................................................27

5.5 System settings....................................................................28

5.5.1 Display settings ...........................................................28

5.5.2 Time settings ...............................................................29

5.5.3 Log management .........................................................29

5.5.4 Hard disk management................................................29

5.5.5 Data backup.................................................................29

5.5.6 Advanced settings........................................................30

5.5.7 General Channel Settings ............................................30

5.5.8 Bi-directional Audio Talk-back ...................................31

Chapter 1 System Overview

1.1 Product Description

Infinova's V3061 series new-generation network digital video

recorder is integrated multiple advanced IT technologies and

manufactured under strict quality control system. The DVR

supports H.264 encoding at 4CIF (D1) resolution which meets the

demand of high level surveillance system.

The V3061 series supports a maximum of 16-ch local video inputs

and 16-ch audio inputs. Each video channel supports H.264 dual

stream compression with 4CIF resolution at major stream. The

recorder supports USB2.0 high speed backup as well as mouse and

keyboard operation. It also supports composite streams and video

stream encoding. Audio and video is synchronized in composite

streams encoding. The DVR also supports maximum 32-ch video

parallel connection.

V3061 series DVR can not only work independently in a local site,

but also build a powerful security surveillance network. This series

has been widely used in finance, public security, military, telecom,

traffic, power station, education and water project.

Features

yEmploy high performance Power PC structure and embedded

Linux operation system

yPAL/NTSC video format supported

yH.264 video compression

yG.711 audio compression

yEach channel supports dual streams, maximum 4CIF (D1) at

major stream and CIF at minor stream

yVideo encoding parameters for each channel are independent

and adjustable

y1-ch VGA and 2-ch BNC outputs

yVGA resolution: 1280 × 1024

yThe 8-ch device supports 1/4/8-screen viewing, while the

16-ch supports 1/4/9/16-screen viewing. The sequence of the

channels is adjustable

ySupport live view group switch, manual switch and automatic

cycle, the interval of automatic cycle can be adjusted

ySupport playback zoom in electronically

yDesignated channel can be shielded

ySupport motion detection, video loss, video mask detection

and video privacy mask

yCompatible with multiple control protocols of leading

encoders, support preset and pattern

ySupport zoom-in function by mouse operation when control

Infinova second generation domes

y8 SATA hard disks supported, maximum 2TB for each hard

disk

yHard disk standby and formatting

yThe exported file formats are compatible with Windows. Hard

disk space pre-allocation technology is adopted to avoid disk

patch

yRecording activation mode including manual, scheduled,

alarm, motion detection

ySwitching value alarm/motion detection pre-record and

post-record functionality

yRecording time section, and recording activation mode can be

varied for each time section

ySearch recording file via time, channel number and recording

type; forward and backward play modes are available

ySupport playback on two monitors

yBackup via USB port

yInbuilt SATA writer is optional

y16-ch alarm inputs and 4-ch alarm outputs

ySupport video loss, motion detection and video mask alarm

yProvide various abnormity hand modes, support hard disk full,

hard disk error, network disconnection, unauthorized access

and network conflict alarm

yAudible warning, upload to control center, activate alarm

output once upon alarm

ySelf-recovery when system run abnormally

ySupport operations via front panel keys, mouse, remote

controller and keyboards

yTwo levels of priority management

ySupport password authentication logon

yLog and search function

yLocal storage

ySupport SNMP

yTwo access modes: Local and network

yLocal or remote control Pan/Tilt or dome

y2*10M/100M/1000M self-adaptive network port

yBuilt in TCP/IP, UDP, PPPoE, DHCP, etc network protocols,

support ADSL (PPPoE) dialing

ySupport remote search, recording, transmission and live

monitoring can be performed simultaneously while search

ySupport intercom

yPerform almost all functions via client software, including live

view the video of any channel, view device status, set system

parameters, PTZ control, remote search of recording file,

playback and download, system upgrade, reboot and shutdown

yUpdate software through USB

yPower off protection, self-recovery while powering on

1.2 Front Panel Introduction

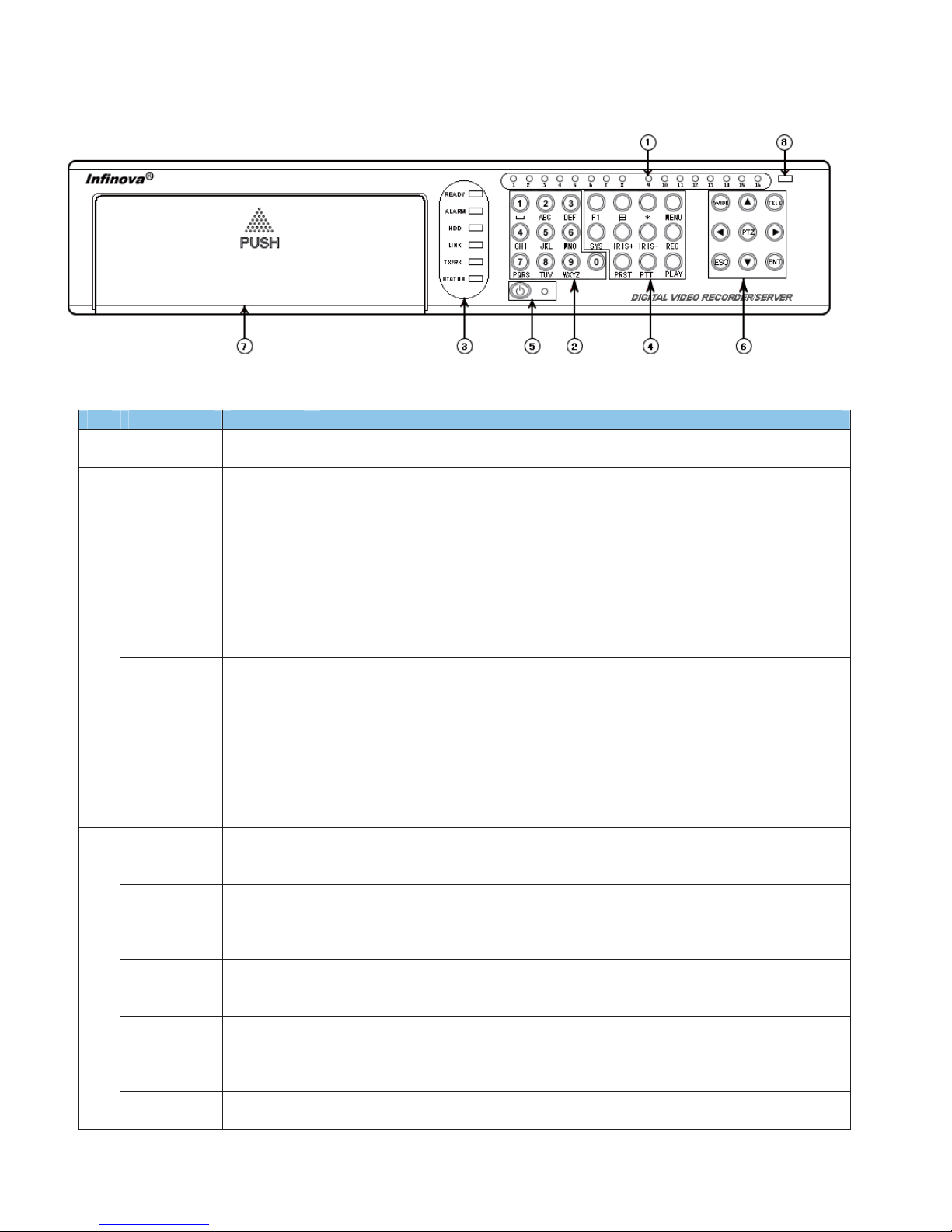

Figure 1-1 Front panel

No. Name Type Description

1 1-16 Status

indicator

Channel 1-16 status indication, "Green" indicates recording is ongoing, "red" indicates net

transfer is ongoing, "orange" indicates both recording and net transfer are ongoing

2 Number key

Ǐ0~9ǐInput key

(1) Input message, including numerals, capital & small English letters and symbols etc.

(2) Switch channel in preview and PTZ control status. Input Ǐ0ǐǏ1ǐto switch to channel

1, input the number directly to switch to the rest channels

(3) Call up presets when combine with ǏPRSTǐkey in PTZ control status

READY Status

indicator Green: DVR is ready to work.

ALARM Status

indicator Red: Alarm occurring; Off: No alarm

HDD Status

indicator Red flickering: hard disk is running.

LINK Status

indicator

Green: 10M/100M/1000M network is connecting. Network linking status (Whether LINK

indicator works normally or not depends on connection between HUB and DVR. When

network bandwidth is 10M, 100M or 1000M, the LINK indicator is on)

TX/RX Status

indicator Orange flickering: transmitting/receiving data

STATUS Status

indicator

Green: DVR is being controlled by remote controller;

Red: DVR is in PTZ control status;

Orange: DVR is in PTZ control status and is being controlled by remote controller;

Off: Neither the DVR is in PTZ control status nor being controlled by remote controller

ǏMENUǐFunction

key

(1) Switch from preview interface to search interface;

(2) Turn on/off operation sound by pressing at least 3 seconds;

(3) Turn on/off rainwater remover in PTZ control status

ǏPLAYǐControl key

(1) Switch from preview interface to search interface

(2) Start up autopan in PTZ control status, and stop scanning by pressing any PTZ control

key (including direction keys, ǏIRIS-ǐ,ǏIRIS+ǐ,ǏWIDEǐ,ǏTELEǐ,ǏPTZǐ,

Ǐ⬄ǐ,Ǐ*ǐandǏMENUǐ)

ǏRECǐControl key

(1) Switch from preview interface to management interface

(2) In PTZ control status, call up presets. Input 3 digits number combination keys after

pressing ǏRECǐ

ǏIRIS+ǐControl key

(1) Open iris in PTZ control status

(2) Delete the characters before cursor in editing status

(3) Display/Hide cursor (blue grid) in setting "Mask/Video Mask Alarm/Motion Detection

Area.(Need to be used together with ǏENTǐkey and direction keys)

ǏIRIS-ǐControl key

(1) Close iris in PTZ control status

(2) Quick enter to "PTZ control" mode, the function is same as ǏPTZǐkey

Inhaltsverzeichnis

Andere Infinova DVR Handbücher

Infinova

Infinova V3060 Series Montageanleitung

Beliebte DVR Handbücher anderer Marken

FLIR

FLIR M3100E Series Bedienungsanleitung

VTRACKPRO

VTRACKPRO FPRO300 Bedienungsanleitung

Swann

Swann NVR-7085 models Bedienungsanleitung

XtendLan

XtendLan DVR-1670C Bedienungsanleitung

urmet domus

urmet domus 1093/004AHD Bedienungsanleitung

Holux

Holux M1 Bedienungsanleitung

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Bedienungsanleitung

Whistler

Whistler D16VRS Bedienungsanleitung

Defender Security

Defender Security 82-20235 Bedienungsanleitung

MISUMI

MISUMI MP-WF100M Bedienungsanleitung

Speco

Speco D8HU Bedienungsanleitung

UST

UST DDR-E04AA Gebrauchsanweisung

Consolidated

Consolidated Digital Video Recorder Bedienungsanleitung

Mace

Mace DVR0404RW Kurzanleitung

RCA

RCA RTD315W Bedienungsanleitung

FSM

FSM Colibri Grande PRO Bedienungsanleitung

Hauppauge

Hauppauge HD PVR 2 Bedienungsanleitung

Identivision

Identivision ICR-PH161i PIONEER Bedienungsanleitung
