Intel NUC Series Bedienungsanleitung

User Guide for NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE

Intel®

NUC Kit

NUC7i3DNHE

Intel®

NUC Kit

NUC7i5DNHE

Intel®

NUC Kit

NUC7i7DNHE

User

Guide

User Guide for NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE

Before You Begin

CAUTIONS

The procedures in this user guide assume familiarity with the general terminology associated with

personal computers and with the safety practices and regulatory compliance required for using

and modifying electronic equipment.

Disconnect the computer from its power source and from any telecommunications link or network before

performing any of the procedures described in this guide. Failure to disconnect power,

telecommunications links, or networks before you open the computer or perform any procedures can

result in personal injury or equipment damage. Some circuitry on the board can continue to operate

even though the front panel power button is off.

Follow these guidelines before you begin:

•Always follow the steps in each procedure in the correct order.

•Set up a log to record information about your computer, such as model, serial numbers,

installed options, and configuration information.

•Electrostatic discharge (ESD) can damage components. Perform the procedures described in

this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam

pad. If such a station is not available, you can provide some ESD protection by wearing an

antistatic wrist strap and attaching it to a metal part of the computer chassis.

Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation

instructions.

To avoid injury, be careful of:

•Sharp pins on connectors

•Sharp pins on circuit boards

•Rough edges and sharp corners on the chassis

•Hot components (such as SSDs, processors, voltage regulators, and heat sinks)

•Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to qualified

technical personnel.

Observe Safety and Regulatory Requirements

If you do not follow these instructions, you increase your safety risk and the possibility of

noncompliance with regional laws and regulations.

User Guide for NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE

This guide tells you how to:

•

Install and remove memory

•

Install an M.2 SSD

•

Install a 2.5” SSD or Hard Drive

•

Install a VESA mount bracket

•

Connect power

•

Install an operating system

•

Install the latest device drivers and software

Open the Intel NUC Chassis

To open the Intel NUC chassis, follow these steps:

1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.

User Guide for NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE

Installing and Removing Memory

Intel NUC Kits NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE have two 260-pin DDR4 SO-DIMM

sockets. Memory requirements:

•1.2V low voltage memory

•1866 or 2133 MHz SO-DIMMs

•Non-ECC

Find compatible memory modules in the Intel®Product Compatibility Tool:

•NUC7i3DNHE

•NUC7i5DNHE

•NUC7i7DNHE

Install SO-DIMMs

If you plan to install just one SO-DIMM, install it in the lower memory socket.

To install the SO-DIMMs, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer and

disconnect the AC power cord.

3. Align the small notch at the bottom edge of the SO-DIMM with the key in the socket.

4. Insert the bottom edge of the SO-DIMM into the socket.

5. When the SO-DIMM is inserted, push down on the outer edge of the SO-DIMM until the

retaining clips snap into place. Make sure the clips are firmly in place.

Removing SO-DIMMs

To remove a SO-DIMM, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer.

3. Remove the AC power cord from the computer.

4. Remove the computer’s cover.

5. Gently spread the retaining clips at each end of the SO-DIMM socket. The SO-DIMM pops out of

User Guide for NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE
5

the socket.
6. Hold the SO-DIMM by the edges, lift it away from the socket, and store it in an anti-static
package.
7. Reinstall and reconnect any parts you removed or disconnected to reach the SO-DIMM sockets.
8. Replace the computer’s cover and reconnect the AC power cord.


Install an M.2 SSD

Intel NUC Kits NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE support 80mm M.2 devices.
Find compatible M.2 SSDs in the Intel® Product Compatibility Tool:
•NUC7i3DNHE
•NUC7i5DNHE
•NUC7i7DNHE


To install an 80mm M.2 SSD:

1. Remove the small silver screw from the 80mm metal standoff on the motherboard (A).

2. Align the small notch at the bottom edge of the M.2 card with the key in the connector.

3. Insert the bottom edge of the M.2 card into the connector (B).

4. Secure the card to the standoff with the small silver screw (C).




Install a 2.5” SSD or Hard Drive

Find compatible 2.5” SSDs and hard drives in the Intel® Product Compatibility Tool:
•NUC7i3DNHE
•NUC7i5DNHE
•NUC7i7DNHE

Follow these instructions to install a 2.5” Solid State Drive (SSD) or Hard Disk Drive (HDD):

1. Slide the 2.5” drive into the drive bay, ensuring the SATA connectors are fully seated into the

User Guide for NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE

connectors of the SATA daughter card (A).

2. Secure the drive into the drive bay with the two small silver screws that were included in the box (B).

Set the drive bay bracket down inside the chassis (C),

User Guide for NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE

Close the Chassis

After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by

hand with a screwdriver to avoid over-tightening and possibly damaging the screws.

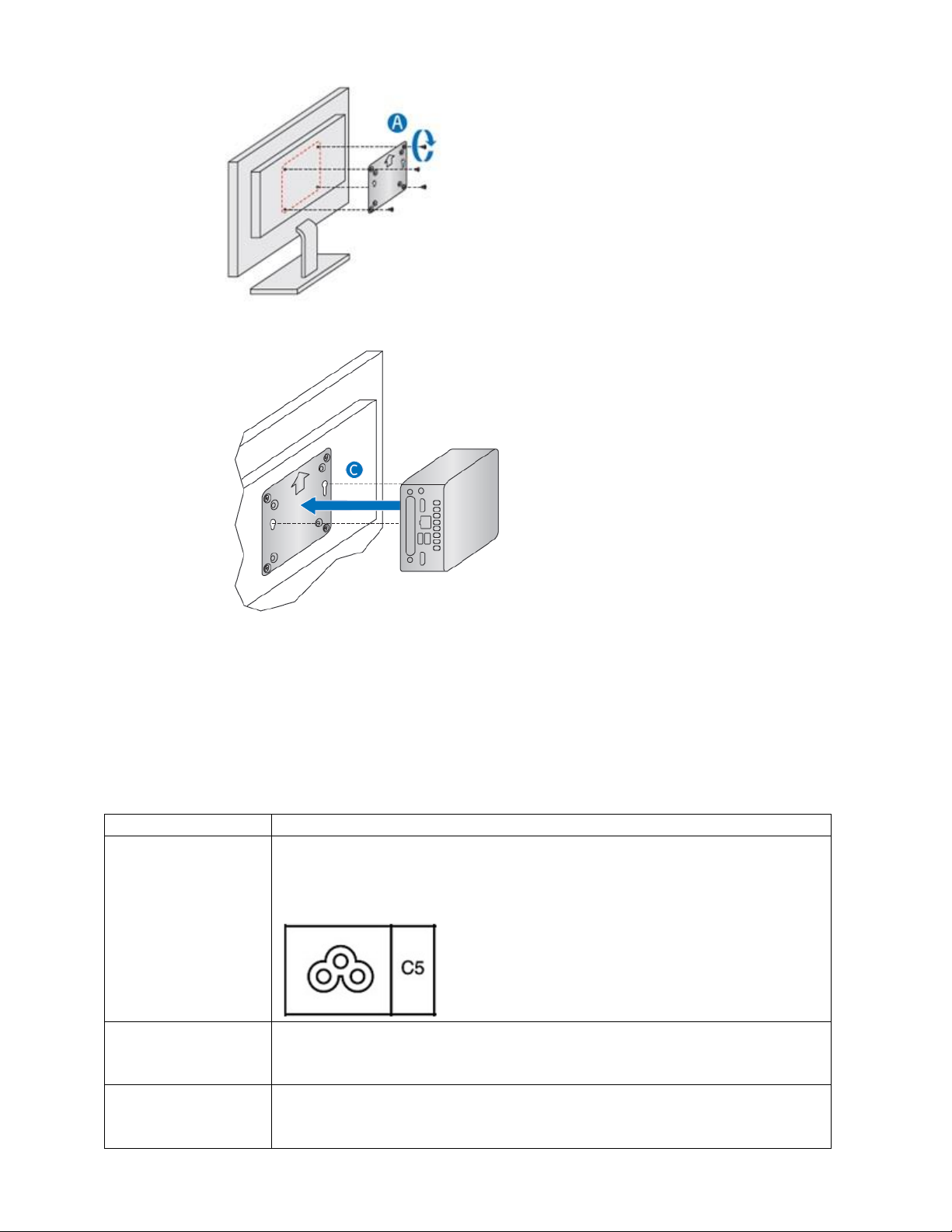

Attach and Use the VESA Bracket (Optional)

Follow these instructions to attach and use the VESA mount bracket:

1. Using the four small black screws that were included in the box, attach the VESA bracket to the

back of the monitor or TV.

User Guide for NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE

2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

3. Slide the Intel NUC onto the VESA mount bracket.

Connect Power

Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power

adapter).

Product codes

Power cord type

BLKNUC7i3DNHE

BLKNUC7i5DNHE

BLKNUC7i7DNHE

No power cord included. An AC power cord needs to be purchased

separately. Power cords are available at many Internet sites for use in

multiple countries. The connector on the power adapter is a C5 type

connector.

BLKNUC7i3DNH1E

BLKNUC7i5DNH1E

BLKNUC7i7DNH1E

US power cord included.

BLKNUC7i3DNH2E

BLKNUC7i5DNH2E

BLKNUC7i7DNH2E

EU power cord included.

User Guide for NUC7i3DNHE, NUC7i5DNHE, and NUC7i7DNHE

BLKNUC7i3DNH3E

BLKNUC7i5DNH3E

BLKNUC7i7DNH3E

UK power cord included.

BLKNUC7i3DNH4E

BLKNUC7i5DNH4E

BLKNUC7i7DNH4E

Australia/New Zealand power cord included.

BLKNUC7i3DNH5E

BLKNUC7i5DNH5E

India power cord included.

Install an Operating System

Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems, as well

as versions of Linux that have been reported as compatible by Intel NUC owners.

Refer to Operating System Installation for system requirements and installation steps.

Install the Latest Device Drivers and Software

Here are the options for keeping device drivers current:

•Allow the Intel® Driver & Support Assistant (Intel® DSA) to detect out-of-date drivers

•Manually download drivers, BIOS, and software from Download Center.

oNUC7i3DNHE

oNUC7i5DNHE

oNUC7i7DNHE

The following device drivers and software are available.

•Intel® Chipset Device Software

•Intel® HD Graphics

•Intel® Management Engine

•Intel® Wireless

•Intel® Bluetooth

•Intel® Gigabit Ethernet

•Intel® Rapid Storage Technology

•Intel® Software Guard Extensions (Intel® SGX)

•HDMI Firmware
