Intel NUC7i5BNHXF Bedienungsanleitung

User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG

Intel® NUC 7 Home, a Mini PC with Windows® 10 –NUC7i3BNHXF

Intel® NUC 7 Home, a Mini PC with Windows® 10 –NUC7i5BNHXF

Intel® NUC 7 Enthusiast, a Mini PC with Windows® 10 –NUC7i7BNHXG

User Guide

User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG

Before You Begin

CAUTIONS

The steps in this guide assume you’re familiar with computer terminology and with the safety

practices and regulatory compliance required for using and modifying computer equipment.

Disconnect the computer from its power source and from any network before performing any of the

steps described in this guide.

Failure to disconnect power or networks before you open the computer or perform any procedures can

result in personal injury and/or equipment damage. Some circuitry on the board can continue to

operate even though the front panel power button is off.

Follow these guidelines before you begin:

•Always follow the steps in each procedure in the correct order.

•Create a log to record information about your computer, such as model, serial numbers,

installed options, and configuration information.

•Electrostatic discharge (ESD) can damage components. Perform the procedures described in

this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam

pad. If such a station isn’t available, you can provide some ESD protection by wearing an

antistatic wrist strap and attaching it to a metal part of the computer chassis.

Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation

instructions.

To avoid injury, be careful of:

•Sharp pins on connectors

•Sharp pins on circuit boards

•Rough edges and sharp corners on the chassis

•Hot components (such as SSDs, processors, voltage regulators, and heat sinks)

•Damage to wires that could cause a short circuit

Observe Safety and Regulatory Requirements

If you don’t follow these instructions, you increase your safety risk and the possibility of

noncompliance with regional laws and regulations.

User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG

This guide tells you how to:

•

Upgrade system memory

•

Change/install an M.2 SSD

•

Change/install a 2.5-inch drive

•

Use a VESA mount bracket

•

Connect power

•

Set up Microsoft® Windows® 10

•

Install the latest device drivers and software

•

Recover the operating system

Open the Chassis

Unscrew the four corner screws on the bottom of the chassis and lift the cover.

User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG

Upgrade System Memory

The Intel NUC Kits NUC7i3BNHXF, NUC7i5BNHXF, and NUC7i7BNHXG have two 260-pin DDR4 SO-

DIMM sockets.

Pre-installed memory

NUC7i3BNHXF

One 4GB memory module

NUC7i5BNHXF

One 4GB memory module

NUC7i7BNHXG

One 8GB memory module

To upgrade memory, be sure to select memory modules that meet these requirements:

•1.2V low voltage memory

•2133 MHz SO-DIMMs

•Non-ECC

Find compatible memory modules in the Intel Product Compatibility Tool:

•NUC7i3BNHXF

•NUC7i5BNHXF

•NUC7i7BNHXG

NOTE

If you plan to install only one memory module, install it in the lower memory

socket.

To upgrade or add memory, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer and

disconnect the power cord.

3. Remove the computer’s bottom chassis cover.

Upgrade to different memory

a. Remove the pre-installed memory module

i. Gently spread the retaining clips at each end of the memory socket, which causes

the module to pop out of the socket (C).

ii. Holding the module by the edges, lift it away from the socket, and store it

in an anti-static package.

b. Install the new memory module

i. Align the small space at the bottom edge of the memory module with the

key in the socket.

ii. Insert the bottom edge of the module at a 45 degree angle into the socket

(A).

iii. When the module is inserted, push down on the outer edges of the

module until the retaining clips snap into place (B). Make sure the clips

are firmly in place (C).

User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG

Install an additional memory module

a. Align the small space at the bottom edge of the memory module with the key on the

socket.

b. Insert the bottom edge of the module at a 45 degree angle into the socket (A).

c. When the module is inserted, push down on the outer edges of the module until

the retaining clips snap into place (B). Make sure the clips are firmly in place (C).

4. Reinstall and reconnect any parts you removed or disconnected to reach the memory sockets.

5. Replace the computer’s cover and reconnect the power cord.

Change an M.2 SSD or Intel® Optane™ Memory Module

The Intel NUC Kits NUC7i3BNHXF, NUC7i5BNHXF, and NUC7i7BNHXG support either an 80mm or

42mm SSD.

Pre-installed M.2

NUC7i3BNHXF

One 16GB Intel Optane Memory module

NUC7i5BNHXF

One 16GB Intel Optane Memory module

NUC7i7BNHXG

One 16GB Intel Optane Memory module

Find compatible M.2 SSDs in the Intel Product Compatibility Tool:

•NUC7i3BNHXF

•NUC7i5BNHXF

•NUC7i7BNHXG

NOTE

Before changing the Intel Optane memory module, it needs to be disabled. Follow

Removing Intel Optane Memory on this page first, before taking the module out.

User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG

To Change an M.2 SSD:

1. Remove the small silver screw from the 80mm or 42mm metal standoff on the board (A).

2. Remove the pre-installed SSD/Intel Optane Memory from the connector.

3. Align the space at the bottom of the new M.2 SSD to the key on the connector.

4. Insert the bottom edge of the M.2 SSD into the connector (B).

5. Secure the card to the standoff with the small silver screw (C).

Change a 2.5” SSD or Hard Drive

The Intel NUC Kits NUC7i3BNHX1, NUC7i5BNHX1, and NUC7i7BNHX1 support an additional 2.5” Solid

State Drive (SSD) or Hard Disk Drive (HDD).

Find compatible 2.5” drives in the Intel Product Compatibility Tool:

•NUC7i3BNHXF

•NUC7i5BNHXF

•NUC7i7BNHXG

1. Unscrew the four screws holding the current drive in the bay.

User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG

2. Remove the pre-installed drive from the drive bay.

3. Slide the new 2.5” drive into the drive bay, ensuring the SATA connectors are fully seated into the

connectors of the SATA daughter card (A).

4. Secure the drive into the drive bay with the four screws that were used in step 1. Set the drive bay

bracket down inside the chassis (C).

User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG

Close the Chassis

After all components have been installed, close the Intel NUC chassis. Intel recommends this be done

by hand with a screwdriver to avoid over-tightening and possibly damaging the screws.

Attach and Use the VESA Bracket (Optional)

Follow these instructions to attach and use the VESA mount bracket:

1. Using the four small black screws that were included in the box, attach the VESA bracket to the

back of the monitor or TV.

User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG

2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

3. Slide the Intel NUC onto the VESA mount bracket.

User Guide for NUC7i3BNHXF, NUC7i5BNHXF, NUC7i7BNHXG

Connect Power

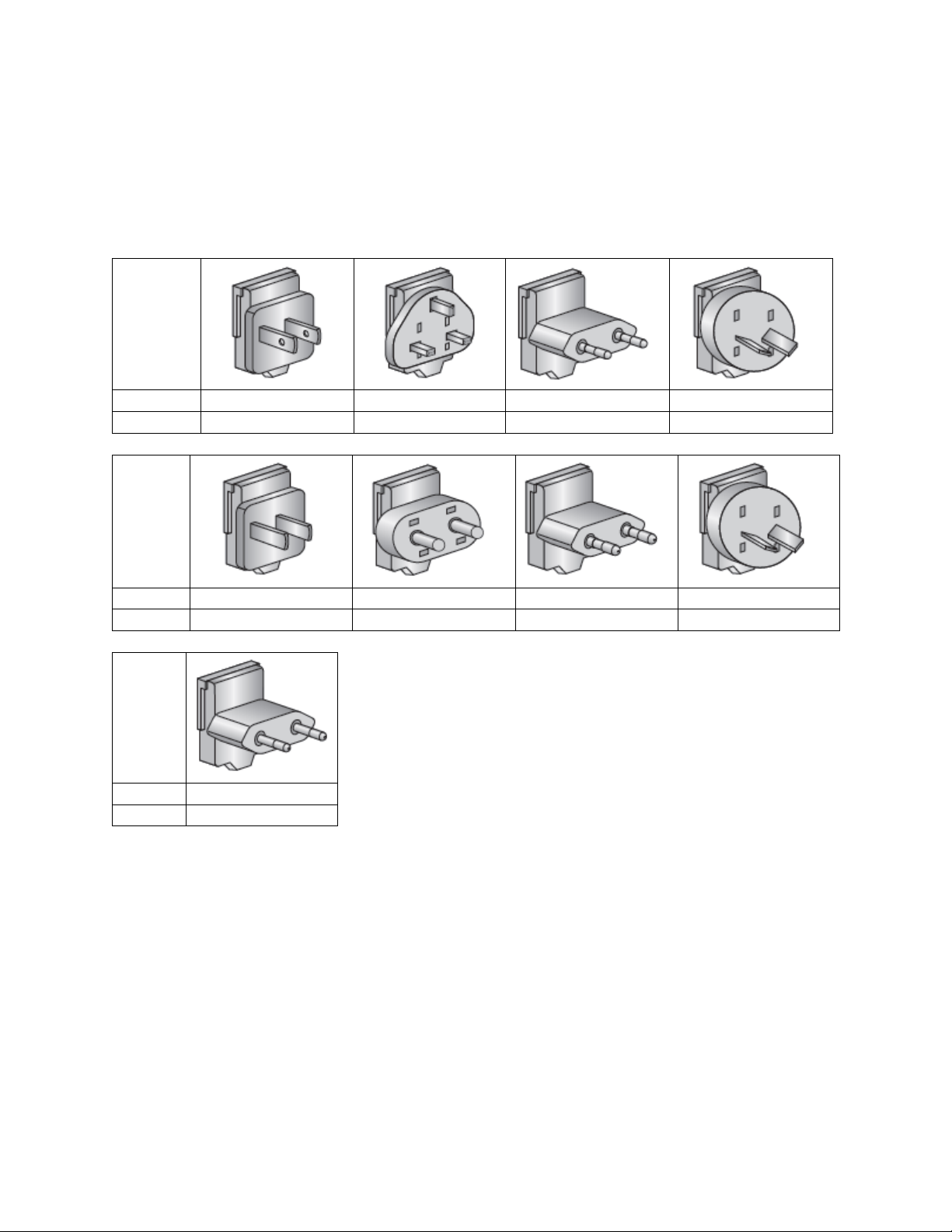

Country-specific power plug attachments are included in the box.

1. Choose the attachment for your region.

Plug

Code

AUS

Country

United States

United Kingdom

European Union

Australia

Plug

Code

CHN

IND

KOR

ARG

Country

China

India

South Korea

Argentina

Plug

Code

BRA

Country

Brazil
