Installation Guide 3

Product overview

This is the Pocket Guide for TruVision High

Definition TVI dome TVD-2402/TVD-4402 and TVD-

2404/TVD-4404. This guide describes a standard

installation.

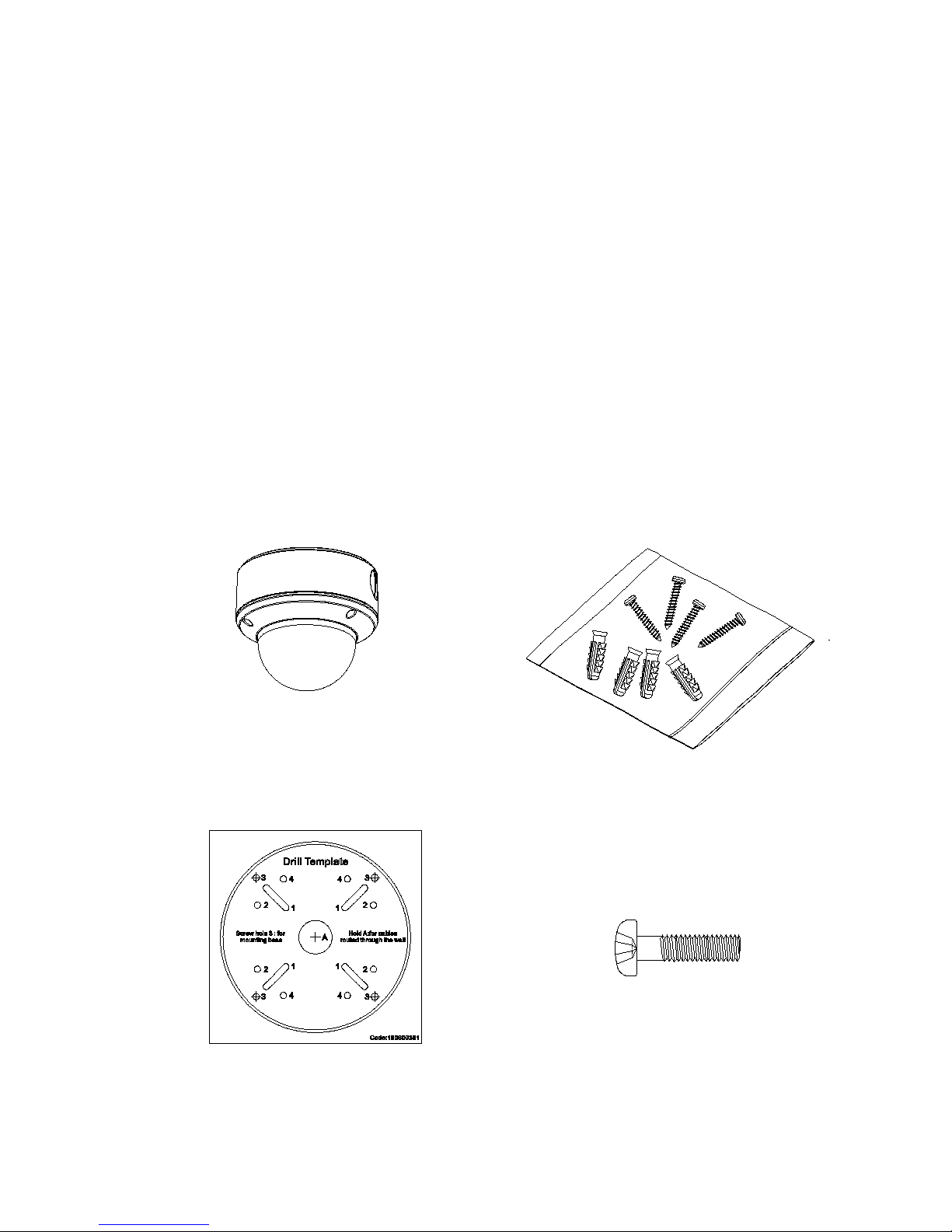

Package contents:

Camera with power

and video output

cables

4 screws and 4

anchors for wall or

ceiling installation

Template

3 screws for install

the camera to back

box

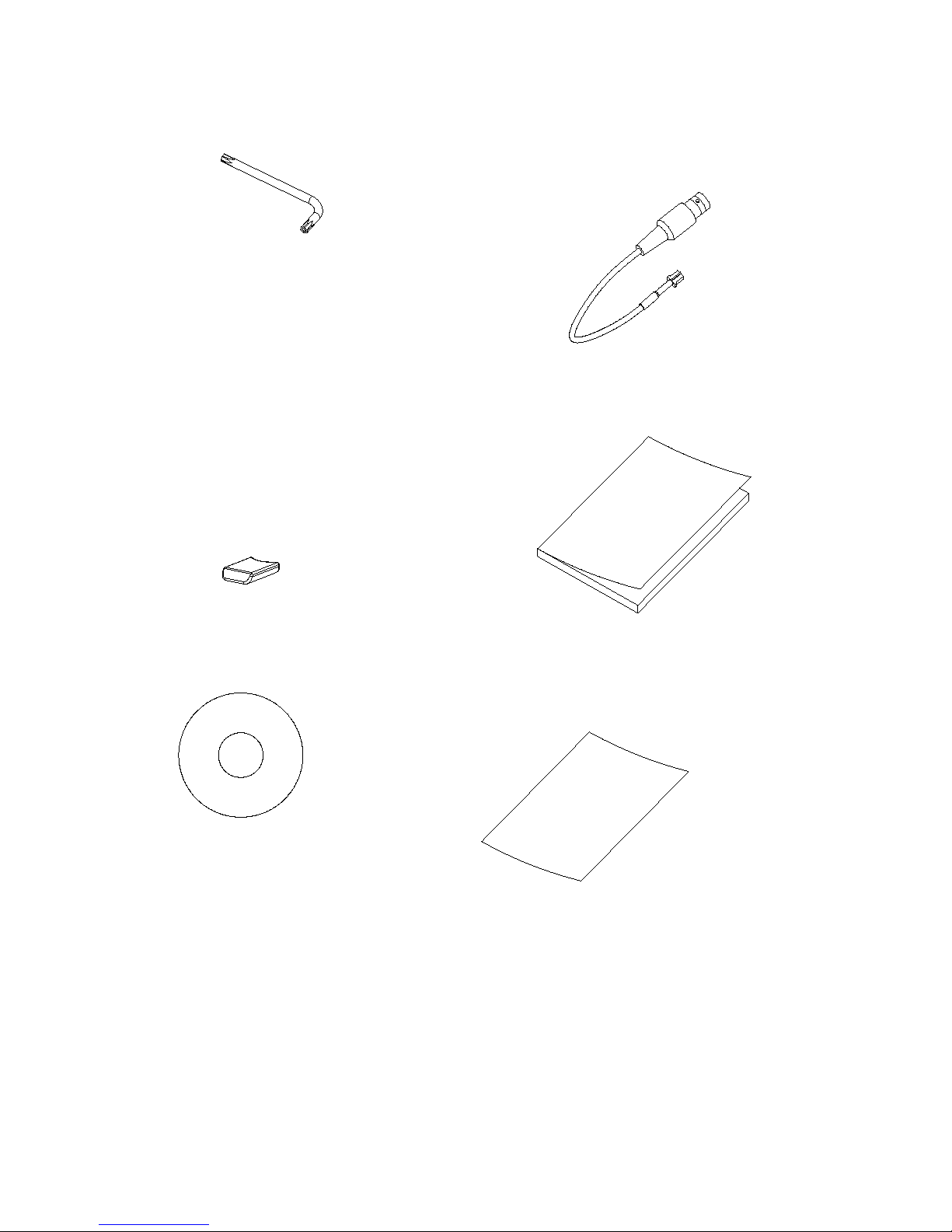

4 Installation Guide

Hex wrench

Monitor output

cable

Spare rubber

knockout

There is a rubber knockout

on the camera back box.

This one is for future use.

Installation Guide

CD

•WEEE and Battery

Disposal

Installation Guide 5

Camera description

1. Dome liner

2. Bubble

3. Lens

4. Power cable

5. CVBS video output

cable (black)

6. TVI video output

cable (grey)

7. Back box

8. DIP switch

9. Menu button

6 Installation Guide

Note:

Please check the camera output settings

before setting up a system. The TVI video

output can be only connected to DVR with

TVI signal input. The CVBS output supports

the standard monitor, test monitor, encoder

and DVR.

For TVD-2402/TVD-4202, the CVBS and TVI

output can not be performed at the same time,

you can use the built-in DIP switch to select

the camera video output.

For TVD-2404/TVD-4404, the built-in DIP

switch is used to enable/disable WDR feature,

when WDR feature is enabled, the CVBS

output will be blocked out.

Installation Guide 7

DIP switch

Installation

To install the camera on a ceiling:

1. Using the template, place it level against the

mounting surface and mark the position of the

mounting holes.

8 Installation Guide

2. Following all local codes, drill and prepare the

mounting holes.

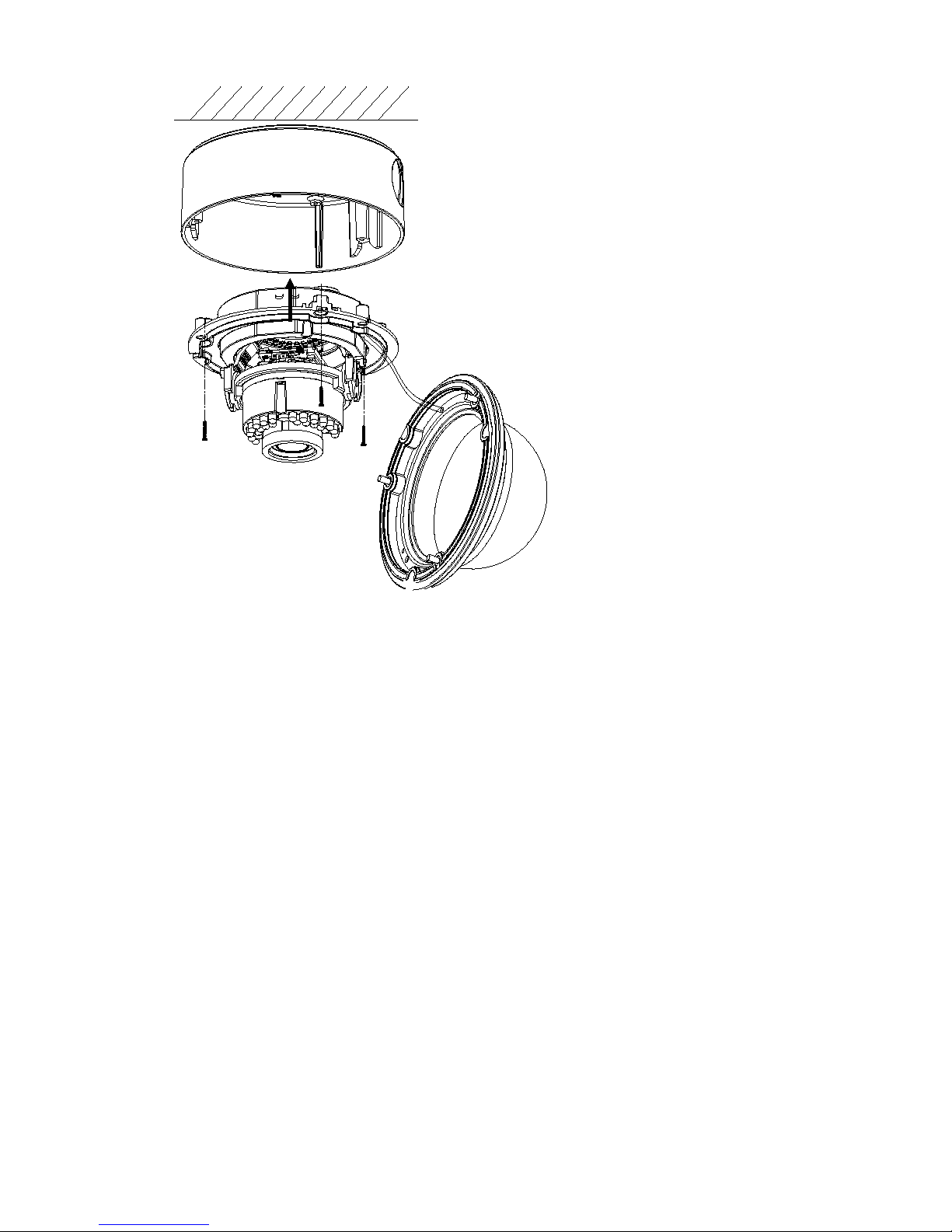

3. Remove the camera from its back box.

4. Loosen the three set of screws on the edge of

the bubble with the supplied hex wrench.

5. Remove the bubble and the dome liner.

6. Secure the back box to the ceiling with the

supplied screws.

Installation Guide 9

Note: Please remove the rubber knockout for

cable routing outside of the camera, when

required.

7. Using a 75-ohm coaxial video cable, connect

the camera TVI video output and a TVI DVR,

and connect a 12 VDC or 24 VAC power

supply to the power cable.

8. Align the camera with the back box and tighten

the set screws to secure the camera to the

back box.

10 Installation Guide

7. Adjust the surveillance angle:

1) View the camera image on a monitor.

2) Rotate the panning table to adjust the pan

direction [0 to 355°].

3) Loosen the tilting lock screw.

4) Rotate the tilting table to adjust the tilt

direction [0 to 90°].

5) Tighten the tilting lock screw.

6) Rotate the camera lens holder [0 to 355°]

to adjust the lens to the surveillance angle.
