Interlogix TruVision TVD-6120VE-2 Bedienungsanleitung

TruVision TVD-6120VE-2 /

TVD

-6125VE-2 Camera

User Manual

P/N 1072541C-EN • ISS 27JUL12

Trademarks and

patents

The

TruVision and Interlogix names and logo are trademarks of

UTC

Fire & Security.

Other trade names used in this document may be trademarks or

registered

trademarks of the manufacturers or vendors of the

respective products.

Manufacturer

UTC Fire & Security Americas Corporation, Inc.

2955 Red Hill Avenue, Costa Mesa, CA 92626

-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

N4131

FCC compliance

Class A:

This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated i

n a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment

a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own

expense.

ACMA compliance

Notice!

This is a Class A product. In a domestic environment this

product may cause rad

io interference in which case the user may be

required to take adequate measures.

European Union

directives

12004/108/EC (EMC directive):

Hereby, UTC Fire & Security

declares that this device is in compliance or with the essential

requirements and other

relevant provisions of Directive 2004/108/EC

2002/96/EC (WEEE directive):

Products marked with this symbol

cannot be disposed of as unsorted municipal waste in the European

Union. For proper recycling, return this product to your local supplier

upon

the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information see:

www.recyclethis.info.

Contact information

For contact information

, see www.utcfireandsecurity.com or

www.utcfssecurityproducts.eu

TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual 1

Content

Product overview 2

Package Contents 2

Features 2

User guidelines 2

Product description 3

Installation 4

Mount the camera 4

Connect the cables 5

Adjust the lens 5

Programming 7

OSD control button 7

Access the Setup menu 7

Save changes 9

Select the lens type 9

Set shutter/AGC 9

Set white balance 10

Set backlight compensation (BLC) 11

Adjust the picture characteristics 12

Set ATR-EX level 12

Set motion detection 13

Set privacy area 13

Set Day/Night mode 14

Set image noise reduction 15

Set the camera ID 15

Set sync mode 16

Select the language 16

Reset camera settings 16

Specifications 17

Dimensions 17

Menu Map 18

2 TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual

Product overview

The TVD-6120VE-2-N(-P)/ TVD-6125VE-2-N(-P) color dome camera uses a

digital signal processor (DSP) to process video signals. The camera includes a

microcontroller to provide high-quality images with high-color reproduction and

sharp pictures.

Package Contents

The package contains the following:

• Camera

• Hex key

• Drilling template

• Composite video BNC cable

• Screws

• Quick Start Guide

Features

The camera includes the following features:

• Super HAD II (hole accumulated diode) technology

• High horizontal resolution 600 TVL

• Smart digital control automatic BLC (backlight compensation)

• Digital WDR (wide dynamic range)

• Advanced auto exposure system for both fixed iris and auto iris lenses to

optimize the amount of light

• Internal synchronization

• Eight privacy mask areas to protect privacy concerns

• Signal-to-noise ratio better than 52 dB

• Long life and high reliability

• Isolated switching power 12 VDC and 24 VAC

User guidelines

• Program the camera settings as much as possible before mounting the

camera. Take appropriate safety precautions while completing programming

after installation.

• Always use a 12 VDC or 24 VAC UL listed Class 2 power supply to power the

camera.

TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual 3

• Do not use the camera over the temperature range specifications: -10°C to

+50°C (14°F to 122°F)

• If the light source where the camera is installed experiences rapid, wide-

variations in lighting, the camera may not operate as intended.

WARNING: To reduce the risk of fire or electronic shock, do not expose the

camera to rain or moisture or open the back of the camera.

Product description

Figure 1: Product description

1. Dome cover

2. Screw hole

3. Base

4. OSD control button

5. Lens

6. IR LED

7. IR LED cover

8. Outlet hole

9. Power supply and video BNC cables

10. Composite video BNC cable

11. Focus adjustment

12. Zoom adjustment

4 TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual

Installation

Please check the package contents and make sure that the device in the

package is in good condition and all the assembly parts are included.

To install the camera you will need to prepare the mounting surface, mount the

camera, make cable connections, and adjust the lens.

Note: Before installing, please ensure that the mounting surface is strong enough

to withstand three times the weight of the camera. If the mounting surface is not

strong enough, the camera may fall and cause serious damage.

Mount the camera

To mount the camera:

1. Prepare the mounting surface.

2. Remove the dome cover.

3. Secure the camera to the mounting surface with screws.

4. Remove the IR LED cover to adjust the lens and the viewing angle.

TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual 5

Connect the cables

To make the cable connections:

1. Connect a 12 VDC or 24 VAC power supply to the power input.

2. Connect a coaxial cable from the camera’s BNC connector to a CCTV

monitor or video recording device.

Adjust the lens

The camera is mounted on a pan-tilt-twist (3-axis grimbal) rotating platform so

that it is easy to adjust the camera orientation.

To adjust the lens:

1. Rotate the panning table to adjust the panning position of the camera. The

adjusting range is from 0 to 355 degrees.

2. Rotate the tilting table to adjust the tilting position of the camera. The

adjusting range is from 0 to 75 degrees. Tighten the tilting table lock screw.

3. Rotate the lens to adjust the azimuth angle of the image. The adjusting range

is from 0 to 355 degrees.

Rotation 0-355°

Tilt 0-75°

Pan 0-355°

4. Adjust the lens to obtain the appropriate angle of view and the optimum focus.

Tighten the focus lock lever.

5. Replace the IR LED and dome covers on the camera.

6. Secure the dome cover with screws.

6 TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual

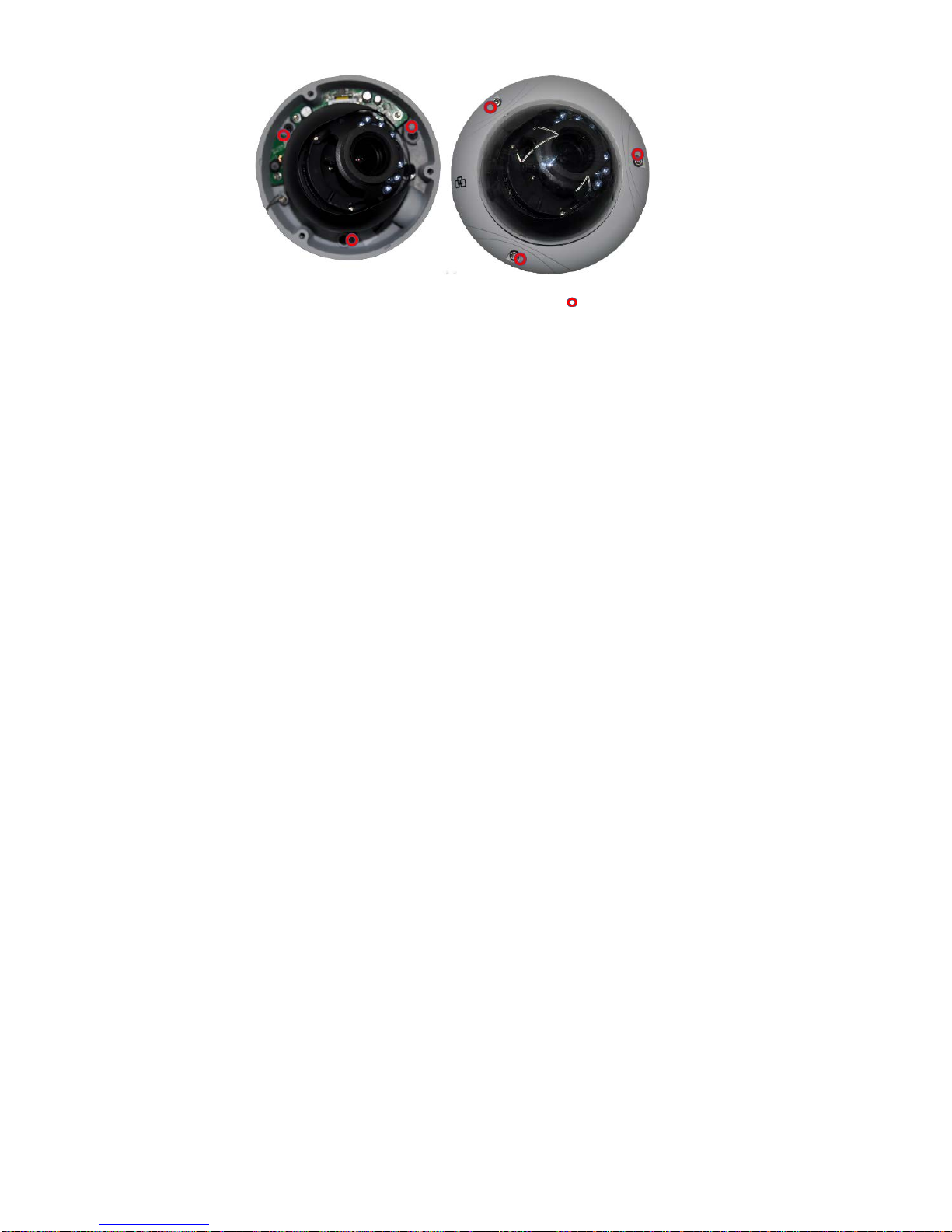

Note: Ensure that the screws highlighted above with a “ ” have been tightened

securely to prevent water seepage.

TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual 7

Programming

Once the camera hardware has been installed, the camera can then be

configured.

Program the camera by attaching a standard video monitor to the system.

To connect the monitor:

1. Plug the monitor output cable to the video monitor output connector.

2. Connect the BNC cable to the video monitor.

3. Press Enter on the OSD menu button to display the Setup menu. See Table

1 for instructions on how to move the cursor.

OSD control button

The on-screen display (OSD) control button (see Figure 1) is a five-direction

joystick that lets you manually control the camera functions. Table 1 below lists

the OSD control button functions and describes their use.

Table 1: Using the OSD control button

Button

direction Description

Moves the cursor upward to select an item

Left

Moves the cursor left to select or adjust the parameters of the selected

item.

Right

Moves the cursor to the right to select or adjust the parameters of the

selected item.

Down

Moves the cursor downward to select an item.

Enter

Press the center of the button to display the Setup menu. If the selected

item has its own menu, press the button to enter a submenu.

Access the Setup menu

The Setup menu provides access to the camera configuration options.

8 TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual

Figure 2: The Setup menu

Table 2: Setup menu description

Menu item Description

Lens Defines autoiris or manual iris.

Shutter/AGC Defines the method of light control.

White Bal Defines the white balance (WB) set up.

Backlight Defines the highlight compensation (HLC) and backlight compensation

(BLC) set up.

Pict Adjust Defines the image quality functions.

ATR Defines the adaptive tone reproduction set up.

Motion Det Defines the motion detection set up.

Privacy Defines privacy mask set up.

Day/Night Defines the day/night (D/N) set up.

NR Defines the digital noise reduction level.

Camera ID Defines the camera ID displayed on-screen.

Sync Displays the current synchronization mode.

Language Defines the language of the OSD.

Camera Reset Resets the camera to factory default settings.

Save All Saves all configuration changes.

Exit Exits the menu and returns to live mode.

To access the Setup menu:

1. Press the OSD control button to access the Setup menu and its submenus.

2. Push the button up/down to move between menu options.

3. Push the button left/right to select an option.

4. Select Next to move to the next Setup menu screen and Back to return to the

previous Setup menu screen.

5. When in a sub menu, select Return to return to the previous menu.

6. To exit the Setup menu and return to normal camera operation mode, move

the cursor to Exit at the bottom of the screen and press Enter.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Interlogix Sicherheitskamera Handbücher

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix UVC-XP4DN-HR Bedienungsanleitung

Interlogix

Interlogix TruVision TVB-6102 Bedienungsanleitung

Interlogix

Interlogix TVD-5110-3 Bedienungsanleitung

Interlogix

Interlogix TruVision TVC-7120-1-N Bedienungsanleitung

Interlogix

Interlogix TruVision TVC-6110-1 Bedienungs- und Wartungsanleitung

Interlogix

Interlogix TruVision TVB-4410 Handbuch

Interlogix

Interlogix TruVision Bullet IR Bedienungsanleitung

Interlogix

Interlogix FW5.1 Bedienungsanleitung

Interlogix

Interlogix UVD-XP4DNR Bedienungsanleitung

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Interlogix

Interlogix Ultra View UVD-6120VE-2 Bedienungsanleitung

Interlogix

Interlogix TruVision 5 Series Merkblatt

Interlogix

Interlogix TVB-2201 Bedienungsanleitung

Interlogix

Interlogix True Vision TVP-5104 Bedienungsanleitung

Interlogix

Interlogix UVC-XP4DN-HR-P Bedienungsanleitung

Interlogix

Interlogix TruVision Series Bedienungsanleitung

Interlogix

Interlogix TruVision Open Standards Bedienungsanleitung

Interlogix

Interlogix TruVision TVD-N210V-2-N(-P) Bedienungsanleitung

Interlogix

Interlogix UVD-XP4DNR(-P) Bedienungsanleitung

Interlogix

Interlogix TruVision TVB-2401 Bedienungsanleitung

Interlogix

Interlogix TruVision TVA-1101 Bedienungsanleitung

Interlogix

Interlogix TruVision TVT-2101 Bedienungsanleitung

Interlogix

Interlogix TruVision Line Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
