Interlogix TruVision TVD-5801 Bedienungsanleitung

TruVision Stainless Steel

Dome Camera Installation

Guide

P/N 1073434-EN • REV A • ISS 27FEB18

Interlogix is part of UTC Climate, Controls & Security, a unit of

Trademarks

and patents

Trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Manufacturer

Interlogix

2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

FCC

compliance

Class A: This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the

interference at his own expense.

FCC

conditions

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This Device must accept any interference received, including

interference that may cause undesired operation.

ACMA

compliance

Notice! This is a Class A product. In a domestic environment this

product may cause radio interference in which case the user may

be required to take adequate measures.

Canada

This Class A digital apparatus complies with CAN ICES-003

(A)/NMB-3 (A). Cet appareil numérique de la classe A est

conforme à la norme CAN ICES-003 (A)/NMB-3 (A).

European

Union

directives

This product and - if applicable - the supplied accessories too are

marked with "CE" and comply therefore with the applicable

harmonized European standards listed under the EMC Directive

2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol

cannot be disposed of as unsorted municipal waste in the

European Union. For proper recycling, return this product to your

local supplier upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more information

see: www.recyclethis.info.

Product

warnings

and

disclaimers

THESE PRODUCTS ARE INTENDED FOR SALE TO AND

INSTALLATION BY QUALIFIED PROFESSIONALS. UTC FIRE &

SECURITY CANNOT PROVIDE ANY ASSURANCE THAT ANY

PERSON OR ENTITY BUYING ITS PRODUCTS, INCLUDING

ANY “AUTHORIZED DEALER” OR “AUTHORIZED RESELLER”,

IS PROPERLY TRAINED OR EXPERIENCED TO CORRECTLY

INSTALL FIRE AND SECURITY RELATED PRODUCTS.

For more information on warranty disclaimers and product safety

information, please check

www.firesecurityproducts.com/policy/product-warning/ or scan the

QR code:

Contact

information

and manuals

For contact information go to: www.interlogix.com or

www.firesecurityproducts.com

To get translations for this and other product manuals go to:

www.firesecurityproducts.com

Content

Introduction 6

Product overview 6

Installation 6

Installation environment 6

Package contents 7

Camera description 9

IR illuminators 10

Alarm input and output connections 10

SD memory card installation 11

Mounting the dome camera 12

Mounting the TVJ-JBS junction box 12

Using the camera with an Interlogix NVR or Hybrid DVR or

another system 12

Using the camera with TruVision Navigator 13

Access the camera over the internet 13

Specifications 16

Pin definitions 17

Installation Guide 5

Introduction

Product overview

This is the installation guide for the TruVision Stainless Steel

dome camera model:

•TVD-5801 (2MPX camera, 2.8-12 mm lens)

Installation

This section provides information on how to install the

cameras.

Installation environment

When installing your product, consider these factors:

•Electrical: Install electrical wiring carefully. It should be

done by qualified service personnel. Always use a proper

PoE switch or a 12 VDC UL listed Class 2 or CE certified

power supply to power the camera. Do not overload the

power cord or adapter.

•Ventilation: Ensure that the location planned for the

installation of the camera is well ventilated.

•Temperature: Do not operate the camera beyond the

specified temperature, humidity, or power source ratings.

Humidity is below 90%. For the outdoor cameras that

feature built-in heaters, the operating temperature range

is -40 to 60°C (-40 to140°F)

•Moisture: Do not expose the camera to rain or moisture

or try to operate it in wet areas. Turn the power off

6Installation Guide

immediately if the camera is wet and ask a qualified

service person for servicing. Moisture can damage the

camera and also create the danger of electric shock.

•Servicing: Do not attempt to service this camera

yourself. Any attempt to dismantle or remove the covers

from this product will invalidate the warranty and may

also result in serious injury. Refer all servicing to qualified

service personnel.

•Cleaning: Do not touch the sensor modules with fingers.

If cleaning is necessary, use a clean cloth with some

ethanol and wipe the camera gently. If the camera will not

be used for an extended period of time, put on the lens

cap to protect the sensors from dirt.

Package contents

Check the package and contents for visible damage. If any

components are damaged or missing, do not attempt to use

the unit; contact the supplier immediately. If the unit is

returned, it must be shipped back in its original packaging.

Package contents include the following:

Camera

DC12VIN

Installation guide

Installation Guide 7

CD with configuration manual

and TruVision Device Manager

Equipment disposal sheet

Battery disposal sheet

Drill template

Video test cable

Screws

Drywall anchor

7.5 × 24.5 mm (4 pcs)

Screw

M4 × 25 mm (4 pcs)

Torx driver

Water joint: Provides

water resistance to

network cable connector

8 Installation Guide

CAUTION: Use direct plug-in UL listed power supplies

marked Class 2/CE certified or LPS (limited power source) of

the required output rating as listed on the unit.

Camera description

Figure 1: Dome camera description and connectors

2345

DC12VIN

1. Bubble assembly

2. Lens

3. Dome liner

4. Rubber sealing

5. Base

6. Reset button

7. Serial port (for internal

use)

8. SD card slot

9. Video test port

10. Ethernet RJ45 PoE port

11. Alarm I/O

12. Audio I/O

13. 12 VDC power cable

Installation Guide 9

IR illuminators

The camera’s built-in IR illumination provides high-quality

video in low-light environments, even when there is no other

illumination available.

You can configure the IR illumination using a web browser or a

client software, such as TruVision Navigator. If the function is

enabled, the IR light is On when the camera enters night

(black and white) mode. If disabled, the IR light is always Off.

The visible IR range may vary due to multiple factors such as

weather, IR reflection level of objects in frame, lens

adjustment, and camera settings. Please refer to the camera

datasheet for the standard IR range.

Note: Avoid installing the IR camera in close proximity to a

solid object such as a tree or wall. The reflection will cause

over-exposure and loss of visibility of detail in the field of view.

Alarm input and output connections

The alarm output can be used to turn on and off an external

alarm device. Connect a 30 VDC/1A external power supply to

the alarm output. If using an AC power supply, an external

relay must be used to prevent electric shock and damage to

the device. See Figure 2 below.

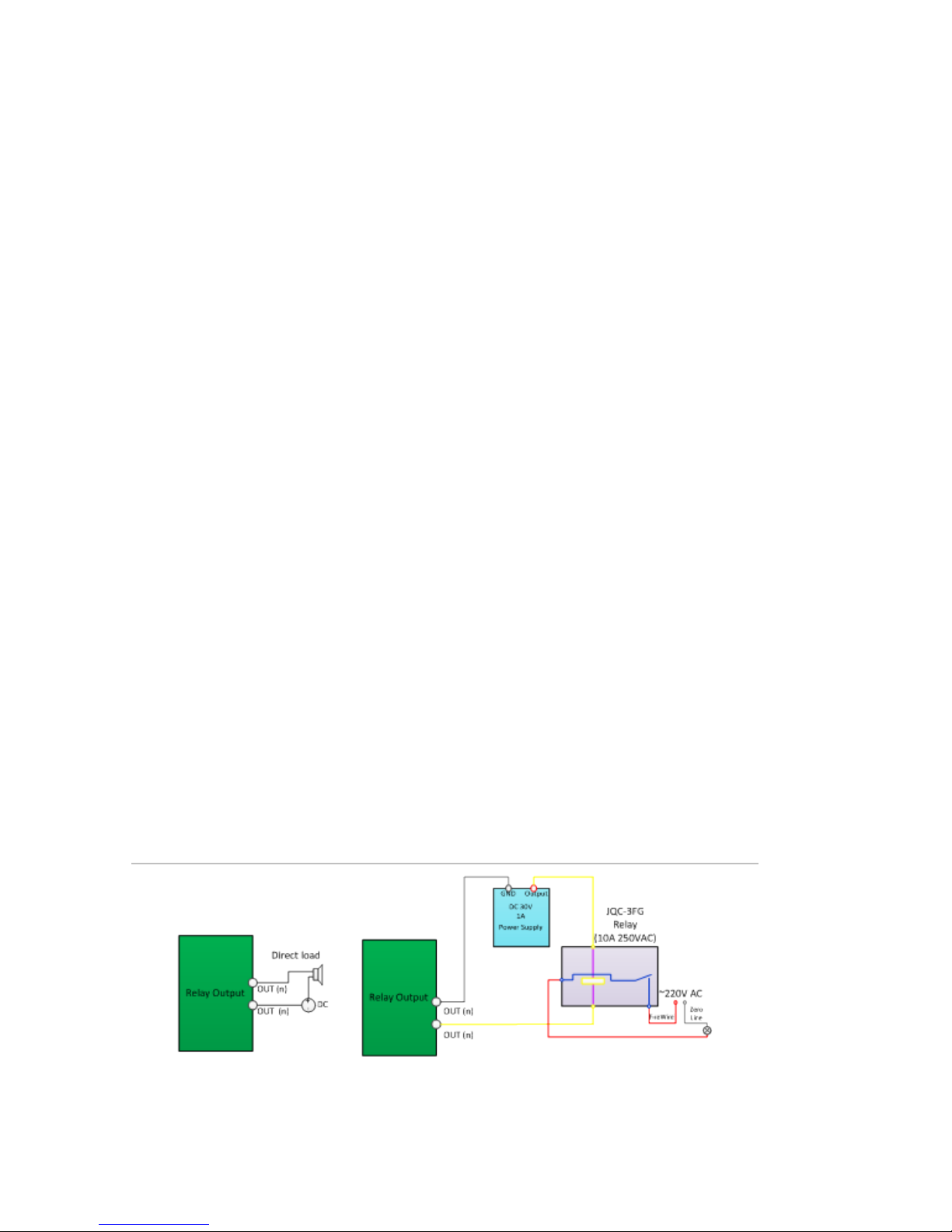

Figure 2: External alarm output

10 Installation Guide
