Interlogix TVW-6101 Bedienungsanleitung

TruVision

HD-TVI (1080P) /

Analog Wedge Camera

Installation Guide

TVW

-6101

P/N 1073422-EN • REV A • ISS 14MAY18

Installation Guide 1

Content

Product overview 2

Contact information and

manuals/tools/firmware 2

Package contents 3

Camera description 6

Installation 7

Program 14

Using a TVI output 15

Call up the camera OSD (On Screen

Display) menu 15

Menu tree 18

Video format (NTSC/PAL) 19

Specifications 19

Legal and Regulatory information 20

2 Installation Guide

Product overview

This is the Installation Guide for the HD-TVI

(1080P) / analog wedge camera TVW-6101. This

guide describes a standard installation.

The configuration manual is available from our web

site.

Contact information and

manuals/tools/firmware

For contact information and to download the latest

manuals, tools, and firmware, go to the web site of

your region.

Americas: www.interlogix.com

EMEA:

www.firesecurityproducts.com

Manuals are available in

several languages.

Australia/New

Zealand:

www.utcfs.com.au

Installation Guide 3

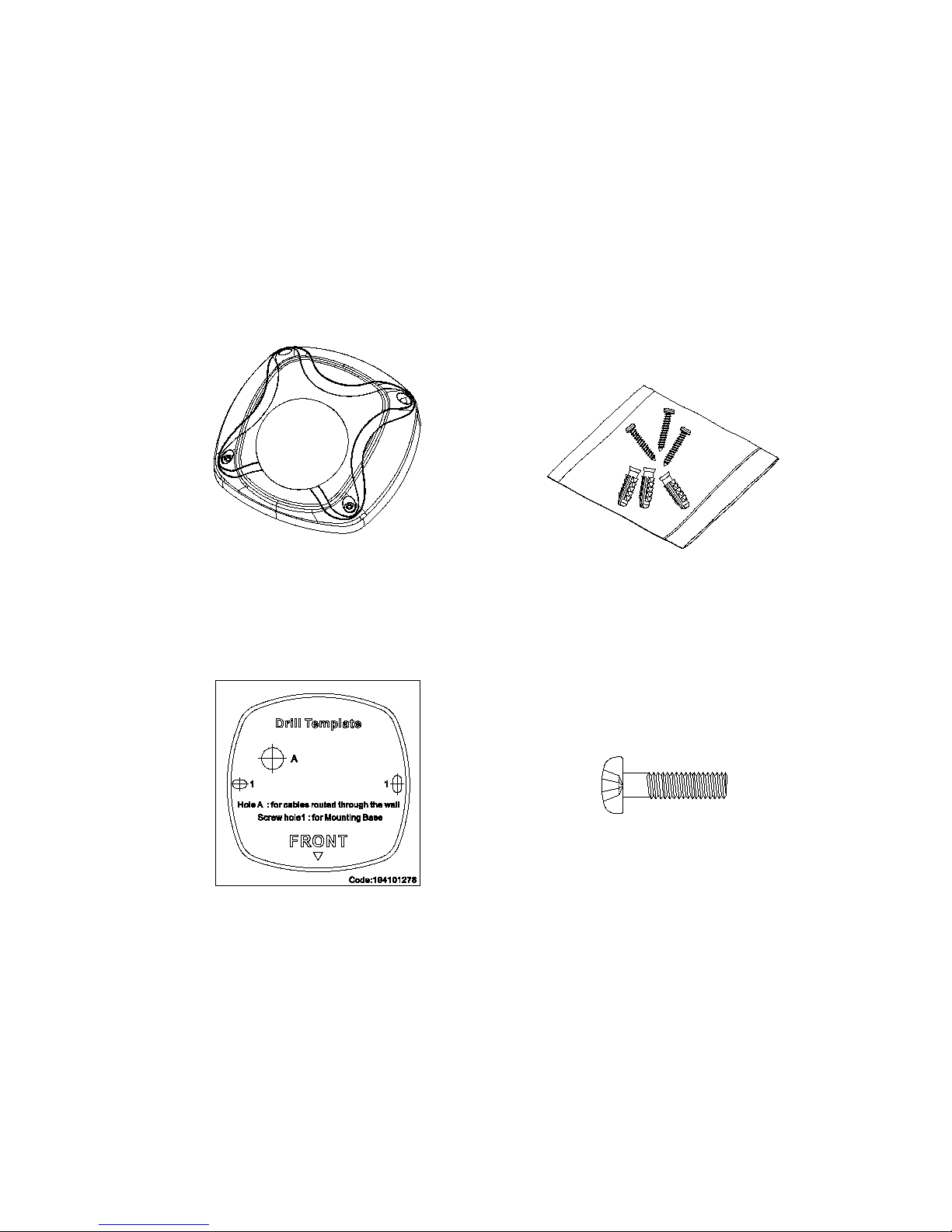

Package contents

Camera

assembly (cable

harness not

shown)

3 M4 x 25 mm

screws and 3

anchors for wall

or ceiling

installation

Camera drill

template

2 screws M4 x 8

used for installing

the camera to the

adapter plate

4 Installation Guide

Torx wrench

Adapter plate

Adapter plate drill

template

12 VDC

connector (2

terminal

connectors with

positive and

negative

indicators)

Lens adjustment

tool

Installation guide

Installation Guide 5

•Equipment

disposal sheet

6 Installation Guide

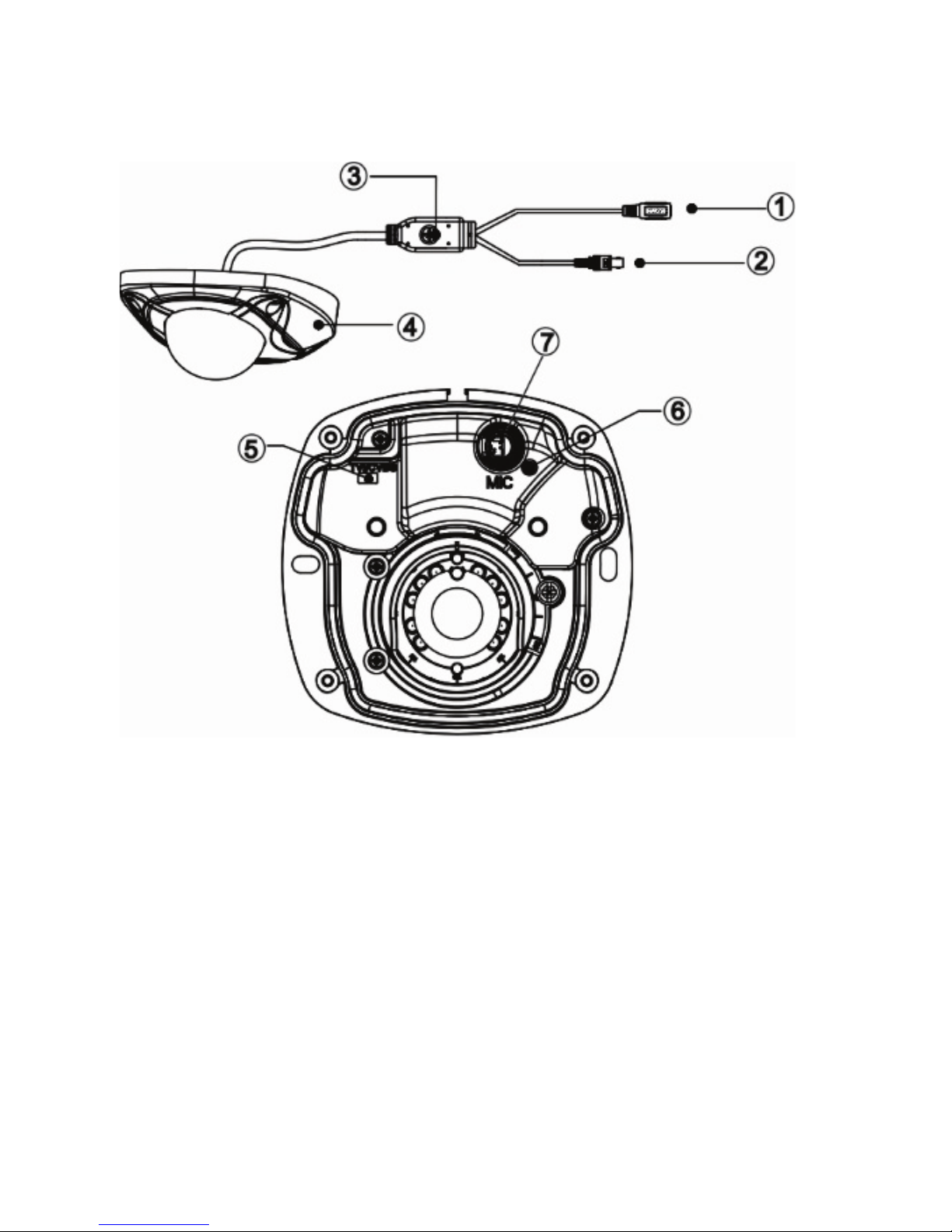

Camera description

1. 12 VDC power cable

2. TVI / 960H analog

video output

3. OSD menu button

4. Camera housing

5. TVI / 960H analog

switch

6. Power LED

7. MIC (Audio not

supported)

Installation Guide 7

Note: When using the HD-TVI output, the HD-TVI

wedge camera should only be connected to a DVR

that supports a TVI signal.

Installation

To install the camera on a surface:

1. Use the camera drill template to mark the

mounting holes.

2. Follow all local safety regulations. Drill through

the mounting surface. If you need to route the

cables from the bottom of the camera, drill a

larger hole in the mounting surface for the

cable harness.

3. Using the Torx wrench, loosen the four screws

to remove the housing cover from the device.

8 Installation Guide

4. Install the mounting base to the surface using

two of the M4 x 25 mm screws and anchors. If

routing the cable harness through the ceiling,

do so prior to mounting the camera.

5. Loosen the Philips screw, located near the lens

assembly. Align the lens adjustment tool with

the two small holes located on the camera

assembly.

Rotate (pan) the camera assembly using the

lens adjustment tool until the lens is positioned
