Interlogix TruVision Line Bedienungsanleitung
P/N 1072692A-EN • REV 1.0 • ISS 10OCT13
TruVision Analog PTZ
Camera Installation
Manual
Copyright © 2013 UTC Fire & Security Americas Corporation, Inc.
Interlogix is part of UTC Climate Controls & Security, a unit of United
Technologies Corporation. All rights reserved.
Trademarks and
patents
TruVision name and logo are trademarks of United Technologies.
Other trade names used in this document may be trademarks or registered
trademarks of the manufacturers or vendors of the respective products.
Manufacturer UTC Fire & Security Americas Corporation, Inc.
2955 Red Hill Avenue, Costa Mesa, CA 92626-5923, USA
Authorized EU manufacturing representative:
UTC Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, The Netherlands
Certification
N4131
FCC compliance Class B: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
There is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
European Union
directives
12004/108/EC (EMC directive): Hereby, UTC Fire & Security declares that this
device is in compliance with the essential requirements and other relevant
provisions of Directive 2004/108/EC.
2002/96/EC (WEEE directive): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info.
Contact information For contact information, see www.interlogix.com or
www.utcfssecurityproducts.eu.
TruVision Analog PTZ Camera 3 EN
Content
Introduction 3
Product overview 3
Before you begin 4
Installation environment 4
Camera description 5
Installing a camera 6
Pendant-mount cameras 6
Flush-mount cameras 7
Surface-mount cameras 8
DIP switch settings 11
Specifications 14
Introduction
This pocket guide provides basic information on setting up and using
the TruVision Analog PTZ Camera. Detailed information on the
cameras can be found in the configuration manual.
Product overview
This is the user manual for TruVision analog PTZ camera models
TVP-2101 (23X pendant, PAL)
TVP-4101 (23X pendant, NTSC)
TVP-2102 (23X surface, PAL)
TVP-4102 (23X surface, NTSC)
TVP-2103 (23X flush, PAL)
TVP-4103 (23X flush, NTSC)
TVP-2104 (36X pendant, PAL)
TVP-4104 (36X pendant, NTSC)
TVP-2105 (36X surface, PAL)
TVP-4105 (36X surface, NTSC)
EN 4 TruVision Analog PTZ Camera
TVP-2106 (36X flush, PAL)
TVP-4106 (36X flush, NTSC)
Before you begin
Unpack everything. Check the items for damage, and verify that all
items are included. The camera is shipped with the following items:
Dome camera
Installation manual
CD with configuration manual
Installation environment
When installing your camera, consider these factors:
• Place the camera in a secure location.
• Ensure that the camera is in a well-ventilated area.
• Do not expose the camera to rain or moisture.
EN 5 TruVision Analog PTZ Camera
Camera description
Figure 1: Overview of the dome camera (pendant-mount shown)
1. Power supply cord.
Connect 24 VAC power supply
2. RS-485 port
3. Video output.
Connect the BNC connector to a CCTV monitor.
4. Housing.
5. Bubble.
1
2
3
4
5
EN 6 TruVision Analog PTZ Camera
Installing a camera
Pendant-mount cameras
1. Prepare the mounting surface and install the camera bracket.
2. Unscrew the bubble from the camera and remove the protective
tape from the PTZ module.
3. Press the two tabs on either side of the PTZ module and remove it
from the camera housing.
4. Configure the communication parameters for the PTZ camera.
Please see Section DIP Switch Settings for detailed information of
communication parameters settings.
5. Route the cables from the pendant-mount bracket, and connect it
to the PCB of the module through the cable entry hole on top of the
housing.
Note: If alarm and audio input/output relays are to be used, also
connect them to the PCB of the module.
6. Attach the camera housing to the bracket using the screws
enclosed with the bracket.
7. Insert the PTZ module into the housing:
Position the tabs on the PTZ module by aligning the arrow label on
the module with those on the housing (see below). The module
should snap firmly into position. If using an SD card, insert it into
the module before inserting the module into the housing.
8. Re-attach the bubble by screwing it to the housing.
EN 7 TruVision Analog PTZ Camera
Flush-mount cameras
1. Using the drill template, drill a hole on the ceiling.
2. Unscrew the bubble from the camera and remove the protective
tape from the PTZ module.
3. Press the two tabs on either side of the PTZ module and remove
the module from the camera housing.
4. Configure the communication parameters for the PTZ camera. See
the section “DIP switch settings” on page 11 for detailed information
on the communication parameters settings.
5. Adjust the height of the two housing tabs by turning the screw on
which they are attached. The distance (h) of the tabs from the
housing ring must be greater than the thickness of the ceiling.
Housing tab
Screw
6. Make sure the housing tab is closed and then PUSH the housing
into the pass-through hole. Hold the housing and fix it by screwing
the housing tabs down to the mounting surface.
7. Insert the PTZ module into the housing:
EN 8 TruVision Analog PTZ Camera
8. Re-attach the bubble by screwing it to the housing.
9. Install the trim ring. Align the trim ring to the housing, and insert the
fix-pins to the holes. Then rotate the ring clockwise.
Surface-mount cameras
The PTZ camera cables can be routed either from the top or side of
the housing (see figures below). For the cables routed from the top of
the housing, you need to drill a cable hole in the ceiling.
EN 9 TruVision Analog PTZ Camera
1. Using the mounting base as a template, mark four screw holes on
the ceiling. If you are routing cables from the top of the housing,
mark the cable hole on the ceiling and drill a hole.
A
B
A. Screw holes; B. Cable hole
2. Secure the mounting base to the ceiling with screws.
3. Unscrew the bubble from the camera and remove the protective
tape from the PTZ module.
EN 10 TruVision Analog PTZ Camera
4. Press the two tabs on either side of the PTZ module and remove
the module from the camera housing.
5. Configure the communication parameters for the PTZ camera. See
“DIP switch settings” on page 11 for detailed information on the
communication parameters settings.
6. Connect the cables to the PCB of the module through the cable
entry hole on the top of the housing.
7. Attach the housing to the mounting base. Align the arrow head with
the spring end of the mounting base. Push the housing up and
then sideways in the direction of arrow. When the housing is
correctly positioned, the spring automatically snaps firmly into the
lock clip. See the figures below.

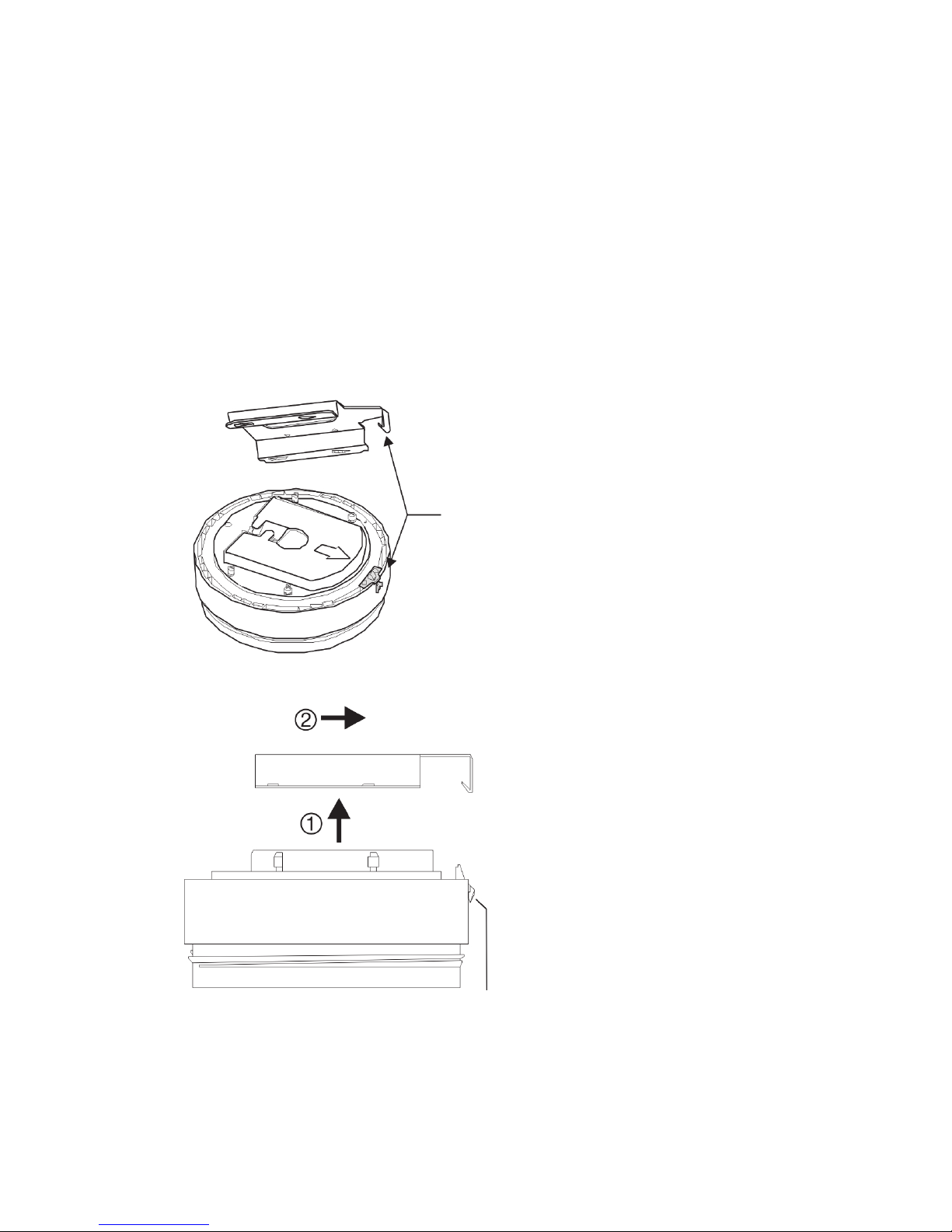

Align
Push up (1) and then push
sideways (2).
Lock clip
8. Insert the PTZ module into the housing:
