EasyCoder 401/501

Paper Cutter Kit

P/N 1-960348-06

Edition 7

September 1998

Installation Instructions

EasyCoder 401/501 – Installation Instruction

PAPER CUTTER KIT

ThisleafletcontainsinstructionsonhowtofitaPaperCutteronan

EasyCoder 401, EasyCoder 501 S, EasyCoder 501 E, or Easy-

Coder 501 SA printer.

The Paper Cutter Kit consists of:

• One cutter unit assembly

• This installation instructions leaflet

The Paper Cutter is power-supplied by the printer and is conse-

quently not dependent on any separate mains supply.

The Paper Cutter is intended to cut through continuous non-

adhesive paper strip or through the backing paper between labels.

Itmustnotbeusedtocutthroughanykindofadhesive,whichwould

stick to the cutting parts and rapidly render the cutter inoperable –

possibly also causing damage to the electric motor.

Maximum paper thickness is 175 µm (≈175 grammes/m2) for

normal paper-based materials.

ThePaperCutterreplaces the printer's front hatch and can be tilted

down in order to facilitate cleaning and paper load and also to give

access to the optional Memory Card Adapter.

When the Paper Cutter is fitted, it will increase the printer's length

and weight by:

Length ..........: 28 mm (1.1")

Weight..........: ≈1.0 kgs (≈2.2 lbs)

Therotatingcuttingedgewill cutthroughthe paperapproximately

37 mm (1.5") in front of the printer's tear-off edge. The paper feed

setup should be adjusted accordingly, see page 6.

CAUTION!

For safety reasons, the cutter must not be operated

when in open position.

General Information

Information in this manual is subject to change without prior notice and does

not represent a commitment on the part of Intermec Printer AB.

©CopyrightIntermecPTCAB,1998.Allrightsreserved.PublishedinSweden.

EasyCoder and Fingerprint are registered trademarks of Intermec Technolo-

gies Corp.

Torx is a registered trademark of Camcar Division of Textron Inc.

Note:

IllustrationsshowanEasyCoder501E

printer, but the principles for fitting

the cutter on another printer model

are exactly the same. However, note

thatthis cutter does not work withany

EasyCoder 401 Linerless or Easy-

Coder 601 printers.

EasyCoder 401/501

Paper Cutter Kit

Installation Instructions

Edition 7, September 1998

Part No. 1-960348-06

EasyCoder 401/501 – Installation Instruction

❑Important!

Turn off the main switch and remove the power cord.

❑Open the printer's front hatch.

❑Holdthe printerfirmlyandpressthe fronthatchsideways tothe

left so the hinges disengage.

❑Remove the hatch completely.

❑Iftheprinterisfitted with an optional label-taken sensor(LTS),

itmustberemoved,sinceitintrudesonthespacerequiredbythe

cutter and which has no use anyway in connection with cut-off

operation.

IftheprinterisnotfittedwithanLTS,bypasstherestofthispage

and page 3 and proceed at the top of page 4.

❑Remove the cover over the left part of the printer. It is held by

threeorfour#T10Torxscrewsalongtheloweredgeandanother

three or four similar screws at the top.

PAPER CUTTER KIT, cont'd.

Step-by-Step Instructions

Continued!

Press sideways

Front Hatch

#T10 Torx Screws

EasyCoder 401/501 – Installation Instruction

❑Disconnect the LTS cable from connector P-606 at the upper

front corner of the CPU board.

❑Loosen the #T10 Torx screw that holds the LTS bracket to the

frontoftheprintunit and remove the LTS assembly. Be careful

nottodamagethecable–youmaywanttoputbacktheLTSlater

or use it in another printer (it fits all EasyCoder 401/501/601

printers).

❑Put back the left-hand cover plate.

PAPER CUTTER KIT, cont'd.

Continued!

Step-by-Step Instructions,

cont'd.

POWER ON

040700.10

FLASHEPROM

P-606

Disconnect LTS Here!

LTS #T10 Torx Screw

EasyCoder 401/501 – Installation Instruction

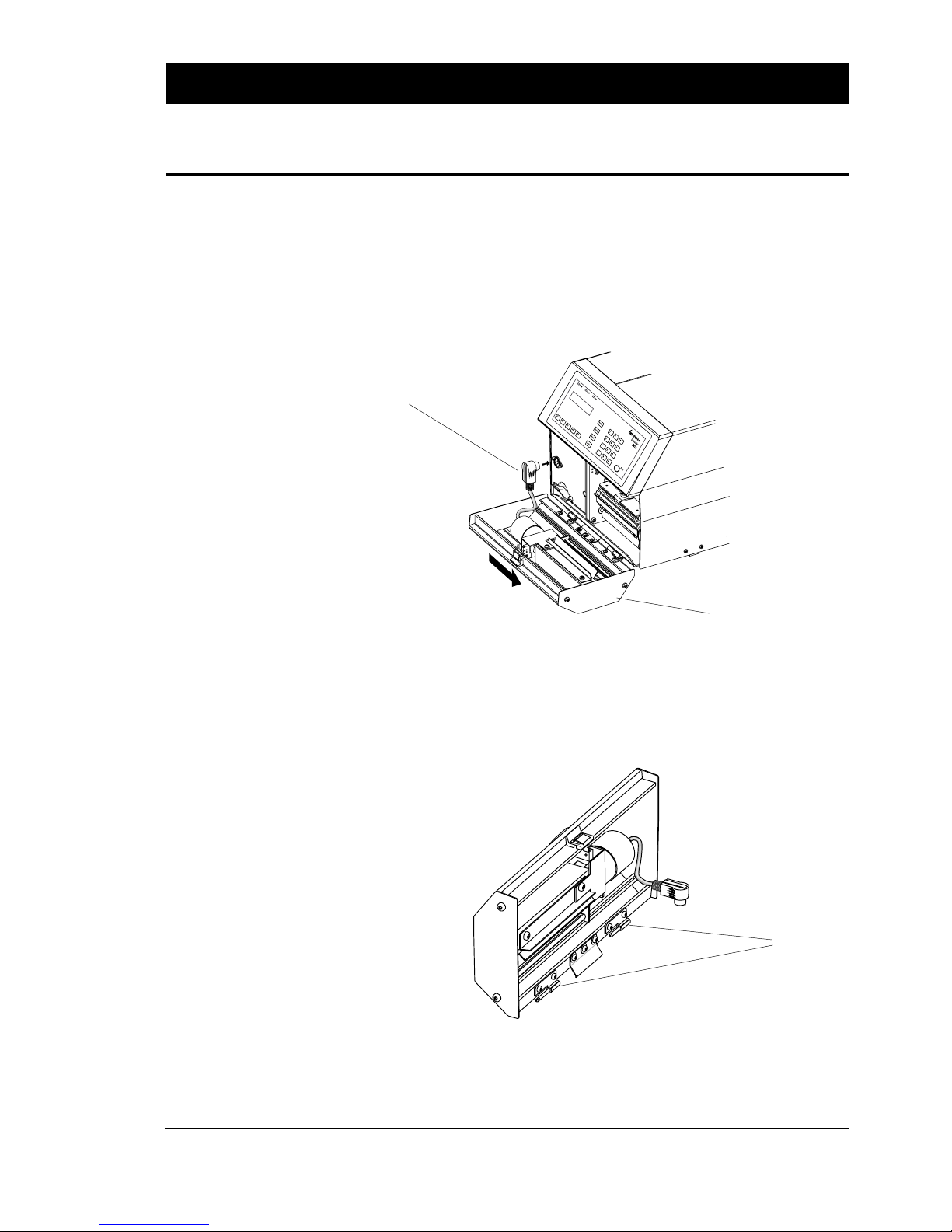

❑Fitthecutter unit tothevacanthingesfrom which you removed

the front hatch. Make sure that the locking plate snaps into the

groove of the right-hand hinge and that the angled plate at the

bottom of the cutter is inserted under the printer's bottom plate.

❑Fit the cable from the cutter unit into the DIN connector above

the memory card slot on the printer's front.

❑Tilt the cutter unit upwards until it locks into place. If the cutter

doesnotlockproperly,thehingesofthecutterunit may need to

be adjusted using a #T10 Torx screwdriver.

DIN Connector

Hinges

Continued!

PAPER CUTTER KIT, cont'd.

Step-by-Step Instructions,

cont'd.

Cutter Unit

EasyCoder 401/501 – Installation Instruction

PAPER CUTTER KIT, cont'd.

Step-by-Step Instructions,

cont'd. ❑Put back the power cord and switch on power. The cutter will

perform an idle cycle in order to occupy its home position.

Switch off the power again.

❑Tiltdown the cutter and thread thepaper through the cutter unit

between the guide plates.

❑Tiltupthecutteragainandlockitin closed position. Make sure

theprintheadislowered,closetheright-handdoorandswitchon

the power. Now the printer is ready for operation.

CAUTION!

Do not open the cutter while the

power is on!

EasyCoder 401/501 – Installation Instruction

PAPER CUTTER KIT, cont'd.

Controlling the Cutter

Maintenance

InEasyCoder 401, 501and501E,the cutter isactivatedbyCUT or

CUT ON statements in the Fingerprint program, see Intermec

Fingerprint 6.13 Reference Manual.

In EasyCoder 501 SA, the cutter can be turned on/off by means of

a menu in the Set Mode, see Intermec Stand-Alone Concept

Operating Instructions.

CAUTION!

Forsafety reasons,the cutter must not beoperated whenin openposition.

As a precaution, the cable should be disconnected.

The rotating edge will cut through the paper approx. 37 mm (1.5")

in front of the printer’s dot line. The paper feed should be adjusted

accordingly.

Thefollowingvaluesarerecommendedforcuttingbetween labels

and for variable length strip. In both cases, the start adjustment is

calculated to allow the paper web be pulled back after cutting, so

printing can start directly at the forward edge.

Density: 8 dots/mm (203.2 dpi) 11.81 dots/mm (300 dpi)

Labels:

Startadjust -294 -441

Stopadjust +180 +270

Var. length strip:

Startadjust -294 -441

Stopadjust +250 +375

Should the cutter inadvertently have been used to cut through any

adhesive,youwillhavetocleanthe“knife”,whichisarotatingshaft

with an edge. Tilt down the cutter and use a piece of tissue

moistenedwithisopropylalcohol,orasimilarsolvent,towipeclean

the shaft.

Do not force the spring-loaded anvil blade open, which may

damage the spring.

CAUTION!

Turn off the power or disconnect the cutter before cleaning.

Keep fingers away from cutting parts!
