IPC Eagle 14" Bedienungsanleitung
REV A March 2004
COMMERCIAL
14” and 16”
UPRIGHT VACUUM
OPERATIONS & PARTS MANUAL
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
If you observe the recommendations listed below,
this will ensure maximum performance by the
appliance, the longest possible life and a high level
of safety.
• Do not clean the appliance with solvents - the body and
accessories are in plastic and, therefore, may get dama-
ged.
• Never immerse the appliance in water.
• Do not clean the appliance in water.
• Do not leave the appliance unattended while it is running.
• Never put the appliance near to heat sources.
• Remove the power plug from the power socket after each
use of the appliance.
• If the power lead and power socket are damaged, replace
them immediately at an authorized service center.
• Do not use the appliance as a liquid-suction device.
• Before every maintenance or replacement job, remove the
appliance’s power plug from the power socket.
• Do not suck in lighted cigarette ends or flammable
materials.
• Remove the plug by pulling the plug body and not the
power lead.
• Strictly use original dust-bags and filters.
NOTE
The manufacturer reserves the right to make any
modifications without prior notice.
IMPORTANT!!
Before attempting any maintenance job, always remove the power plug.
For all maintenance jobs, always contact our authorised service centers.
PAGE 1
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
1
2
3
5
8
6
4
7
9
12
14
13
10
11
CONNECTING THE HOSE
Insert the rotating sleeve into the bag-holding sleeve, insert the second rota-
ting sleeve into the telescoping element, and hook the hose to the handle.
COMMERCIAL
1 Ergonomic handle
2 Power cord
3 Hose
4 Telescoping extension
5 Switch
6 Carrying handle
7 Cord winding device
8 Cover
9 Vent grid
10 Container
11 Engine housing
12 Electric brush
13 Base
14 Hi/Low vac motor switch
OPERATING THE TELESCOPING EXTENSION
Extend the telescoping extension by pulling it; block it by turning
the dedicated ring nut counter-clockwise.
SYSTEM START-UP
PAGE 2
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
STARTING THE BRUSH
Put your foot on the PUSH sign and tilt the vacuum-cleaner body.
FILTER FULL INDICATOR
If the “bag full” gauge turns red, please verify:
a) whether the dust bag is full, or
b) whether the brush is clogged, or
c) whether the vacuuming hose is clogged;
in these cases, remove the obstruction
d) whether the Hepa filter is fully clogged.
It is normal that during vacuuming the “bag full” gauge partially turns red,
because the hose is closed.
CHECKING THE BRUSH
The brush-checking device continuously monitors the operation of the brush:
Green light: the brush is working correctly
Red light: the brush is either blocked or it is undergoing excessive stress.
Turn the machine off, detach the plug from the mains, and look for the cause
of the blocking.
REPLACING THE FILTER BAG
Remove the cover.
Place the dust bag into the container, by inserting the bag-holding sleeve into
the dust bag hole and by pushing the safety ring all the way in.
If the filter bag is not placed correctly, closing the cover will be impossible.
MAINTENANCE
PAGE 3
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
REMOVING CLOGGING DEBRIS FROM THE OUTER DUCT
Any material clogging the duct can be removed by extracting the telescoping
extension from its seat, operating the vacuuming function, and intermittently
opening and closing the vacuuming by hand.
Do not insert objects into the duct in order to remove any clogging.
A
REPLACING THE FILTER
Pull out the filter holder and replace the filter, or clean it by tapping it lightly
(replace it approximately every 20 bags).
REPLACING THE HEPA FILTER;
REPLACING OR CLEANING THE PRE-FILTER
Pull latch “A” in order to unhook the vent grid; at the same time, slide it
(in the direction shown by the arrow) so that it comes free. The pre-filter is
housed in the air exhaust under the Hepa filter. Replace the pre-filter or clean
it, by washing it with water; dry it and carefully replace it in its housing.
Assemble the Hepa filter and the vent grid again, by sliding it all the way in
until you hear the latch snapping into place.
REMOVING CLOGGING DEBRIS FROM THE INNER DUCT
Lay the vacuuming body down horizontally, flush with the electric brush.
Unscrew the base screws, remove the base.
Remove any clogging material from the duct by using a flexible cleaning rod.
PAGE 4
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
REPLACING THE ROLLER
Unscrew the base screws, remove the base, and remove the roller by sliding
the holders off.
Insert the roller, paying attention to the correct installation of both the roller
holders into their seats and of the belt, keeping it in the guide on the engine
pulley first and then on the roller pulley. Reassemble the base.
INSTALLING THE VAC MOTOR
Place the rubber block of the engine holder onto its dedicated, oriented sup-
porting element. Place the engine over it, rotating it until you find the correct
joint into its seat. Install the first grommet ring on the engine, then the spacer,
and finally the second grommet ring.
In order to disassemble the vac motor housing, remove the dust bag cover,
unhook the vent grid and unscrew the four screws from the shell.
REMOVING THE ELECTRIC BRUSH COVER
Unscrew the screws from the bottom and remove the cover.
PAGE 5
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
REPLACING THE ELECTRONIC BOARD
Slide the board off the guides and detach the connection.
Disconnect the supply wires from the terminal and replace the board.
DISASSEMBLING THE JOINT
Unscrew the case screws.
Lift the cover and free the joint.
Unscrew the cable-holder screws from the vacuuming device.
Slide the joint off.
Unscrew the cable-holder screws from the electric brush and free the
board wires.
Slide the joint off the cable.
IMPORTANT!!
Before attempting any maintenance job, always detach the power plug from
the mains.
For all maintenance jobs, always contact our authorized service center.
PAGE 6
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
1
5
2
4
3

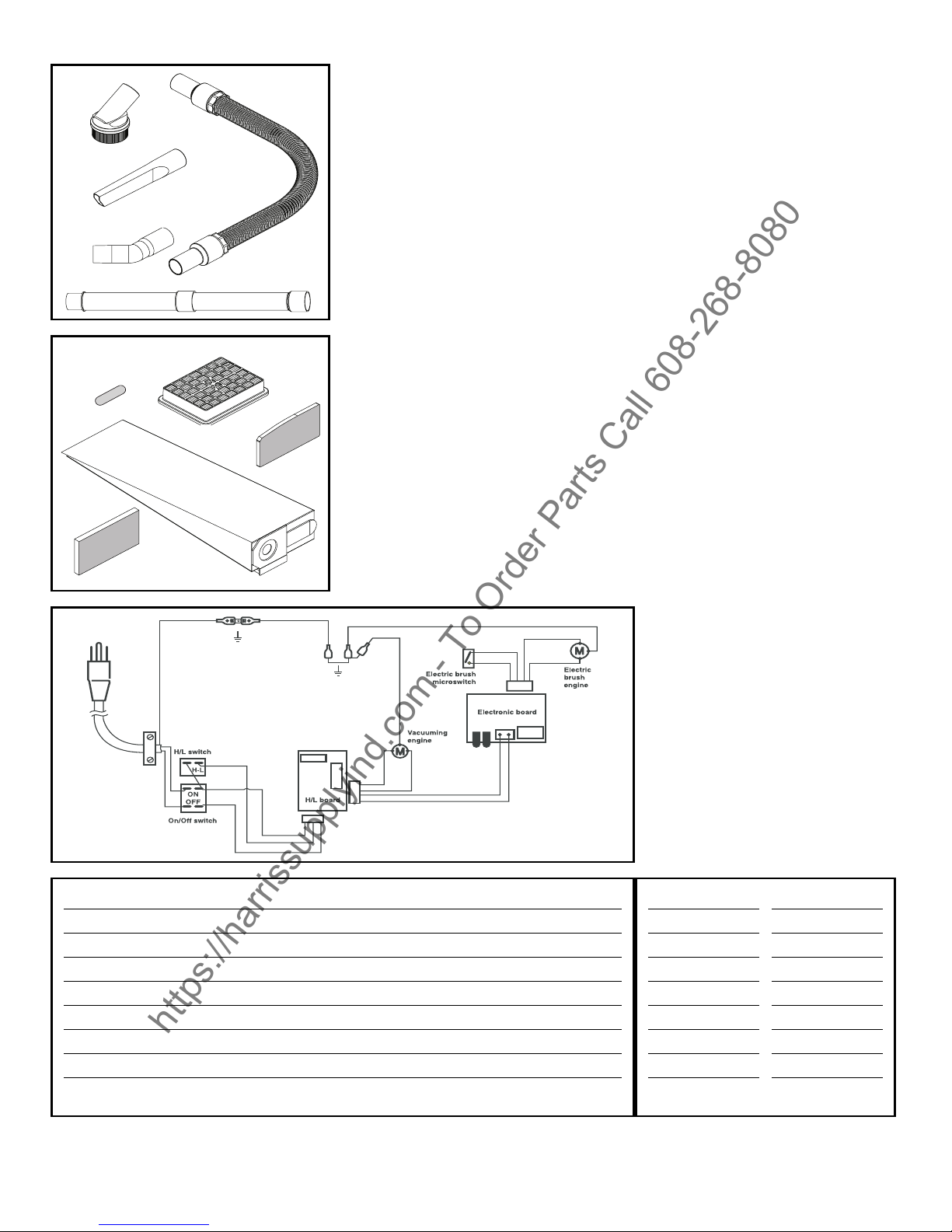

SPARE PARTS
1 - Hepa filter
2 - Air freshener
3 - Filter bag
4 - Filter
5 - Pre-filter
1
2
3
4
5
ACCESSORIES PROVIDED
1 - Small brush
2 - Crevice tool
3 - Curved sleeve
4 - Hose
5 - Telescoping extension
SPECIFICATION
Vacuum motor power
Brush motor power
Dust bag capacity
Working surface
Weight
Noisiness level (at operator ear)
Voltage
Electronic card, motor blocking
14”
1000 W
150 W
6,5 l
350 mm
6,94 Kg
Provided
16”
1000 W
150 W
6,5 l
400 mm
7,04 Kg
Provided
The manufacturer reserves the right to make any modification without prior notice.
Specifications subject to change without notice.
EAGLE POWER PRODUCTS GROUP - ph. 1-800-486-2775
ELECTRIC DIAGRAM
Caution!
Any job involving the electric plant
must be carried out only by qualified
personnel.
120 Volt / 60 Hz
min 67,25 dBA / max 69,75 dBA
PAGE 7
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
Re
f
erence
Number Part Number Description Qty
1VCSA1GUV0 HOUSING, VACUUM 1
2USE KIT VC2000 SCREW 4
3VCSA1PORTBBU
**
BACK COVER, COMPLETE W/GASKET 1
4/7 VCSA3MAWCC
**
MOTOR, VACUUM, COMPLETE 1
8VCA8LAMO CLIP, BRASS 1
9USE KIT VC2000 SCREW 1
10+11 VCA1CWEGC COVER, UPPER, LIGHT GRAY 1
12 VCA1TAPDX RIGHT INSERT, BACK COVER 1
12 VCA1TAPSX LEFT INSERT, BACK COVER 1
13 VCA7FIP
**
FILTER, INNER 1
14 VCA1VP
**
FILTER HOLDER, INNER, RED 1
15 VCA3PF
**
AIR FRESHENER STICK 1
16 USE KIT VC2000 SCREW 2
17 USE KIT VC2000 SCREW 7
18 VCA1SICS NO BAG SAFETY LOCK OUT RING 1
19 VCA8MOSISA SPRING, LOCK OUT RING 1
COMMERCIAL 14 & 16 VACUUM ASSEMBL
Y
PAGE 8
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
Re
f
erence
Number Part Number Description Qty
COMMERCIAL 14 & 16 VACUUM ASSEMBL
Y
20 VCSA1INDNE
**
FULL BAG INDICATOR, BLACK 1
21 VCA1MASAGS SLEEVE, DARK GRAY 1
22 VCA1ANMGS RING, SLEEVE, DARK GRAY 1
23 VC1000
**
BAG, PAPER 1
24 VCA1MAGINE
**
HOSE CUFF, BLACK 2
25 VCA2TESC46
**
HOSE, L=18" 1
26 VCA4PNE
**
ROUND BRUSH TOOL, BLACK 1
27 VCA4LNE
**
CREVICE TOOL, BLACK 1
28 VCA1MACUNE
**
TUBE, CURVED 1
29 VCSA4PT
**
WAND, TELESCOPING, BLACK 1
VCA2COSIL GASKET, HEPA FILTER 1
VCSA7FH1
**
FILTER, HEPA 1
31 VCSA1GFCOMM GRILL, FILTER, COMPLETE 1
32 VCA7PFCOM
**
PRE-FILTER, HEPA 1
33 VCA1SUPF HOUSING, HEPA FILTER 1
34 USE KIT VC2000 SCREW 1
35 USE KIT VC2000 SCREW 5
36 USE KIT VC2000 SCREW 1
37 VCA1CAFCNE CLAMP, CORD 1
38 TBD
**
CIRCUIT BOARD, VAC MOTOR REGULATION 1
39 VCA1AIGS CORD WRAP, LOWER, DARK GRAY 1
40 VCA3CABCOP-1 WIRING, INNER, L=25" 1
41 VCA1SM COVER, FRONT 1
42 VCA1CABC CLAMP, CORD 1
43 USE KIT VC2000 SCREW
44 VCA1TOR NUT, BLOCK 1
45+47 VCA1CLIPGS CLIP, WAND AND TOOL 2
46 USE KIT VC2000 SCREW 4
48 USE KIT VC2000 SCREW 1
49 VCSA1IMPC HANDLE HAND GRIP, COMPLETE 1
50 USE KIT VC2000 SCREW 1
51 VCA1GUCA CORD SLIDE 1
VCA6TCC CHROME PLATED BAR 1
VCA2GORG RUBBER SLACK ABSORBER 1
VCA1PUMGR BUTTON, HANDLE, DARK GRAY 1
VCA8MPUM SPRING, HANDLE BUTTON 1
VCA1SMPGR BUTTON SPRING HOLDER, DARK GREY 1
30
52
PAGE 8
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
