JCROffroad REAR MOLLE PANEL Konfigurationshandbuch

Thank you for purchasing from JcrOroad! Checkout our website, www.jcroroad.com for other great o-road

products. Be sure to rate and review our product online. If you have any questions or are missing parts, please

don’t hesitate to call us at 269-353-1184!

Please read the mounting instructions below carefully before attempting to install.

Be sure to check out the install video on the product page, if available.

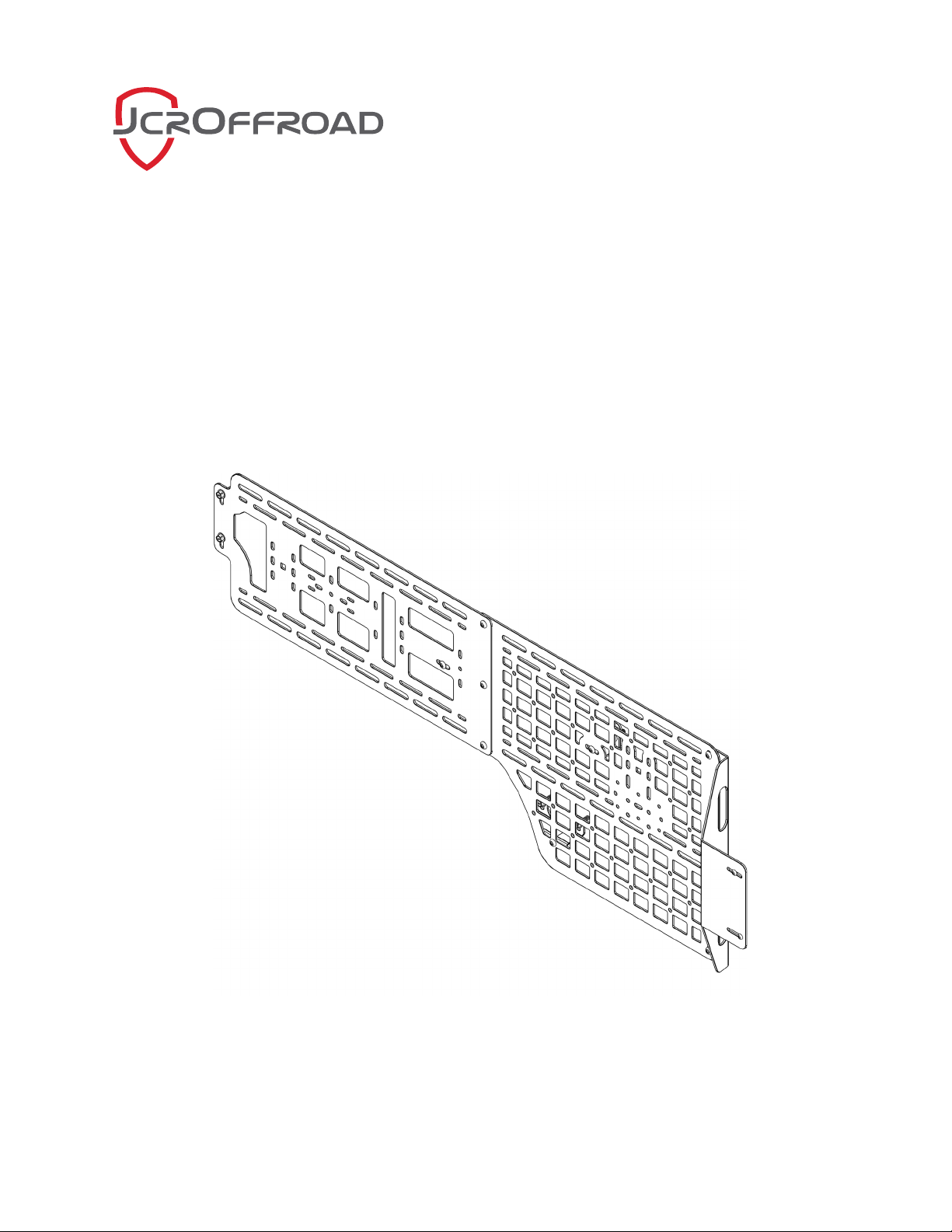

4TH GEN RANGER

REAR MOLLE PANEL

INSTALL INSTRUCTIONS

INCLUDED HARDWARE

8x8x

5/16”-18 X 5/8"

Button Head

5/16”-18

Serr. Flange Nut

3/8”-16 X 1”

Button Head

3/8”-16

Serr. Flange Nut

25mm M8

Flanged Hex Head

25mm M6

Button Head

4x

4x

4x

2x

INCLUDED PARTS

1x

1x 1x

1x

2x 2x

1Start by loosely attaching the two panels as well as the rear bracket using

the 5/16”-18 X 5/8” button heads and 5/16”-18 serr. ﬂange nuts. The front

panel should sit towards the inside when installed, and the rear panel

should sit between the front panel and the bracket. The larger cutout in

the front panel and the curved cutout in the rear panel both go on the

bottom.

ASSEMBLY

2Once the panels are assembled, install the bottom mount into the factory

threaded holes using the M8 bolts. The horizontal slot should be towards

the ground. If you have a spray in bed-liner, you may need to tap the holes

using a M8 X 1.25mm tap.

ASSEMBLY

3Next, loosely assemble the upper mounts as shown below. Then, remove

the plastic plugs from the bedside and insert the ﬂat washer into the

exposed holes. Once the ﬂat washer is sitting in the hole vertically, lightly

pull out on the rectangular bracket and tighten it into place.

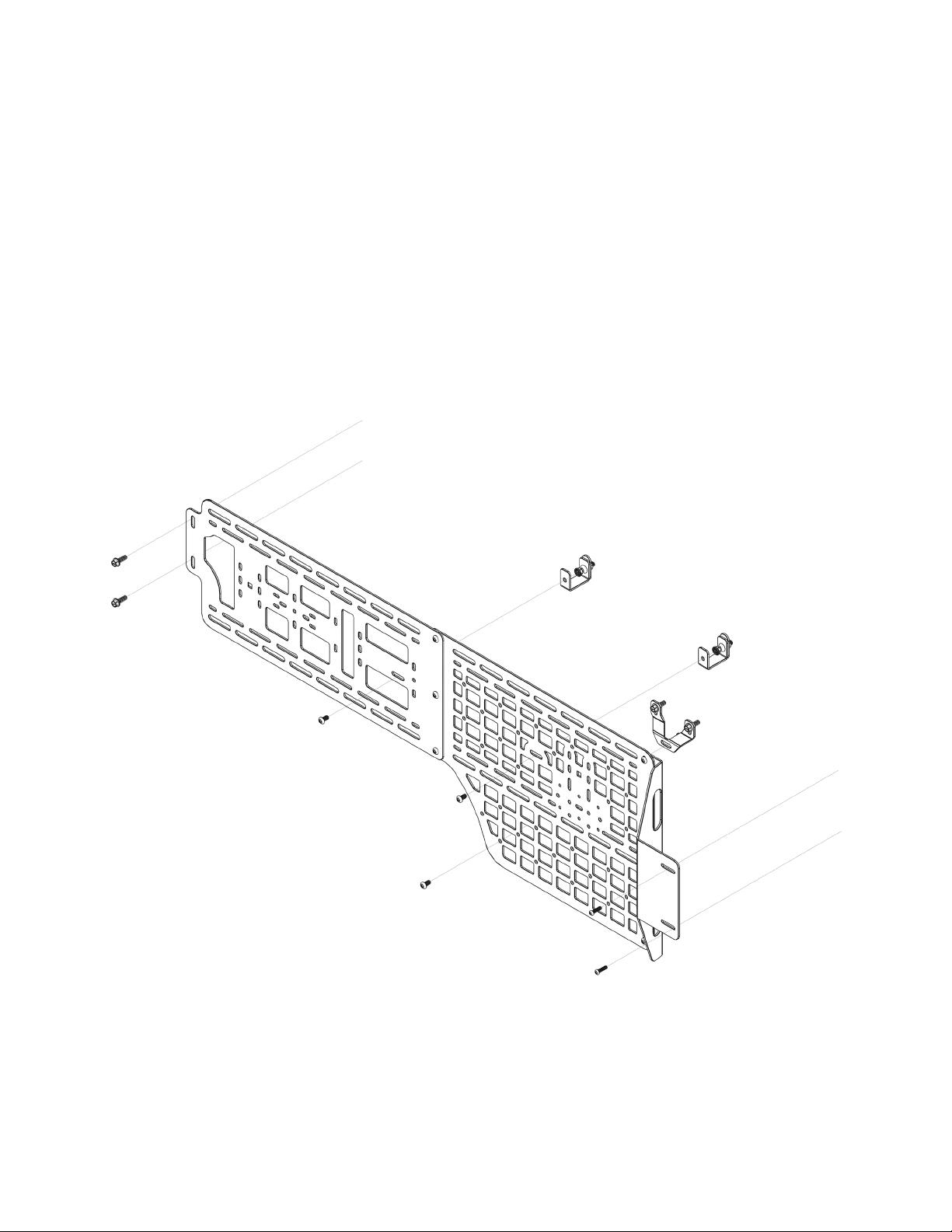

4Finally, mount the panels to the bedside and mounts. The front and back

mount directly to the bedside using M8 bolts and M6 bolts respectively.

If you have a spray in bed-liner, you may need to tap these holes as well.

The mounts attach to the panels using 5/16”-18 X 5/8” button heads and

5/16”-18 serr. ﬂange nuts.

ASSEMBLY
