I MPORTANT SAFETY I NSTRUCTIONS

What You Need to Know About

Safety Instructions

Warning and Important Safety Instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating appliance.

Always contact the manufacturer about problems or

conditions you do not understand.

Recognize Safety Symbols, Words,

Labels

This appliance is equipped with a three-prong

grounded plug for your protection against possible

electrical shock hazards. It must be plugged into a

properly grounded wall receptacle. Where a standard

two-prong wall receptacle is encountered, it is the

personal responsibility and obligation of the customer

to have it replaced with a properly grounded three-

prong wall receptacle. Do not, under any

circumstances, cut or remove the third (ground)

prong from the power cord. Do not use an adapter

plug.

Power supply cord with

three-prong grounded plug

Properly

grounded type

wall receptacle

I MPORTANT SAFETY I NSTRUCTIONS

SAVE THESE INSTRUCTIONS 2

I NSTALLATI 0N

Your refrigerator was packed carefully for shipment.

Remove and discard shelf packaging and tape. Do not

remove the serial plate.

Location

•Do not install refrigerator near oven, radiator or

other heat source. If not possible, shield refrigerator

with cabinet material.

•Do not install where temperature falls below 55° F

(13° C) or rises above 110° F (43° C). Malfunction

may occur at this temperature.

•Refrigerator is designed for indoor household

application only.

Measuring the Opening

When installing your refrigerator, measure carefully.

Allow '/2"space at top and '/2"space behind the

machine compartment cover (located in the rear) for

proper air circulation.

Subflooring or floor coverings (i.e. carpet, tile, wood

floors, rugs) may make your opening smaller than

anticipated.

Some clearance may be gained by using the leveling

procedure under Leveling, page 4.

Important: If refrigerator is to be installed into a

recess where the top of the refrigerator is completely

covered, use dimensions from floor to top of hinge cap

to verify proper clearance.

Transporting Your Refrigerator

•NEVER transport refrigerator on its side. If an

upright position is not possible, lay refrigerator on its

back. Allow refrigerator to sit upright for

approximately 30 minutes before plugging it in to

assure oil returns to the compressor. Plugging the

refrigerator in immediately may cause damage to

internal parts.

• Use an appliance dolly when moving refrigerator.

ALWAYS truck refrigerator from its side or

back-NEVER from its front.

Protect outside finish of refrigerator during transport

by wrapping cabinet in blankets or inserting padding

between the refrigerator and dolly.

Secure refrigerator to dolly firmly with straps or

bungee cords. Thread straps through handles when

possible. Do not over-tighten. Over-tightening

restraints may dent or damage outside finish.

Glass Panel Doors (select models)

I NSTALLATI 0N

Leveling

To enhance the appearance and maintain performance,

the refrigerator should be leveled per instructions

below.

Door and Drawer Removal

Some installations require door/drawer removal to

transport the refrigerator to its final location.

Notes:

•Complete any required water supply connection

before leveling.

• Some models only have adjustment screws (A).

Materials Needed:

• %" hex head driver

• Carpenter's level.

1. Remove toe grille.

• Grasp firmly and pull outward to unclip.

2. Using hex head driver, turn the front adjustment

screws (A) on each side to raise or lower the front

of the refrigerator (see illustration below).

C C

3. Using the hex head driver, turn each of these

adjustment screws (B) to raise or lower the rear of

the refrigerator.

4. Using a carpenter's level, make sure front of

refrigerator is '/4" (6 ram) or '/2bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

5. Turn stabilizing legs (C) clockwise until firmly

against floor.

6. Turn adjustment screws (A) counterclockwise to

allow the full weight of the refrigerator to rest on

the stabilizing legs.

7. Replace the toe grille.

• Align the toe grille mounting clips with the lower

cabinet slots.

• Push the toe grille firmly until it snaps into place.

Materials Needed:

• _6" hex head driver

• Phillips screwdriver

• 3/_,,hex head driver

1. Unplug power cord from power source.

2. Remove toe grille.

3. Remove top hinge cover from

refrigerator door by removing Phillips

screw and retain screw and cover for

later use.

.Unscrew -_,6"hex head screws from top

hinge to remove hinge and retain all

screws for later use.

Lift right side refrigerator door from

center hinge pin. Remove door

closure from center hinge pin on the

right side and retain for later use.

Disconnect wire harness on top

of left side refrigerator door top

hinge.

• Release two-pin connector by

pressing junction point with a

flat blade screwdriver or

fingernail.

• Green ground wire remains

attached to the hinge.

7. Unscrew ?6" hex head screws from [[

top hinge to remove hinge and

retain for later use.

8. Remove Phillips screws to "I

remove right and left hinges and II

retain all screws for later use.

I NSTALLATI 0N

•Lift left side refrigerator door, along with top

hinge, from center hinge pin.

• Remove center hinge pin with a _6" hex head

driver and retain hinge pin for later use.

8. Remove Phillips screws to .._

remove right and left hinges

and retain all screws for later

use.

9. Remove both stabilizing

brackets with _/8"hex head

driver and retain screws for

later use.

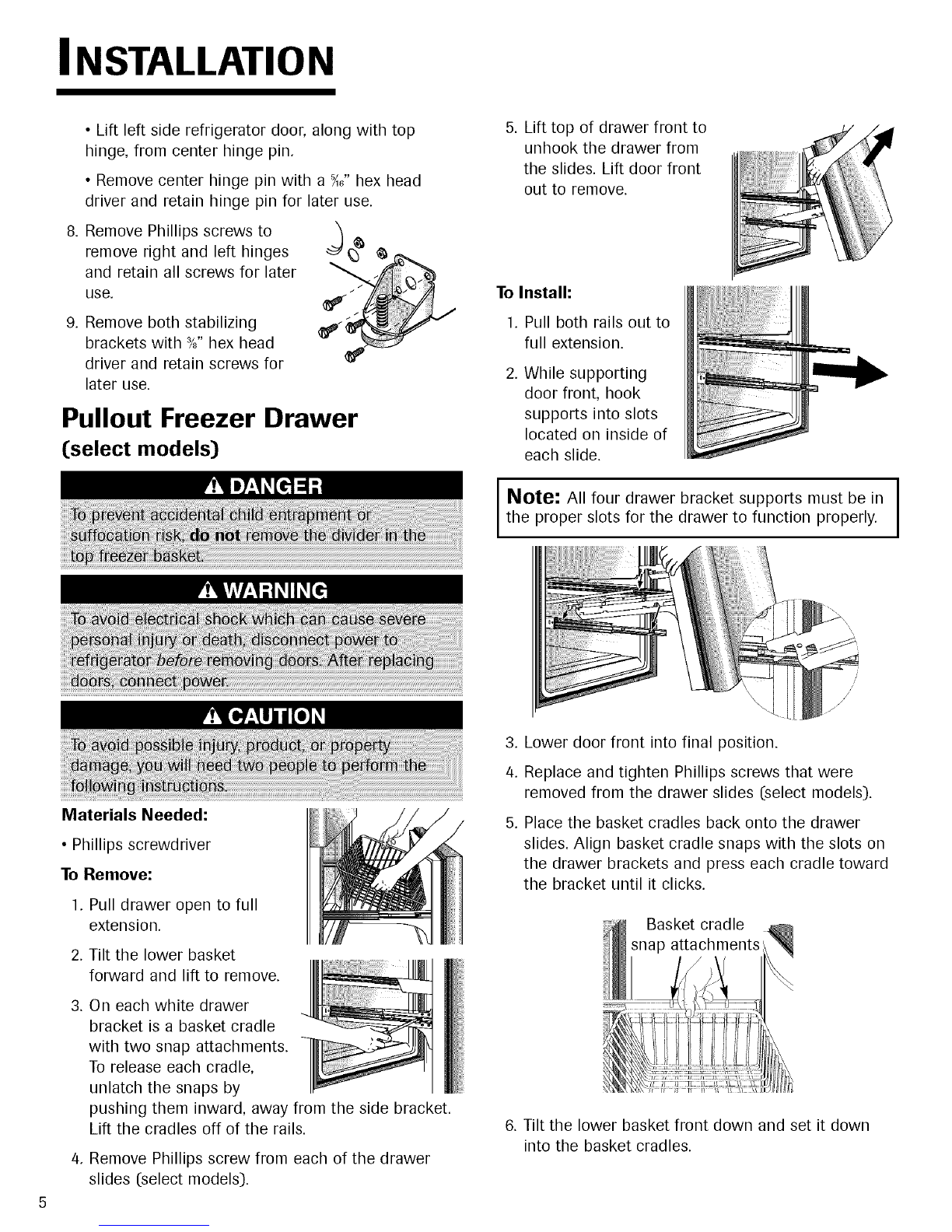

Pullout Freezer Drawer

(select models)

5. Lift top of drawer front to

unhook the drawer from

the slides. Lift door front

out to remove.

To Install:

1. Pull both rails out to

full extension.

2. While supporting

door front, hook

supports into slots

located on inside of

each slide.

Note: All four drawer bracket supports must be in

the proper slots for the drawer to function properly.

Materials Needed:

• Phillips screwdriver

To Remove:

1. Pull drawer open to full

extension.

2. Tilt the lower basket

forward and lift to remove.

,On each white drawer

bracket is a basket cradle

with two snap attachments.

To release each cradle,

unlatch the snaps by

pushing them inward, away from the side bracket.

Lift the cradles off of the rails.

4. Remove Phillips screw from each of the drawer

slides (select models).

Lower door front into final position.

Replace and tighten Phillips screws that were

removed from the drawer slides (select models).

Place the basket cradles back onto the drawer

slides. Align basket cradle snaps with the slots on

the drawer brackets and press each cradle toward

the bracket until it clicks.

Basket cradle

6. Tilt the lower basket front down and set it down

into the basket cradles.

I NSTALLATI 0N

Door Reinstallation

Materials Needed:

•Phillips screwdriver

• 5/,6"hex head driver

1. Install hinge assemblies:

• Install center hinge with Phillips screws.

2. Place hinge side of refrigerator door

on center hinge pin.

• Install top hinge with 5/,;, hex head

screws.

3. While holding refrigerator door

upright, tighten down top hinge

with _/,_"hex head driver. "--.

4. Reconnect two-pin connector.

5. Replace top hinge covers.

Handles (style varies by model)

This handle style is installed at the factory. Style may

vary by model.

Materials Needed:

•3/32"Allen wrench

To Remove:

• Remove set screw from

handle mounting post

using the %;' Allen

wrench.

• Repeat the procedure on

all posts to remove the

handle.

To Remove:

• Loosen set screws in handle using 3/3;'Allen

wrench.

• Repeat the procedure on all screws.

To Replace:

• Align handle with the mounting posts.

• Apply upward pressure to the handle and hold.

• Fully tighten all set screws to secure handle in

place.

Opening and Closing Your

Fresh Food Doors

Your new refrigerator is uniquely designed with two

fresh food doors. Either door can be opened or closed

independently of one another.

There is a vertically-hinged section on the left fresh

food door. When the left door is closed, the hinged

section automatically forms a seal between the two

doors when both doors are closed.

When the left door is opened, the hinged seal

automatically folds inward so that it is out of the way.

To replace:

• Align handle with the mounting posts.

• Fully tighten all set screws to secure handle

in place.

Metal Handle

Materials Needed:

• 3/3;'Allen wrench

• Gloves to protect hands

I Note: Metal handles scratch doors.

can I

I NSTALLATI ON

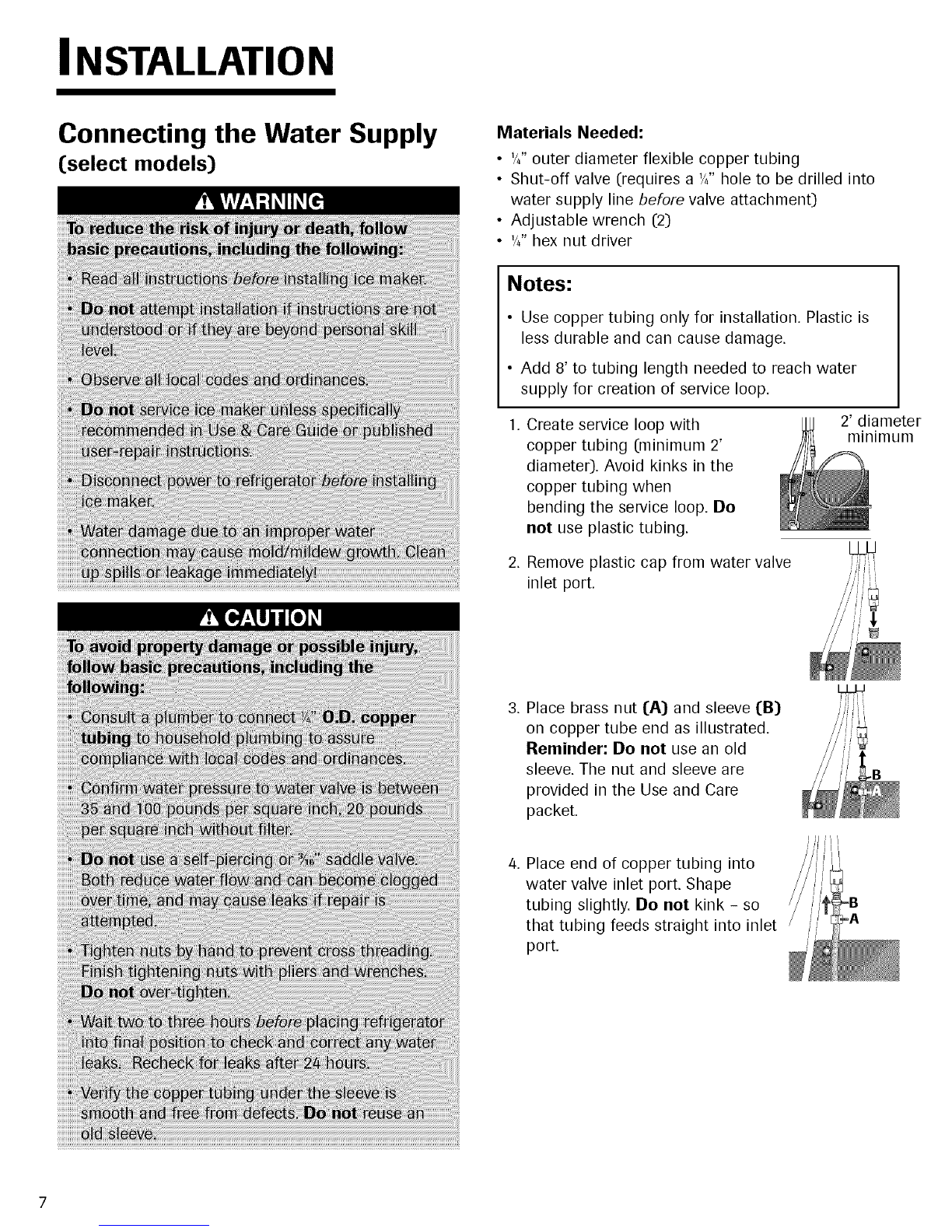

Connecting the Water Supply

(select models)

Materials Needed:

•'/4"outer diameter flexible copper tubing

• Shut-off valve (requires a '//' hole to be drilled into

water supply line before valve attachment)

• Adjustable wrench (2)

• '/_"hex nut driver

Notes:

• Use copper tubing only for installation. Plastic is

less durable and can cause damage.

• Add 8' to tubing length needed to reach water

supply for creation of service loop.

Create service loop with

copper tubing (minimum 2'

diameter). Avoid kinks in the

copper tubing when

bending the service loop. Do

not use plastic tubing.

2' diameter

minimum

,Remove plastic cap from water valve

inlet port.

,Place brass nut (A) and sleeve (B)

on copper tube end as illustrated.

Reminder: Do not use an old

sleeve. The nut and sleeve are

provided in the Use and Care

packet.

.Place end of copper tubing into

water valve inlet port. Shape

tubing slightly. Do not kink - so

that tubing feeds straight into inlet

port.

I NSTALLATI ON

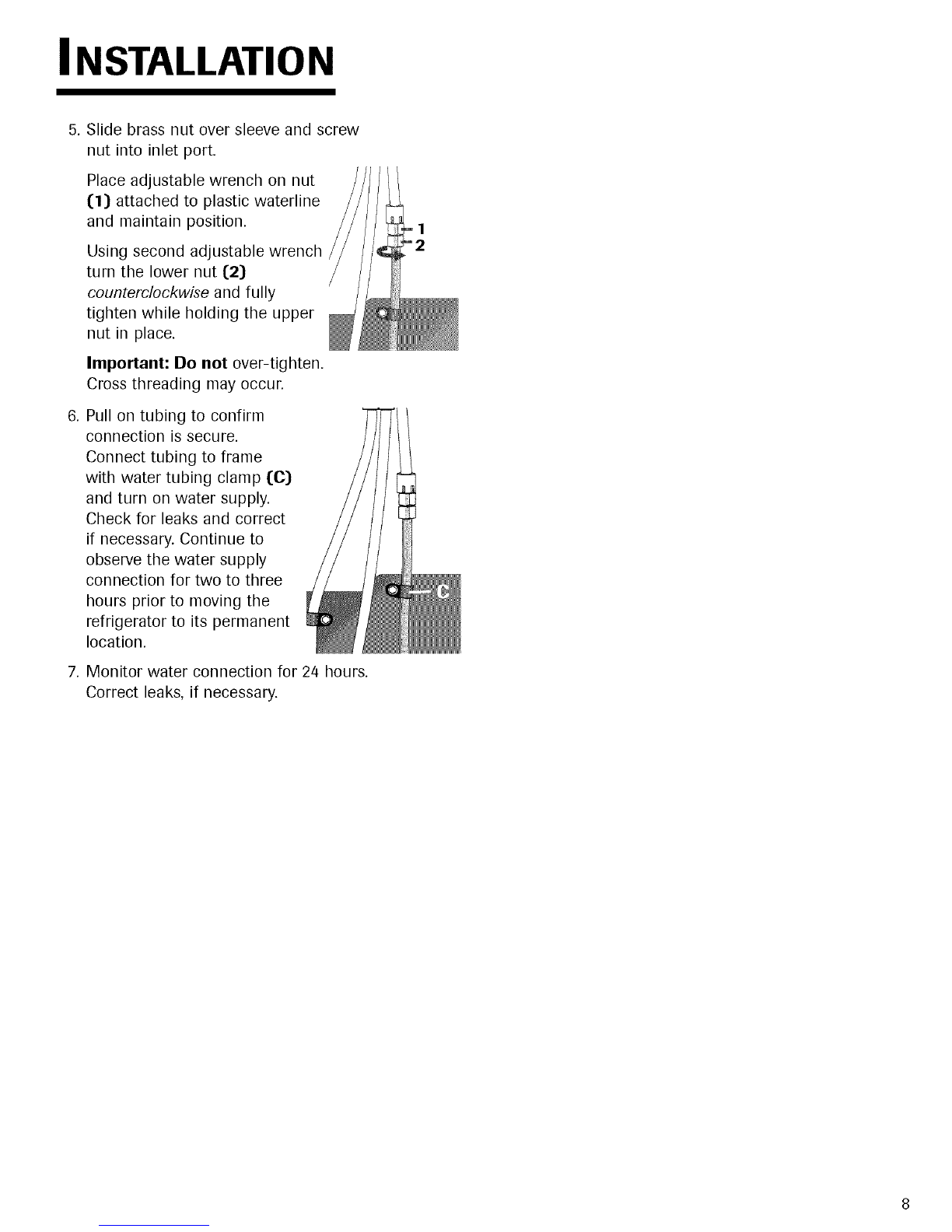

5. Slide brass nut over sleeve and screw

nut into inlet port.

Place adjustable wrench on nut

(1) attached to plastic waterline

and maintain position,

Using second adjustable wrench

turn the lower nut (2)

counterclockwise and fully

tighten while holding the upper

nut in place.

Important: Do not over-tighten.

Cross threading may occur.

6. Pull on tubing to confirm

connection is secure.

Connect tubing to frame

with water tubing clamp (C)

and turn on water supply.

Check for leaks and correct

if necessary. Continue to

observe the water supply

connection for two to three

hours prior to moving the

refrigerator to its permanent

location,

7, Monitor water connection for 24 hours.

Correct leaks, if necessary.

TEMPERATURE CONTROLS

Touch Temperature Controls

The controls are located at the top front of the

refrigerator compartment.

Control

Initial Control Settings

After plugging the refrigerator in, set the controls.

• Pressing the _" or ,_ pads adjusts the controls to

the desired setting.

• The temperature control range for both

compartments is 1 through 7 (coldest).

• Set the Freezer control on 4.

• Set the Refrigerator control on 4.

• Let the refrigerator run at least 8 to 12 hours before

adding food.

Warm Cabinet Surfaces

At times, the front of the refrigerator cabinet may be

warm to the touch. This is a normal occurrence that

helps prevent moisture from condensing on the

cabinet. This condition will be more noticeable when

you first start the refrigerator, during hot weather and

after excessive or lengthy door openings.

Adjusting the Controls

24 hours after adding food, you may decide that one

or both compartments should be colder or warmer. If

so, adjust the control(s) as indicated in the

Temperature Control Guide table below. See page 19

for instructions on checking compartment

temperature.

• Except when starting the refrigerator, do not change

either control more than one number at a time.

• Allow 24 hours for temperatures to stabilize.

Temperature Control Guide

Refrigerator too warm

Refrigerator too cold

Freezer too warm

Freezer too cold

Turn refrigerator OFF

Set the Refrigerator control

to next higher number by

pressing the ._ pad.

Set the Refrigerator control

to next lower number by

pressing the "_V pad.

Set the Freezer control to

next higher number by

pressing the A pad.

Set the Freezer control to

next lower number by

pressing the _ pad.

Press the Freezer or

Refrigerator _ pad until

a dash "-" appears in the

display.

Andere Handbücher für JFC2089HPR

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Jenn-Air Kühlschrank Handbücher

Jenn-Air

Jenn-Air JB36NXFXLW00 Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXLW01 Bedienungsanleitung

Jenn-Air

Jenn-Air JS42SEFXDB Bedienungsanleitung

Jenn-Air

Jenn-Air JRSD2490 Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2290REY Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2089WEM1 Bedienungsanleitung

Jenn-Air

Jenn-Air DOUBLE REFRIGERATOR DRAWERS W10310149A Bedienungsanleitung

Jenn-Air

Jenn-Air JCB2581WES Bedienungsanleitung

Jenn-Air

Jenn-Air JUD278DBCX00 Bedienungsanleitung

Jenn-Air

Jenn-Air REFRIGERATOR Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2089HPR11 Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2290VEP1 Bedienungsanleitung

Jenn-Air

Jenn-Air JFX2597AEP0 Bedienungsanleitung

Jenn-Air

Jenn-Air JUD24FR*S series Bedienungsanleitung

Jenn-Air

Jenn-Air JCB2582WEF00 Bedienungsanleitung

Jenn-Air

Jenn-Air JFC2290VEP5 Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXLW Stücklistenhandbuch

Jenn-Air

Jenn-Air JFFCC72EHL Bedienungsanleitung

Jenn-Air

Jenn-Air JB36NXFXLW Bedienungsanleitung

Jenn-Air

Jenn-Air Euro-Style Design JS42SSDUDE Bedienungsanleitung

Jenn-Air

Jenn-Air JCD2395WES01 Bedienungsanleitung

Jenn-Air

Jenn-Air JRTDE228 Bedienungsanleitung

Jenn-Air

Jenn-Air REFRIGERATOR Bedienungsanleitung

Jenn-Air

Jenn-Air JS42NXFXDW00 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
