Jovision JVS-D7008 Bedienungsanleitung

JVS-D7008 Standalone DVR User Manual

JVS-D7008 Standalone DVR Instructions

1. Introduction………………………………………………………………………………………..4

1.1 Product Description………………………………………..……………………………….4

1.2 Features……………………………………………………………………………………..4

1.3 Specifications………………………………………………………………………………...4

2. Product Features………………………………………………………...……………………….6

2.1 Panel Instruction…………………………………………………….......……………………6

2.2 Ports Instruction……………………………………………………………………………….8

2.3 Remote-control Instruction…………………………………………………………………9

2.4 Video Standards……………………………………………………………………………...10

3. O/S Instructions…………………………..………………………………………………………11

3.1 Start/Close ..………………………………………………………..………………………...11

3.2 Previewing…………………………………………….. ………………………………….11

3.3 Menu Basic Operations………………………………………………………………………11

3.3.1 Enter Menu…………………………………....………………………………………11

3.3.2 Exit Menu………………………………………………………………...………….12

3.4 Main Functions…………………………………………………………………...…………12

3.5 Playback Recording Files……………………………………………………………………12

3.5.1 Files Searching………………………………………………………………………..13

3.5.2 Searching Result……………………………………………………………………...13

3.5.3 Playback Menu………………………………………………………………..……..13

3.6 Record………………………………………………………………………………………..14

3.7 PTZ…………………………………………………………………………………………..15

3.8 Menu Functions…………………………………………………………………………...…15

3.8.1 Tools……………………………………..…..………………………………………..15

3.8.1.1 HDD Management…………………………………………………………….16

3.8.1.2 Users Management……………………………….……………………………16

3.8.1.3 Restore Default Settings………………………………………………………17

3.8.1.4 Clear Alarm……………………………………………………………………17

3.8.1.5 Software Update ……………………………………….…………………...…17

3.8.1.6 Time Setting…………………………………………………………………...18

3.8.1.7 Version Information………………………………….……………………...18

3.8.2 System Settings……………………………………………………………………….18

3.8.2.1 System Setup…………………………………………………………………..18

3.8.2.2 Recording Setting……………………………………….……………………..20

3.8.2.3 Video Setting……………………………………….………………………….20

3.8.2.4 Alarm Input……………………………………………………………………22

3.8.2.5 Alarm Output………………………………………………………………….22

JVS-D7008 Standalone DVR User Manual

3.8.2.6 Schedule Recording…………………………………………………………...22

3.8.2.7 Network Settings………………………………………………………………23

3.8.2.8 PTZ Settings…………………………………….……………………………..24

3.8.2.9 Motion Detection……………………………………………………………...25

3.8.3 System Log…………………………………………………………………………...26

3.8.4 Shutdown……………………………………………………………………………..26

Client-end Software Instructions…………………………………………………………………....27

1. Surveillance System……………………………………………………….28

2. Code Stream Selection………………………………………………………………………29

3. PTZ Control…………………………………………………………………………………30

4. Advanced Settings…………………………………………….…………………………..…30

5. Configurations…………………………………….…………………………………………31

5.1 Server….…………………………………………………………………………...31

5.2 Channel…..…………………………………………………………………………32

5.3 Alarm…..…………………………………………………………………………...33

5.4 Users Info…..…………………………………….…………………………………34

5.5 Others…………………………………………………………………………………..35

6. Remote Playback……………………………………….……………………………………36

JVS-D7008 Standalone DVR User Manual

JVS-D7008 Standalone DVR Instructions

1. Introduction

1.1 Product Description

This standalone DVR uses an embedded processor and OS with advance network capabilities. This standalone DVR

serves as a digital video and audio recorder, plus digital video and audio server functions. It can work individually or

with other equipments to form a network. This DVR is perfect for small to medium business or residential applications.

1.2 Features

User friendly Linux operating system.

D1 previewing resolution and CIF compression resolution.

Supports 4/8/16 channel video and 2 channel audio.

Support snapshot during previewing and playback.

H. 264 compression standard and adjustable compression quality.

Supports adjustment of video quality.

Supports five monitor resolutions.

Supports Privacy Area Functions.

Supports PTZ controls.

Supports alarm input and output.

Supports software updates.

Supports both static and dynamic IPs, PPPoE and remote link statistics.

Support Mobile Monitoring and PTZ controls from remote PC or Andriod/iPhone.

Supports system log and Admin rights.

Preview, PTZ control, playback and download remotely.

JVS-D7008 Standalone DVR User Manual

1.4 Specifications

Model JVS-D7008 JVS-D7008

OS Embedded Linux Embedded Linux

Video Standard PAL / NTSC PAL / NTSC

Compression

Standard

H.264 H.264

Recording Type Manual, Scheduled, Alarm, Motion Detection Manual, Scheduled, Alarm, Motion Detection

Searching records Time, Event, Channel, System Log Time, Event, Channel, System Log

Backup Type Network Backup, USB Backup, SATA

Backup

Network Backup, USB Backup, SATA

Backup

Video Input 4 Channels BNC 8 Channels BNC

Video Output 1 Channel BNC and 1 Channel VGA 1 Channel BNC and 1 Channel VGA

Audio Input 4 Channel BNC 8 Channel BNC

Audio Output 1 Channel BNC 1 Channel BNC

Previewing

Resolution

D1: 702x576PAL702x480NTSCD1: 702x576PAL702x480NTSC

Playback

Resolution

CIF: 352x288PAL352x240NTSCCIF: 352x288PAL352x240NTSC

Motion Detection Up to 4 independent detection area in each

channel, Multi-level sensitiviity.

Up to 4 independent detection area in each

channel, Multi-level sensitiviity.

Layout 1 and 4 Screens 1, 4 and 8 Screens

Total Frame Rate 100 fps (PAL), 120 fps (NTSC) 200 fps (PAL), 240 fps (NTSC)

Saving Records Local HDD and Remote Network Local HDD and Remote Network

Local Playback 1 Channel or 4 Channels Playback 1 Channel or 4 Channels Playback

Alarm Input Up to 32 Input Up to 32 Input

Alarm Output No Limit No Limit

PTZ Control RS485 RS485

HDD Port 2 SATAports, Up to 2TB per one 2 SATAports, Up to 2TB per one

Network Port RJ45 10M/100M Adjustment Port RJ45 10M/100M Adjustment Port

USB Port 2 USB 2 USB

Power 12V 5A 12V 5A

Size 340mm*332mm*56mm 340mm*332mm*56mm

JVS-D7008 Standalone DVR User Manual

2. Panel Instruction

3 Installation Instructions

Before installation, make sure your internet connection and power cable is plugged into the unit.

If you plan to use the DVR to record locally, an installed HDD is necessary. It is necessary to format the HDD. Menu 

System Settings HDD Format.

JVS-D7008 Standalone DVR User Manual

4. Mouse Instruction

A mouse can be used on either USB port.

The interface of DVR is similar to Windows. Left-click means selected or OK, and right-click means cancel or exit.

While previewing images, double left-click mouse to single-channel preview and double left-click again to return to

multi-channel preview.

When menu is shown on screen, right-click or click means close the menu window or exit.

5. Menu Structure

The menu includes check box, select box, edit box and buttons.

(1) Check box:“√”stands for valid and“□”stands for invalid.

(2) Select box: Left-click mouse.

(3) Edit box: Enter objective content in edit boxes.

a. Change input content by left-clicking “ ”.

(4) Buttons

JVS-D7008 Standalone DVR User Manual

JVS-D7008 DVR O/S Instructions

3.1 Previewing

The previewing interface will be shown after starting system. recording. this channel is set alarm, but is not

triggered. the alarm is triggered. client-end is linking this channel.

3.2 User Login

After starting system, right-click to log in.

The default Username is “abc”and Password is “123”. It is recommended to change your username and password in

User under System. Please make sure your “Local User” and “Net User” are the same.

If you forget your username and password you can send the S/N code and user information to Email Support to get a

temporary password.

3.4 Main Function

JVS-D7008 Standalone DVR User Manual

After login, right-click to enter the Main Menu.

System: System settings

PTZ Control: Control PTZ

Record: Record manually

Playback: Playback recording files

Network: Network settings

Snapshot: Snapshot while previewing and playback

Set Video: Adjust video images quality

3.5 System

System includes System Settings, Channel Settings, User Management, HDD Management, System Log, Software

Update, Snapshot Management and Alarm.

3.5.1 System Settings

Check “Show Time”, the time can be shown on screen. Time can be shown on top or bottom. Click “Save” to

become effective.

IR Device ID is the code for remote control. Only when the IR Device ID and remote control use the same code

will the remote function with the unit. Click “Save”.

Transparency: The smaller the value, more transparent. Click “Save” to become effective.

JVS-D7008 Standalone DVR User Manual

VGAResolution includes 800*600, 1024*768, 1280* 1024, 1280*768 and 1440*900.

Enabling WebServer allows the user to view remotely. Default port is 80, user can use IP address to view remotely.

If user changes other port, for example 88, user must add port number after IP address, for example

http://192.168.8.245:88. The detail IE surveillance instruction is according to 4.2 IE. Click “Save” to become

effective.

Enable Mobile Server allows the user to view remotely from a mobile phone. Image quality and FPS can be

adjusted according to bandwidth of phone internet. Image quality includes high, middle and low. FPS includes 30,

15, 8, 4 and 2. Click “Save” to become effective.

Enable Talk to let user allow any one channel to talk with client-end software. Click “Save” to become effective.

Language includes Chinese and English currently. More languages will be added. Click “Save” to become

effective.

Restore: Restore the whole system to be default settings.

Default: Restore the current page to be default settings.

3.5.2 Channel Settings

JVS-D7008 Standalone DVR User Manual

Choose different channel and set video standard (PAL/NTSC) according to the standard of cameras. Click “Apply

to All” to ensure changes effect all channels. “Save” to become effective.

Click “Show OSD” to manage if the OSD is shown at the top or bottom. Click “Save” to become effective.

Monitor Audio means enable audio while previewing. Click “Save” to become effective.

Record Audio enables audio while recording and playing back. Click “Save” to become effective.

File size can be adjusted between 100 MB/H and 500 MB/H. Click “Save” to become effective.

PTZ settings include Address, Protocol and Baud rate. Click “Save” to become effective. More PTZ order

exchange, as follows:

Schedule Record can be used to choose two scheduled times to record every day. Click “Save” to become effective.

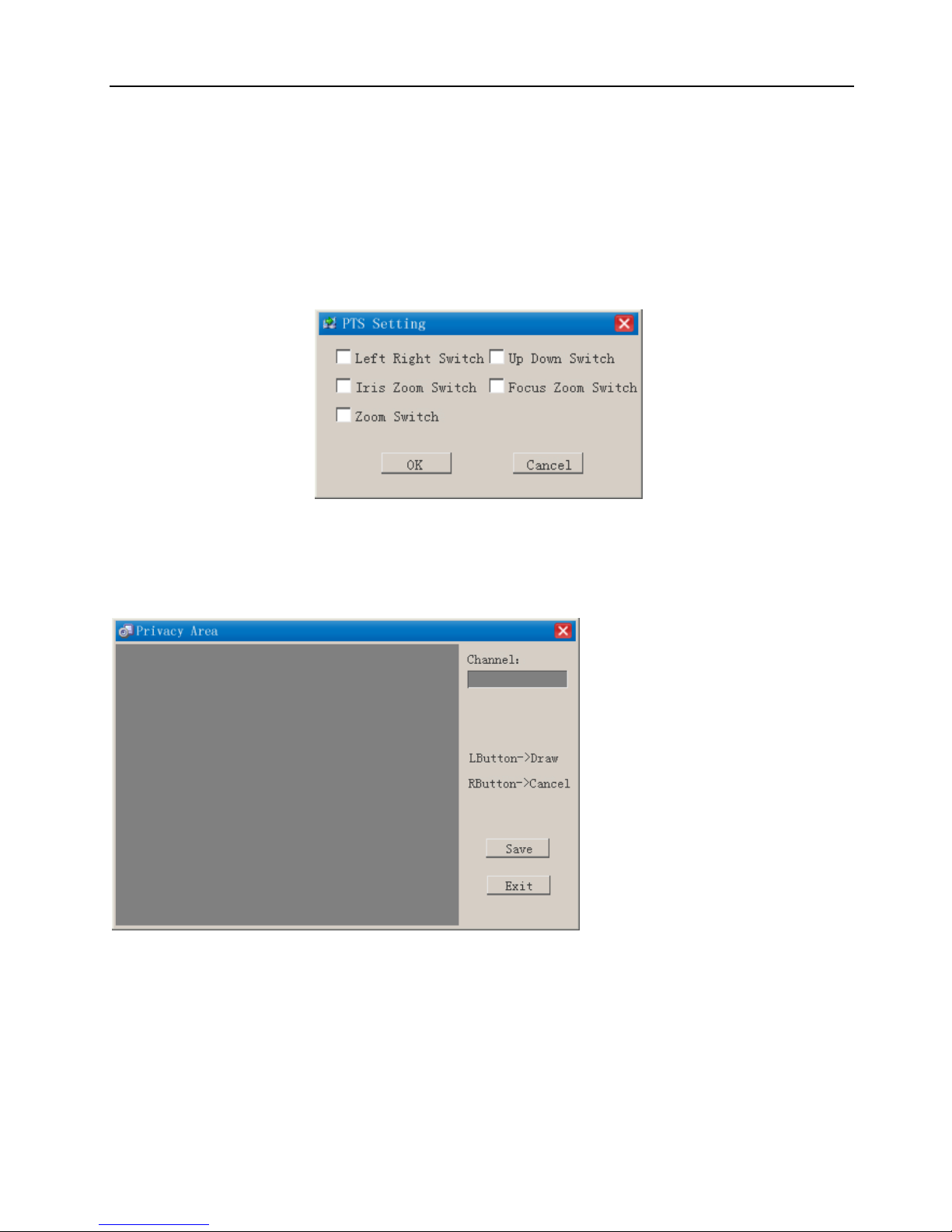

Privacy Area setting is as follows:

Left-click the mouse to choose privacy area. Right-click to cancel the privacy area. Up tp 4 areas can be assigned.

After setting privacy area, click “Save” and “Exit” to save all settings.

3.5.3. User Management

Users include Local Users and Network Users. Login Users mean the users who can control the host-end and Network

Users means the users who can control and view remotely.

Click “Add” in User Management page to add new users

Input new user name

Input the password of new user
