Juniper NFX150 Bedienungsanleitung

Day One+

NFX150

IN THIS GUIDE

Step 1: Begin | 1

Step 2: Up and Running | 5

Step 3: Keep Going | 8

Step 1: Begin

IN THIS SECTION

Meet the NFX150 | 1

NFX150 Models | 2

Install the NFX150 | 2

Power On | 4

Meet the NFX150

The Juniper Networks®NFX150 Network Services Platform is a software-driven customer premises equipment (CPE)

platform that delivers fully automated, secure SD-WAN, secure router, and cloud CPE solutions. Equipped with SRX Series

next-generation firewall software and 4G/LTE interface speeds, you can use the NFX150 to manage multiple Juniper and

third-party virtual network functions (VNFs) on a single device. Plus, it’s easy to deploy and manage the NFX150 with

zero-touch provisioning (ZTP).

NFX150 Models

The NFX150 comes in a 1-U rack mount model (NFX150-S1) and a compact desktop model (NFX150-S1-C). Both models

are available with or without LTE support. For increased capacity, you can install an expansion module in the NFX150-S1

rack mount model.

The NFX150 has:

•Four 10/100/1000BASE-T RJ-45 ports that can be used either as access ports or as uplinks

•Two 1GbE/10GbE SFP+ ports

•One 10/100/1000BASE-T RJ-45 management port

•Two console ports (RJ-45 and mini-USB)

•One USB 3.0 port

•One built-in power supply

•Two built-in fans

•Air-flow out (front-to-back) cooling

Install the NFX150

IN THIS SECTION

What’s in the Box? | 3

What Else Do I Need? | 3

Install the NFX150-S1-C on a Desk | 3

Install the NFX150-S1 in a Two-Post Rack | 3

You can install the NFX150 on a desktop, in a two-post or four-post rack, or on the wall. The NFX150 comes with the

mounting brackets you need to install it in a two-post rack. You’ll need to order a separate rack mount kit if you want to

install it in a four-post rack. Likewise, you’ll need to order a separate wall mount kit if you want to install the NFX150 on

the wall.

What’s in the Box?

•Power cord appropriate for your geographic location

•RJ-45 Ethernet cable

•RJ-45 to DB-9 serial port adapter

•Accessory kit

The accessory kit contains four rubber feet (for desktop installations), one pair of mounting blades, and eight Phillips

mounting screws.

What Else Do I Need?

•Someone to help you secure the switch to the rack

•A number 2 Phillips (+) screwdriver

•Four rack mount screws

•Cage nuts and washers, if your rack requires them

•An electrostatic discharge (ESD) grounding strap

•Grounding cable

•A management host, such as a laptop or desktop PC, with a serial port

•Serial-to-USB adapter (if your laptop or desktop PC doesn’t have a serial port)

Install the NFX150-S1-C on a Desk

To install the NFX150-S1-C on a desk or flat surface, simply attach the four rubber feet included in the accessory kit to

the bottom of the chassis, and then place the chassis on a desk or level surface.

g100025

Install the NFX150-S1 in a Two-Post Rack

1. Review General Safety Guidelines and Warnings.

2. Depending on how you want the NFX150 to sit in the rack, secure the mounting brackets to the front, center, or rear

mounting holes on the side panels. Use the supplied mounting screws.

g100013

3. Lift the NFX150 and position it in the rack. Line up the bottom hole in each mounting bracket with a hole in each rack

rail, making sure the NFX150 is level.

g100014

4. While you’re holding the NFX150 in place, have a second person insert and tighten the rack mount screws to secure

the mounting brackets to the rack rails. Make sure they tighten the screws in the two bottom holes first and then

tighten the screws in the two top holes.

5. Check that the mounting brackets on each side of the rack are level.

Power On

1. Wrap the ESD grounding strap around your bare wrist and ground yourself to an ESD point or to the rack.

2. Attach a grounding cable to earth ground and then attach it to the grounding point on the rear panel of the NFX150.

NOTE: The NFX150 gets additional grounding when you plug the AC power cord into a grounded AC power

outlet using the AC power cord.

3. Attach the power cord retainer clip:

a. Squeeze the two sides of the power cord retainer clip.

b. Insert the L-shaped ends into the holes in the bracket on each side of the AC power cord inlet on the rear panel.

The power cord retainer clip extends out of the chassis by three inches.

4. Insert the power cord firmly into the AC power cord inlet.

5. Push the power cord into the slot in the adjustment nut of the power cord retainer clip. Turn the nut until it is tight

against the base of the coupler and the slot in the nut is turned 90° from the top of the NFX150.

g100007

6. If the AC power source outlet has a power switch, turn it off.

7. Plug in the AC power cord to the power source outlet.

8. If the AC power source outlet has a power switch, turn it on.

The NFX150 powers on as soon as it receives power.

9. Verify that the power LED on the front panel of the NFX150 is steady green.

Step 2: Up and Running

IN THIS SECTION

Plug and Play | 6

Connect and Configure | 6

Now that the NFX150 is powered on, let’s get it up and running!

Plug and Play

The NFX150 already has factory-default settings configured right out of the box to make it a plug-and-play device. These

settings are loaded as soon as you power it on. By default, DHCP, HTTPS, and TFTP services are enabled, and a basic set

of screens are configured on the untrust zone. To see other default settings, see “Factory-Default Settings” in Initial

Configuration on NFX150 Devices.

You can easily customize the default configuration with just a few commands. You can always revert to the factory-default

configuration anytime you want.

Connect and Configure

Before you begin connecting and configuring your NFX150, verify that your laptop or desktop PC is set to these defaults:

•Baud Rate—9600

•Flow Control—None

•Data—8

•Parity—None

•Stop Bits—1

•DCD State—Disregard

1. Connect the RJ-45 console port (labeled CON on the front panel) to a laptop or desktop PC using the supplied RJ-45

cable and RJ-45 to DB-9 adapter. The CLI displays a login prompt.

NOTE: Alternately, you can use a USB cable to connect to the mini-USB console port on the device. To use

the mini-USB console port, you’ll need to download the USB driver from the following page and install it on

your laptop or desktop PC:

https://www.juniper.net/support/downloads/junos.html

2. Log in as root. You don’t need to enter a password. If the software boots before you connect the cable to the console

port, you might need to press the Enter key for the prompt to appear.

3. Start the CLI.

root@:~ # cli

root@>

4. Enter configuration mode.

root@> configure

[edit]

root@#

5. Add a password to the root administration user account. Enter a plain-text password.

[edit]

root@# set system root-authentication plain-text-password

New password: password

Retype new password: password

6. Enable SSH service for the root user.

[edit]

root@# set system services ssh root-login allow

7. Commit the configuration.

[edit]

root@# commit

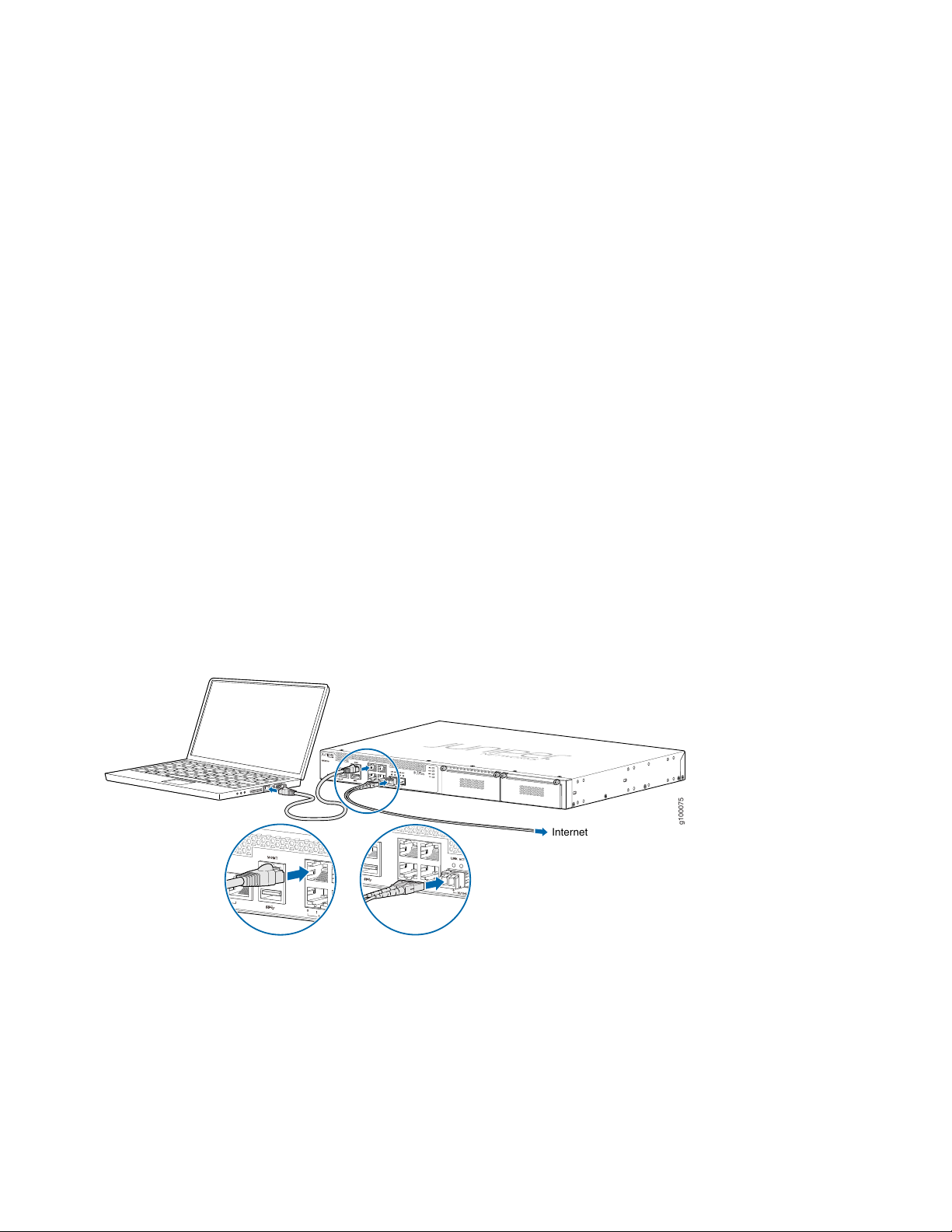

8. Connect the NFX150 to the Internet (WAN ports 0/4 or 0/5).

The ISP assigns an IP address to the NFX150 through DHCP.

g100075

Internet

9. Connect your laptop to a LAN port (ports 0/0 through 0/3).

The DHCP server running on the NFX150 assigns an IP address to your laptop.

10. Open a browser on your laptop, navigate to https://www.juniper.net, and verify your connectivity.

Step 3: Keep Going

Congratulations! Your NFX150 is ready to go. Here are some things you can do next:

ThenIf you want to

See Installing and Configuring the NFX150 Expansion

Modules

Install and configure an LTE expansion module

Visit the NFX150 Documentation page in the Juniper

TechLibrary

See all documentation available for the NFX150

See the NFX150 Network Services Platform Hardware

Guide

Find more in-depth information about installing the NFX150

See How to Configure the NFX150Find more in-depth information about configuring the

NFX150

See the Software Installation and Upgrade GuideManage software upgrades on your NFX150

Visit the Security Design CenterSee, automate, and protect your network with Juniper

Security

See:

•Turn On Your Licenses

•Licensing Guide

Activate and install the licenses required to run advanced

software features on your NFX150

Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc. in the

United States and other countries. All other trademarks, service marks, registered marks, or registered service marks are the

property of their respective owners. Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper
