Quick Start

NFX250

IN THIS GUIDE

Step 1: Begin | 1

Step 2: Up and Running | 5

Step 3: Keep Going | 7

Step 1: Begin

IN THIS SECTION

Meet the NFX250 | 2

Install the NFX250 | 2

What Else Do I Need? | 3

Install the NFX250 in a Two-Post Rack | 3

Power On | 4

In this guide, we provide a simple, three-step path, to quickly get you up and running with your new NFX250. We’ve

simplified and shortened the installation and configuration steps, and included how-to videos. You'll learn how to install

the NFX250 in a rack, power it up, and deploy it on your network using the CLI.

Meet the NFX250

The Juniper Networks®NFX250 Network Services Platform integrates routing, switching, and security functions on a

single platform. With the NFX250, you can provision secure, fast, custom service delivery on demand.

Install the NFX250

IN THIS SECTION

What’s in the Box? | 2

You can install the NFX250 on your desktop, on a wall, or in a two-post or four-post rack. The accessory kit that ships in

the box has the brackets you need to install the NFX250 in a two-post rack. In this guide, we show you how to install the

NFX250 in a two-post rack. If you need to install the NFX250 in a four-post rack, you’ll need to order a four-post rack

mount kit.

What’s in the Box?

•NFX250 Network Services Platform device

•AC power cord for your geographic location

•AC power cord retainer clip

•Two rack mount brackets

•Eight mounting screws to attach the mounting brackets to the NFX250

•Four rubber feet (for desktop installation)

What Else Do I Need?

•Someone to help you mount the NFX250 in the rack.

•Four rack mount screws to secure the mounting brackets to the rack

•A number 2 Phillips (+) screwdriver

•An Ethernet cable with RJ-45 connectors attached and an RJ-45 to DB-9 serial port adapter

NOTE: We no longer include a DB-9 to RJ-45 cable or a DB-9 to RJ-45 adapter with a CAT5E copper cable

as part of the device package. If you require a console cable, you can order it separately with the part number

JNP-CBL-RJ45-DB9 (DB-9 to RJ-45 adapter with a CAT5E copper cable).

Install the NFX250 in a Two-Post Rack

Here’s how to install the NFX250 in a two-post rack:

1. Review General Safety Guidelines and Warnings.

2. Attach the ESD grounding strap to your bare wrist and to a site ESD point.

3. Secure the mounting brackets to the sides of the NFX250 using eight screws and the screwdriver. You’ll notice there

are three locations on the side panel where you can attach the mounting brackets: front, center, and rear. Attach the

mounting brackets to the location that best suits where you want the NFX250 to sit in the rack.

4. Lift the NFX250 and position it in the rack. Line up the bottom hole in each mounting bracket with a hole in each rack

rail, making sure the NFX250 is level.

5. While you’re holding the NFX250 in place, have a second person insert and tighten the rack mount screws to secure

the mounting brackets to the rack rails. Make sure they tighten the screws in the two bottom holes first and then

tighten the screws in the two top holes.

6. Check that the mounting brackets on each side of the rack are level.

Power On

1. Attach a grounding cable to earth ground and then attach it to the NFX250’s grounding points.

2. Turn off the power switch on the NFX250 rear panel.

3. On the rear panel, insert the L-shaped ends of the power cord retainer clip into the holes in the bracket on the power

socket. The power cord retainer clip extends out of the chassis by 3 inches.

4. Insert the power cord coupler firmly into the power socket.

5. Push the power cord into the slot in the adjustment nut of the power cord retainer clip. Turn the nut until it is tight

against the base of the coupler and the slot in the nut is turned 90° from the top of the device.

6. If the AC power source outlet has a power switch, turn it off.

7. Plug in the AC power cord to the AC power source outlet.

8. Turn on the power switch on the NFX250 rear panel.

9. If the AC power source outlet has a power switch, turn it on.

10. Verify that the power LED on the NFX250 front panel is green.

Step 2: Up and Running

IN THIS SECTION

Connect and Configure | 5

Now that the NFX250 is powered on, let’s get you up and running on the network!

Connect and Configure

You’ll need to do the initial configuration of the NFX250 through the console port using the CLI. Before you begin

connecting and configuring the NFX250, make sure the serial port on your laptop or PC are set to the defaults:

•Baud Rate—9600

•Flow Control—None

•Data—8

•Parity—None

•Stop Bits—1

•DCD State—Disregard

Here’s how to connect and configure the NFX250 to the network from the console port:

1. Connect the console port (labeled CON on the NFX250 front panel) to a laptop using the RJ-45 cable and RJ-45 to

DB-9 adapter (not provided). The Juniper Device Manager (JDM) CLI is displayed.

2. Log in as root. There is no password. If the software booted before you connected the cable to the console port, you

might need to press the Enter key for the prompt to appear.

3. Start the CLI.

root@jdm% cli

4. Enter configuration mode.

root@jdm> configure

5. Add a password to the root administration user account. Enter a plain text password.

[edit]

root@jdm># set system root-authentication plain-text-password

New password: password

Retype new password: password

6. (Optional) Give the NFX250 a name. If the name includes spaces, enclose the name in quotation marks (“ ”).

[edit]

root@jdm# set system host-name host-name

7. Configure the IP address and prefix length for the device management interface.

[edit]

root@jdm# set interfaces jmgmt0 unit 0 family inet address address/prefix-length

NOTE: jmgmt0 is the out-of-band management network interface in JDM.

To configure an IPV6 address, type root@jdm# set interface jmgmt0 family inet6 address address v6_address.

NOTE: jmgmt0 is the management port labeled MGMT on the NFX250 front panel.

8. Configure the default gateway.

[edit]

root@jdm# set routing-options static route default next-hop address

9. Commit the configuration to activate it on the device.

[edit]

root@jdm# commit

10. Connect the NFX250 to the Internet (WAN ports 0/12 and 0/13).

The ISP assigns an IP address to the NFX250 through Dynamic Host Configuration Protocol (DHCP).

11. Connect your laptop to a LAN port (ports 0/0 to 0/11).

The DHCP server running on the NFX250 assigns an IP address to your computer.

12. To verify your connectivity, open a browser window and navigate to https://www.juniper.net.

Step 3: Keep Going

IN THIS SECTION

What’s Next? | 8

General Information | 8

Learn With Videos | 9

Congratulations! Your NFX250 is ready to go. Here are some things you can do next.

What’s Next?

ThenIf you want to

See Activate Junos OS Licenses in the Juniper Licensing

Guide

Download, activate, and manage your software licenses

to unlock additional features for your NFX series device

See Prerequisites to Onboard Virtual Network Functions

on NFX250 (NextGen) Devices

Set up another device

See Configuring JDM User Accounts and AuthenticationConfigure JDM User Accounts and Authentication

See the Network Management and Monitoring GuideConfigure network management protocols and

technologies

See Software Upgrade Path for NFX250 DevicesManage software upgrades

General Information

ThenIf you want to

Visit the NFX250 Documentation page in the Juniper

TechLibrary

See all documentation available for the NFX250

See the NFX250 Network Services Platform Hardware

Guide

Find more in-depth information about installing the

NFX250

See How to Configure the NFX250 and How to Configure

the NFX250 (NextGen)

Find more in-depth information about configuring the

NFX250

Visit the Security Design CenterSee, automate, and protect your network with Juniper

Security

Learn With Videos

Our video library continues to grow! We’ve created many, many videos that demonstrate how to do everything from

install your hardware to configure advanced Junos OS network features. Here are some great video and training resources

that will help you expand your knowledge of Junos OS.

ThenIf you want to

See Learning with Juniper on the Juniper Networks main

YouTube page

Get short and concise tips and instructions that provide

quick answers, clarity, and insight into specific features

and functions of Juniper technologies

Visit the Getting Started page on the Juniper Learning

Portal

View a list of the many free technical trainings we offer

at Juniper

Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc. in the

United States and other countries. All other trademarks, service marks, registered marks, or registered service marks are the

property of their respective owners. Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper

Andere Handbücher für NFX250

Inhaltsverzeichnis

Andere Juniper Netzwerk-Hardware Handbücher

Juniper

Juniper SSR1500 Bedienungsanleitung

Juniper

Juniper CSE2000 Handbuch

Juniper

Juniper CTP2000 Series Bedienungsanleitung

Juniper

Juniper 16-PORT GIGABIT ETHERNET XPIMS Bedienungsanleitung

Juniper

Juniper NFX250 Bedienungsanleitung

Juniper

Juniper STRM 500 II Handbuch

Juniper

Juniper DUAL-PORT T1-E1 GPIMS Bedienungsanleitung

Juniper

Juniper JATP700 Montageanleitung

Juniper

Juniper NetScreen-5GT Wireless Bedienungsanleitung

Juniper

Juniper MX104 Bedienungsanleitung

Juniper

Juniper SSR1200 Bedienungsanleitung

Juniper

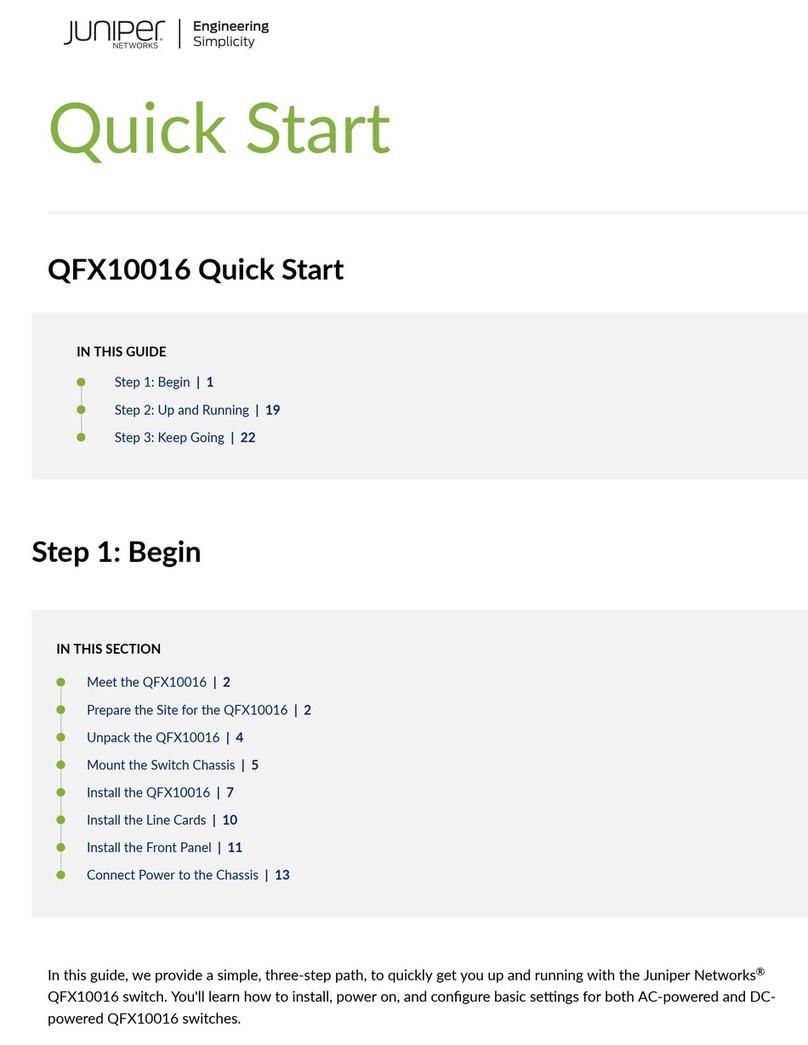

Juniper QFX10016 Bedienungsanleitung
