Kane 3500 Bedienungsanleitung
KANE3500
Pressure Meter
Stock No: 18854 -2 June 2014
© Kane International Ltd
KANE3500 Manual Page 2
General Operation
When the instrument is first switched on using , the top line of the display shows in
sequence the date, the time, the model version number, the battery status and the pressure
units. The bottom line of the display shows a countdown number that starts at 10 and
reduces to zero. At zero the meter display two lines of data.
The display shows 2 lines of data and all data can be printed via an optional infrared printer.
The printed data can be 'live' data, 'frozen data' or stored data. 255 sets of tests can be
stored in non-volatile memory.
Two lines of 20 characters can be added to the header of printouts.
The meters are controlled using 8 buttons
The eight buttons are:
ON/OFF
Press for ON or OFF.
The meter counts down from 10 after OFF is pressed
Press to cancel OFF .
MENU
Press and hold for MENU.
ZERO
Press and hold until there is a beep to ZERO the reading
BACKLIGHT
Press and hold until there is a beep to toggle the BACKLIGHT
HOLD/ PRINT
A quick press to HOLD the reading and the display flashes.
A longer press to PRINT
KANE3500 Manual Page 3
UP / DOWN /
Press either to change the bottom line of the display.
ENTER
Press to cancel OFF .
The buttons , and also change settings such as date, time, and other
menu items when MENU mode has been selected.
KANE3500 Manual Page 4
1. BEFORE USING THE METER FOR THE FIRST TIME:
Remove the cover and fit a new battery in the battery compartment. Take great care to
ensure that the battery is fitted with the correct battery polarity. Then replace the
battery cover. Always check that the meter is working correctly after replacing the battery.
Set the meter’s correct time, date and units. These are then stored when the meter is
switched off.
2. BEFORE USING THE METER EVERY TIME:
After switch on, check that date and time are correct and battery power is sufficient and the
displayed units are the ones required.
SAFETY WARNING
Never connect to a pressure source where you are not sure what the maximum pressure
might be. Always ensure that the meter you are using is correctly rated for the pressure that
you intend to measure. Excessive pressure (>5 times nominal range) can permanently
damage the meter’s pressure sensor.
NOTE : Use the + input for all single input measurements of pressure or vacuum. Only
use the – input when taking a differential measurement.
3. THE MENU FUNCTIONS
The MENU structure comprises main menu options. STORE, SETUP and PRESSURE
have a sub-menu structure. SERVICE is for use by an approved service organisation only.
MENU
Press and use the button to select the following function for change:
STORE
SETUP
PRESSURE
SERVICE
EXIT
Press to select a main menu function
When you have selected the function to change, press to select.
Repeat this to scroll through the menu and select (using the key) and change (using
the / keys) the function.
KANE3500 Manual Page 5
The final, logical returns you to the main menu display.
To exit the MENU function the final logical is pressed. No changes are made if the
MENU function is aborted by pressing .
PRESSURE
SMOOTH
OFF = Normal
ON = Readings filtered to damp out fluctuations
RESOLVE
HIGH = maximum number of decimal places
LOW = one less decimal place displayed
PS UNITS
mBAR, inH2O, hPa, mmHg, PSI, kPa, Pa, mmH2O
SETUP
Temperature units - oF or oC
AUTO-OFF adjusts the auto power off time.
A setting of 00 sets the meter for manual switch off only.
Time – Uses “Military” time as standard: 7am = 07:00, 7pm = 19:00
Date user defined format
Header – 2 lines each of up to 20 characters that appear on the printout.
Use and / .
Language : English, French, Italian, German, Spanish
The display’s contrast.
EXIT
KANE3500 Manual Page 6
STORE
VIEW:
The test number appears on the top line.
Use or to change test number.
The bottom line shows the measured value.
Use to exit this mode.
LOG :
Saves a set of results when is pressed. Storage capacity is 255 sets of results
AUTO STO :
Automatically stores readings at a preset interval. Press then select YES or NO. If
YES set the desired time interval between 2 and 99 seconds and then press to
activate and exit.
DEL ALL:
Clears all the memory when YES and pressed.
EXIT
BOTTOM LINE OPTIONS
Max Pressure
Min Pressure
Time
Date
Pressure units
Battery Status
Instrument Internal Temp
KANE3500 Manual Page 7

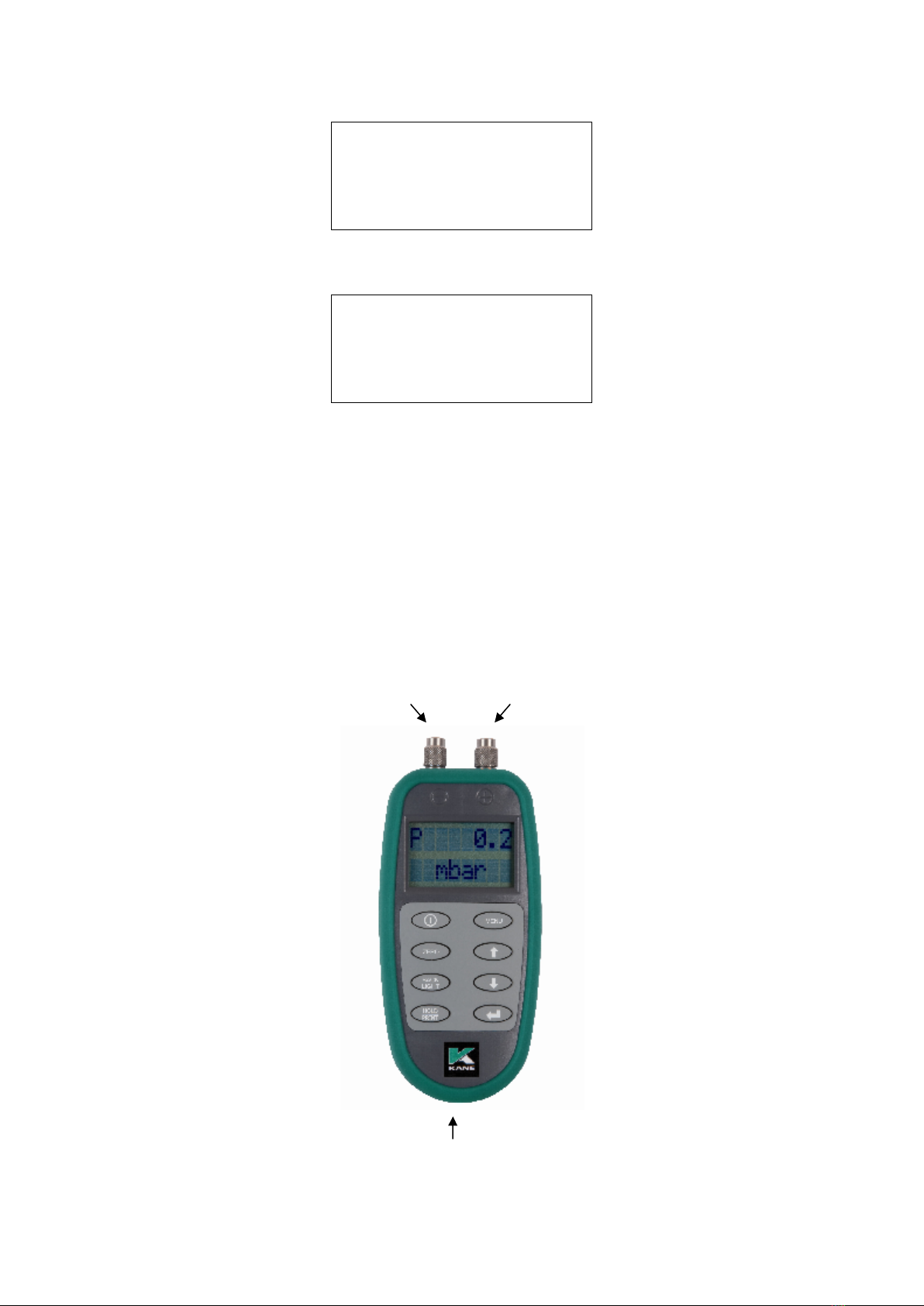

Max Pressure is displayed as:
P 1.3
-
1.9
Min Pressure is displayed as:
P 1.3
-
1.1
4. MEASURING
Make sure you do not exceed the meter’s operating specifications.
Do not exceed the meter’s internal temperature operating range
Do not put the meter on a hot surface
When taking critical draft measurements always re-zero the meter in the position you are
taking the readings and hold the meter still during the test.
Differential Port Port 1
IR Printer Output
KANE3500 Manual Page 8
Always use the top right hand port (Port 1) for taking single channel measurements
(pressure or vacuum). Only use the left hand port for differential measurements.
If the pressure being measured exceeds the meter’s design range the display will show OR
for “over-range”
When taking draft readings at very low pressure or draft levels, for maximum accuracy, re-
zero the meter in the orientation that it is being used. This eliminated gravity effects on the
very sensitive pressure transducer. It is also recommend that the meter is switched on for at
least five minutes and then re-zeroed before taking such sensitive measurements.
EXAMPLE PRINTOUTS
The standard printout is:
The MAX and MIN readings are those observed since last switch on
NOTE: Printouts of stored readings will also include the TEST NO. below the header.
KANE3500 Manual Page 9
5. METER ANNUAL RECALIBRATION AND SERVICE
The meter should be re-calibrated and serviced annually by a Kane approved service centre.
Local regulations may require more frequent re-calibration.
Calibration is performed in firmware and there are no user accessible adjustments or user
serviceable parts.
6. SPECIFICATION
Model: KANE3500-1
Nominal Pressure Ranges
mBar mmH2O Pa kPa
80.00 800.0 8000 8.000
PSI mmHg hPa inH20
1.000 60.00 80.00 30.00
Model: KANE3500-2
Nominal Pressure Ranges
mBar
mmH2O
Pa
kPa
160.00
1600.0
16000
16.000
PSI
mmHg
hPa
inH20
2.000
120.00
160.00
60.00
KANE3500 Manual Page 10
Model: KANE3500-5
Nominal Pressure Ranges
mBar mmH2O Pa kPa
400.0 4000 32000 40.00
PSI mmHg hPa inH20
5.000 300.0 400.0 150.0
Model: KANE3500-15
Nominal Pressure Ranges
mBar
kPa
PSI
1040.0
100.00
15.00
mmHg
hPa
inH20
780.0
1040.0
400.0
Model: KANE3500-30
Nominal Pressure Ranges
mBar kPa PSI
2070.0 207.00 30.00
mmHg hPa inH20
1560.0 2070.0 800.0
