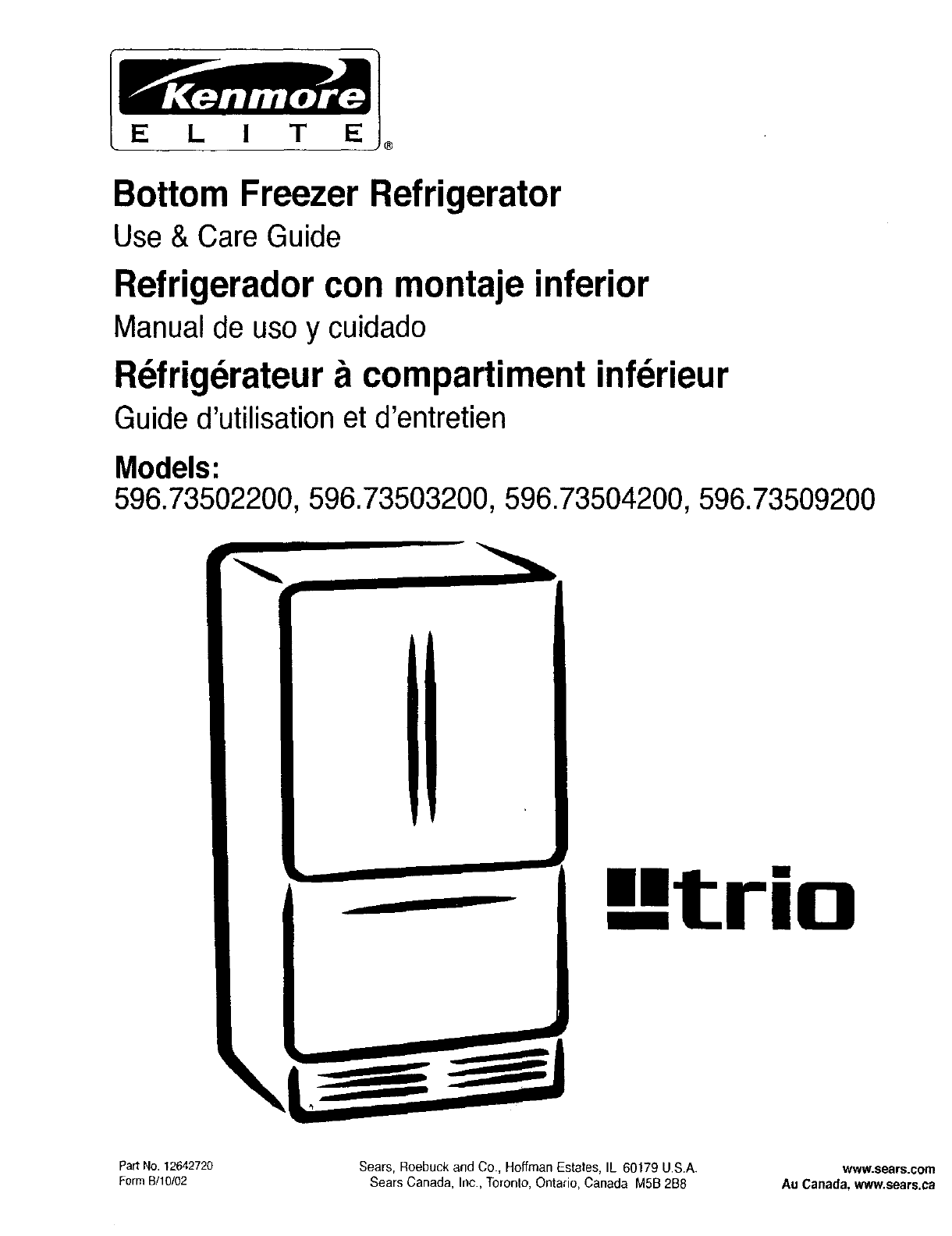

Kenmore Trio Series Bedienungsanleitung

E L T E ®

Bottom Freezer Refrigerator

Use & Care Guide

Refrigeradorcon montaje inferior

Manual de uso y cuidado

R_frig_rateur_compartiment inf_rieur

Guide d'utilisation et d'entretien

Models:

596.73502200, 596.73503200, 596.73504200, 596.73509200

"=trio

PartNo.12642720 Sears, Roebuck and Co., Hoffrnan Estates, IL 60179 U.S.A. www.sears.com

FormB/10102 Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8 Au Canada, www.sears.¢a

INSTALLINGYOURREFRIGERATOR

These instructions were provided to aid

you in the installation ol your

refrigerator

MEASURINGTHEOPENING

A one-half inch (72")of air space must be

provided for the back of the refrigerator.

When installing your refrigerator,

measure carefully.

Subflooring or floor coverings (i.e.

carpet, tile, wood floors, rugs)may make

your opening smaller than anticipated.

Some clearance may be gained by

using the leveling procedure under

How to Level Your Refrigerator.

IMPORTANT: If refrigerator isto be

installed into a recesswhere top of

refrigerator is completely covered, use

dimensions from floor to top of hinge

cap to verify proper clearance.

TRANSPORTINGYOUR

REFRIGERATOR

Follow these tips when moving the

refrigerator to final location:

> NEVER transport refrigerator on its

side. If an upright position is not

possible, lay refrigerator on its back.

Allow refrigerator to sit upright for

approximately 30 minutes prior to

plugging refrigerator in to assure oil

returns to the compressor. Plugging

refrigerator in immediately may cause

damage to internal parts.

> Use an appliance dolly when moving

refrigerator. ALWAYStruck

refrigerator from its side-NEVER

from its front or back.

> Protect outside finish of refrigerator

during transport by wrappingcabinet

in blankets or inserting padding

between the refrigerator and dolly.

*- Secure refrigerator to dollyfirmly,with

straps or bungee cords Thread straps

through handles when possible. DO NOT

overtighten Overtightening restraints may

dent nr damage outside finish

SELECTINGTHEBEST

LOCATION

Observe these points when choosing the

final location for your refrigerator:

> DO NOT install refrigerator near

oven, radiator or other heat source. If

not possible, shield refrigerator with

cabinet material.

> DO NOT install where temperature

fans below 55° F (13° C). Malfunction

may occur atthis temperature.

> Toassure proper door closure, follow

the leveling instructions in the

section, How te Level Your

Refrigerator.

OPENINGANDCLOSING

YOURFRESHFOODDOORS

Your new refrigerator is uniquely

designed with two fresh food doors.

Eitherdoor can be opened or closed

independently of one another.

There is a vertically-hinged section on

the 1ellfresh food door called the

SmartSeal.When the left door is closed,

the hinged section automaticallyforms a

seal between the two doors when both

doors are closed.

When the left door is opened,the

SmartSeal automatically folds inward so

that it is out of the way.

pror to 80S_l_g:: , ,-::,

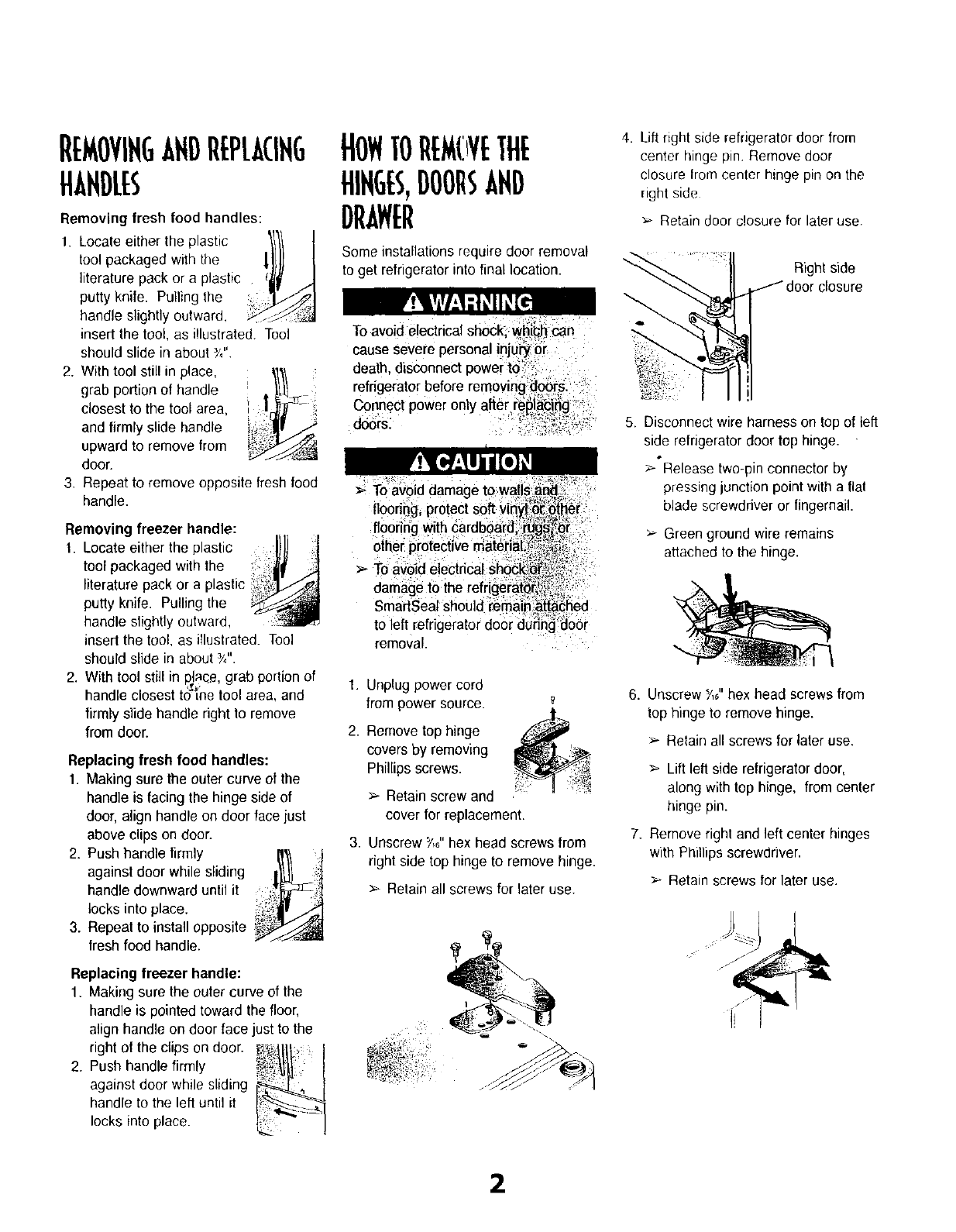

REMOYIHGAridRiiPLAflHG

HAHDLB

Removing fresh food handles:

HOWTOflEM( VETHE

HIHGES,DOORSAHD

DRAWER

1. Locate either theplastic ,1!!/ I

tool packaged with the _ Some installations require door removal

literature pack or a plastic toget refrigerator into final location.

putty knife. Pulling the

handle slightly outward,

insertthe tOOl,as illustrated. Tool To avoid electrical shOCk, whi_ _d

should slide in about Y," cause Severepersonal injU_ _L i

death, disconnect power t_+.

2. With tool still in place, 1tlli t refrigerator before removing _Ps!

grab portion of handle + _4__ .

closest to the tool area, y_/_ Connect power only after re£1acng :'

and firmly slidehandleupwardto remove from _//_ doors.

door.

3. Repeat to remove opposite fresh food

handle.

Removing freezer handle:

1. Locateeitherthe plastic I/IJ .t

toot packaged with the

literature pack or a plastic

putty knife• Pulling the

handle slightly outward,

insert the tool,as iTlustrated.Tool

should slide in about Y0".

2. Wth tool still in pace, grab portion of

.1[_. -

handle closest to 1hetoo area, and

firmly slide handle right toremove

from door.

Replacing fresh food handles:

1. Makingsure theouter curve ofthe

handleisfacing the hingesideof

door,alignhandle ondoor face just

above clips on door.

2. Pushhandle lirmly i_l:J_b_

against door while sliding

handle downward until it

locks into place. _:_..i:_3_

3. Repeat to install opposite _

fresh food handle.

Replacing freezer handle:

1. Making sure theoutercurve ofthe

handle is pointed toward thefloor,

align handle on door face just to the

right of the clips on door. _,_= :,

2. Push handle firmly _.

against door while sliding _ t

locks into place.

Oihe_

Tc i, ii 6_

SmartSealShould

to left refrigerator door

removal.

Unplug power cord

from powersource.

Remove top hinge

covers by removing

Phillipsscrews.

>- Retain screw and

cover for replacement.

Unscrew _,+"hex head screws from

right side top hinge to remove hinge.

> Retain all screws for later use.

4. Lift right side refrigerator door from

center hinge pin Remove door

closure Irom center hinge pin on the

right side

> Retain door closure for later use.

Right side

door closure

5. Disconnect wire harness on top of left

side refrigerator door top hinge.

>*Release two-pin connector by

pressing junction point with a flat

blade screwdriver or fingernail.

> Green ground wire remains

attached to the hinge.

6. Unscrew Y,+"hex head screws from

top hinge to remove hinge.

> Retain all screws for later use.

> Lift left side refrigerator door,

along with top hinge, from center

hinge pin.

7. Remove right and left center hinges

with Phillips screwdriver.

> Retain screws for later use.

IHSTALLIHGYOURREFRIGERATOR,corn,

Toavoi

10. Pull upper basket out to full

extension, and lift out to remove. 13. Remove both stabilizing brackets

with Y,,"hex head driver.

Retain screws for later use.

8. Pull drawer open to full extension.

11. Lilt top of door to unhook door

supports from rail system. Lilt door

out to remove•

9. Remove lower basket by pressing

inward on basket sides,then lift

basket. 12. Remove toe grille and bottom

bracket covers.

Press Tab Here

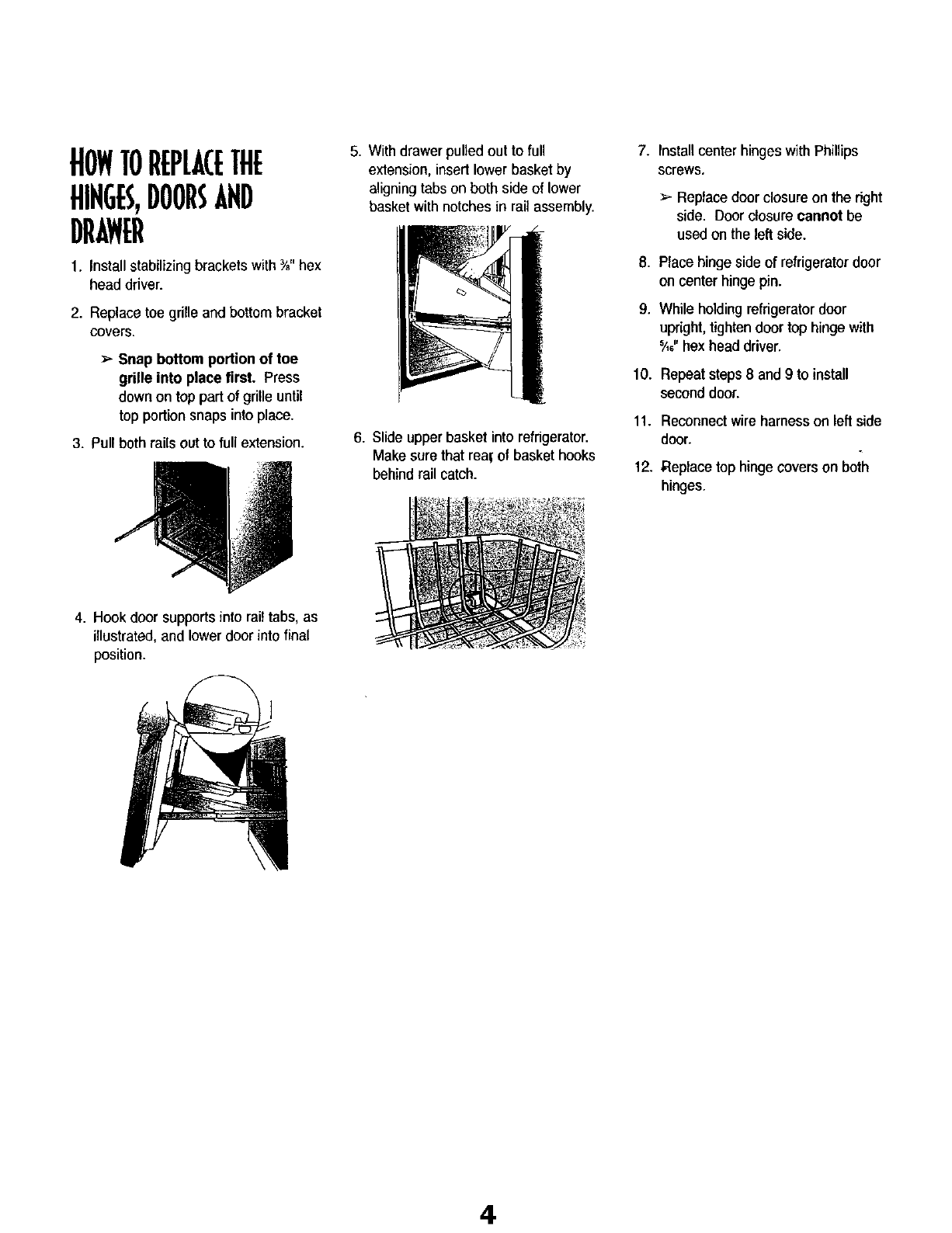

HOWTOREPLACETHE

HINGES,DOORSAND

DRAWER

1. Install stabilizing brackets with _8"hex

head driver.

2. Replace toe grille and bottom bracket

covers.

>_Snap bottom portion of toe

grille into place first. Press

down on top part of grille until

top portion snaps intoplace.

3. Pull both rails out to furlextension.

5. With drawer puffedout to full

extension, insert lower basket by

aligning tabs on both side of lower

basket with notches in rail assembly.

6. Slide upper basket into refrigerator.

Make sure that rea_"of basket hooks

behind rail catch.

10.

11.

12.

Install center hingeswith Phillips

screws.

>- Replace door closure on the dght

side. Door closure cannot be

used on the left side.

Place hinge side of refrigerator door

on center hinge pin.

While holding refrigerator door

upright, tighten door tophinge with

'A,"hex head driver.

Repeat steps 8 and 9 to install

second door.

Reconnectwireharness on left side

door.

,Replacetop hinge coverson both

hinges.

4. Hook door supports into rail tabs, as

illustrated, and lower door into final

position.

IHSTALLIHGYOURREFRIGERATOR,CONT.

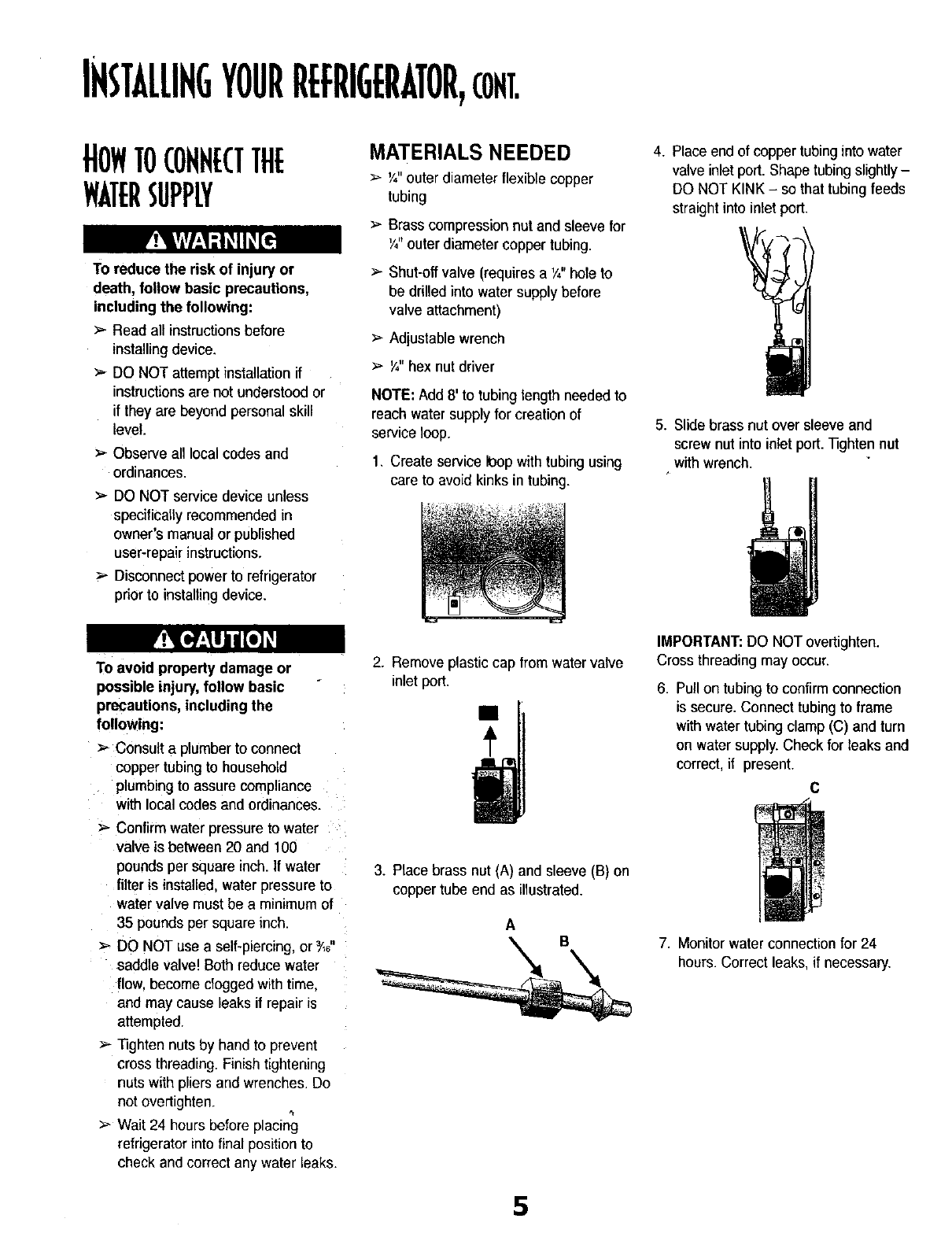

HOWTOCOHHECTTHE

WATERSUPPLY

To reduce the risk of injury or

death, follow basic precautions,

including the following:

>'-Read all instructions before

installing device.

_- DO NOT attempt installation if

instructionsare not understood or

if they are beyond personal skill

level.

Observe all local codes and

ordinances.

_- DO NOT service device unless

specifically recommended in

owner's manual or published

user-repair instructions.

:_ Disconnectpower to refrigerator

prior to installing device.

MATERIALS NEEDED

>_'/2'outerdiameterflexible copper

tubing

_- Brasscompression nut and sleeve for

Y,"outer diameter coppertubing.

Shut-offvalve (requires a '/," hole to

be drilled into watersupply before

valve attachment)

Adjustable wrench

_- Y,"hex nut driver

NOTE: Add 8' to tubinglength needed to

reach water supply for creation of

service loop.

1, Create service I_op with tubingusing

care to avoid kinks in tubing.

4. Placeend of coppertubinginto water

valve inletport. Shape tubing slightly-

DO NOT KINK - so that tubing feeds

straight into inlet port.

5. Slide brass nut over sleeve and

screw nut into inletport. _ghten nut

with wrench.

To avoid property damage or

possible injury, follow basic

precautions, including the

following:

Consult a plumbertoconnect

copper tubing to household

plumbingto assure compliance

with local codes and ordinances.

:_ Confirm water pressure to water

valve is between 20 and 100

pounds per square inch.If water

filter is installed, water pressure to

watervalve must be a minimum of

35 pounds per squareinch.

DO NOT use a self-piercing, or _',J'

saddle valve! Both reduce water

flow. become dogged with time,

and may cause leaks if repair is

attempted.

_ghten nuts by hand to prevent

cross threading. Finish tightening

nuts with pliers and wrenches. Do

not overtighten. ,,t

Wait 24 hours before placing

refrigerator intofinal position to

check and correct anywater leaks.

2. Removeplastic cap from water valve

inlet port.

3. Place brass nut (A) and sleeve (B) on

copper tube end as illustrated.

IMPORTANT:DO NOTovertighten.

Cross threading may occur.

6. Pull on tubing to confirm connection

is secure. Connect tubing to frame

with water tubing clamp (C) and turn

on water supply. Check for leaksand

correct, if present. c

7. Monitor waterconnection for 24

hours. Correct leaks, if necessary.

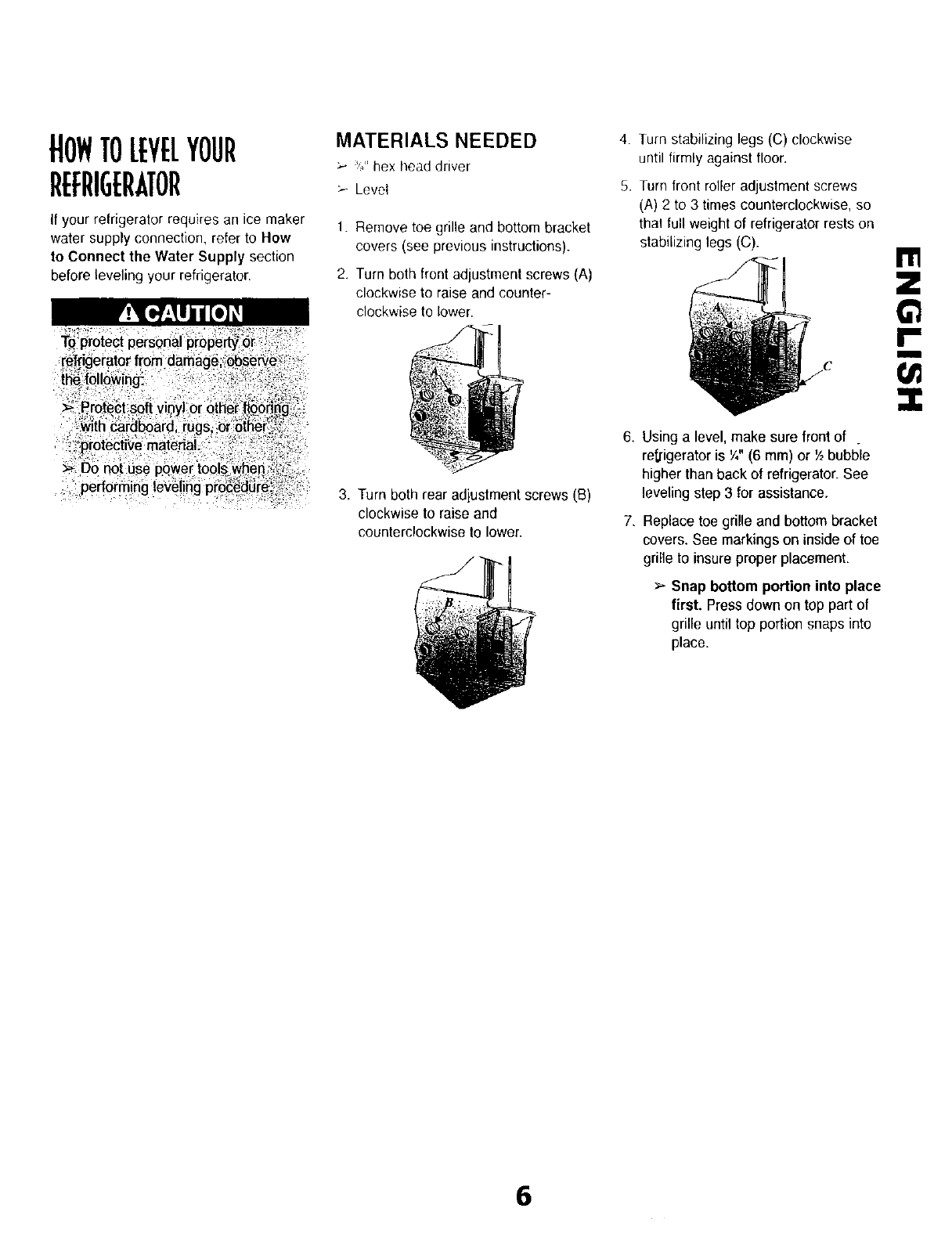

HOWTOLEVELYOUR

REFRIGERATOR

If your refrigerator requires an ice maker

water supply connection, refer to How

to Connect the Water Supply section

before leveling your refrigerator.

MATERIALS NEEDED

_" _ hex head driver

:.- Level

1. Remove toe grille and bottom bracket

covers (see previous instructions).

2. Turn both front adjustment screws (A)

clockwise l.oraise and counter-

clockwise to lower.

3. Turn both rear adjustment screws (B)

clockwise to raise and

counterclockwise to lower.

4 Turn stabilizing legs (C) clockwise

until firmly against floor.

5. Turn front roller adjustment screws

(A) 2 to 3 times counterclockwise, so

that full weight of refrigerator rests on

stabilizing legs (C).

6. Using a level, make sure front of _

refrigerator is '/4"(6 mm) or V_bubble

higher than back ol refrigerator.See

leveling step 3 for assistance.

7_ Replace toe grille and bottom bracket

covers. See markings on inside of toe

grille to insure proper placement.

>Snap bottom portion into place

first. Press down on top part of

grille until top portion snaps into

place.

I'ti

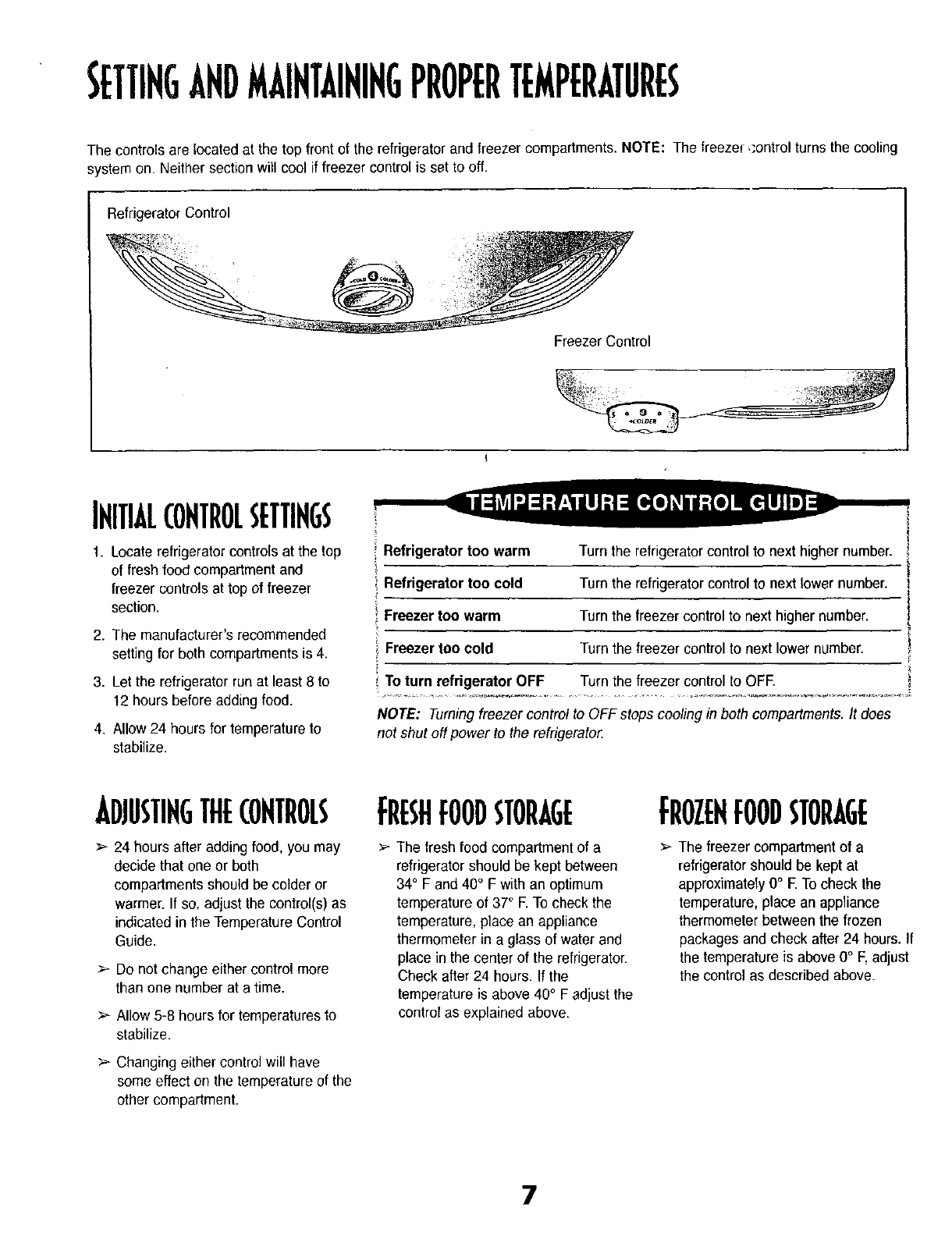

SETTIHGANDMAINTAININGPROPERTEMPERATURES

The controls are located at thetopfront of the refrigerator and freezer compartments. NOTE: The freeze! ,:ontrol turns the cooling

system on. Neither sectionwill cool if freezer control is set to off.

RefrigeratorControl

•1

Freezer Control

:#Y

__r_ ¸ • :_i_ •_ ,

IHITIAL(OHTROLSETTIHGS

1. Locate refrigerator controls at the top

of fresh food compartment and

freezer controls at top of freezer

section•

2. The manufacturer's recommended

setting for both compartments is 4.

3. Let the refrigerator run at least 8 to

12 hours before adding food.

4. Allow 24 hours for temperature to

stabilize•

Refrigeratortoo warm

Refrigeratortoo cold

Freezer too warm

Freezer too cold

iTo turn refrigerator OFF

Turn the refrigerator control to next higher number.

Turn the refrigerator control to next lower number.

Turn the freezer control to next higher number.

Turn the freezer control to next lower number.

Turnthe freezer control to OFE

NOTE: Turningfreezer control to OFF stops cooling in both compartments. It does

not shut off power to the refrigeratoc

ADIUSTIH5THECOHTFlOLS

_- 24 hours after adding food, you may

decide that one or both

compartments should be colder or

warmer. If so, adjust the control(s) as

indicated in the TemperatureControl

Guide.

Do not change eithercontrol more

than one number at a time.

>- Allow 5-8 hours for temperatures to

stabilize.

>- Changing either control will have

some effect on the temperature of the

other compartment.

FRESHFOODSTORAGE

_- The freshfood compartment of a

refrigerator should be kept between

34° F and 40° Fwith an optimum

temperature of 37° E To checkthe

temperature, place an appliance

thermometer in a glass of water and

place in the center of the refrigerator.

Check after 24 hours. If the

temperature is above 40°Fadjust the

control as explained above.

FROZEHFOODSTORAGE

The freezer compartment of a

refrigerator should be kept at

approximately 0° E Tocheck the

temperature, place an appliance

thermometer between the frozen

packages and check after 24 hours. If

the temperature is above 0° F,adjust

the control as described above.

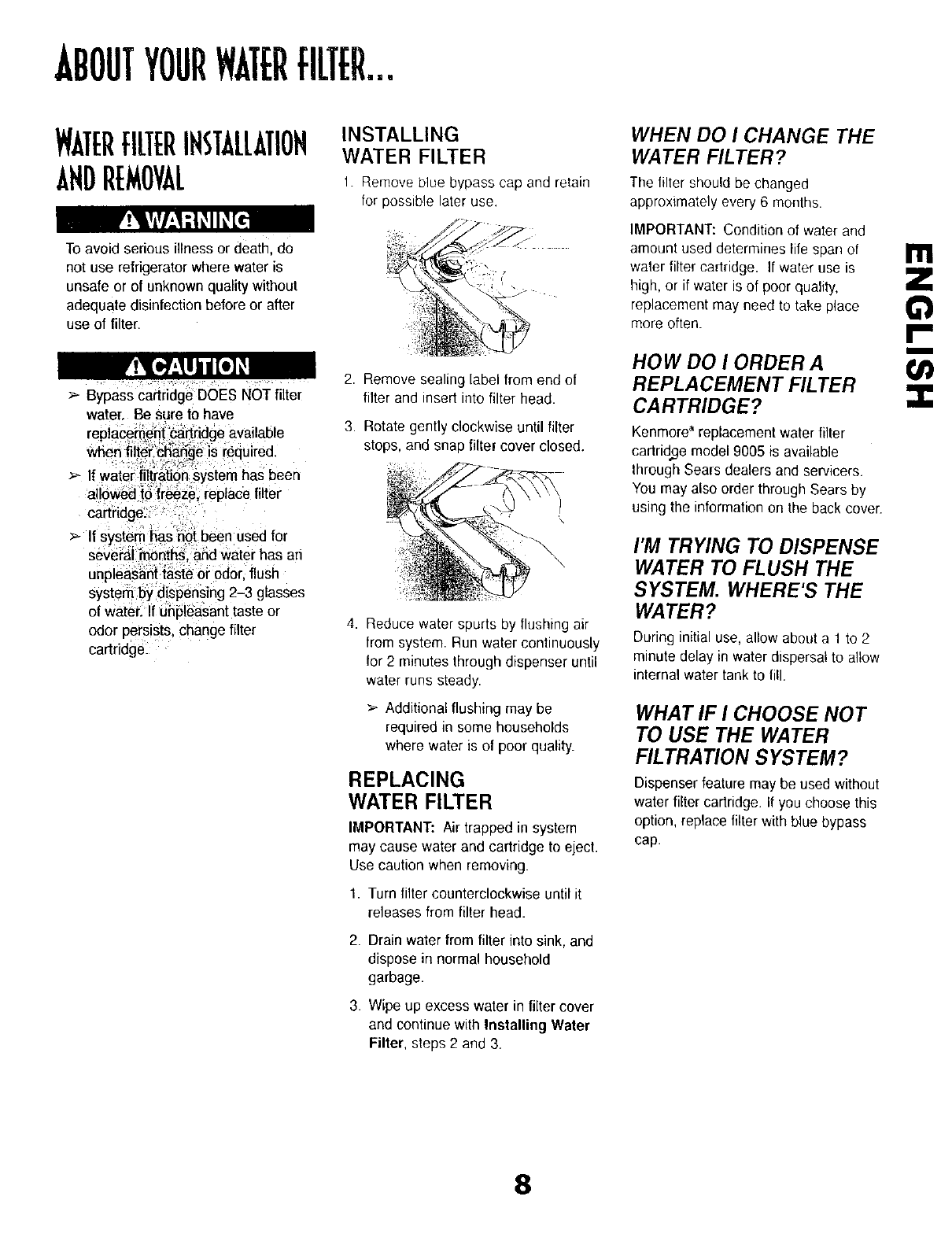

ABOUTYOURWATERFILTER...

WATERFILTERINSTALLATION

ANDREMOVAL

To avoid serious illness or death, do

not use refrigerator where water is

unsafe or of unknown quality without

adequate disinfection before or after

use of filter.

> Bypass cartridge DOES NOT filter

water. Be sure to have

replacemen__rtridge available

wfien filt_r_ch_e is required.

_- If watei"filtration system has been

all0wea {o_ree;;e, replace filter

cartridge:;

>" Ifsystenl hashot been used for

several _onth_, a6d water has an

unpleasant {aste oi odor,flush

system bYldispensing 2-3 glasses

of water. If uhpleasant taste or

odor persists, change filter

cartridge.

INSTALLING

WATER FILTER

1. Removeblue bypass cap and retain

for possible later use.

2. Remove sealing label from end of

filter and insert into filter head.

3. Rotate gently clockwise until filter

stops, and snap filter cover closed.

4. Reduce water spurts by flushing air

from system. Run water continuously

for 2 minutes through dispenser until

water runs steady.

> Additional flushing may be

required in some households

where water is of poor quality.

REPLACING

WATER FILTER

IMPORTANT: Air trappedin system

may cause water and cartridge to eject.

Use caution when removing.

1. Turn filter counterclockwise until it

releases from filter head.

2. Drain water from filter into sink, and

dispose in normal household

garbage.

3. Wipe up excess water in filter cover

and continue with Installing Water

Filter, steps 2 and 3.

WHEN DO ICHANGE THE

WATER FILTER?

The filter should be changed

approximately every 6 months.

IMPORTANT: Condition of water and

amount used determines life span of

water filter cartridge. If water use is

high, or if water is of poor quality,

replacementmay need to take place

more often.

HOW DO IORDER A

REPLA CEMENT FILTER

CARTRIDGE?

Kenmore_replacement water filter

cartridge model9005 is available

through Sears dealers and servicers.

You may also order through Sears by

using the informationon the back cover.

I'M TRYING TO DISPENSE

WATER TO FLUSH THE

SYSTEM. WHERE'S THE

WATER?

During initial use, allow about a 1 to 2

minute delay in waterdispersal to allow

internal water tank to fill.

WHAT IF I CHOOSE NOT

TO USE THE WATER

FILTRATION SYSTEM?

Dispenserfeature may be usedwithout

water filter cartridge. If you choose this

option, replace filterwith blue bypass

cap.

¢1

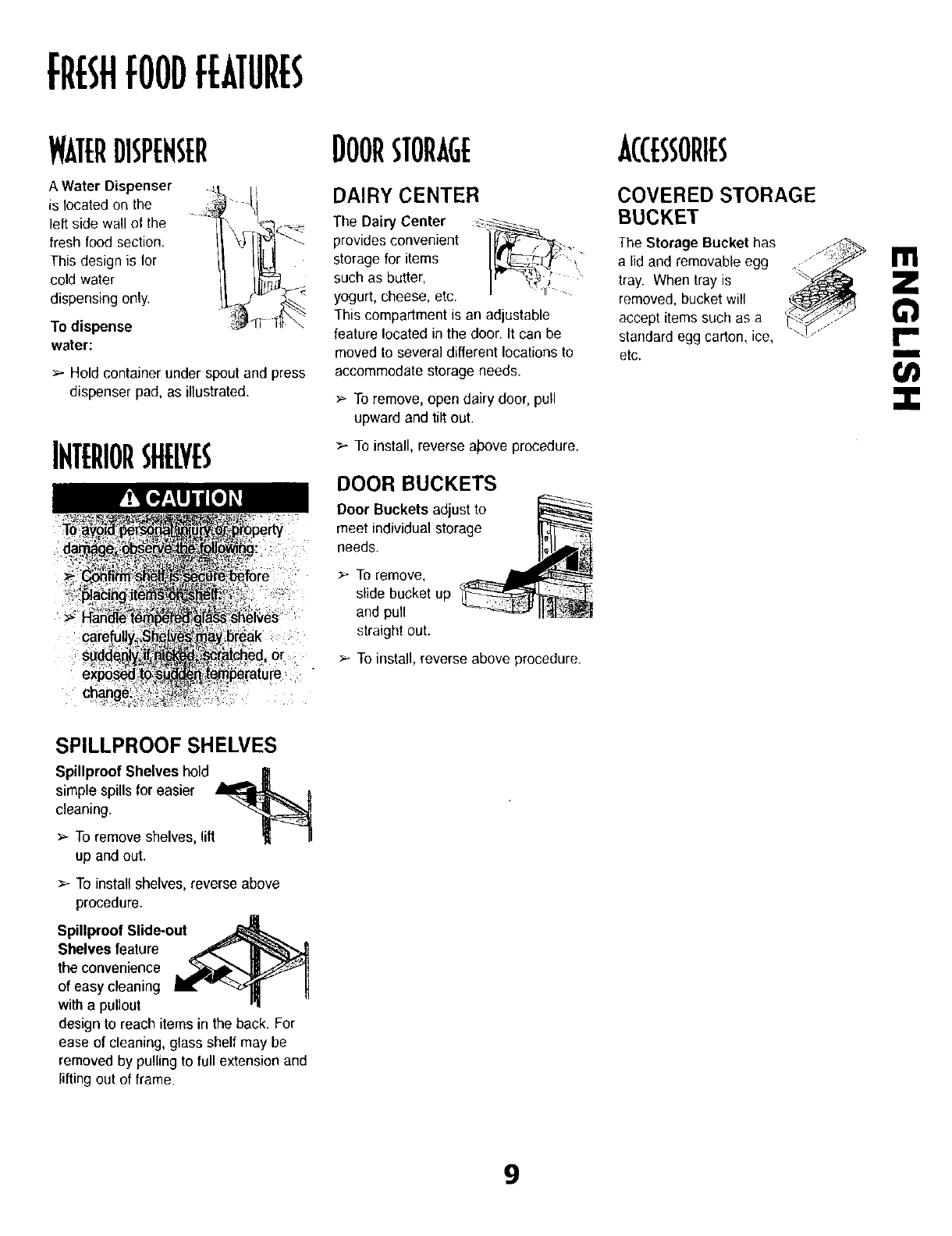

FRESHFOODFEATURES

WATERDISPENSER

A Water Dispenser

is located on the

left side wall of the

fresh food section•

This design is for

cold water

dispensing only.

To dispense

water:

>- Hold container under spout and press

dispenser pad, as illustrated.

INTERIORSflELYES

DOORSTORAGE

DAIRY CENTER

The Dairy Center _-

provides convenient i_:."

storage for items "_' _"

such as butter, . _ '

yogurt, cheese, etc.

This compartment is an adjustable

feature located in the door. It can be

moved to severa]different locations to

accommodate storage needs.

:_ Toremove, open dairy door, pull

upward and tilt out.

>.-To install, reverse above procedure.

DOOR BUCKETS

Door Buckets adjust to

meet individual storage

needs.

,>-To remove,

slide bucket up

and pull

straight out.

Toinstall, reverse above procedure•

ACCESSORIES

COVERED STORAGE

BUCKET

The Storage Bucket has

a _idand removable egg

tray. When tray is

removed,bucket will

accept itemssuch as a

standard egg cartom ice,

etc. m

SPILLPROOF SHELVES

Spitlproo! Shelves hold . _ ]_

simple spills for easier _ I

cleaning.

>- To remove shelves, lilt '_ i_

up and out.

> Toinstall shelves, reverse above

procedure.

Spillproof Slide-out _ .

Shelves feature _

the convenience

ofeasy cleaning It v"q_

witha pullout ,'l

design to reach items in theback. For

ease of cleaning, glass shelf may be

removedby pulling to full extension and

lifting out of frame.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kenmore Kühlschrank Handbücher

Kenmore

Kenmore 59666252400 Bedienungsanleitung

Kenmore

Kenmore 7121 series Bedienungsanleitung

Kenmore

Kenmore 795.7802 Series Bedienungsanleitung

Kenmore

Kenmore 596.72283200 Bedienungsanleitung

Kenmore

Kenmore 106.7300 SERIES Bedienungsanleitung

Kenmore

Kenmore 7873 - Elite 24.7 cu. Ft. Bottom-Freezer... Bedienungsanleitung

Kenmore

Kenmore 241815202 Bedienungsanleitung

Kenmore

Kenmore Grab-N-Go 795.7033 Series Bedienungsanleitung

Kenmore

Kenmore Kenmore Bootom-Mount Refrigerator Bedienungsanleitung

Kenmore

Kenmore 2315481 Bedienungsanleitung

Kenmore

Kenmore 253.70013 Bedienungsanleitung

Kenmore

Kenmore 970-7070 SERIES Bedienungsanleitung

Kenmore

Kenmore Elite 970R44843 Bedienungsanleitung

Kenmore

Kenmore Elite 3840JL2019A Bedienungsanleitung

Kenmore

Kenmore 795.70339410 Betriebsanleitung

Kenmore

Kenmore 795.7940 Series Bedienungsanleitung

Kenmore

Kenmore 795.7212 Bedienungsanleitung

Kenmore

Kenmore 106.5022 Series Bedienungsanleitung

Kenmore

Kenmore 106.5176 Bedienungsanleitung

Kenmore

Kenmore 94443 Bedienungsanleitung

Kenmore

Kenmore W10213167A Bedienungsanleitung

Kenmore

Kenmore 795.78402.801 Bedienungsanleitung

Kenmore

Kenmore 106.5022 Series Bedienungsanleitung

Kenmore

Kenmore Kenmore Top-mount Refrigerator Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
