Owner's Manual

Manual Del Propietario

Vacuum Cleaner

Aspiradora

Model, Modelo 116.36720

CAUTION:

Read and follow all

safety and operating

instructionsbefore first

use of this product.

CUIDADO:

Leay sigue todaslas

instrucciones de operaci6n

y seguridad antes del uso de

este producto.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com

Printed in China

Part No. CO1ZCXXOOUOO-KCO1ZCXXZOUO Impreso en China

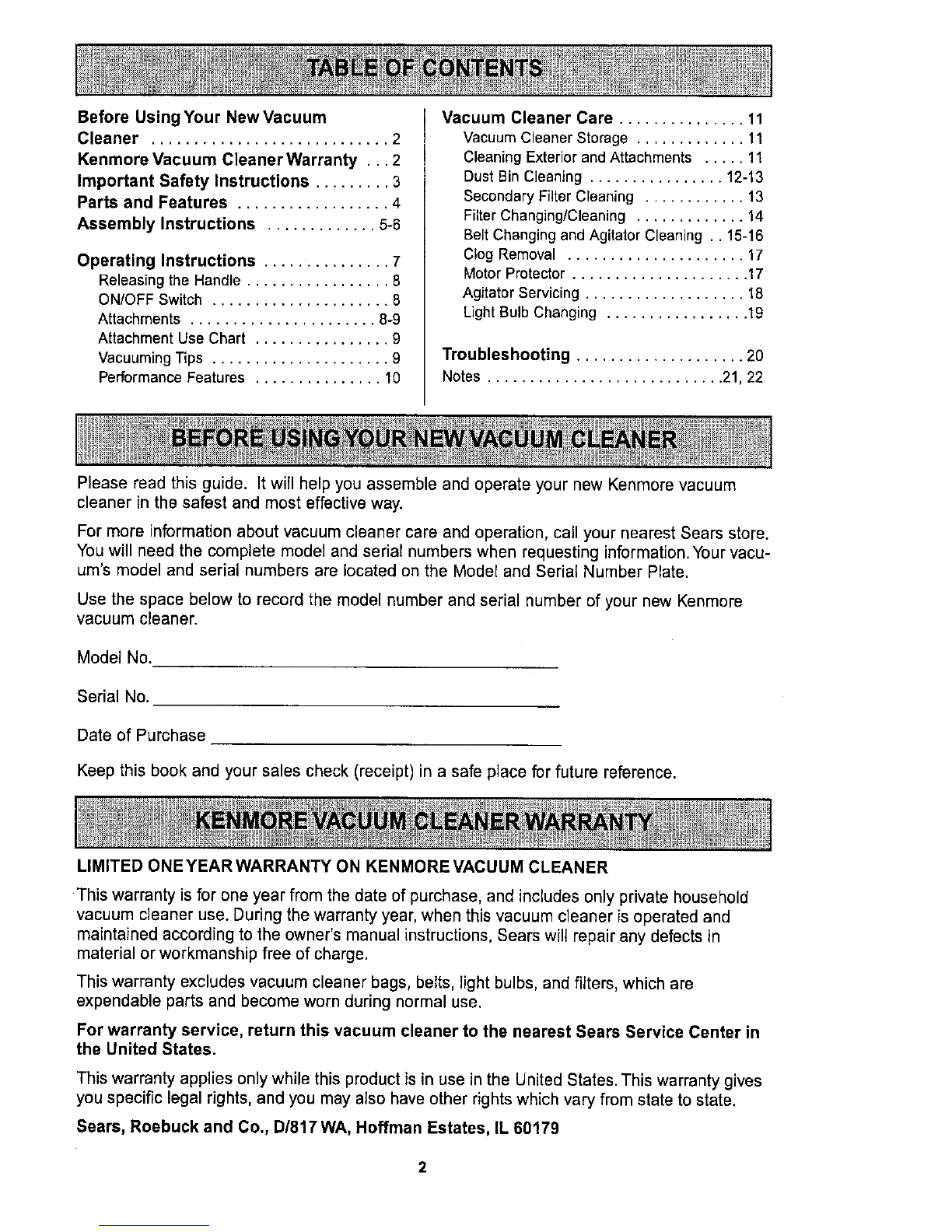

Before UsingYour NewVacuum

Cleaner ............................ 2

Kenmore Vacuum Cleaner Warranty ... 2

Important Safety Instructions ......... 3

Parts and Features .................. 4

Assembly Instructions ............. 5-6

Operating Instructions ............... 7

Releasing the Handle ................. 8

ON/OFF Switch ..................... 8

Attachments ...................... 8-9

Attachment Use Chart ................ 9

Vacuuming Tips ..................... 9

Performance Features ............... 10

Vacuum Cleaner Care ............... 11

Vacuum Cleaner Storage ............. 11

Cleaning Exterior and Attachments ..... 11

Dust Bin Cleaning ................ 12-13

Secondary Filter Cleaning ............ 13

Filter Changing/Cleaning ............. 14

Belt Changing and Agitator Cleaning .. 15-16

Clog Removal ..................... 17

Motor Protector ..................... 17

Agitator Servicing ................... 18

Light Bulb Changing ................. 19

Troubleshooting .................... 20

Notes ............................ 21, 22

Please read this guide. It will help you assemble and operate your new Kenmore vacuum

cleaner in the safest and most effective way.

For more information about vacuum cleaner care and operation, call your nearest Sears store.

You will need the complete model and serial numbers when requesting information. Your vacu-

um's model and serial numbers are located on the Model and Serial Number Plate.

Use the space below to record the model number and serial number of your new Kenmora

vacuum cleaner.

Model No.

Serial No.

Date of Purchase

Keep this book and your sales check (receipt) in a safe place for future reference.

LIMITED ONE YEAR WARRANTY ON KENMORE VACUUM CLEANER

This warranty is for one year from the date of purchase, and includes only private household

vacuum cleaner use. During the warranty year, when this vacuum cleaner is operated and

maintained according to the owner's manual instructions, Sears will repair any defects in

material or workmanship free of charge.

This warranty excludes vacuum cleaner bags, belts, light bulbs, and filters, which are

expendable parts and become worn during normal use.

For warranty service, return this vacuum cleaner to the nearest Sears Service Center in

the United States.

This warranty applies only while this product is in use in the United States. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

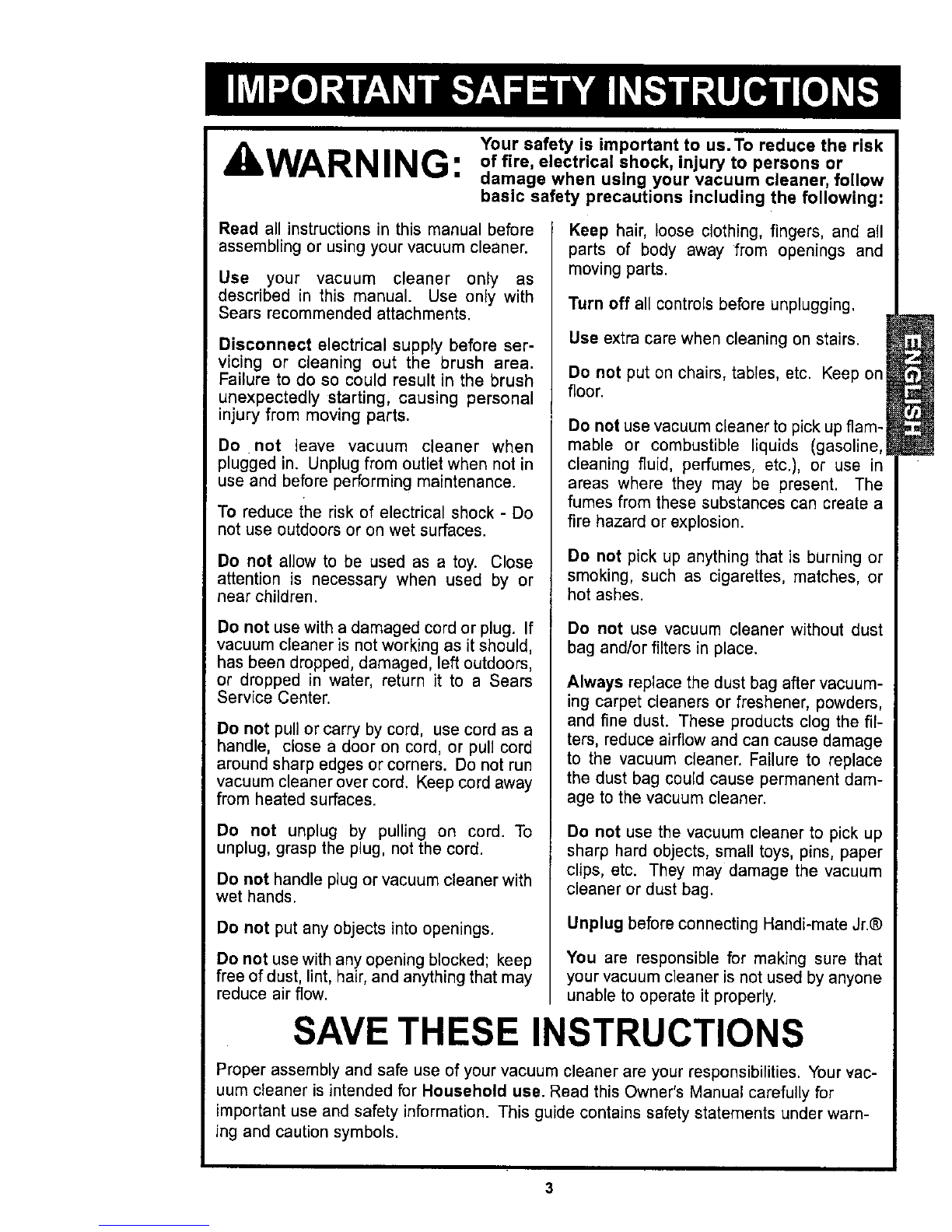

,WARNING: Your safety is important to us.To reduce the risk

of fire, electrical shock, injury to persons or

damage when using your vacuum cleaner, follow

basic safety precautions including the following:

Read all instructions in this manual before

assembling or using your vacuum cleaner.

Use your vacuum cleaner only as

described in this manual. Use only with

Sears recommended attachments.

Disconnect electrical supply before ser-

vicing or cleaning out the brush area.

Failure to do so could result in the brush

unexpectedly starting, causing personal

injury from moving parts.

Do not leave vacuum cleaner when

plugged in. Unplug from outlet when not in

use and before performing maintenance.

To reduce the risk of electrical shock - Do

not use outdoors or on wet surfaces.

Do not allow to be used as a toy. Close

attention is necessary when used by or

near children.

Do not use with a damaged cord or plug. If

vacuum cleaner is not working as it should,

has been dropped, damaged, left outdoors,

or dropped in water, return it to a Sears

Service Center.

Do not pull or carry by cord, use cord as a

handle, close a door on cord, or pull cord

around sharp edges or corners. Do not run

vacuum cleaner over cord. Keep cord away

from heated surfaces.

De not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

Do not handle plug or vacuum cleaner with

wet hands.

Do not put any objects into openings.

Do not use with any opening blocked; keep

free of dust, lint, hair, and anything that may

reduce air flow.

Keep hair, loose clothing, fingers, and all

parts of body away from openings and

moving parts.

Turn off all controls before unplugging.

Use extra care when cleaning on stairs.

Do not put on chairs, tables, etc. Keep on

floor.

Do not use vacuum cleaner to pick up flam-

mable or combustible liquids (gasoline,

cleaning fluid, perfumes, etc.), or use in

areas where they may be present. The

fumes from these substances can create a

fire hazard or explosion.

Do not pick up anything that is bUrning or

smoking, such as cigarettes, matches, or

hot ashes.

Do not use vacuum cleaner without dust

bag and/or filters in place.

Always replace the dust bag after vacuum-

ing carpet cleaners or freshener, powders,

and fine dust. These products clog the fil-

ters, reduce airflow and can cause damage

to the vacuum cleaner. Failure to replace

the dust bag could cause permanent dam-

age to the vacuum cleaner.

Do not use the vacuum cleaner to pick up

sharp hard objects, small toys, pins, paper

clips, etc. They may damage the vacuum

cleaner or dust bag.

Unplug before connecting Handi-mate Jr.®

You are responsible for making sure that

your vacuum cleaner is not used by anyone

unable to operate it properly.

SAVE THESE INSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your vac-

uum cleaner is intended for Household use. Read this Owner's Manual carefully for

important use and safety information. This guide contains safety statements under warn-

ing and caution symbols.

it isimportanttoknowyourvacuumcleaner'spartsandfeaturestoassureitsproperandsafe

use.Reviewthesebeforeusingyourvacuumcleaner.

Item Part No. Part No.

In U,S. In Canada

Belt 20-5275 20-40096

Headlight Bulb 20-5248 .....

Primary Filter 20-82720 20-40319

Exhaust Filter 20-86889 20-40324

Dust Bin

Release Switch

Power

Cord.

Screw,

Hose

Holder

Cord Hook

Brush

Wend

Flits

(inside)

Nozzle

Cover

Furniture

Guard

Retainer/ Nozzle Cover

Dust Carry Handle Retainers

-Dust

Bin

Filter

(Inside)

.Headlight

Nozzle

Base

Crevice

Tool

Motor

Protector

Sho_

ModeYSer_l Hose

Numbers

I Please pay special attention to these hazard alert boxes, and follow any instructions given.

WARNING statements alert you to such hazards as fire, electric shock, burns and personal

injury. CAUTION statements alert you to such hazards as personal injury and/or property

damage.

kWARNING

Electrical Shock Hazard

Do not plug into the electrical supply

until the assembly is complete. Failure

to do so could result in electrical

shock or injury,

Before assembling vacuum cleaner, check

the PACKING LIST on the cover of the sepa-

rate Repair Parts List. Use this list to verify

that you have received all the components of

your new Kenmore vacuum cleaner.

HANDLE ASSEMBLY

Remove the screw located just below the

top edge of the back of the vacuum clean-

er. Position the handle

as shown in the illus- .__.J /

tration below. Handle _

the opening :__ _J_lkF

at the top of _ _1_'/ _..',_.

the vacuum J _/ _' HI

cleaner. 1/

Insert the /11 tl H,ndl,

screwso,t/ll LI so, .

passes Hole

through the handle into the vacuum clean-

er.

kCAUTION

Do not overtighten.

Overtightening could strip the screw

holes,

Do not operate the vacuum cleaner with-

out the screw in place.

Using a screw-

driver, tighten

the screw.

Begin to tighten the screw with your fin-

gers. It may be necessary to adjust the

handle slightly.

CORD ASSEMBLY

Make sure the quick release cord hook is in

the upright position. Remove the wire tie

from the power cord.

Lock the cord into

place by forcing it

into the locking

notch on the body

of the quick Notch

release cord hook (,' \

as shown. This

helps keep the

power cord out

fromunderthe POcord_i

vacuum cleaner

agitator.

Quick

Release

Cord

Power

Lower

Cord

Wrap the

power cord

around the

quick release

cord hook

and lower

cord retainer,

then lock the

power cord

plug onto the

Jower cord.

ATTACHMENT STORAGE

After the handle has been assembled to the

body and the power cord has been wrapped

around the cord hooks, the attachments can

be placed in their holders.

1. Snap the suction inletend of the hose

intothe back of the vacuum cleaner.

2. Place the hose behind the handle and

over the hose holder.

3. Place the hose in the front slot of the

tool holder, twisting and pushing down over

the short hose to assure a good connection.

4. Place the extension wand in the rear slot

of the tool holder.

5. Slide the crevice tool into the slot beside

the wand.

6. Place the dusting brush or combination

brush on the wand with the brush portion

up.

Handle-

Hose

Holder

Brush

Wand

Inlet

Tool

Holder,

Tool

OPERATING INSTRUCTIONS

Quick 1. Turn the

Cord Hook quick release

upper cord

hook to either

side and down

to release the

power cord.

WARNING

• To reduce the risk of electric shock,

this vacuum cleaner has a polar-

ized plug (one blade is wider than

the other).

•The plug will fit in a polarized outlet

only one way. If the plug does not

fit fully in the outlet, reverse the

plug. If it still does not fit, contact a

qualified technician to install the

proper outlet. Do not change the

plug in any way.

2. Detach the power cord plug from the

)ower cord and pull the cord off the quick

release upper cord hook.

Be sure the power cord is still locked into

the locking notch of the upper cord hook.

3. Plug the polarized power cord into a

120 Volt outlet located near the floor.

4. To store cord, turn upper cord hook to

the up position, then wrap cord.

IIbWARNING

Personal Injury and Product Damage

Hazard

•DO NOT place hands or feet under

the vacuum cleaner at any time.

•DO NOT use outlets above coun-

ters. Damage from cord to items in

surrounding area could occur.

Release the handle by placing your foot on

the foot rest and pull back on the handle

until it releases from its upright position. \

Foot Rest for

Handle Release

To start the vacuum cleaner, push the

On/Off switch from the OFF position to the

ON position. To stop the vacuum cleaner,

push the On/Off switch to the OFF position.

WARNING

Personal Injury Hazard and Property

Hazard

DO NOT place hands or feet under-

neath the vacuum cleaner at any time.

When using attachments, the agitator

continues rotating. Do not allow the

ceaner to remain in just one place for

a period of time as the agitator may

damage the floor surface. Avoid plac-

ing the vacuum cleaner on furniture,

the fringed area of rugs, deep pile car-

peting, or carpeted stairs. The ideal

position for the vacuum cleaner when

using attachements is for the vacuum

cleaner to be on a level area with the

handle in the full upriqht position.

TO USE ATTACHMENTS

CAUTION

DO NOT tip vacuum cleaner forwards

or sideways when using attachments.

The attachments will fit on the hose or the

wand. In addition, the dusting brush or

combination brush will also fit on the

crevice tool.

The hose and wand can be pulled off the

short hose by grasping the cuff and twist-

ing while pulling up.

CAUTION

DO NOT pull the vacuum cleaner

around the room by the hose.

Property damage could result.

The attachments can be added to the hose

if the item to be cleaned is not far from the

vacuum cleaner. The hose on some mod-

els will expand.

NOTE: When vacuum cleaner is turned on,

the hose on some models will have a

tendency to coltapse due to suction of the

vacuum cleaner.

CAUTION

When using attachments, be careful

not to overextend the stretch hose

when reaching. Trying to reach beyond

the hose stretch capability could

cause the vacuum cleaner to tip over.

If more reach is needed, the wand can be

attached to the hose and the attachments

can be added to the wand.

An extra wand, without tabs, is included.

This extra wand can be added to the wand

with tabs for extra reach. Insert wand and

twist a quarter of a turn to secure fit.

if the dusting brush is being used and more

distance is needed, the crevice tool can be

added to the wand, then the dusting

brush/combination brush can be added to

the crevice tool.

Dusting Brush

TO STORE

ATTACHMENTS

Return the hose to its position on the short

hose and the attachments to their holders.

CAUTION

ATTACHMENT

CREVICE TOOL

COMBINATION BRUSH

Furniture*

CLEANING AREA

Between

Cushions* Drapes* Stairs

Walls

The motor protector may open when using attachments or when cleaning new carpet due

to reduced air flow caused by the attachments themselves or by new carpet fuzz filling the

bag quickly.

*Always clean attachments before using on fabrics.

Carpet edges

Guide either side or the front of the noz-

zle along a baseboard.

Stairs

Set handle in full upright position. Agitator

stops rotating. Use the crevice tool, com-

bination brush or Handi-Mate Jr.®.

Vacuum Cleaner Tipping

When using the attachments keep the

extension hose release lever in the locked

position when possible. This helps to keep

the vacuum cleaner from tipping over

when stretching the hose. If additional

hose is needed then unlock the release

lever and pull out additional hose. Use

caution not to tip over vacuum cleaner.

WARNING

Personal Injury Hazard

Use care if vacuum cleaner is placed on

stairs. If it falls, personal injury or prop-

erty damage could result.

For best cleaning results, keep the airflow

passage clear.

Unplug the vacuum cleaner from the outlet

before checking.

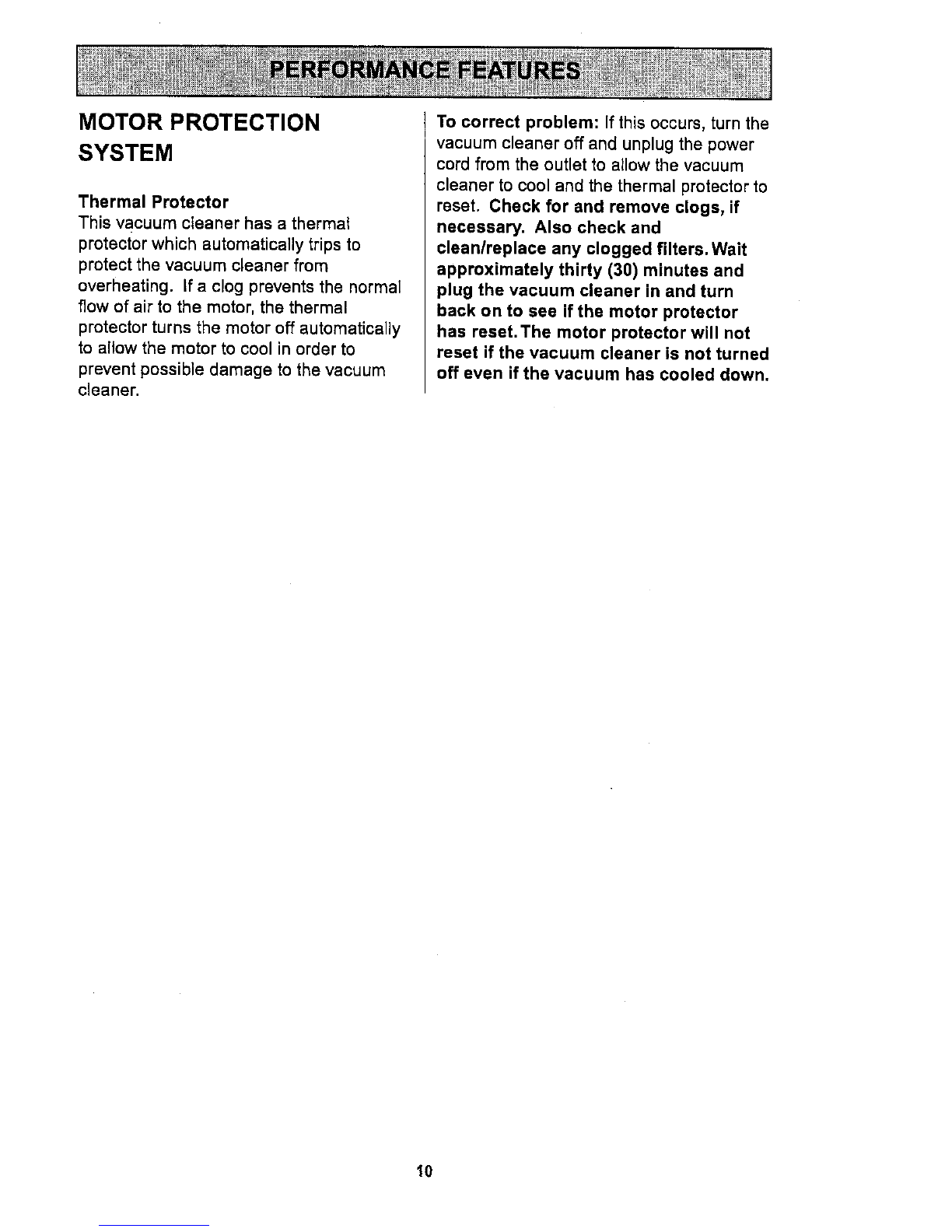

MOTOR PROTECTION

SYSTEM

Thermal Protector

This vacuum cleaner has a thermal

protector which automatically trips to

protect the vacuum cleaner from

overheating. If a clog prevents the normal

flow of air to the motor, the thermal

protector turns the motor off automatically

to allow the motor to cool in order to

prevent possible damage to the vacuum

cleaner.

To correct problem: If this occurs, turn the

vacuum cleaner off and unplug the power

cord from the outlet to allow the vacuum

cleaner to cool and the thermal protector to

reset. Check for and remove clogs, if

necessary. Also check and

clean/replace any clogged filters. Wait

approximately thirty (30) minutes and

plug the vacuum cleaner in and turn

back on to see if the motor protector

has reset.The motor protector will not

reset if the vacuum cleaner is not turned

off even if the vacuum has cooled down,

Inhaltsverzeichnis

Sprachen:

Andere Kenmore Staubsauger Handbücher

Kenmore

Kenmore CSV Go DS4020 Bedienungsanleitung

Kenmore

Kenmore 125.10341 Bedienungsanleitung

Kenmore

Kenmore DS6012 Bedienungsanleitung

Kenmore

Kenmore 116.10701 Bedienungsanleitung

Kenmore

Kenmore CROSSOVER DU3017 Bedienungsanleitung

Kenmore

Kenmore 3911 - Upright Vacuum Bedienungsanleitung

Kenmore

Kenmore Elite CROSSOVER ULTRA Bedienungsanleitung

Kenmore

Kenmore 116.35913 Bedienungsanleitung

Kenmore

Kenmore 473.85930 Bedienungsanleitung

Kenmore

Kenmore Sears 175.8690090 Hom? cleaning system Bedienungsanleitung

Kenmore

Kenmore VACUUM CLEANER 116.32289 Bedienungsanleitung

Kenmore

Kenmore 116.30610C Bedienungsanleitung

Kenmore

Kenmore FeatherLite Lift-Up DU4080 Bedienungsanleitung

Kenmore

Kenmore 3693 - Progressive Bagless Upright Bedienungsanleitung

Kenmore

Kenmore Intuition BU4018 Bedienungsanleitung

Kenmore

Kenmore 116.23204C Bedienungsanleitung

Kenmore

Kenmore Kenmore 721.24195 Bedienungsanleitung

Kenmore

Kenmore 116.30912 Bedienungsanleitung

Kenmore

Kenmore POWER-MATE 116.24614 Bedienungsanleitung

Kenmore

Kenmore 116.39055 Bedienungsanleitung

Kenmore

Kenmore PowerMate Nozzle Bedienungsanleitung

Kenmore

Kenmore 116.32735 Bedienungsanleitung

Kenmore

Kenmore 680.14100410 Bedienungsanleitung

Kenmore

Kenmore Elite 116.21814 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
