Kenmore 116.36922 Bedienungsanleitung

Owner's Manual

Manual Del Propietario

Vacuum Cleaner

Aspiradora

Model, Modelo 116.36922

116.36923

CAUTION:

Read and follow all

safety and operating

instructions before first

use of this product.

CUIDADO:

Lea y sigue todas las

instrucciones de operaci6n

y seguridad antes del uso de

este producto.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com

Printed in Mexico

Part No. C01ZCSN00UOO-KCO1ZCSNZOUO Impreso en Mexico

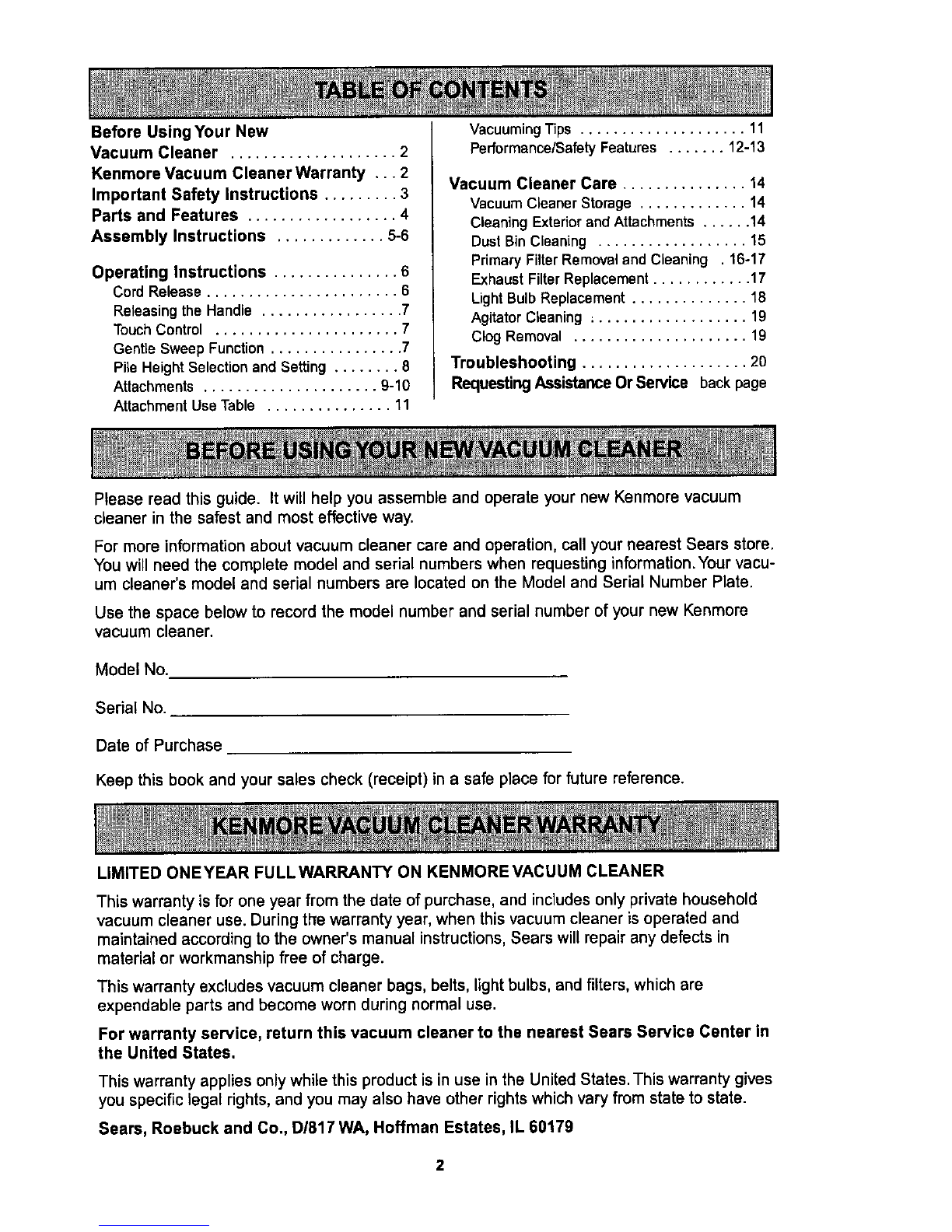

Before UsingYour New

Vacuum Cleaner .................... 2

Kenmore Vacuum Cleaner Warranty ... 2

Important Safety Instructions ......... 3

Parts and Features .................. 4

Assembly Instructions ............. 5-6

Operating Instructions ............... 6

Cord Release ....................... 6

Releasingthe Handle ................. 7

TouchControl ...................... 7

Gentle Sweep Function................ 7

Pile Height Selectionand Setting ........ 8

Attachments ..................... 9-10

AttachmentUseTable ............... 11

Vacuuming Tips .................... 11

Performance/Safety Features ....... 12-13

Vacuum Cleaner Care ............... 14

VacuumCleaner Storage ............. 14

Cleaning Exteriorand Attachments ...... 14

DustBinCleaning .................. 15

PrimaryFilterRemovaland Cleaning . 16-17

ExhaustFilterReplacement............ 17

LightBulb Replacement .............. 18

Agitator Cleaning ................... 19

Clog Removal ..................... 19

Troubleshooting .................... 20

Requesting Assistance OrService back page

Please read this guide. It will help you assemble and operate your new Kenmore vacuum

cleaner in the safest and most effective way.

For more information about vacuum cleaner care and operation, call your nearest Sears store.

You will need the complete model and serial numbers when requesting information. Your vacu-

um cleaner's model and serial numbers are located on the Model and Serial Number Plate.

Use the space below to record the model number and serial number of your new Kenmore

vacuum cleaner.

Model No.

Serial No.

Date of Purchase

Keep this book and your sales check (receipt) in asafe place for future reference.

LIMITED ONEYEAR FULLWARRANTY ON KENMOREVACUUM CLEANER

This warranty is for one year from the date of purchase, and includes only private household

vacuum cleaner use. During the warranty year, when this vacuum cleaner is operated and

maintained according to the owner's manual instructions, Sears will repair any defects in

material or workmanship free of charge.

This warranty excludes vacuum cleaner bags, belts, light bulbs, and filters, which are

expendable parts and become worn during normal use.

For warranty service, return this vacuum cleaner to the nearest Sears Service Center in

the United States.

This warranty applies only while this product is in use in the United States. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

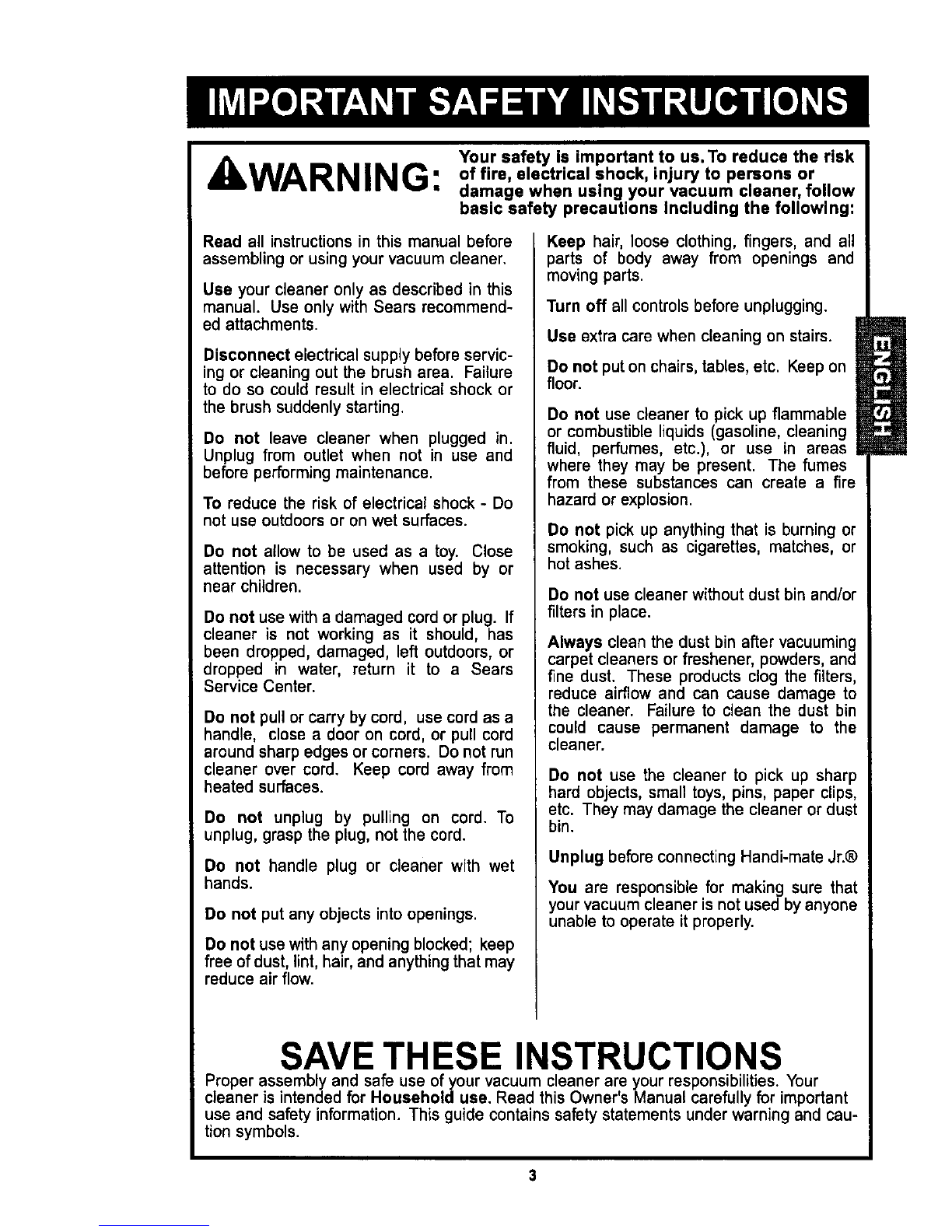

kWARNING: Your safety is important to us.To reduce the risk

of fire, electrical shock, injury to persons or

damage when using your vacuum cleaner, follow

basic safety precautions Including the following:

Read all instructions in this manual before

assembling or using your vacuum cleaner.

Use your cleaner only as described in this

manual. Use only with Sears recommend-

ed attachments.

Disconnect electrical supply before servic-

ing or cleaning out the brush area. Failure

to do so could result in electrical shock or

the brush suddenly starting.

Do not leave cleaner when plugged in.

Unplug from outlet when not in use and

before performing maintenance.

To reduce the risk of electrical shock -Do

not use outdoors or on wet surfaces.

Do not allow to be used as atoy. Close

attention is necessary when used by or

near children.

Do not use with a damaged cord or plug. If

cleaner is not working as it should, has

been dropped, damaged, left outdoors, or

dropped in water, return it to a Sears

Service Center.

Do not pull or carry by cord, use cord as a

handle, close a door on cord, or pull cord

around sharp edges or corners. Do not run

cleaner over cord. Keep cord away from

heated surfaces.

Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

Do not handle plug or cleaner with wet

hands.

Do not put any objects into openings.

Do not use with any opening blocked; keep

free of dust, lint, hair, and anything that may

reduce air flow.

Keep hair, loose clothing, fingers, and all

parts of body away from openings and

moving parts.

Turn off all controls before unplugging.

Use extra care when cleaning on stairs.

Do not put on chairs, tables, etc. Keep on

floor.

Do not use cleaner to pick up flammable

or combustible liquids (gasoline, cleaning

fluid, perfumes, etc.), or use in areas

where they may be present. The fumes

from these substances can create a fire

hazard or explosion.

Do not pick up anything that is burning or

smoking, such as cigarettes, matches, or

hot ashes.

Do not use cleaner without dust bin and/or

filters in place.

Always clean the dust bin after vacuuming

carpet cleaners or freshener, powders, and

fine dust. These products clog the filters,

reduce airflow and can cause damage to

the cleaner. Failure to clean the dust bin

could cause permanent damage to the

cleaner.

Do not use the cleaner to pick up sharp

hard objects, small toys, pins, paper clips,

etc. They may damage the cleaner or dust

bin.

Unplug before connecting Handi-mate Jr.®

You are responsible for making sure that

your vacuum cleaner is not used by anyone

unable to operate it properly.

SAVE THESE INSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your

cleaner is intended for Household use. Read this Owner's Manual carefully for important

use and safety information. This guide contains safety statements under warning and cau-

tion symbols.

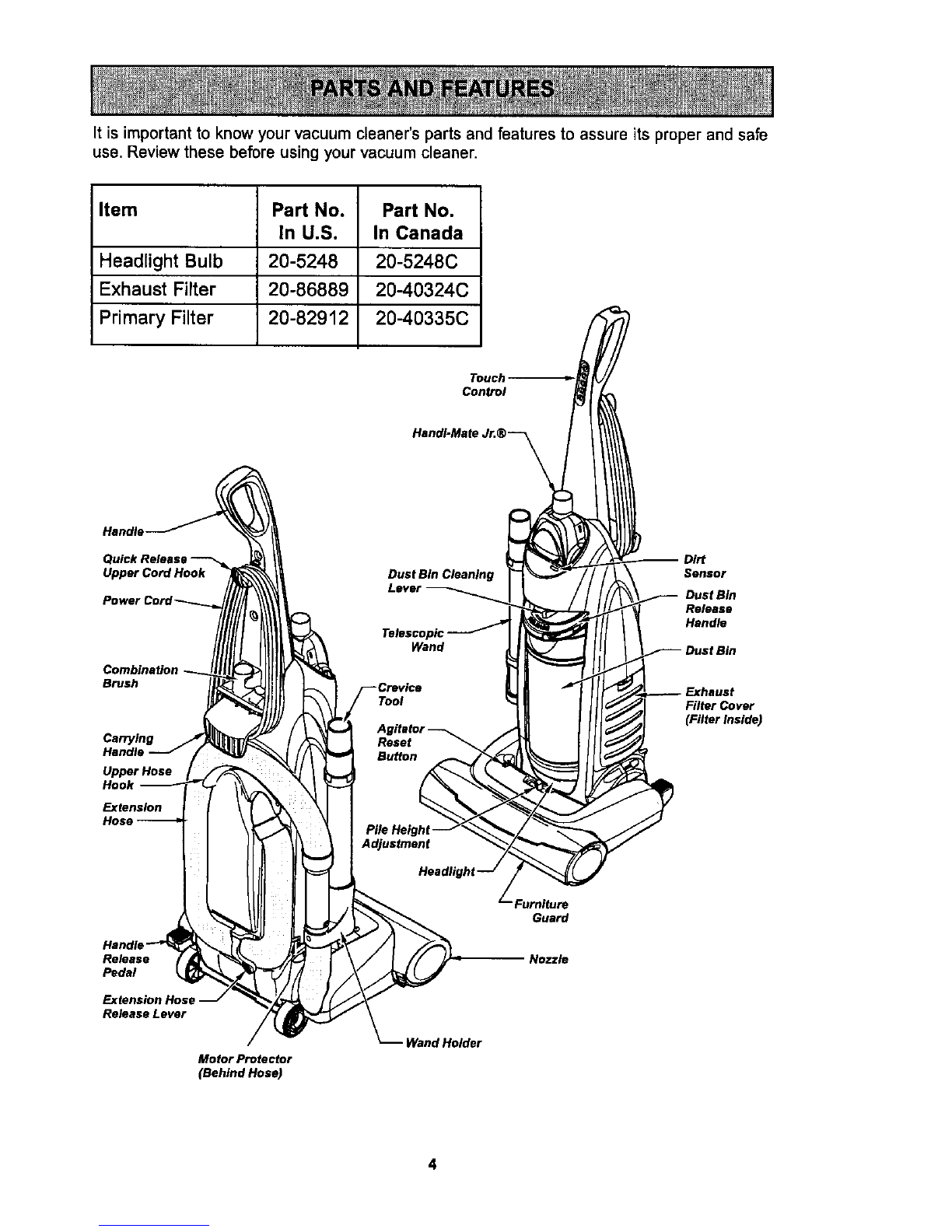

Itisimportantto knowyourvacuum cleaner's parts and features to assure its proper and safe

use. Review these before using your vacuum cleaner.

Item Part No. Part No.

In U.S. In Canada

Headlight Bulb 20-5248 20-5248C

Exhaust Filter 20-86889 20-40324C

Primary Filter 20-82912 20-40335C

Touch

Control

Upper Cord Hook Sensor

Dust BM

Re_ase

Handle

Combination

Brush

Carrying

Handl

Upper Hose

Extension

Exhaust

Filter Cover

(Filter Inside)

Furniture

Guard

Re_ase

Pedal

Extension Hos(

Release Lever

MoterP_tecter

_eh_d Hos_

Wand Holder

Nozzle

I A Please pay special attention to these hazard alert boxes, and follow any instructions I

given. WARNING statements alert you to such dangers as fire, electric shock, burns I

and personal injury. CAUTION statements alert you to such dangers as personal

injury and/or property damage.

WARNING

Electrical Shock Hazard

Do not plug into the electrical supply

until the assembly is complete. Failure

to do so could result In electrical

shock or injury,

Before assembling the vacuum cleaner,

check the PACKING LIST on the cover of

the separate REPAIR PARTS LIST. Use

this list to verify that you have received all

the components of your new Kenmore

vacuum cleaner.

HANDLE ASSEMBLY

Remove the combination brush from

the handle to expose the handle mount-

ing hole.

Remove the handle screw from the body

of the vacuum.

Position the handle assembly as shown in

the illustration below.

When installing the handle, firmly press

the handle onto the body. Secure with

handle screw provided.

Begin to tighten the screw with your fin-

gets. It may be necessary to adjust the

handle slightly.

Using a screwdriver, tighten handle screw.

Reinstall combination brush.

Electrical

Connection

Handl,

Assembly

Handle

Screw

CAUTION

Do not overtighten.

Overtightening could strip the screw

holes.

Do not operate the cleaner without

the screw in place.

CORD ASSEMBLY

Make sure the quick release upper cord

hook is in the upright position. Remove

the wire tie from the power cord.

Make sure the

power cord is

placed into the lock-

ing notch on the

body as shown. This

helps keep the

power cord out from

under the vacuum

cleaner agitator.

Release

Cord Hook

Cord

Carrying

Handle

Plug

Wrap the power cord around the quick

release cord hook and the carrying handle.

Lock the power cord plug onto the power

cord.

HANDI-MATE JR.®

For operation of HandI.MateJr.®

Handi-Mate Jr.®

see separate

Owner's Manual.

HendI.Mete Jr.®

Storage

TO INSERT HANDI-MATE JR ®

Place Handi-Mate Jr.®into the storage

compartment.

Rotate the Handi-Mate Jr.e back until it

snaps into place.

TO REMOVE HANDI-MATE JR. ®

Rotate Handi-Mats Jr,eout of the storage

compartment.

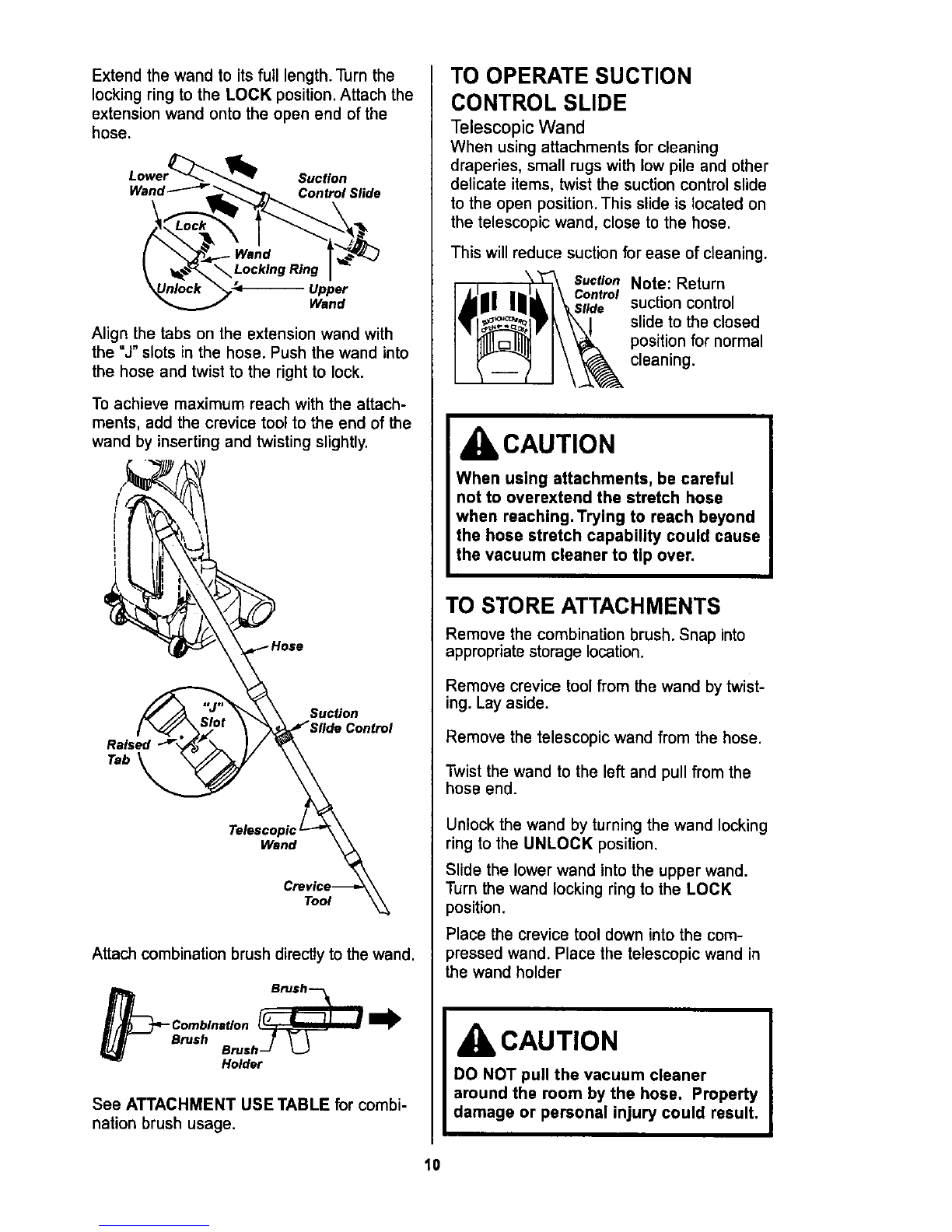

TELESCOPIC WAND

PLACEMENT

Place the telescopic wand in the wand

holder. Place the crevice tool in the top of

the telescopic wand.

Too/

Wand

Holder

OPERATING INSTRUCTIONS

1. Turn the quick

release upper

cord hook to

either side and

down to release

the power cord.

IbWARNING

•To reduce the risk of electric shock,

this vacuum cleaner has a polar-

ized plug (one blade is wider than

the other).

•The plug will fit in a polarized outlet

only one way. If the plug does not

fit fully In the outlet, reverse the

plug. If it still does not fit, contact a

qualified technician to install the

proper outlet. Do not change the

plug In any way.

2. Detach the Locldn

>ower cord plug Notch

from the power cord

and pull the cord off

the quick release

upper cord hook. Power

Be sure the power

cord is still locked

into the locking notch of the upper cord

hook.

3. Plug the polarized power cord into a120

Volt outlet located near the floor.

4. To replace cord, turn upper cord hook to

the up position, then wrap cord.

WARNING

Personal Injury and Product Damage

Hazard

• DO NOT place hands or feet under

the unit at any time.

•DO NOT use outlets above coun-

ters. Damage from cord to Items In

surrounding area could occur.

Release the handle by pressing down on

the handle release pedal with your foot and

pulling back and down on the handle with

your hand.

Note: The agitator does not rotate when the

vacuum cleaner is in the upright position.

OFF - Turns OFF the vacuum cleaner

(suction) motor.

CARPET - Turns ON the vacuum cleaner

motor to HIGH suction level and the agita-

tor motor to HIGH speed level for cleaning

of most carpets and rugs.

GENTLE -Turns ON the vacuum cleaner

motor to HIGH suction level and the agita-

tor motor to LOW speed level for gentle

cleaning of most delicate carpets,

FLOOR -Turns ON the vacuum cleaner

motor to HIGH suction leveland turns OFF

the agitator motorfor cleaning of bare

floors.

Touch

Control

Button

OFF

CARPET

GENTLE

FLOOR

I 1_ FLOOR

MOTOR FUNCTION

Vacuum Cleaner

(Suction) Motor

OFF

HIGH

HiGH

Agitator

Motor

OFF

HIGH

LOW

OFF

Your Kenmore Vacuum features a two (2)

speed, direct drive agitator for cleaning a

variety of floor surfaces. Please reviewthe

table below before using your vacuum.

,Do not use the CARPET setting (high

speed) for cleaning berber style carpet.

The high agitator speed could damage

the carpet or cause excessive carpet

wear.

,Use the GENTLE setting (low speed)

ONLYfor berber or delicate pile carpet-

ing. The agitator may slow down or stop

on thick carpeting, area rugs or throw

rugs. If agitator stops and does not

restart, See page 12, AGITATOR

MOTOR OVERLOAD PROTECTOR of

the owners manual.

3. The FLOOR setting may be used for all

indoor bare floors including wood, tile,

linoleum, slate etc.

Touch Control

Setting

Carpet (1)

Gentle (2)

Floor (3)

Agitator

Speed

High

Low

Off

Bare

Floor

Commercial

or Low Pile

Berber

or Delicate Area

Carpet Plush Shag Rug

44V

€

To select a pile height setting:

Turn off vacuum cleaner. Select a pile height

setting by tilting the cleaner back until front

wheels are lifted slightly off the floor.

Slide the adjustment lever to the correct

setting.

There are four (4) pile height settings on the

vacuum cleaner. Use the LOW setting for

most low-pile carpets and bare floor

cleaning (with agitator OFF), and the HIGH

setting for high-pile carpets like shag carpet,

scatter rugs, etc. Use the other settings as

needed for carpet heights in between. CAUTION

Do not allow vacuum cleaner to remain

in one spot for any length of time

when the agitator is turning. Damage

to carpet may occur.

Brush

Carrying

Handle

Tool

Extension

Wand

Extension Hose

Release Lever

TO USE ATTACHMENTS

Remove the lower end of the extension

hose from the wand holder by grasping the

hose collar, twisting, and pulling straight up.

Rotate the extension hose release lever

down if maximum reach is needed.

Note: The motor protector may open when

using attachments or when cleaning new

carpet, due to reduced airflow caused by the

attachments themselves or caused by new

carpet lint filling the dust bin quickly. See

the TROUBLESHOOTING section.

IbWARNING

Electrical Shock And Personal Injury

Hazard

Disconnect electrical supply before ser-

vicing or cleaning the unit. Failure to do

so could result in electrical shock or per-

sonal injury from cleaner suddenly starting.

TELESCOPIC WAND WITH

SUCTION CONTROL SLIDE

1, Remove the lower end of the extension

hose from the wand holder by grasping

the hose collar, twisting, and pulling

straight up.

2. Remove the telescopic wand from the

wand holder.

3. Remove the crevice tool from its stor-

age position in the wand. Turn the lock-

ing ring to the UNLOCK position.

Crevice

Tool

Wand

t1. Hose

Collar

-- Wand

Holder

Extend the wand to its full length. Turn the

locking ring to the LOCK position. Attach the

extension wand onto the open end of the

hose.

Lower_ Suction

Wand_,,__t_Slide

Align the tabs on the extension wand with

the "J" slots in the hose. Push the wand into

the hose and twist to the right to lock.

To achieve maximum reach with the attach-

ments, add the crevice tool to the end of the

wand by inserting and twisting slightly.

f:,.

Attach combination brush directly to the wand.

Brush--_

See ATTACHMENT USE TABLE for combi-

nation brush usage.

TO OPERATE SUCTION

CONTROL SLIDE

Telescopic Wand

When using attachments for cleaning

draperies, small rugs with low pile and other

delicate items, twist the suction control slide

to the open position. This slide is located on

the telescopic wand, close to the hose.

This will reduce suction for ease of cleaning.

Suction Note: Return

Control

Slide suctioncontrol

slide to the closed

position for normal

cleaning.

CAUTION

When using attachments, be careful

not to overextend the stretch hose

when reaching. Trying to reach beyond

the hose stretch capability could cause

the vacuum cleaner to tip over.

TO STORE ATTACHMENTS

Remove the combination brush. Snap into

appropriate storage location.

Remove crevice tool from the wand by twist-

ing. Lay aside.

Remove the telescopic wand from the hose.

Twist the wand to the left and pull from the

hose end.

Unlock the wand by turning the wand locking

ring to the UNLOCK position.

Slide the lower wand into the upper wand.

Turn the wand locking ring to the LOCK

)osition.

Place the crevice tool down into the com-

pressed wand. Place the telescopic wand in

the wand holder

CAUTION

DO NOT pull the vacuum cleaner

around the room by the hose, Property

damage or personal injury could result.

Andere Handbücher für 116.36922

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Kenmore Staubsauger Handbücher

Kenmore

Kenmore Sears Destiny II 204.36997690 Bedienungsanleitung

Kenmore

Kenmore 116.32712 Bedienungsanleitung

Kenmore

Kenmore 116.23204C Bedienungsanleitung

Kenmore

Kenmore Stratus DS1030 Bedienungsanleitung

Kenmore

Kenmore 116.27614 Bedienungsanleitung

Kenmore

Kenmore SSV Complete DS6028 Bedienungsanleitung

Kenmore

Kenmore 116.29229 Bedienungsanleitung

Kenmore

Kenmore AllergenSeal DU2109 Bedienungsanleitung

Kenmore

Kenmore Pet Friendly POP-N-GO 125.81615910 Bedienungsanleitung

Kenmore

Kenmore 116.22614 Bedienungsanleitung

Kenmore

Kenmore Central Vacuum System Bedienungsanleitung

Kenmore

Kenmore DS6012 Bedienungsanleitung

Kenmore

Kenmore 111.784 Bedienungsanleitung

Kenmore

Kenmore KW3050 Bedienungsanleitung

Kenmore

Kenmore 116.24212 Bedienungsanleitung

Kenmore

Kenmore 116.23385C Bedienungsanleitung

Kenmore

Kenmore BC4026 Bedienungsanleitung

Kenmore

Kenmore 116.31150310 Bedienungsanleitung

Kenmore

Kenmore 11 Bedienungsanleitung

Kenmore

Kenmore 116.30701C Bedienungsanleitung

Kenmore

Kenmore FeatherLite DU1040 Bedienungsanleitung

Kenmore

Kenmore BC3060 Bedienungsanleitung

Kenmore

Kenmore ASPIRADORA 116.25914 Bedienungsanleitung

Kenmore

Kenmore SSV Complete 125.10441710 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
