Owner's Manual

Manual Del Propietario

Vacuum Cleaner

Aspiradora

Model, Modelo 116.36724

CAUTION:

Read and follow all

safety and operating

instructions before first

use of this product.

CUIDADO:

Lea y sigue todas las

instrucciones de operaci6n

y seguridad antes del uso de

este producto.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com

Impreso en China

Part No. C01ZCSC{3{3UOQ - KCO1ZCSCZOUO Printed in China

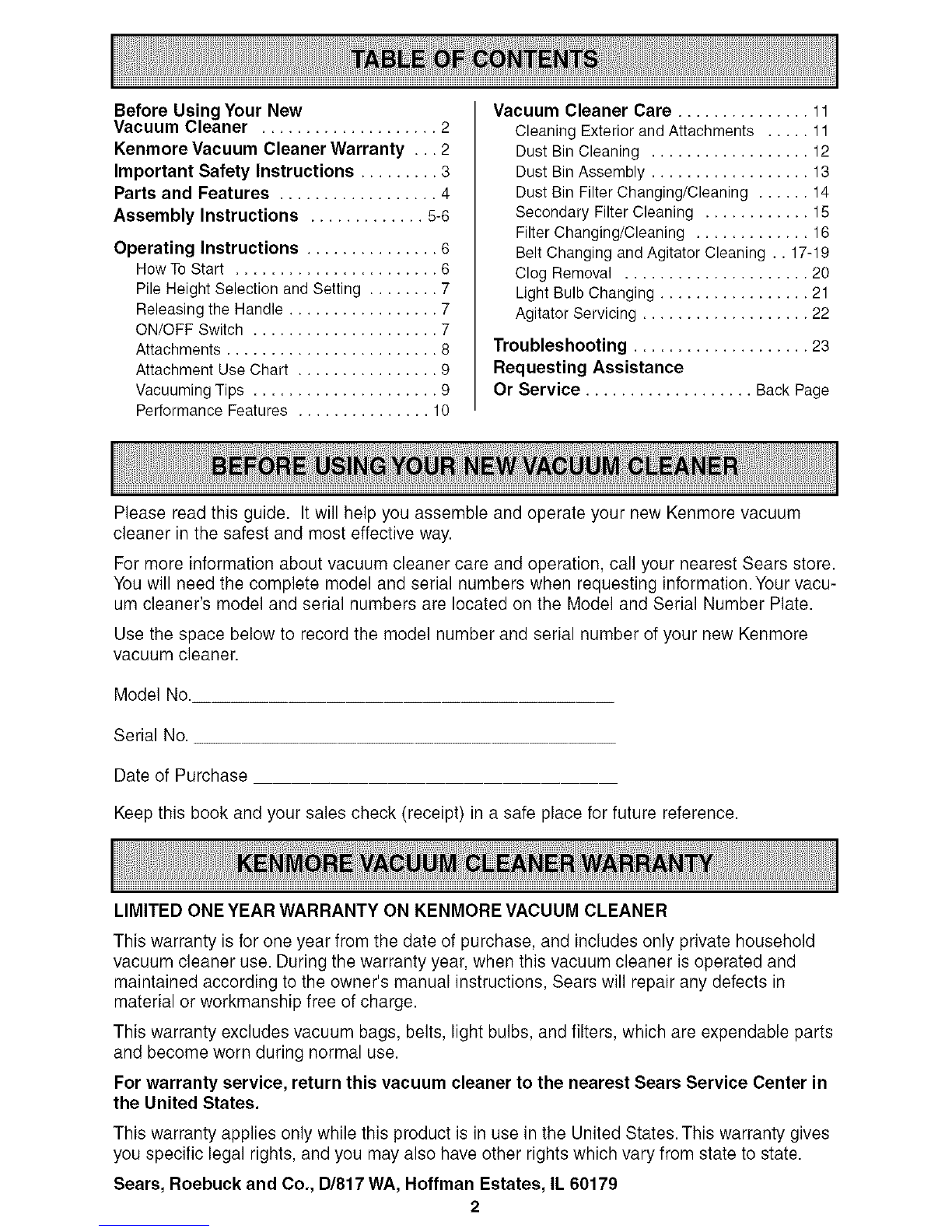

Before Using Your New

Vacuum Cleaner .................... 2

Kenmore Vacuum Cleaner Warranty ... 2

Important Safety Instructions ......... 3

Parts and Features .................. 4

Assembly Instructions ............. 5-6

Operating Instructions ............... 6

How To Start ....................... 6

Pile Height Selection and Setting ........ 7

Releasing the Handle ................. 7

ON/OFF Switch ..................... 7

Attachments ........................ 8

Attachment Use Chart ................ 9

Vacuuming Tips ..................... 9

Performance Features ............... 10

Vacuum Cleaner Care ............... 11

Cleaning Exterior and Attachments ..... 11

Dust Bin Cleaning .................. 12

Dust Bin Assembly .................. 13

Dust Bin Filter Changing/Cleaning ...... 14

Secondary Filter Cleaning ............ 15

Filter Changing/Cleaning ............. 16

Belt Changing and Agitator Cleaning .. 17-19

Clog Removal ..................... 20

Light Bulb Changing ................. 21

Agitator Servicing ................... 22

Troubleshooting .................... 23

Requesting Assistance

Or Service ................... Back Page

Please read this guide. It will help you assemble and operate your new Kenmore vacuum

cleaner in the safest and most effective way.

For more information about vacuum cleaner care and operation, call your nearest Sears store.

You will need the complete model and serial numbers when requesting information.Your vacu-

um cleaner's model and serial numbers are located on the Model and Serial Number Plate.

Use the space below to record the model number and serial number of your new Kenmore

vacuum cleaner.

Model No.

Serial No.

Date of Purchase

Keep this book and your sales check (receipt) in a safe place for future reference.

LIMITED ONE YEAR WARRANTY ON KENMORE VACUUM CLEANER

This warranty is for one year from the date of purchase, and includes only private household

vacuum cleaner use. During the warranty year, when this vacuum cleaner is operated and

maintained according to the owner's manual instructions, Sears will repair any defects in

material or workmanship free of charge.

This warranty excludes vacuum bags, belts, light bulbs, and filters, which are expendable parts

and become worn during normal use.

For warranty service, return this vacuum cleaner to the nearest Sears Service Center in

the United States.

This warranty applies only while this product is in use in the United States. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., 1:)/817WA, Hoffman Estates, IL 60179

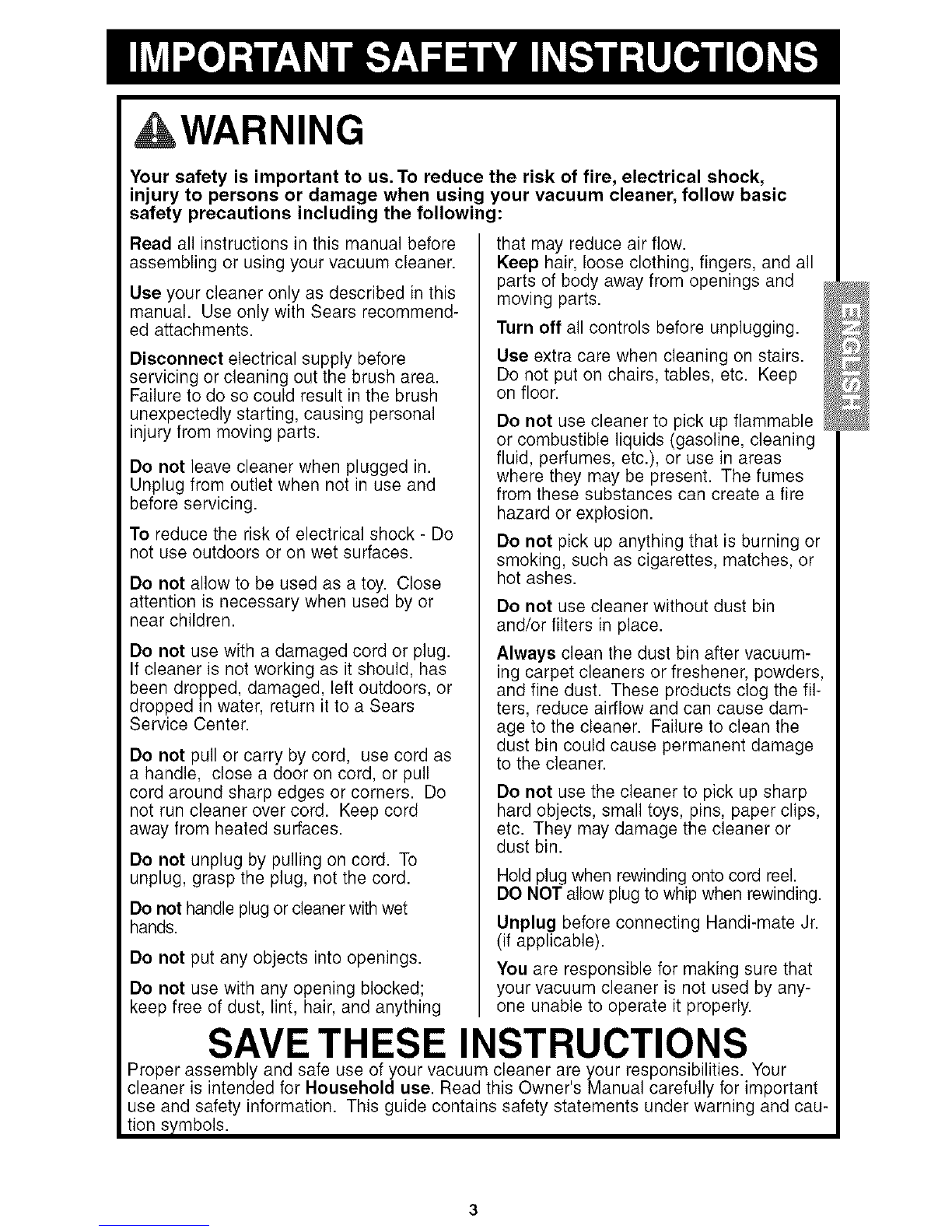

WARNING

Your safety is important to us. To reduce the risk of fire, electrical shock,

injury to persons or damage when using your vacuum cleaner, follow basic

safety precautions including the following:

Read all instructions in this manual before

assembling or using your vacuum cleaner.

Use your cleaner only as described in this

manual. Use only with Sears recommend-

ed attachments.

Disconnect electrical supply before

servicing or cleaning out the brush area.

Failure to do so could result in the brush

unexpectedly starting, causing personal

injury from moving parts.

Do not leave cleaner when plugged in.

Unplug from outlet when not in use and

before servicing.

To reduce the risk of electrical shock - Do

not use outdoors or on wet surfaces.

Do not allow to be used as a toy. Close

attention is necessary when used by or

near children.

Do not use with a damaged cord or plug.

If cleaner is not working as it should, has

been dropped, damaged, left outdoors, or

dropped in water, return it to a Sears

Service Center.

Do not pull or carry by cord, use cord as

a handle, close a door on cord, or pull

cord around sharp edges or corners. Do

not run cleaner over cord. Keep cord

away from heated surfaces.

Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

Do not handle plug or cleanerwith wet

hands.

Do not put any objects into openings.

Do not use with any opening blocked;

keep free of dust, lint, hair, and anything

that may reduce air flow.

Keep hair, loose clothing, fingers, and all

parts of body away from openings and

moving parts.

Turn off all controls before unplugging.

Use extra care when cleaning on stairs.

Do not put on chairs, tables, etc. Keep

on floor.

Do not use cleaner to pick up flammable

or combustible liquids (gasoline, cleaning

fluid, perfumes, etc.), or use in areas

where they may be present. The fumes

from these substances can create a fire

hazard or explosion.

Do not pick up anything that is burning or

smoking, such as cigarettes, matches, or

hot ashes.

Do not use cleaner without dust bin

and/or filters in place.

Always clean the dust bin after vacuum-

ing carpet cleaners or freshener, powders,

and fine dust. These products clog the fil-

ters, reduce airflow and can cause dam-

age to the cleaner. Failure to clean the

dust bin could cause permanent damage

to the cleaner.

Do not use the cleaner to pick up sharp

hard objects, small toys, pins, paper clips,

etc. They may damage the cleaner or

dust bin.

Holdplug when rewinding onto cord reel.

DO NOT allow plug to whip when rewinding.

Unplug before connecting Handi-mate Jr.

(if applicable).

You are responsible for making sure that

your vacuum cleaner is not used by any-

one unable to operate it properly.

SAVE THESE INSTRUCTIONS

Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your

cleaner is intended for Household use. Read this Owner's Manual carefully for important

use and safety information. This guide contains safety statements under warning and cau-

tion symbols.

Itisimportanttoknowyourvacuumcleaner'spartsandfeaturestoassureitsproperandsafe

use.Reviewthesebeforeusingyourcleaner.

Object Part No. Part No.

in USA

Exhaust Filter 20-86880

Primary Filter 20-82720

Headlight Bulb 20-5248

Belt 20-5275

Dusting

Brush -Hose

Carry

Power Cord_

Handle

Release

Pedal

Wands

(Inside)

Dust

Exhaust

Filter

(Inside)_

Height

Ad_us tm en t

Furniture

Guard

_Headlight

Base

"_ Belt

(Underneath)

Numbers

Rewind

Button

\_Agitatur

(Underneath)

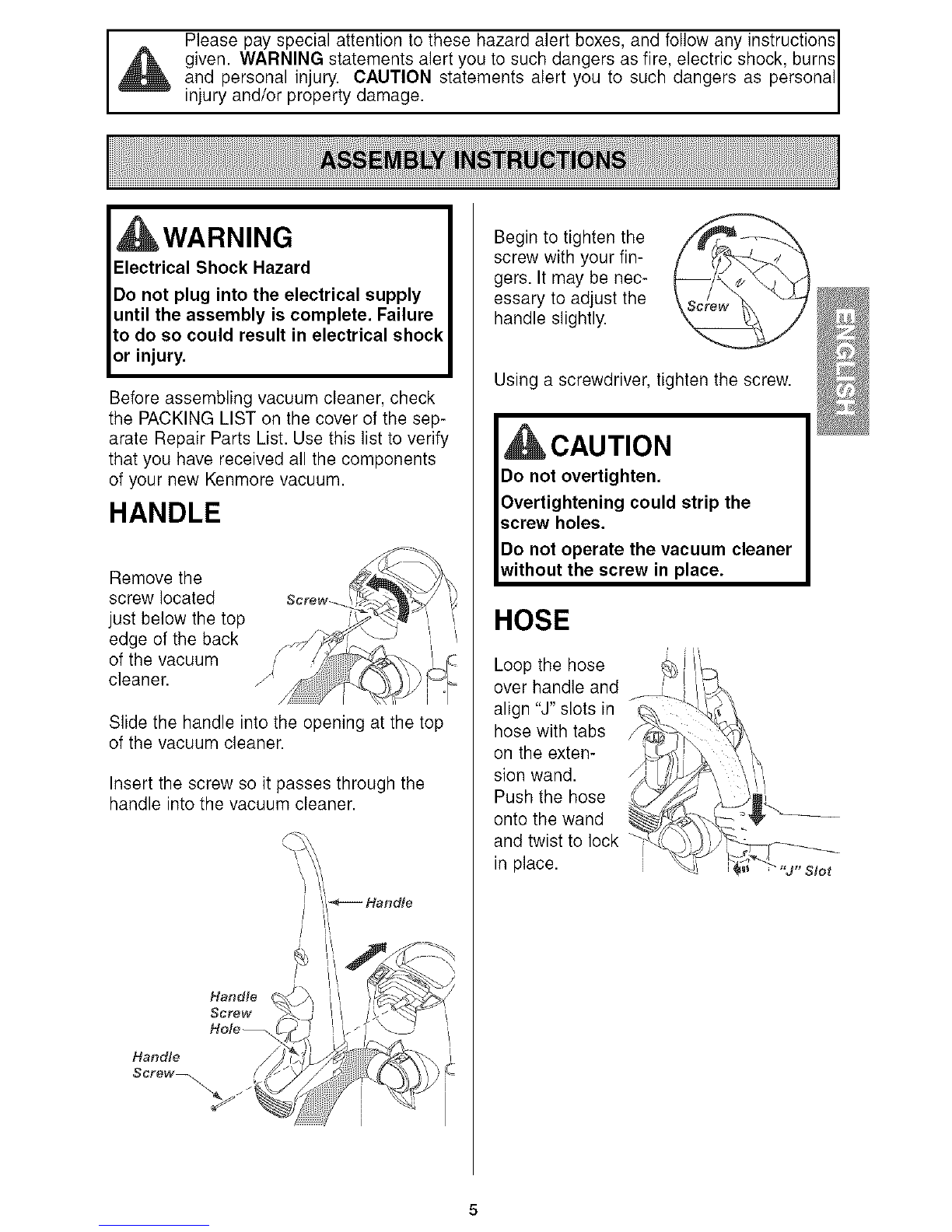

IPlease pay special attention to these hazard alert boxes, and follow any instructions

given. WARNING statements alert you to such dangers as fire, electric shock, burns I

and personal injury. CAUTION statements alert you to such dangers as personal

n ury and/or property damage.

WARNING

Electrical Shock Hazard

Do not plug into the electrical supply

until the assembly is complete. Failure

to do so could result in electrical shock

or injury.

Before assembling vacuum cleaner, check

the PACKING LIST on the cover of the sep-

arate Repair Parts List. Use this list to verify

that you have received all the components

of your new Kenmore vacuum.

HANDLE

Remove the

screw located Screw_

just below the top

edge of the back

of the vacuum

cleaner. J'

Slide the handle into the opening at the top

of the vacuum cleaner.

Insert the screw so it passes through the

handle into the vacuum cleaner.

Handle

Sot'ew

Hole

Handle

Begin to tighten the

screw with your fin-

gers. It may be nec-

essary to adjust the

handle slightly.

Using a screwdriver, tighten the screw.

CAUTION

Do not overtighten.

Overtightening could strip the

screw holes.

Do not operate the vacuum cleaner

vvithout the screw in place.

HOSE

Loopthe hose

over handle and ..... L

align "J"slots in _.

hose with tabs _ "_

on the exten- _/_.._

sion wand.

Push the hose _1,',_

onto the wand

and twist to lock _

in place.

ATTACHMENTS

DUSTING BRUSH

Place the dusting brush

into the back of the handle

in the storage location as

shown.

HANDI-MATE JR.@

For operation of Handi-

Mate Jr.® see seperate

owners manual.

Dusting

TO INSERT HANDI-MATE JR ®

Place Handi-Mate Jr.®into the storage

compartment.

Push the Handi-Mate Jr.®down until it

snaps into place.

TO REMOVE HANDI-MATE JR. _

Pull Handi-Mate Jr.®out of the storage

compartment.

OPERATING INSTRUCTIONS

Pull cord out of cord reel until the end is

reached.

Push the power

cord into the cord

locking notch on

the back of the

handle.

Plug the polarized

power cord into a

120 Volt outlet

located near the

floor.

Note: To reduce the risk of electric shock,

this vacuum cleaner has a polarized plug,

one blade is wider than the other.

This plug will fit in a polarized outlet only

one way. Ifthe plug does not fit fully in the

outlet, reverse the plug. If it still does not fit,

contact a qualified electrician to install the

proper outlet. Do not change the plug in any

way.

To Retract Cord:

Press cord rewind

button down to

rewind. To prevent ',,

injury or damage,

hold the plug head

while rewinding

the power cord. Cord /

Rewind

Button

WARNING

Personal Injury and Product Damage

Hazard

DO NOT plug in if switch is in the ON

bosition. Personal injury or damage

'ould result.

• DO NOT use outlets above counters.

Damage from cord to items in sur-

rounding area could occur.

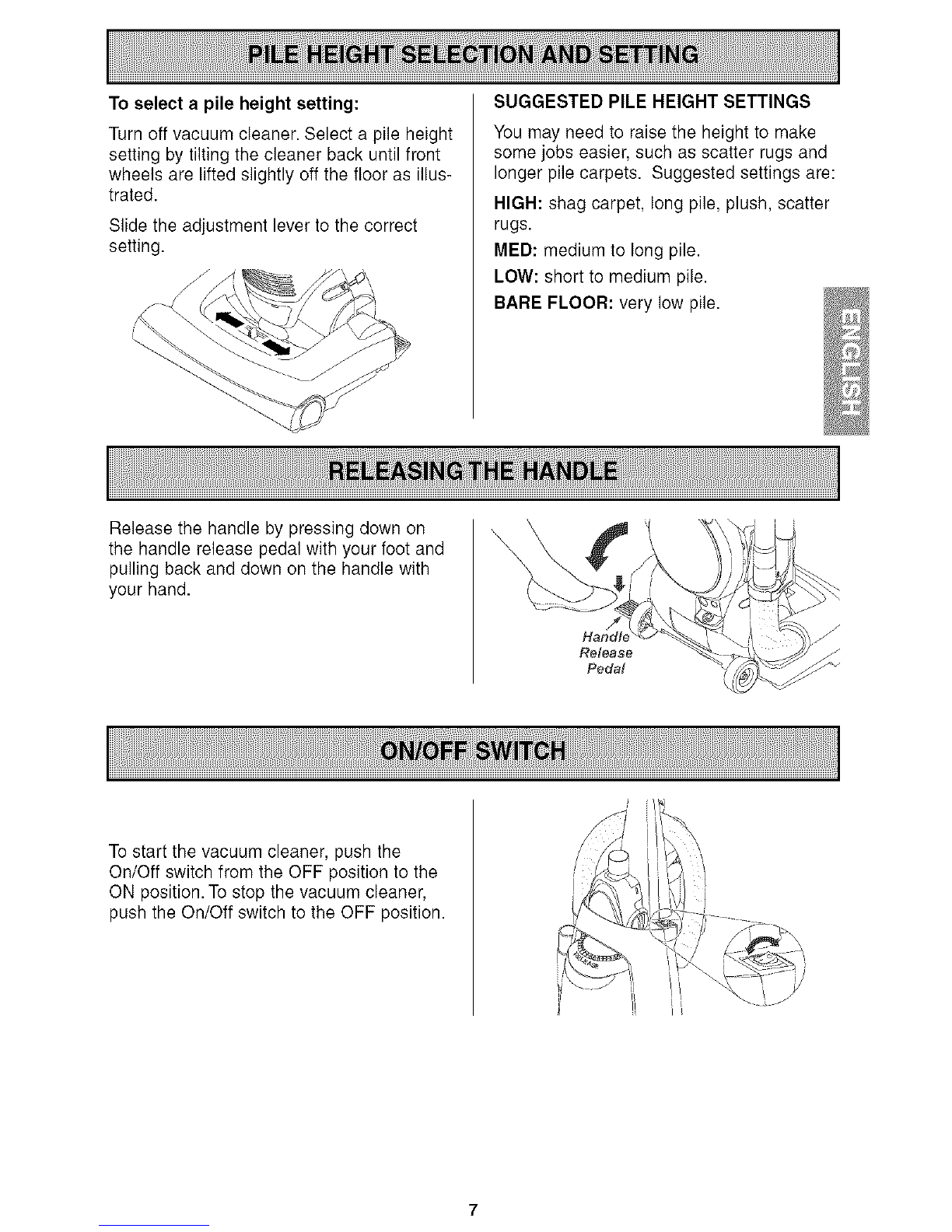

Toselectapileheightsetting:

Turn off vacuum cleaner. Select a pile height

setting by tilting the cleaner back until front

wheels are lifted slightly off the floor as illus-

trated.

Slide the adjustment lever to the correct

setting.

SUGGESTED PILE HEIGHT SETTINGS

You may need to raise the height to make

some jobs easier, such as scatter rugs and

longer pile carpets. Suggested settings are:

HIGH: shag carpet, long pile, plush, scatter

rugs.

MED: medium to long pile.

LOW: short to medium pile.

BARE FLOOR: very low pile.

Release the handle by pressing down on

the handle release pedal with your foot and

pulling back and down on the handle with

your hand.

Handle

Release

Pedal

Tostart the vacuum cleaner, push the

On/Off switch from the OFF position to the

ON position. To stop the vacuum cleaner,

push the On/Off switch to the OFF position.

Dusting

Brush

Hose

Wands

Identify each ofthe attachments shown

above.

When using attachments, be careful

not to overextend the stretch hose

when reaching. Trying to reach

beyond the hose stretch capability

could cause the vacuum cleaner to ti

over.

Attachments used in dirty areas, such

as under refrigerator, should not be

used on other surfaces until they are

washed. They could leave marks.

Electrical Shock And Personal Injury

Hazard

Disconnect electrical supply before ser-

vicing or cleaning the unit. Failure to do

so could result in electrical shock or

personal injury from cleaner suddenly

starting.

TO USE ATTACHMENTS

Remove the lower end of the stretch hose

from the cleaner by grasping the hose col-

lar, twisting and pulling straight out. The

attachments can now be added to the hose.

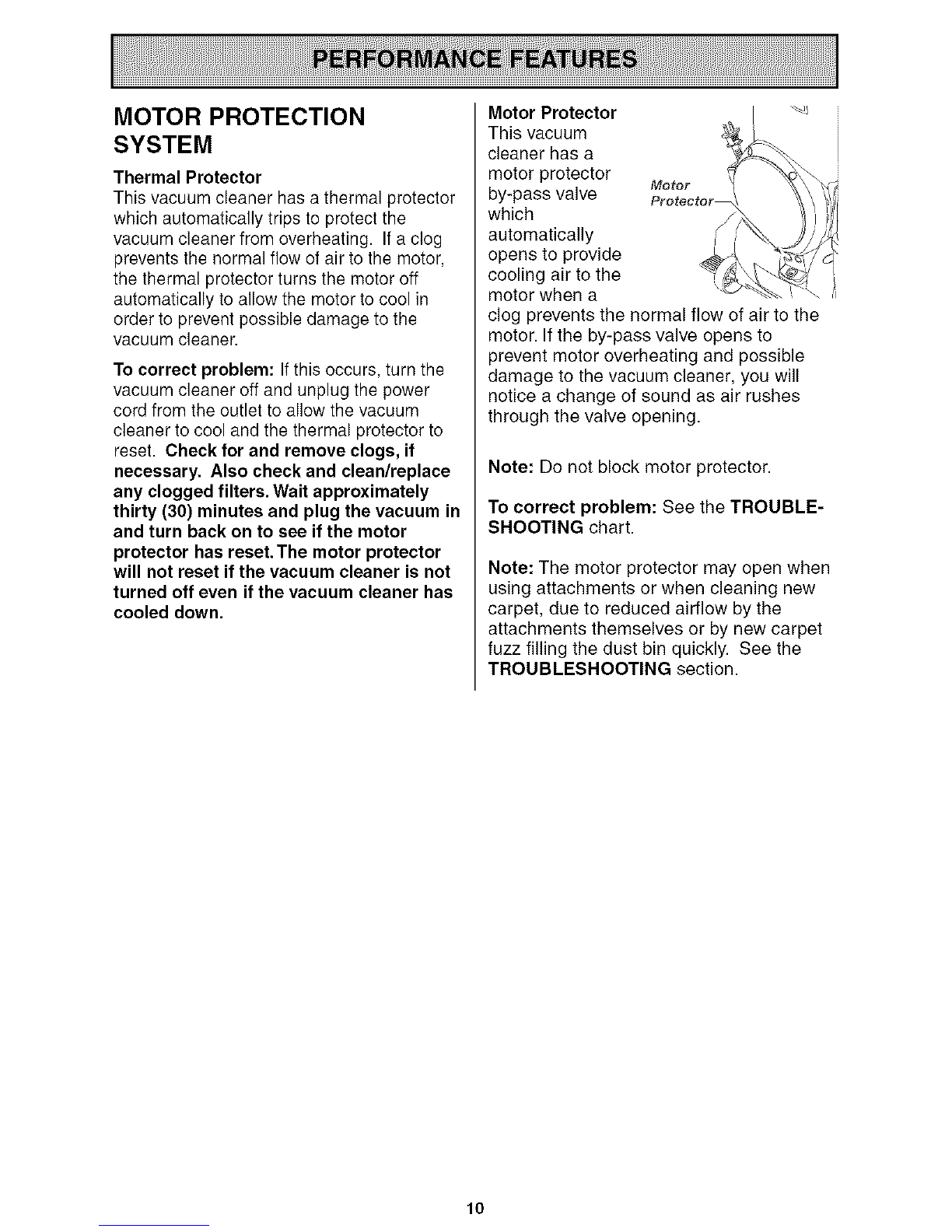

Note: The motor protector may open

when using attachments or when cleaning

new carpet, due to reduced airflow by the

attachments themselves or by new carpet

fuzz filling the dust bin quickly. See the

TROUBLESHOOTING section.

The attachments will fit on the hose or the

wand. In addition, the dusting brush will

also fit on the crevice tool.

The hose can be pulled off the wand by

grasping the cuff and twisting while pulling

up.

The attachments can be added to the hose

if the item to be cleaned is not far from the

vacuum cleaner.

NOTE: When cleaner is turned on, the hose

will have a tendency to collapse due to

suction of the vacuum cleaner.

If more reach is needed:

Crevice Teol

Wand

An extra wand, without tabs, is included.

This extra wand can be added to the wand

with tabs for extra reach. Insert wand and

twist a quarter of a turn to secure fit.

If the dusting brush/combination brush is

being used and more reach is needed, the

crevice tool can be added to the wand, then

the dusting brush can be added to the

crevice tool.

TO STORE ATTACHMENTS

Return the hose to its position on the wand

and the attachments to their holders.

CLEANING AREA

Between

ATTACHMENT Furniture* Cushions* Drapes* Stairs Walls

Dusting Brush v' v' v'

Crevice Tool

Handi-Mate Jr.® i,,' i,,'

*Alwayscleanattachmentsbeforeusingon fabrics.

Carpet edges

Guide either side or the front of the nozzle

along a baseboard. The full width agitator

brushes help remove dirt at carpet edges.

Stairs

Put handle in full upright position. Use the

crevice tool or fabric brush. Set the On/Off

switch to ON.

For best cleaning

results, keep the

airflow passage

clear.

Occasionally,

check each of the

areas indicated

for clogs.

Unplug the

vacuum cleaner

from the outlet

before checking.

MOTOR PROTECTION

SYSTEM

Thermal Protector

This vacuum cleaner has a thermal protector

which automatically trips to protect the

vacuum cleaner from overheating. If a clog

prevents the normal flow of air to the motor,

the thermal protector turns the motor off

automatically to allow the motor to cool in

order to prevent possible damage to the

vacuum cleaner.

To correct problem: Ifthis occurs, turn the

vacuum cleaner off and unplug the power

cord from the outlet to allow the vacuum

cleaner to cool and the thermal protector to

reset. Check for and remove clogs, if

necessary. Also check and clean/replace

any clogged filters. Wait approximately

thirty (30) minutes and plug the vacuum in

and turn back on to see if the motor

protector has reset. The motor protector

will not reset if the vacuum cleaner is not

turned off even if the vacuum cleaner has

cooled down.

Motor Protector "_

This vacuum

cleaner has a

motor protector

by-pass valve Motor

which

automatically

opens to provide

cooling air to the

motor when a

clog prevents the normal flow of air to the

motor. If the by-pass valve opens to

prevent motor overheating and possible

damage to the vacuum cleaner, you will

notice a change of sound as air rushes

through the valve opening.

Note: Do not block motor protector.

To correct problem: See the TROUBLE-

SHOOTING chart.

Note: The motor protector may open when

using attachments or when cleaning new

carpet, due to reduced airflow by the

attachments themselves or by new carpet

fuzz filling the dust bin quickly. See the

TROUBLESHOOTING section.

Andere Handbücher für 116.36724

Inhaltsverzeichnis

Sprachen:

Andere Kenmore Staubsauger Handbücher

Kenmore

Kenmore DESTINY PLUS 204.3699969 Bedienungsanleitung

Kenmore

Kenmore Aspiradora 125.31140610 Bedienungsanleitung

Kenmore

Kenmore 116.28014 Bedienungsanleitung

Kenmore

Kenmore 592. 30412 Bedienungsanleitung

Kenmore

Kenmore Central Vacuum System Bedienungsanleitung

Kenmore

Kenmore CSV Max Bedienungsanleitung

Kenmore

Kenmore AllergenSeal DU2055 Bedienungsanleitung

Kenmore

Kenmore FeatherLite Lift-Up DU4080 Bedienungsanleitung

Kenmore

Kenmore 116.26212 Bedienungsanleitung

Kenmore

Kenmore Stratus DS1030 Bedienungsanleitung

Kenmore

Kenmore 116.34720 Bedienungsanleitung

Kenmore

Kenmore 116.23108C Bedienungsanleitung

Kenmore

Kenmore 116.31069 Bedienungsanleitung

Kenmore

Kenmore Premalite VF6712TC Bedienungsanleitung

Kenmore

Kenmore Elite CROSSOVER ULTRA Bedienungsanleitung

Kenmore

Kenmore 116.25812 Bedienungsanleitung

Kenmore

Kenmore CSV Max DS4090 Bedienungsanleitung

Kenmore

Kenmore Sears refrigerator Bedienungsanleitung

Kenmore

Kenmore SPOTLITE KW2005 Bedienungsanleitung

Kenmore

Kenmore 116.33720 Bedienungsanleitung

Kenmore

Kenmore ASPIRADORA 116.29914 Bedienungsanleitung

Kenmore

Kenmore 116.23105C Bedienungsanleitung

Kenmore

Kenmore 116.27614 Bedienungsanleitung

Kenmore

Kenmore 116.33922 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
