Kogan KAVACSTC07P Bedienungsanleitung

P7 CORDLESS 22.2V STICK

VACUUM CLEANER

KAVACSTC07P

Read all instructions in this guide before using this product. Retain this guide for future

reference. Do not skip, substitute or modify any steps or procedures in this guide, as doing

so could result in personal injury or product damage.

To reduce potential fire risks, electric shock or injury, always observe the basic safety

prevention measures during use, including but not limited to the following:

Power Safety

• Ensure that the power supply voltage matches the voltage marked on the charger.

• Do not store the charger by wrapping the charger wire around the charger.

• The charger wire must be kept away from hot surfaces or sharp objects.

• The charger wire cannot be replaced. If the charger wire shows any signs of damage,

cease use immediately and contact help.Kogan.com for support.

• Do not touch the charger or the appliance with wet hands.

• When cleaning and maintaining the machine, ensure that appliance has been

disconnected from the power supply.

• Always hold by the power plug when connecting and disconnecting to avoid damaging

the cord.

• Never immerse any part of the plug or vacuum cleaner in water or other liquids.

• Do not leave while the vacuum cleaner unattended during operation.

• Only use the charger supplied with this product.

• Only use the charging base supplied with this product.

• If this product shows any sign of damage, cease use immediately and contact

help.Kogan.com for support.

• Do not pull the power cord when lifting the product.

• Do not remove the plug but pulling on the power cord. Instead, grasp the plug with your

hands.

Battery Safety

• Only use the original battery supplied by Kogan.com. Do not use any other model or

capacity of the battery.

• Do not burn or expose the battery for to high temperatures.

• Only use the original battery. Replacing with a difference battery may cause safety

risks.

SAFETY & WARNINGS

• Do not disassemble, expose to impact, squeeze or place the battery into the fire.

• If the battery has any malfunction or abnormality, cease use immediately and contact

help.Kogan.com for support.

• Do not short circuit the metal contacts on the battery. Doing so may cause the battery

to overheat and lead to personal injury.

During Use

• This product is not intended for use by persons (including children over 10 years old) with

reduced physical, sensory or mental capabilities or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the product in

a safe way by the person responsible for their safety, and understand the hazards

involved.

• Children over 10 years old must only use this appliance under the supervision of their

guardians.

• Do not allow children under 10 years old to operate or play with this appliance.

• During operation or when performing maintenance, children under 10 years old should

be kept away from the appliance.

• Do not use this machine outdoors or in humid areas or grasp it with wet hands.

• If the machine becomes physically damaged or falls into water, cease use immediately

and contact help.Kogan.com for support.

• To avoid blockages, don’t place large objects into the suction nozzle of the vacuum

cleaner. Keep the suction nozzle away from lint, hair and other objects that may cause

a blockage.

• To avoid injury, keep your hair, clothes, fingers and other body parts away from the

suction nozzle and movable parts.

• Avoid sucking in any burning or smoking garbage, such as cigarette ends, matches,

soot and other objects.

• Do not use the vacuum cleaner to clean flammable substances or liquids, such as

gasoline or places where there may be gasoline, kerosene, paint, alcohol, detergent,

etc.

• Keep this appliance away from hot surfaces or sources of heat.

• Do not operate the vacuum cleaner without the filters installed.

• Turn off the machine before connecting or replacing any accessories.

• Keep the vacuum cleaner indoors and use it in dry rooms only.

• Do not use it for other purposes unless otherwise specified in this user guide.

• Do not use the vacuum cleaner as a toy. Children nearby must be supervised.

• Be careful when cleaning stairs.

• Only use accessories included with this product and recommended by Kogan.com.

• This vacuum cleaner is not suitable for cleaning water or other liquids. Do not vacuum

water or wet debris.

• Do not use on concrete pavement, asphalt pavement and other rough surfaces.

• The vacuum cleaner is designed for household use only. Do not use it in factories or

commercial environments.

• Do not vacuum construction waste or heavy metal dust.

• Pay close attention when pets are near the vacuum cleaner.

• Disconnect the charger when not in use after full charging or before maintenance.

• If the power cord is damaged, cease use immediately and contact help.Kogan.com for

support.

Cleaning & Maintenance

• To ensure the correct operation of the vacuum, the filter and dust cup will need to be

emptied and cleaned regularly.

• To ensure optimal performance of the vacuum, follow the “Cleaning and Care”

instructions outlined in this user guide.

• To prevent personal injury and avoid irreparable damage, do not modify this product in

any way

• Only use replacement parts or spare parts provided by Kogan.com.

WARNING:

• Do not use water, solvents or polishing agents to clean the surface

of the appliance. Clean with dry cloth.

• Do not to submerge the vacuum cleaner in water or use a

machine to clean it.

Battery

Dust release button

Battery release button

Extension tube

Handle

Floor brush release button

Power button

Floor brush

Speed control button

LED light

Extension tube release button

2-in-1 bristle brush

Dust cup lock

Charger & wall bracket

Dust cup

OVERVIEW

1. Insert the battery into the vacuum main body.

2. Align the roller brush to the extension tube and push it gently. It will connect with

an audible click.

3. Align the extension tube with the vacuum cleaner body and push it gently. It will

connect with an audible click.

4. The floor brush and other brush heads can be connected directly to the vacuum

cleaner body when a more compact unit is desired (for example, cleaning a car

interior).

ASSEMBLY

Control Panel

Turning the Vacuum On/Off

1. Once assembly is complete, press the power button to turn on the vacuum.

2. Pressing the power button a second time will turn the vacuum off.

Suction Control

This vacuum has two different suction levels. Press the suction control button on the top of

the machine body to cycle through the two levels.

Battery Level Indicator

Battery full

Battery 50%

Battery low

Battery empty

OPERATION

Power button

Suction control

button

Battery level

indicator

Extension Tube

Used for cleaning high places such as ceilings, roofs, air conditioners and curtains.

Compatible with the included brush heads.

Floor Brush

Used for cleaning hard floors and carpet.

2-in-1 Bristle Brush

• The bristle brush is suitable for cleaning places such as curtains, car interior and air

conditioners or any areas where hair can collect.

• The fine hairbrush can deeply clean small areas such as computer keyboards.

• The retractable brush can suck and clean simultaneously to remove dust efficiently.

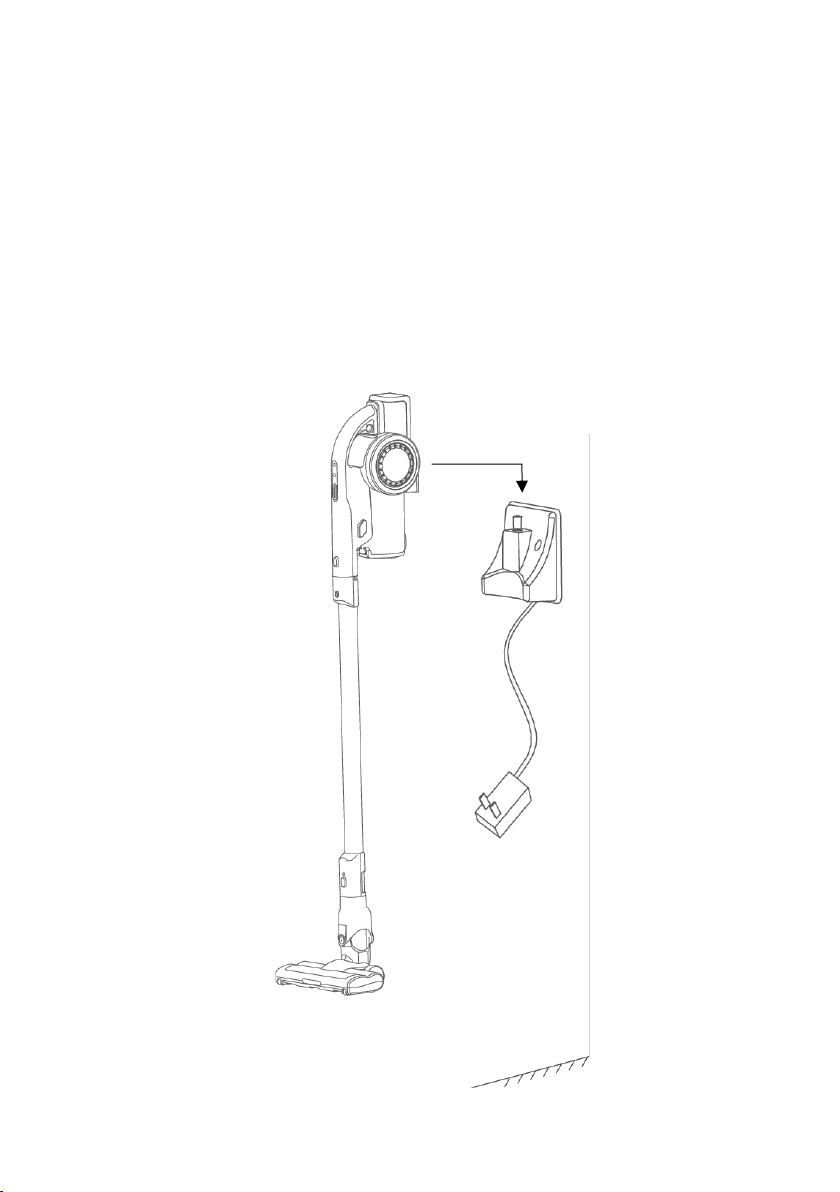

Wall Bracket

1. Select a location that is easily accessible and has enough room for the vacuum to

be mounted vertically. Ensure that the mounting location is close to an electrical

outlet so that you can plug in the vacuum charger.

2. Using the wall bracket as a template, mark the location of the holes that will need

to be drilled.

3. Attach the wall bracket to your chosen location:

o If mounting into a wall stud, use screws to attach the wall bracket to the wall.

o If mounting into plaster or masonry, wall anchors will need to be used for

added support.

4. Once the wall bracket is securely attached to the wall, you can hang the vacuum

cleaner on it.
