Kogan KAVACSTV11A Bedienungsanleitung

V11 PRO CORDLESS 29.6V

STICK VACUUM CLEANER

KAVACSTV11A

To reduce potential fire risks, electric shock or injury, always observe the basic safety

prevention measures during use, including but not limited to the following:

Power supply:

• This product is powered by a 29.6V DC lithium battery. Do not use any other model or

capacity of the battery. Only use the original battery supplied by Kogan.com.

• If the battery has any malfunction or abnormality, cease use immediately and contact

help.Kogan.com for support.

• Always hold by the power plug when connecting and disconnecting to avoid damaging

the cord.

During use:

• Do not use this machine outdoors or in humid areas or grasp it with wet hands.

• If the machine becomes physically damaged, placed outdoors or falls into water, cease

use immediately and contact help.Kogan.com for support.

• To avoid blockages, don’t place large objects into the suction nozzle of the vacuum

cleaner. Keep the suction nozzle away from lint, hair and other objects that may cause

a blockage and frequently clean the appliance.

• To avoid injury, keep your hair, clothes, fingers and other body parts away from the

suction nozzle and movable parts.

• Avoid sucking in any burning or smoking garbage, such as cigarette ends, matches,

soot and other objects.

• Do not use the vacuum cleaner to clean flammable substances or liquids, such as

gasoline or places where there may be gasoline, kerosene, paint, alcohol, detergent,

etc.

• Do not use the vacuum cleaner before installing the filter.

• Turn off the machine before connecting or replacing any accessories.

• Keep the vacuum cleaner indoors and use it in dry rooms only.

• Do not use it for other purposes unless otherwise specified in this user guide.

• Do not use the vacuum cleaner as a toy. Children nearby must be supervised.

• Be careful when cleaning stairs.

• Only use accessories included with this product and recommended by Kogan.com.

• To ensure the correct operation of the vacuum, the HEPA filter and dust cup will need

to be emptied and cleaned regularly.

SAFETY & WARNINGS

Wall Bracket

Motorised Mattress Brush

2-in-1 Bristle Brush

Long Crevice Nozzle

Charger

ACCESSORIES

OVERVIEW

Speed-adjustment Button

Battery Lock

Dust Cup

Dust Cup Lock

Aluminium Tube Lock

Machine Body

Aluminium Tube

Floor Brush Lock

Electric Floor Brush with

Plush Roller Bar

Dust Cup Release Button

Battery Pack

Switch Button

Electric Brush Installation

Align the electric main brush to the aluminium tube connector and push it gently. It will

connect with an audible click.

(To disassemble, press the lock button and detach).

ASSEMBLY

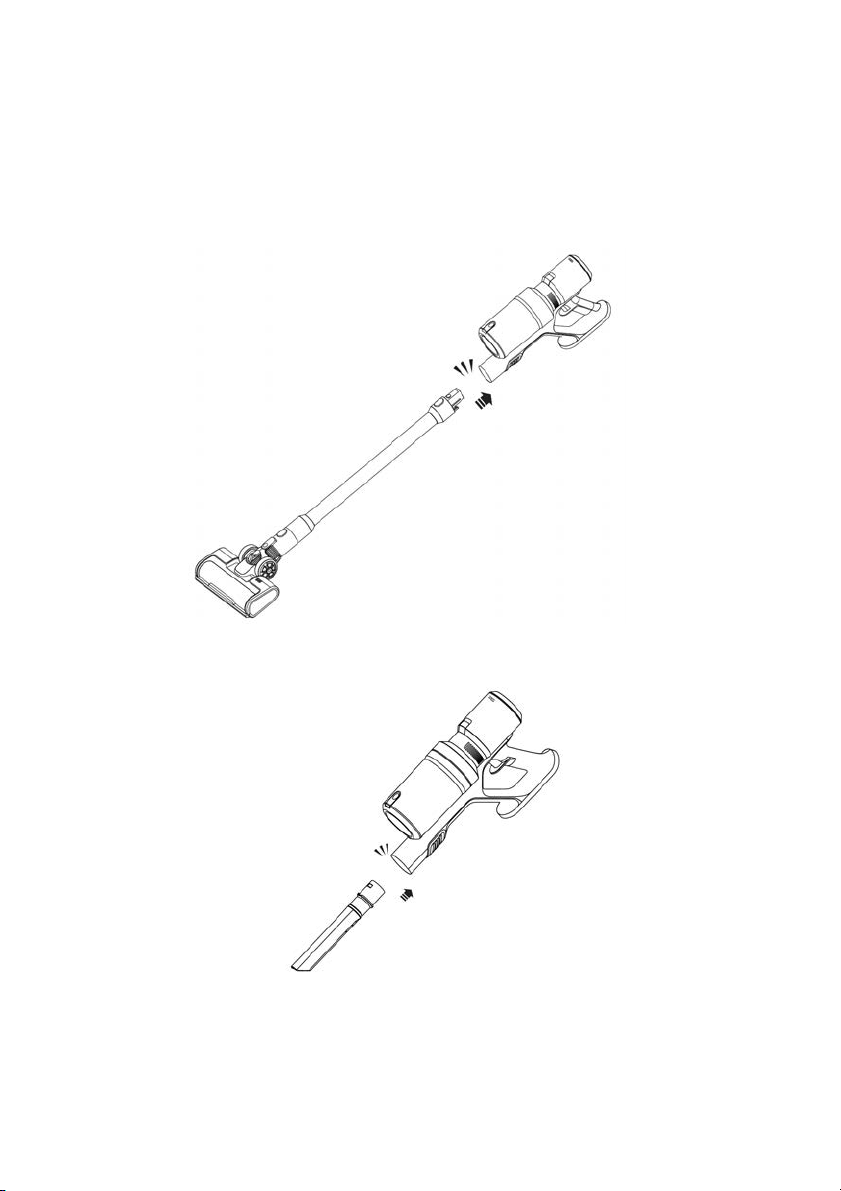

Machine Body Installation

• Align the machine body with the aluminium tube connector and push it gently. It will

connect with an audible click.

• Alternatively, the electric brush and other brush heads can be connected directly to the

machine body for when a more compact unit is required (cleaning a car etc.)

Dust Cup Installation and Removal

Push the dust cup release button under the machine body forward and the dust cup

assembly will pop up. Rotate the dust cup assembly anticlockwise to remove.

Roller Brush Replacement

Push the release button underneath the brush head and lift the roller brush out.

To install a replacement roller brush, insert the right side first and then gently press the roller

brush down and into position.

Note:Ensure the roller brush is firmly in place before operating the vacuum.

Turning on vacuum

After installing all the required parts, turn on the switch button at the handle to start the

vacuum.

Suction adjustment

Suction power can be set to three levels by pressing the suction adjustment button on the

top of the machine body.

There are three LED indicator lights on the button: the BLUE indicator light for low, the

PURPLE indicator light for medium and the RED indicator for high.

OPERATION

Low

Medium

High

Blue

Red

Purple

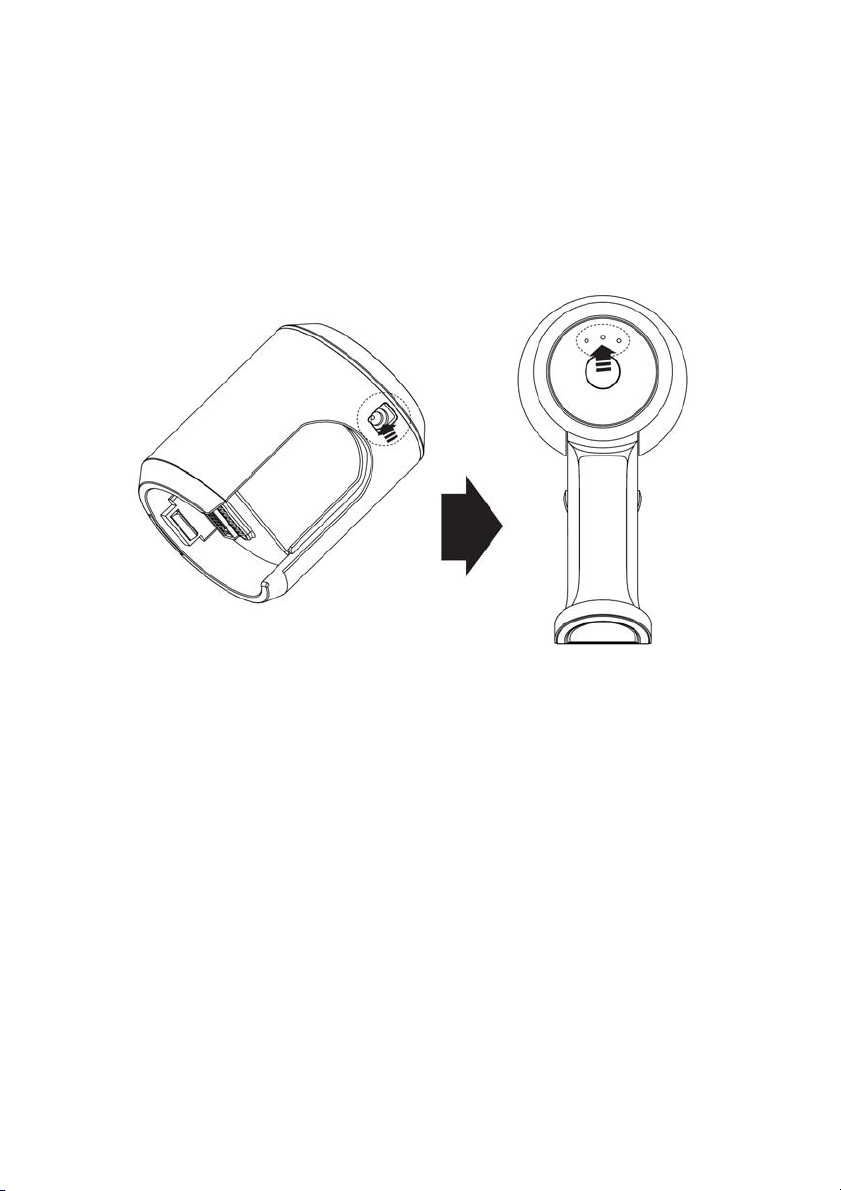

Charging and indicator light

Connect the power adapter to the charging port on the battery pack and plug it into a

power outlet to begin charging the battery.

The three indicator lights will flash when the battery is charging and become solid when it is

fully charged.
