Kogan KAVACSTC11A Bedienungsanleitung
Safety & Warnings
Please observe the basic safety prevention measures during using, including but not limited to
the followings (Please read all the following safety tips carefully before using):
Power Supply
• This product is powered by a 29.6V DC lithium battery. Do not use any other model or
capacity of battery. Only use the original battery supplied by Kogan.
• If the battery has any malfunction or abnormality, please don’t start the product. Instead
contact Kogan Support for timely replacement.
• Always hold by the power plug when connecting and disconnecting to avoid damaging the
cord.
During use:
1. Please do not use this machine outdoors or in humid areas or grasp it with wet hands.
2. If the machine becomes physically damaged, placed outdoors or falls into water, cease usage
immediately and contact Kogan Support.
3. To avoid blockages, don’t place large objects into the suction nozzle of vacuum cleaner. Keep the
suction nozzle away from lint, hair and other objects that may cause a blockage and frequently
clean the appliance.
4. To avoid injury, keep your hair, clothes, fingers and other body parts away from the suction
nozzle and movable parts.
5. Avoid sucking in any burning or smoking garbage, such as cigarette ends, matches, soot and
other objects.
6. Do not use the vacuum cleaner to clean flammable substances or liquids, such as gasoline or
places where there may be gasoline, kerosene, paint, alcohol, detergent, etc.
7. Do not use the vacuum cleaner before installing the filter.
8. Turn off the machine before connecting or replacing any accessories.
9. Keep the vacuum cleaner indoors and use it in dry rooms only.
10. Do not use it for other purposes unless otherwise specified in the manual.
11. Do not use the vacuum cleaner as a toy. Children nearby must be supervised.
12. Be careful when cleaning stairs.
13. Please use the machine correctly according to the manual. Only use accessories recommended
by Kogan.
Warning:
To reduce potential fire risks, electric shock or injury, please observe the above rules
2
Overview
In the Box
Wall Bracket
Motorised
Mattress Brush
2-in-1 Bristle
Brush
Long Crevice
Nozzle
Charger
3
Installation
Installation of Electric Brush
• As illustrated below, align the electric main brush to the extension wand connector and push
it gently. It will connect with an audible click. (To disassemble, press the lock button and
detach.)
Installation of Extension Wand
• Connect as above and the floor brush or other accessories with the other end as illustrated:
• Alternatively, connect the floor brush to clean hard surfaces such as floor and ceramic
tiles or undercoat carpet.
• Or connect the crevice nozzle or 2-in-1 bristle brush to clean difficult-to-reach areas
such as ceilings, curtains and air conditioning inlets. To disassemble, press the lock
button and detach.
4
Installation
• As shown below, align the crevice nozzle to the machine body connector and push it gently; it will
click into place. To disassemble, press the lock button and detach.
Installation and Removal of Dust Cup
• Remove the dust cup from machine body: Push the push button under the machine body
forward and the dust cup assembly will pop up. Then rotate the dust cup assembly
anticlockwise to take down the dust cup.
1. Turning on cleaner
After installing all the parts, turn on the switch button at the handle to start operation. (Button illustrated
below.)
5
2. Suction adjustment
Suction power can be set to three levels by pressing the suction adjustment button on the top of the
machine body. There are three LED indicator lights on the button: the blue indicator light for low, the
pink-purple indicator light for medium and the red indicator for high.
3. Charging and indicator light
Connect the power adapter with the battery pack and turn on at the outlet to start charging (as illustrated
below). The three indicator lights will flash when the machine is charging and be solid when it is fully
charged.
6
Operation
Introduction and Usage of Accessories
Cleaning Method 1:
Suitable for cleaning hard surfaces such as floor and ceramic tiles and the undercoat carpet.
Example:
• Quickly remove dust thanks to the built-in independent motor and large plush roller brush
rotating at high speed.
• Flexibly and thoroughly clean thanks to the horizontal rotation (270°) and vertical rotation
(90°) of floor brush.
• Clean dark and dead angles such as sofa bottoms due to the front LED light.
Cleaning Method 2:
• Convenient to install, easy for vertical cleaning and easy on the back thanks to the one-key
snap joint.
• Good for cleaning high places such as ceilings, roofs, air conditioners and curtains due to
7
compatibility with different brush heads.
Cleaning Method 3:
Suitable for cleaning fabrics such as mattresses and sofas.
Example:
• Driven by its built-in independent motor, the roller can rotate at a high speed and collect
particles such as pollen and hair on bedding, improving sleeping health.
Cleaning Method 4:
Suitable for cleaning various crevices and narrow areas in the household and car.
Example:
8
Cleaning Method 5:
The brush is suitable for cleaning the places such as curtain, car interior and air conditioner where hair
can collect.
• One-key extensible brush can suck and clean simultaneously and remove dust efficiently.
• Slim and soft hair brush can deeply clean the fabrics such as curtains and sofas.
• The fine hair brush can deeply clean small areas such as computer keyboards.
9
Cleaning & Care
During use:
Please do not let the unit get too close to hot objects such as heaters and cigarette butts.
Before use:
To prevent damage, remove large and sharp objects from the vicinity. Do not vacuum any inflammable
objects or liquids, such as gasoline, cigarette or alcohol.
Daily Storage
• For long-time storage, store the machine in a cool and dry place and avoid direct sunlight or
humidity.
Machine Cleaning
How to remove dust and clean the dust cup:
• Push the button under the machine body forward and the dust cup assembly will pop open
(refer to the previous installation instructions), allowing dust to be emptied into a dustbin or a
garbage bag.

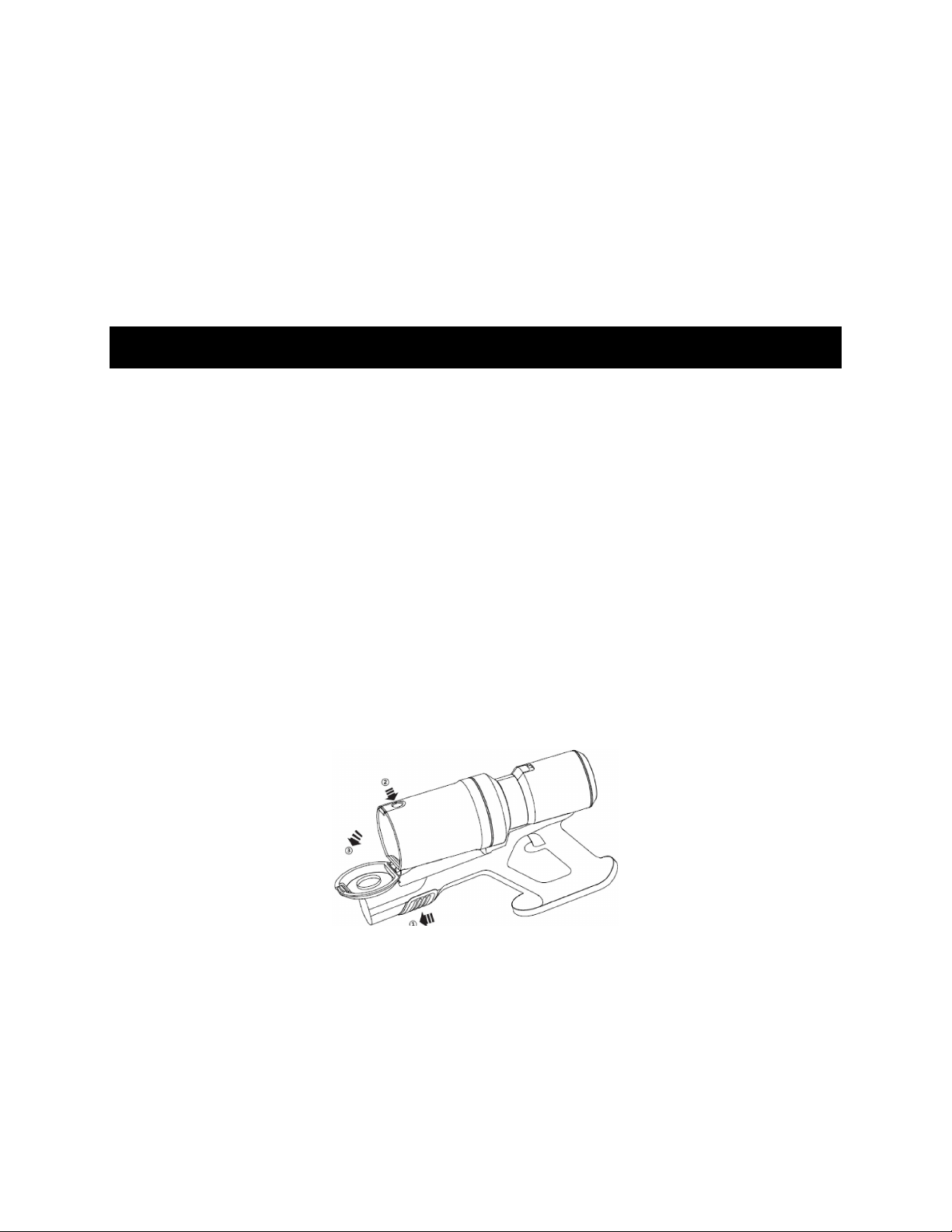

• As illustrated below, press the bottom lock of the dust cup to open the cup cover and dump
the dust.
Replace or clean the filtering HEPA:
• Separate the dust cup from the machine body as per previous installation instructions.
• As illustrated below, take out the top filter element of dust cup and clean it with soft hair brush
or put the cup in warm water for washing. Before next use, ensure the dust cup and filter
element are completely dry.
10
