Kramer VS-6464DN-EM Bedienungsanleitung

-6464DN-EM Quick Start (P/N: 2900-300902QS REV 1)

P/N:

2900- 300902QS

Rev:

Scan for full manual

VS-6464DN-EM Quick Start Guide

This guide helps you install and use your VS-6464DN-EM for the first time.

Go to www.kramerav.com/downloads/VS-6464DN-EM to download the latest user manual and check if

firmware upgrades are available.

Step 1: Check what’s in the box

VS-6464DN-EM 8x8 to 64x64 Modular Multi–Format Digital Matrix Switcher

1 Power cord

1 Quick start guide

Infrared remote control transmitter with batteries

1 Set of rack ears (attached)

Step 2: Get to know your VS-6464DN-EM

# Feature Function

Double-

function

Selector

Buttons

Area

Button

Functions

ESC

Press to exit the current operation.

2 EDID Press to assign EDID channels.

3 STO Press to store the current setup in a preset. After pressing the MENU button, this button lights

and is enabled.

4 ALL Press to connect an input to all outputs. After pressing the MENU button, this button lights and

is enabled.

OFF

Press to turn off an output. After pressing the MENU button, this button lights and is enabled.

6 RCL Press to recall a preset. After pressing the MENU button, this button lights and is enabled.

7 DELAY Press to set the delay between confirming an action and the execution of the action.

# Feature Function

8 ENTER Press to complete the input-output setup when using a one-digit number instead of two digits.

For example, to enter input 5, you can press either 05 or 5, ENTER.

Press to enter the options in a setup menu.

IR Receiver

Infrared remote control sensor.

10 IR LED Lights yellow when receiving commands from the IR remote control transmitter.

11 TAKE Button Press to confirm actions.

12 MENU Button Press once to enable the ALL, OFF, STO and RCL buttons.

Press again to enter the configuration menu.

When in a Menu, press to cycle through the menu items.

LOCK Button

Press and hold for approximately 2 sec to lock/unlock the front panel buttons.

14 BREAKAWAY Button Press to exit a menu.

15 DEFAULT SETUP Button Press to recall the default setup.

16 OUTPUTS/INPUTS

LCD Display

Displays the outputs (upper row) switched to the selected inputs (lower row).

Displays user interface messages and menus.

Power Supplies

Supply power to the device. The unit includes two power supplies. A third one can be installed.

18 ◄ (Backward) Press to shift the sliding window to the right (the LCD display only shows 13 cross-points out of

a total of 16).

19 1, 2, 3, 4, 5, 6, 7, 8, 9, 0 Numeric keypad, 1 to 0.

20 ► (Forward) Press to shift the sliding window to the left (the LCD display only shows 13 cross-points out of

a total of 16).

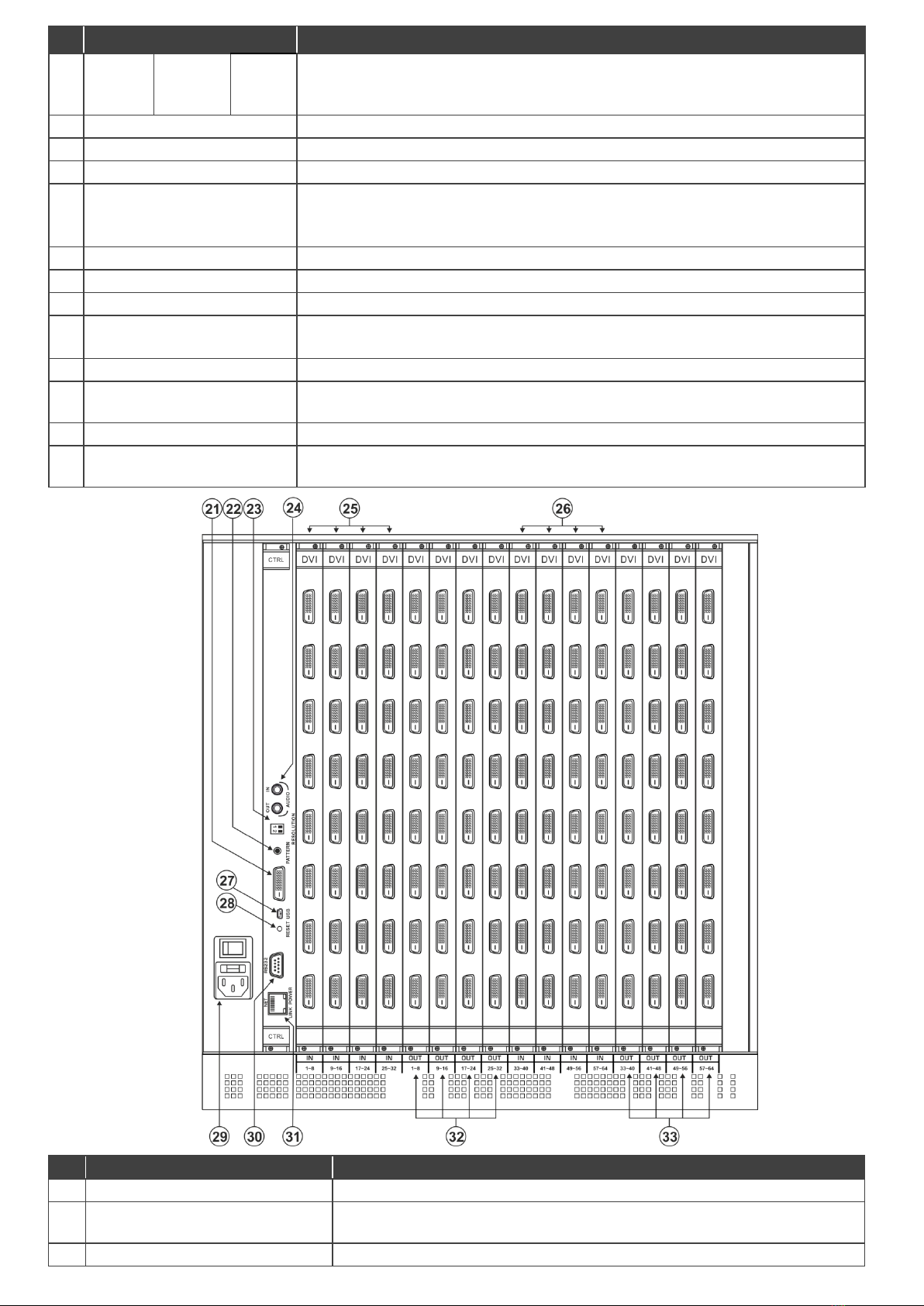

# Feature Function

21 Video Generator Output Connector Connect to one of the relevant video inputs to aid in troubleshooting.

22 PATTERN Button Press the button repeatedly to change the video pattern generated by the video

generator.

RESOLUTION DIP-switches

Set the resolution for video patterns generated by the video generator.

# Feature Function

24 AUDIO OUT / IN 3.5mm Mini Jacks Connect an audio source and speakers for testing the unit.

25 IN 1~32 Connectors Connect to the relevant video sources, depending on the cards installed (1 to 32).

IN 33~64 Connectors

Connect to the relevant video sources, depending on the cards installed (33 to 64).

27 USB Virtual Comm Port

mini USB Connector

Connect to a computer to communicate with the unit and to upgrade the firmware of the

control card and VGAA input/output cards.

28 RESET Button For future use.

29 AC Mains Power Module Connect to the power cord and mains electricity. The fuse protects the unit and the

switch is for turning the unit on and off.

RS-232 9-pin D-sub Port

Connect to the remote operation PC or remote controller.

31 NET Ethernet RJ-45 Connector Connect to a PC or controller via the Ethernet LAN.

The LINK LED flashes when communication is active. POWER LED lights when the

interface receives power.

32 OUT 1~32 Connectors Connect to the relevant video acceptors, depending on the cards installed (1 to 32).

33 OUT 33~64 Connectors Connect to the relevant video acceptors, depending on the cards installed (33 to 64).

Step 3: Install the VS-6464DN-EM

To rack mount the machine, the VS-6464DN-EM is pre-assembled with ear brackets attached to the machine.

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your VS-6464DN-EM. For best results, we recommend that you

always use Kramer high-performance cables to connect AV equipment to the VS-6464DN-EM.

Note: the maximum number of ports may vary.

Port Numbering:

On each card there are eight physical ports numbered sequentially from top to bottom and left to right.

Note: The diagram below is a sample numbering showing only the bottom of each card.

Diagram # Actual Port #

1 IN 1 – IN 8

IN 9 – IN 16

3 IN 17 – IN 24

OUT 1 – OUT 8

5 OUT 9 – OUT 16

OUT 17 – OUT 24

Step 5: Connect the power

Connect the power cord to VS-6464DN-EM and plug it into the mains electricity.Switch the VS-6464DN-EM power and then switch on

the power of connected devices.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the power cord that is supplied with the unit.

Warning:

Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.

Step 6: Set operation parameters

VS-6464DN-EM includes a front panel numeric keypad

for routing and control.

On power up, the last used matrix setup is loaded. To

retrieve other setups, use setup recall for a stored

configuration or default setup recall.

The LCD display can show only 13 out of the 64

available matrix combinations at once. To view any of

the matrix combinations use the ◄ or the ► buttons.

On power up, the display shows the following screens in sequence:

Step 7: Operate via the front panel buttons, remote control and via:

RS-232 / Protocol 3000

Baud Rate:

115200

Parity:

None

Data Bits: 8 Command Format: HEX

Stop Bits: 1 Command example, to switch Input 4 to Output 2: #AV 4>2

Ethernet

IP Address: 192.168.1.39 UDP Port # 50000

TCP Port #: 5000 Concurrent TCP Connections: 32

Full Factory Reset

Front Panel: Press MENU twice. Select Total Matrix Reset > Factory Reset. Press TAKE twice.
