KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VS-82HDxl

8x2 SD/HD-SDI Matrix Switcher

P/N: 2900-300186 Rev 3

VS-82HDxl - Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the VS-82HDxl 8x2 SD/HD-SDI Matrix Switcher 6

4Installing in a Rack 8

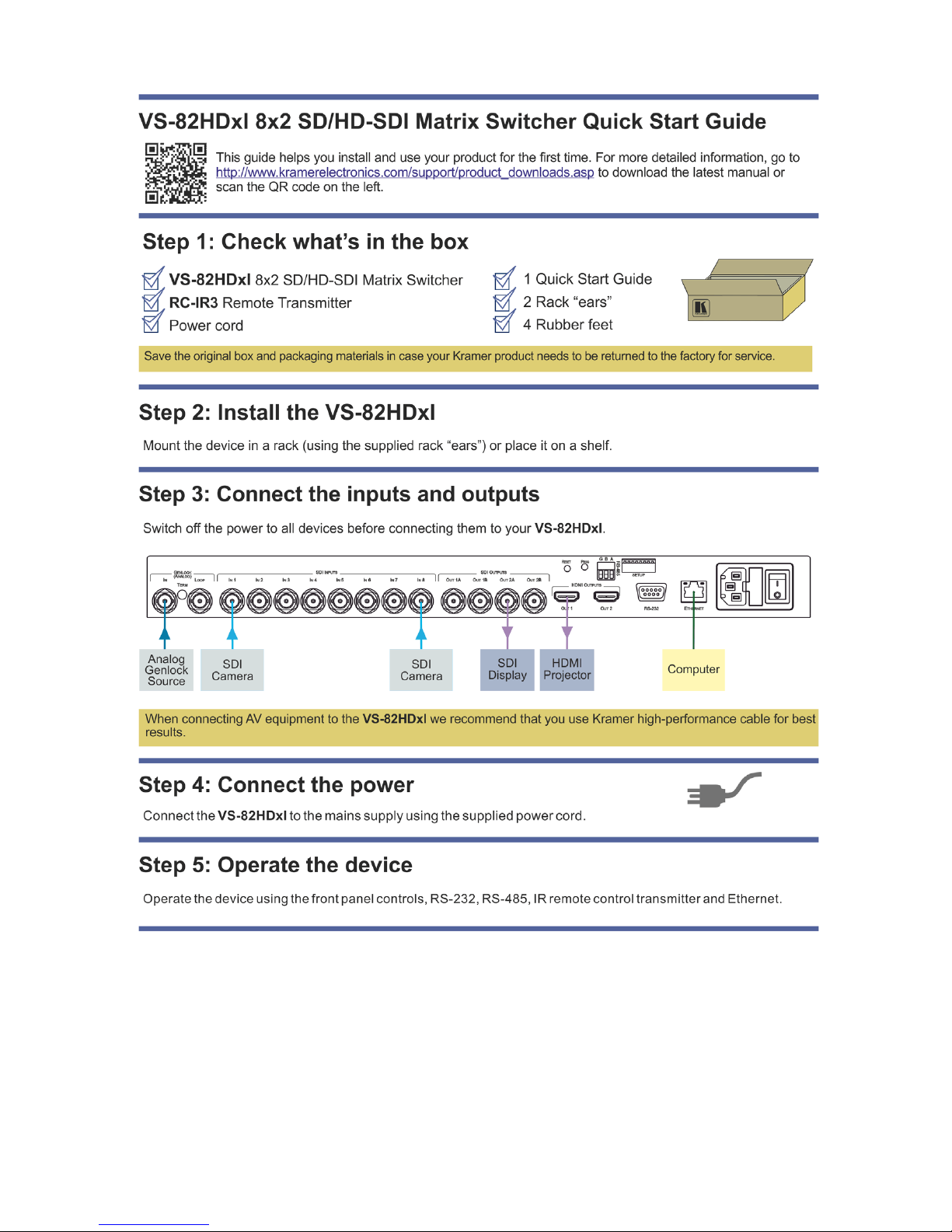

5Connecting the VS-82HDxl 8x2 SD/HD-SDI Matrix Switcher 9

5.1 Setting the Device Number and Termination DIP-Switches 10

5.2 Setting the Genlock Loop Termination 12

5.3 Connecting to the VS-82HDxl Using the RS-232 Connection 12

5.4 Cascading Multiple VS-82HDxl Devices Using the RS-485 Connection 12

5.5 Connecting to the VS-82HDxl Using Ethernet 13

6Operating the VS-82HDxl 8x2 SD/HD-SDI Matrix Switcher 17

6.1 Switching Inputs to Outputs 17

6.2 Performing Two Switch Selections Simultaneously 18

6.3 Selecting Audio Channels 18

6.4 Muting and Unmuting an Output 19

6.5 Selecting a Genlock Signal 19

6.6 Storing and Recalling a Switch Setting from a Preset 20

6.7 Locking and Unlocking the Front Panel 21

6.8 Resetting the Device to Factory Default Values 21

6.9 Upgrading the Firmware 21

7Technical Specifications 22

8Default Communication Parameters 23

9Kramer Protocol 3000 24

9.1 Kramer Protocol 3000 Syntax 24

9.2 Kramer Protocol 3000 Commands 27

Figures

Figure 1: VS-82HDxl 8x2 SD/HD-SDI Matrix Switcher Front Panel 6

Figure 2: VS-82HDxl 8x2 SD/HD-SDI Matrix Switcher Rear Panel 7

Figure 3: Connecting the VS-82HDxl 8x2 SD/HD-SDI Matrix Switcher 9

Figure 4: VS-82HDxl Setup DIP-Switches 10

Figure 5: Controlling Multiple VS-82HDxl Devices using RS-485 Serial Communication 13

Figure 6: Local Area Connection Properties Window 15

Figure 7: Internet Protocol (TCP/IP) Properties Window 15

VS-82HDxl - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Video Products.

Congratulations on purchasing your Kramer VS-82HDxl 8x2 SD/HD-SDI Matrix

Switcher. This product is ideal for:

•Professional broadcasting and production studios

•Post production editing

2 VS-82HDxl - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Do not secure the cables in tight bundles or roll the slack into tight coils

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your VS-82HDxl away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

VS-82HDxl - Getting Started 3

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the power cord that is supplied with the unit

Warning: Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only

Warning: Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4 VS-82HDxl - Overview

3 Overview

The Kramer VS-82HDxl is a true 8 x 2 matrix switcher for SDI signals that lets you

switch any one of the eight SDI inputs to one or both sets of triple outputs (SDI and

HDMI).

In particular, the VS-82HDxl:

•Features selector buttons that provide visual indication of the presence of a

signal

•Provides up to 2.97Gbps of bandwidth allowing it to be used for SD, HD and

3G HD serial digital video signals

•Includes cable equalization of up to 350m for SD signals, 140m for 1.5GHz

HD signals and 120m for 3GHz HD signals

•Features reclocking and equalization on each input

•Is SMPTE 259M, 292M, 344M, 424M and DVB-ASI compliant and supports

data rates of 270Mbps, 1483.5Mbps, 1485Mbps and 2970Mbps

Digital Video Broadcasting - Asynchronous Serial Interface

•Supports ANC data (embedded audio, Teletext, time code, and so on)

•Performs clean switching when the sources are genlocked to the selected

genlock input with a difference of no more than two lines of video

•Can use either an analog signal or any of the SDI input signals for

genlocking. If the selected genlock input signal is unavailable, the

VS-82HDxl automatically selects the best available SDI input for the genlock

signal

•Provides 16 presets for storing switching configurations

•Has a front panel lock button

The VS-82HDxl is housed in a 19" 1U rack-mountable enclosure and is fed from a

100-240 VAC universal switching power supply.

VS-82HDxl - Overview 5

You can control the VS-82HDxl using the front panel buttons, or remotely via:

•RS-232/RS-485 serial commands transmitted by a PC, touch screen system

or other serial controller

•The Kramer RC-IR3 infrared remote control transmitter

•A PC connected to the Ethernet port on the device via a LAN

VS-82HDxl – Defining the VS-82H 8x2 HDMI Matrix Switcher 6

3.1 Defining the VS-82HDxl 8x2 SD/HD-SDI Matrix Switcher

Figure 1and Figure 2define the front and rear panel of the VS-82HDxl respectively.

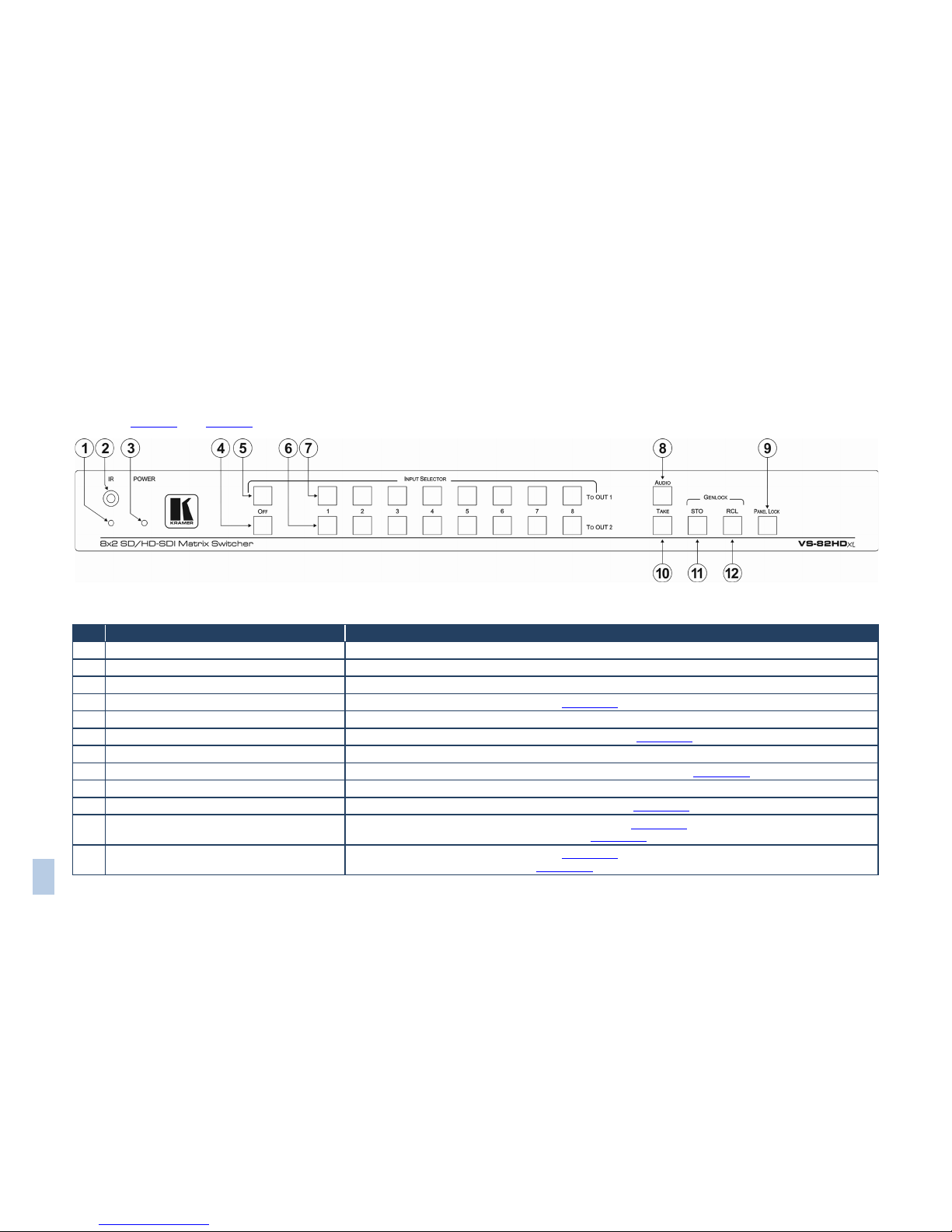

Figure 1: VS-82HDxl 8x2 SD/HD-SDI Matrix Switcher Front Panel

# Feature Function

1 IR LED Lights yellow when receiving an IR signal

2 IR Receiver Signal receiver for the infrared remote control transmitter

3 POWER LED Lights green when the device is powered on

4 OFF Button Press to mute the signal on Output 2 (see Section 6.4)

5 OFF Button Press to mute the signal on Output 1

6 INPUT SELECTOR To OUT 2 1~8 Buttons Press one of the eight inputs to switch it to Output 2 (see Section 6.1)

7 INPUT SELECTOR To OUT 1 1~8 Buttons Press one of the eight inputs to switch it to Output 1

8 AUDIO Button Press to select which SDI audio group to transmit on the output (see Section 6.3)

9 PANEL LOCK Button Press and hold to lock the front panel buttons. Press and hold again to unlock the front panel buttons

10 TAKE Button Press to implement simultaneous switching actions (see Section 6.2)

11 STO Button Press to store a switching configuration in a preset (see Section 6.7) Press together with the RCL button

to select a genlock synchronization source (see Section 6.5)

12 RCL Button Press to recall a preset configuration (see Section 6.7). Press together with the STO button to select a

genlock synchronization source (see Section 6.5)

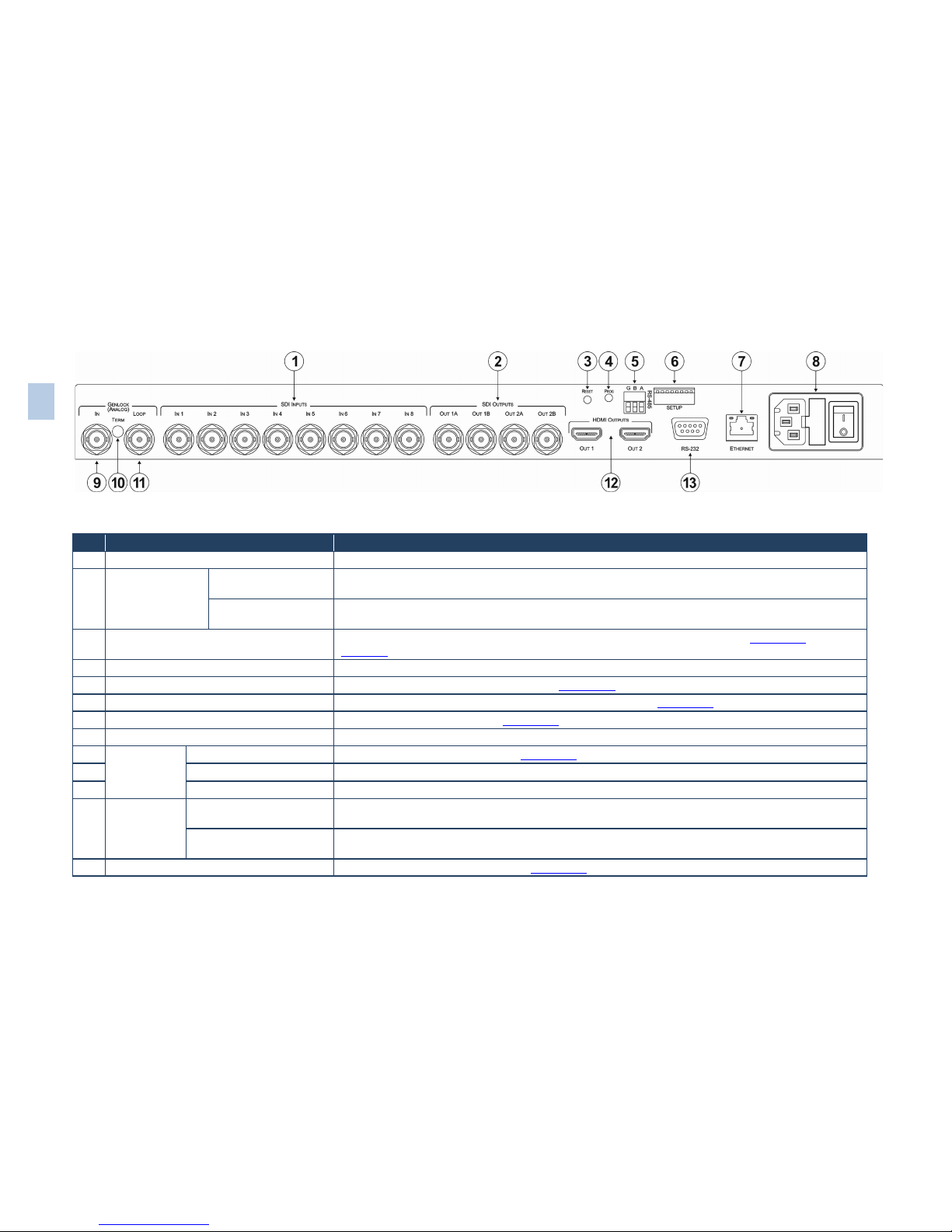

Figure 2: VS-82HDxl 8x2 SD/HD-SDI Matrix Switcher Rear Panel

# Feature Function

1 SDI INPUTS IN 1 ~ IN 8 BNC Connectors Connect to the SDI video sources (from 1 to 8)

2 SDI OUTPUTS

BNC Connectors

OUT 1A and OUT 1B Connect to the SDI video acceptors (1 and 2).

Note: The same signal is present on both outputs as well as on the HDMI 1 output

OUT 2A and OUT 2B Connect to the SDI video acceptors (3 and 4).

Note: The same signal is present on both outputs as well as on the HDMI 2 output

3 RESET Button Press while turning on the device to reset the device to factory default values (see Section 6.8 and

Section 8)

4 PROG Button For the use of Kramer service personnel only

5 RS-485 3-pin Terminal Block Connect to an RS-485 serial controller (see Section 5.4)

6 SETUP DIP-switches Terminal Block Use to set the RS-485 bus device number and termination (see Section 5.1)

7 ETHERNET RJ-45 Connector Connect to a PC via a LAN (see Section 5.5)

8 Mains Power Connector, Fuse and Switch Plug in the power cord and switch the device on and off

GENLOCK

(ANALOG)

IN BNC Connector Connect to the genlock source (see Section 6.5)

10 TERM Button Press to terminate the genlock source (75Ω). Release for looping

11 LOOP BNC Connector Connect to the Genlock connector of the next device in the chain

12 HDMI

OUTPUTS

OUT 1 Connect to the first HDMI acceptor.

Note: The same signal that is present on OUT 1A and OUT 1B is present on this HDMI output

OUT 2 Connect to the second HDMI acceptor.

Note: The same signal that is present on OUT 2A and OUT 2B is present on this HDMI output

13 RS-232 9-pin D-sub Serial Connector Connect to a PC/serial controller (see Section 5.3)

7VS-82HDxl – Defining the VS-82H 8x2 HDMI Matrix Switcher
