Kramer VS-6464DN-EM Bedienungsanleitung

P/N: 2900-300902 Rev 2 www.KramerAV.com

USER MANUAL

MODEL:

VS-6464DN-EM

8x8 to 64x64 Modular Multi-Format

Managed Digital Matrix Switcher

Kramer Electronics Ltd.

VS-6464DN-EM –Contents
i

Contents
Introduction 1
Getting Started 2
Overview 4
Mounting VS-6464DN-EM 10
Connecting the VS-6464DN-EM 11
Port Numbering 12
Connecting to the VS-6464DN-EM via RS-232 14
Connecting to the VS-6464DN-EM via USB (VCOM) 14
Connecting to the VS-6464DN-EM via Ethernet 14
Operating Your Video Matrix Switcher 17
Startup Display 17
Using the Selector Buttons 18
Confirming Actions 18
Switching Actions 19
Locking the Front Panel Buttons 21
Using the Configuration Menus 22
Using the Setup Menu 22
Using the Config Menu 26
Configuring the Number of Installed Input and Output Ports 32
Using the Input / Output Cards 33
Defining the HDCP-IN8-F64 / HDCP-OUT8-F64 33
Defining the DGKat-IN8-F64 / DGKat-OUT8-F64 34
Defining the F670-IN8-F64 / F670-OUT8-F64 36
Defining the F610-IN8-F64 / F610-OUT8-F64 38
Defining the DVI-IN8-F64 / DVI-OUT8-F64 39
Defining the VGAA-IN8-F64 / VGAA-OUT8-F64 40
Troubleshooting Video and Audio Problems 43
Defining the Controller and Test Card 43
Setting the Resolution of the Generated Video 44
Setting the Pattern of the Generated Video 45
Installing the Test Module 45
Troubleshooting Video Problems 46
Troubleshooting Audio Problems 47
Input / Output Card Hardware Installation Instructions 50
Installing a PS-1DN Power Supply 52
Upgrading VS-6464DN-EM and Input / Output Card Firmware 53
Upgrading Firmware Using K-Upload 53
Upgrading Firmware Using Kramer Network 54
Technical Specifications 55
VS-6464DN-EM Chassis 55
Quick VS-6464DN-EM Card Comparison 55
Default Settings 57
Default Communication Parameters 57
Factory Default EDID 57
Protocol 3000 62
Understanding Protocol 3000 Commands 63
Protocol 3000 Syntax 64
Protocol 3000 Commands 64
Using the Packet Protocol 90

Kramer Electronics Ltd.

VS-6464DN-EM –Introduction

Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world

of unique, creative, and affordable solutions to the vast range of problems that confront the

video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we

have redesigned and upgraded most of our line, making the best even better!

Congratulations on purchasing your Kramer VS-6464DN-EM 8x8 to 64x64 Modular

Multi-Format Managed Digital Matrix Switcher. This product, which incorporates HDMI™

technology, is ideal for:

•Professional display systems requiring video signal routing.

•Broadcast, presentation and production facilities, as well as monitoring in large

duplication systems.

•Rental/staging applications.

Throughout this user manual the chassis configuration is shown with 64 DVI inputs and 64

DVI outputs as a representation only.

The following cards are available and may be mixed in the same chassis:

•HDCP-IN8-F64 / HDCP-OUT8-F64

(see Defining the HDCP-IN8-F64 / HDCP-OUT8-F64 on page 33)

•DGKat-IN8-F64 / DGKat-OUT8-F64

(see Defining the DGKat-IN8-F64 / DGKat-OUT8-F64 on page 34)

•F670-IN8-F64 / F670-OUT8-F64

(see Defining the F670-IN8-F64 / F670-OUT8-F64 on page 36)

•F610-IN8-F64 / F610-OUT8-F64

(see Defining the F610-IN8-F64 / F610-OUT8-F64 on page 38)

•DVI-IN8-F64 / DVI-OUT8-F64

(see Defining the DVI-IN8-F64 / DVI-OUT8-F64 on page 39)

•VGAA-IN8-F64 / VGAA-OUT8-F64

(see Defining the VGAA-IN8-F64 / VGAA-OUT8-F64 on page 40)

The F670-IN8/OUT8-F64 cards are fully compatible with the Kramer 670T/670R and

671T/671R HDMI/DVI transmitters and receivers for non-HDCP content.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Kramer Electronics Ltd.

VS-6464DN-EM –Introduction

Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging materials for

possible future shipment.

•Review the contents of this user manual.

Go to www.kramerav.com/downloads/VS-6464DN-EM to check for up-to-date user manuals,

application programs, and to check if firmware upgrades are available (where appropriate).

Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables (we recommend Kramer high-performance,

high-resolution cables) to avoid interference, deterioration in signal quality due to poor

matching, and elevated noise levels (often associated with low quality cables).

•Do not secure the cables in tight bundles or roll the slack into tight coils.

•Avoid interference from neighboring electrical appliances that may adversely influence

signal quality.

•Position your VS-6464DN-EM away from moisture, excessive sunlight and dust.

This equipment is to be used only inside a building. It may only be connected to other equipment that

is installed inside a building.

Kramer Electronics Ltd.

VS-6464DN-EM –Introduction

Safety Instructions

Warning: Class 1 laser product

•Invisible laser radiation present.

•Avoid long-term viewing of laser.

•Avoid the use of magnifying viewing aids or instruments (such as binoculars, telescopes,

microscopes and magnifying lenses, but not spectacles or contact lenses).

•Avoid placing optical devices in the emitted beam that could cause the concentration of

the laser radiation to be increased.

Caution:

•This equipment is to be used only inside a building. It may only be connected to other

equipment that is installed inside a building.

•For products with relay terminals and GPI\O ports, please refer to the permitted rating

for an external connection, located next to the terminal or in the User Manual.

•There are no operator serviceable parts inside the unit.

Warning:

•Use only the power cord that is supplied with the unit.

•Disconnect the power and unplug the unit from the wall before installing.

•Do not open the unit. High voltages can cause electrical shock! Servicing by qualified

personnel only.

•To ensure continuous risk protection, replace fuses only according to the rating

specified on the product label which located on the bottom of the unit.

Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce

the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected

and recycled. To comply with the WEEE Directive, Kramer Electronics has made

arrangements with the European Advanced Recycling Network (EARN) and will cover any

costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on

arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular

country go to our recycling pages at www.kramerav.com/support/recycling/.

About Fast Switching

Older display devices require a longer time between the loss of one digital signal and the

introduction of another, as well as a physical disconnection of the interconnecting cable in

order to be able to detect and adjust to the new video attributes and parameters. Normal

switching, therefore, introduced a 5V signal disconnection along with a delay in switching.

Many newer display devices, however, are now capable of accepting “on-the-fly” switching.

Depending on the display device in use, the VS-6464DN-EM allows for fast switching (minor

reset and the connection kept alive) and extra fast switching (no reset and the connection

kept alive), see Config Menu—Setting Output Port Parameters on page 29. Using the fast and

extra fast switching modes allows for fraction-of-a-second switching times when using high

performance display devices or when using a scaler on the video output.

Kramer Electronics Ltd.

VS-6464DN-EM –Introduction

About Power Connect™

The Power Connect™ feature here means that the VS-6464DN-EM can supply power to the

TP transmitters and receivers (for example, the TP-573 and TP-574) as long as the devices

are within 90m (270ft) of each other. The Power Connect™ feature applies as long as the

cable can carry power and the distance does not exceed 90m on standard CAT 5 cable. For

longer distances, a heavier gauge cable should be used (a TP cable is still suitable for the

video/audio transmission, but not for feeding the power at these distances).

Overview

The Kramer VS-6464DN-EM is a high performance managed matrix switcher chassis for AV

signals. The unit is modular and populated from 8 x 8 to 64 x 64 ports in increments of eight

inputs and/or eight outputs. The unit supports various signals, depending on the type of cards

installed, and includes two (optional three) redundant power supplies and a controller and

testing module that can monitor and test any input or output in the matrix. It features a very

high bandwidth of up to 3.4Gbps (for the chassis only, effective bandwidth of the system

depends on the input / output cards, see Using the Input / Output Cards on page 33) that

ensures transparent performance even in the most critical applications. The cards re-clock

and equalize the signals and the chassis can route any or all inputs to any or all outputs

simultaneously.

The VS-6464DN-EM is highly configurable –you can add or remove inputs and outputs

independently in groups of eight and mix different types of input/output cards in the same

chassis. For example, you can configure a device as an 8 x 24 or a 64 x 8 matrix switcher to

exactly suit your needs.

The VS-6464DN-EM features:

•Full 64 x 64 non-blocking matrix array to switch any of the 64 input digital signals to any

or all of the 64 outputs (see Connecting the VS-6464DN-EM on page 11).

•Easy access to 60 pre-set memory locations for quick access to user-defined setups.

•Fast switching on outputs to reduce or remove switching delay.

•Support for redundant, hot swappable power supplies.

•Simple firmware upgrade of compatible cards (see Upgrading VS-6464DN-EM and Input

/ Output Card Firmware on page 53).

•Seamless integration with Kramer Network for switching, card status, port status,

firmware upgrades (of compatible cards), and more.

•A 40 character by 2 line LCD that shows the operational status or the configuration

menu.

•A lock function to prevent tampering with the front panel.

•A default EDID (Extended Display Identification Data) for each input.

•EDID Capture –Copies and stores the EDID from a display device.

•Non-volatile EDID storage.

Kramer Electronics Ltd.

VS-6464DN-EM –Introduction

•Kramer Core™ – Flexible infrastructure conversion. Copper, fiber or Twisted Pair, all can

be used at the same time according to input/output module selection. The matrix

receives signals from compatible Kramer transmitters, automatically converts between

available infrastructure options and sends the signals to compatible Kramer receivers.

•Max. Data Rate –10.2Gbps (3.4Gbps per graphic channel) when using compatible

cards.

•HDTV Compatible.

•HDCP Compliant –With DVI (HDCP), F670, and DGKat modules.

•HDMI Support.

•DGKat™ Signal Integration – Kramer’s unique technology for converting TMDS as well

as control and communication to signals that run over twisted pair cables. For optimum

range and performance using, use recommended Kramer cables, available at

www.kramerav.com/product/VS-6464DN-EM

•Kramer Equalization & re-Klocking™ Technology – Rebuilds the digital signal to travel

longer distances.

•Optional Fast Switching Support –For fraction of a second switching.

•Modular & Easily Configurable Platform –Input or output module types can be mixed

and added in increments of 8 from 8x8 up to 64x64.

•Versatile Selection of Modules –Including DVI, HDCP (HDMI over DVI connector),

HDMI over Fiber, DVI over Fiber, VGA and DGKat (HDMI over twisted pair).

•Kramer Protocol 3000.

•Flexible Configuration –To disable HDCP support and convert between HDMI and DVI.

You can operate the VS-6464DN-EM via the front panel buttons or remotely via:

•RS-232 or USB (VCOM) serial commands transmitted by a touch screen system, PC or

other serial controller.

•Ethernet over a LAN.

•Kramer Network enterprise management platform.

The VS-6464DN-EM is a sophisticated device but has nevertheless been designed to be

simple to operate using an intuitive front panel keypad. For details of how to route inputs to

outputs, see Switching Actions on page 19.

The VS-6464DN-EM is housed in a 19" rack-mountable enclosure.

Kramer Electronics Ltd.

VS-6464DN-EM –Introduction

Defining the VS-6464DN-EM 8x8 to 64x64 Modular

Multi-Format Managed Digital Matrix Switcher

This section defines the front and rear panels of the VS-6464DN-EM.

Figure 1: VS-6464DN-EM Front Panel

Buttons 11, 12 and 13 function as the TAKE, MENU and LOCK buttons respectively.

Feature

Function

Double-function

Selector Buttons

Area

Menu Button

Functions

ESC

Press to exit the current operation.

EDID

Press to assign EDID channels.

STO

Press to store the current setup in a preset. After

pressing the MENU button, this button lights and is

enabled.

ALL

Press to connect an input to all outputs. After pressing

the MENU button, this button lights and is enabled.

OFF

Press to turn off an output. After pressing the MENU

button, this button lights and is enabled.

RCL

Press to recall a preset. After pressing the MENU

button, this button lights and is enabled.

DELAY

Press to set the delay between confirming an action

and the execution of the action.

ENT

Press to complete the input-output setup when using a

one-digit number instead of two digits. For example, to

enter input 5, you can press either 05 or 5, ENT.

Press to enter the options in a setup menu.

IR Receiver

Infrared remote control sensor (for future use).

IR LED

Lights yellow when receiving commands from the IR

remote control transmitter (for future use).

Kramer Electronics Ltd.

VS-6464DN-EM –Introduction

TAKE Button

Press to confirm actions (see Confirming a Switching

Action on page 19).

MENU Button

Press once to enable the ALL, OFF, STO and RCL

buttons (see Using the Configuration Menus

on page 22).

Press again to enter the configuration menu (see Using

the Config Menu on page 26).

When in a Menu, press to cycle through the menu

items.

LOCK Button

Press and hold for approximately 2 sec to lock/unlock

the front panel buttons (see Locking the Front Panel

Buttons on page 21).

BREAKAWAY Button

Press to exit a Menu (see Using the Configuration

Menus on page 22).

DEFAULT SETUP Button

Press to recall the default setup (see Recalling the

Default Setup on page 21).

OUTPUTS/INPUTS

LCD Display

Displays the outputs (upper row) switched to the

selected inputs (lower row), (see Startup Display

on page 17).

Displays user interface messages and menus.

Power Supplies

Supply power to the device. The unit includes two

power supplies. A third one can be installed.

Figure 2: VS-6464DN-EM Front Panel Numeric Keypad

Feature

Function

◄ (Backward)

Press to shift the sliding window to the right (the LCD display only shows 13

cross-points out of a total of 16).

1, 2, 3, 4, 5, 6, 7, 8,

9, 0

Numeric keypad, 1 to 0.

► (Forward)

Press to shift the sliding window to the left (the LCD display only shows 13

cross-points out of a total of 16).

Kramer Electronics Ltd.

VS-6464DN-EM –Introduction

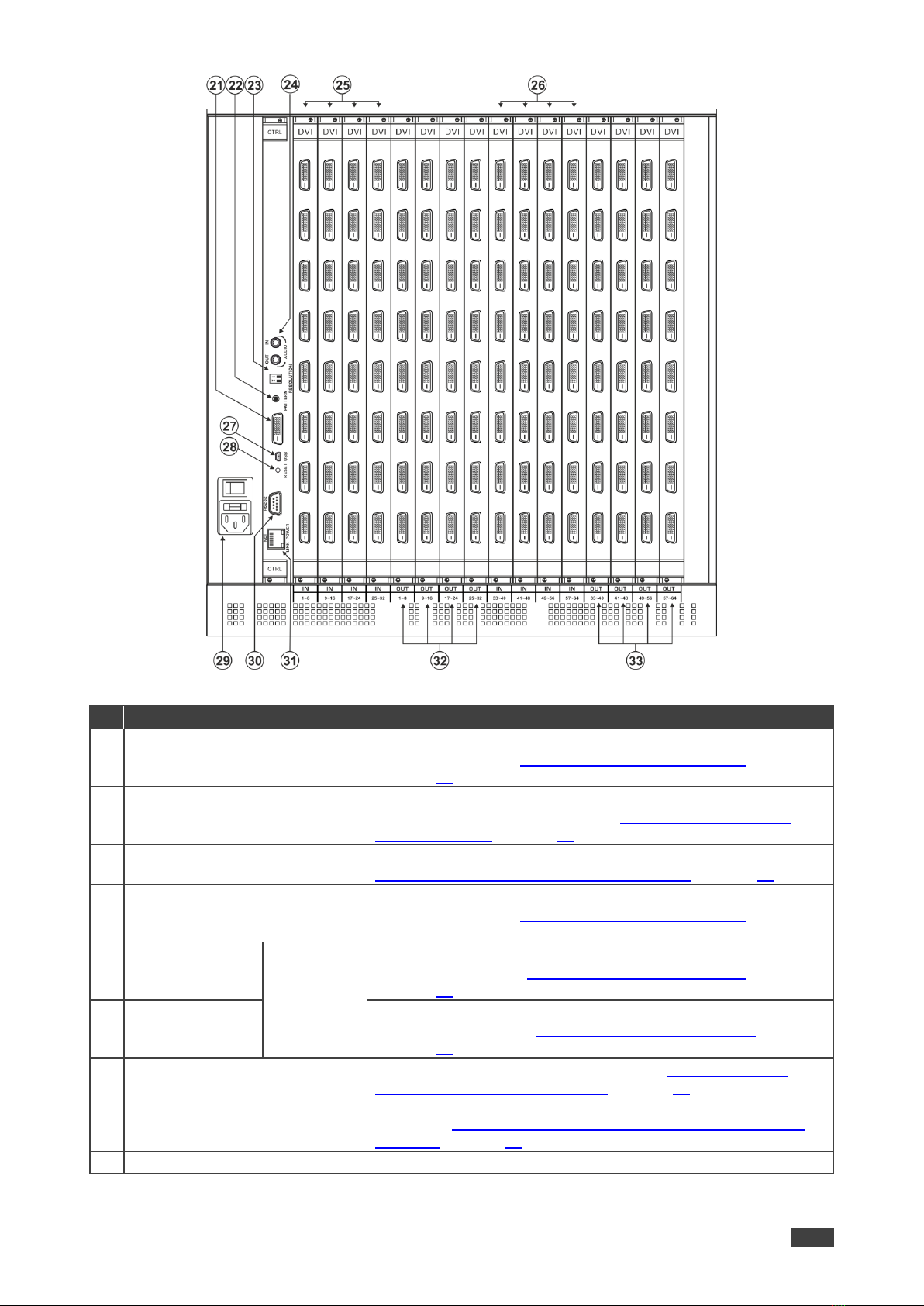

Figure 3: VS-6464DN-EM Rear Panel Showing DVI cards

Feature

Function

Test Module DVI Molex 24-pin

Video Connector

Connect to one of the relevant video inputs/outputs to aid in

troubleshooting (see Troubleshooting Video Problems

on page 46).

PATTERN Button

Press the button repeatedly to change the video pattern

generated by the Test module (see Setting the Pattern of the

Generated Video on page 45).

RESOLUTION DIP-switches

Set the resolution for video generated by the Test module (see

Setting the Resolution of the Generated Video on page 44).

Test Module 3.5mm Mini Jack

Unbalanced Analog Audio

Connector

Connect to one of the relevant audio inputs/outputs to aid in

troubleshooting (see Troubleshooting Audio Problems

on page 47).

IN 1~32

Connectors

INPUTS

Connect to the relevant video sources, depending on the cards

installed (1 to 32, see Connecting the VS-6464DN-EM

on page 11).

IN 33~64

Connectors

Connect to the relevant video sources, depending on the cards

installed (33 to 64, see Connecting the VS-6464DN-EM

on page 11).

USB Virtual COM Port

USB Mini-B Connector

Connect to a PC or remote controller (see Connecting to the

VS-6464DN-EM via USB (VCOM) on page 14) and perform

firmware upgrade of the device and compatible input/output

cards (see Upgrading VS-6464DN-EM and Input / Output Card

Firmware on page 53).

RESET Button

For future use.

Andere Handbücher für VS-6464DN-EM

Inhaltsverzeichnis

Andere Kramer Matrix-Umschalter Handbücher

Kramer

Kramer Sierra Video 6448V5Sxl Bedienungsanleitung

Kramer

Kramer VS-6EII Bedienungsanleitung

Kramer

Kramer Sierra Video 4848V5xl Bedienungsanleitung

Kramer

Kramer VS-66UHD Bedienungsanleitung

Kramer

Kramer Sierra Video 1204V3S Bedienungsanleitung

Kramer

Kramer Sierra Pro XL 1616V5 Bedienungsanleitung

Kramer

Kramer 6464V5XL Bedienungsanleitung

Kramer

Kramer Sierra Video 6432V5xl Bedienungsanleitung

Kramer

Kramer VS-606xl Bedienungsanleitung

Kramer

Kramer VS-1616DN-MD Bedienungsanleitung

Kramer

Kramer XL 1616V4S Bedienungsanleitung

Kramer

Kramer VP-4x8 Bedienungsanleitung

Kramer

Kramer VS-44HC Bedienungsanleitung

Kramer

Kramer VS-44HDCP Bedienungsanleitung

Kramer

Kramer XL 1608V4 Bedienungsanleitung

Kramer

Kramer VS-211H Bedienungsanleitung

Kramer

Kramer XL 1204V Bedienungsanleitung

Kramer

Kramer VS-48HDCPxl Bedienungsanleitung

Kramer

Kramer XL 1608V2S Bedienungsanleitung

Kramer

Kramer VP-747 Bedienungsanleitung

Kramer

Kramer VS-88DT Bedienungsanleitung

Kramer

Kramer VS-402XL Bedienungsanleitung

Kramer

Kramer VP-8x4AK Bedienungsanleitung

Kramer

Kramer 20-04400030 Bedienungsanleitung

Beliebte Matrix-Umschalter Handbücher anderer Marken

Broadcast Tools

Broadcast Tools SS 8.2 Bedienungsanleitung

Altimium

Altimium MATF32 Bedienungsanleitung

ALFAtron

ALFAtron ALF-MUK44N Bedienungsanleitung

Monoprice

Monoprice Blackbird 15377 Bedienungsanleitung

PTN

PTN FMX12 Bedienungsanleitung

CYP

CYP nT15GX01 Bedienungsanleitung

TESmart

TESmart HMA0402A40 Bedienungsanleitung

Octava

Octava HD4XSTPMX Bedienungsanleitung

Intelix

Intelix FLX-88 Betriebsanleitung

Roland

Roland XS-1HD Bedienungsanleitung

Atlona

Atlona AT-HDMI-22M Bedienungsanleitung

Link

Link HD8X8 Bedienungsanleitung

AMX

AMX AVS-OP-2020-117 Anleitungen und Rezepte

Lindy

Lindy 38042 Bedienungsanleitung

Extron electronics

Extron electronics MTPX Plus Series Bedienungsanleitung

Key Digital

Key Digital Champion KD-16x16CS Bedienungsanleitung

Shinybow USA

Shinybow USA SB-8811 Bedienungsanleitung

Optimus

Optimus Compact Bedienungsanleitung
