Kramer VP-420 Bedienungsanleitung

Kramer Electronics, Ltd.

USER MANUAL







Models:

VP-420,

PC/HD Scaler

VP-421,

PC/HD Scaler

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 2

Overview 3

Your PC/HD Scaler 4

4.1

Your VP-420 PC/HD Scaler 4

4.2

Your VP-421 PC/HD Scaler 6

Connecting the VP-420/VP-421 PC/HD Scaler 7

Operating the VP-420/VP-421 8

6.1

Using the Front Panel Buttons 8

6.2

Using the OSD 9

6.2.1

Using the Front Panel Buttons 9

6.2.2

The MAIN MENU 10

6.2.3

The “OUTPUT” Submenu 10

6.2.4

The “OSD” Submenu 11

Technical Specifications 11

Figures

Figure 1: VP-420 PC/HD Scaler – Front and Rear View 5

Figure 2: VP-421 PC/HD Scaler – Front and Rear View 6

Figure 3: Connecting the VP-420 PC/HD Scaler 8

Tables

Table 1: VP-420 PC/HD Scaler Front Panel Features 5

Table 2: VP-421 PC/HD Scaler Front Panel Features 6

Table 3: 15-pin HD PINOUT for HD 7

Table 4: The MAIN MENU Parameters and Functions 10

Table 5: The “OUTPUT” Submenu – Available Resolutions 10

Table 6: The “OSD” Submenu – Available Adjustments 11

Table 7: Technical Specifications of the VP-420/VP-421 PC/HD Scaler 11

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

1,000-plus different models now appear in 11 groups

that are clearly

defined by function.

Thank you for purchasing your Kramer VP-420 or VP-421 PC/HD Scaler.

These products are ideal for:

Projection systems in conference rooms, boardrooms, hotels and

churches

Home theater up-scaling

The package includes the following items:

VP-420 or VP-421 PC/HD Scaler

Power adapter (5V DC input)

This user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

Review the contents of this user manual

Use Kramer high-performance high-resolution cables

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

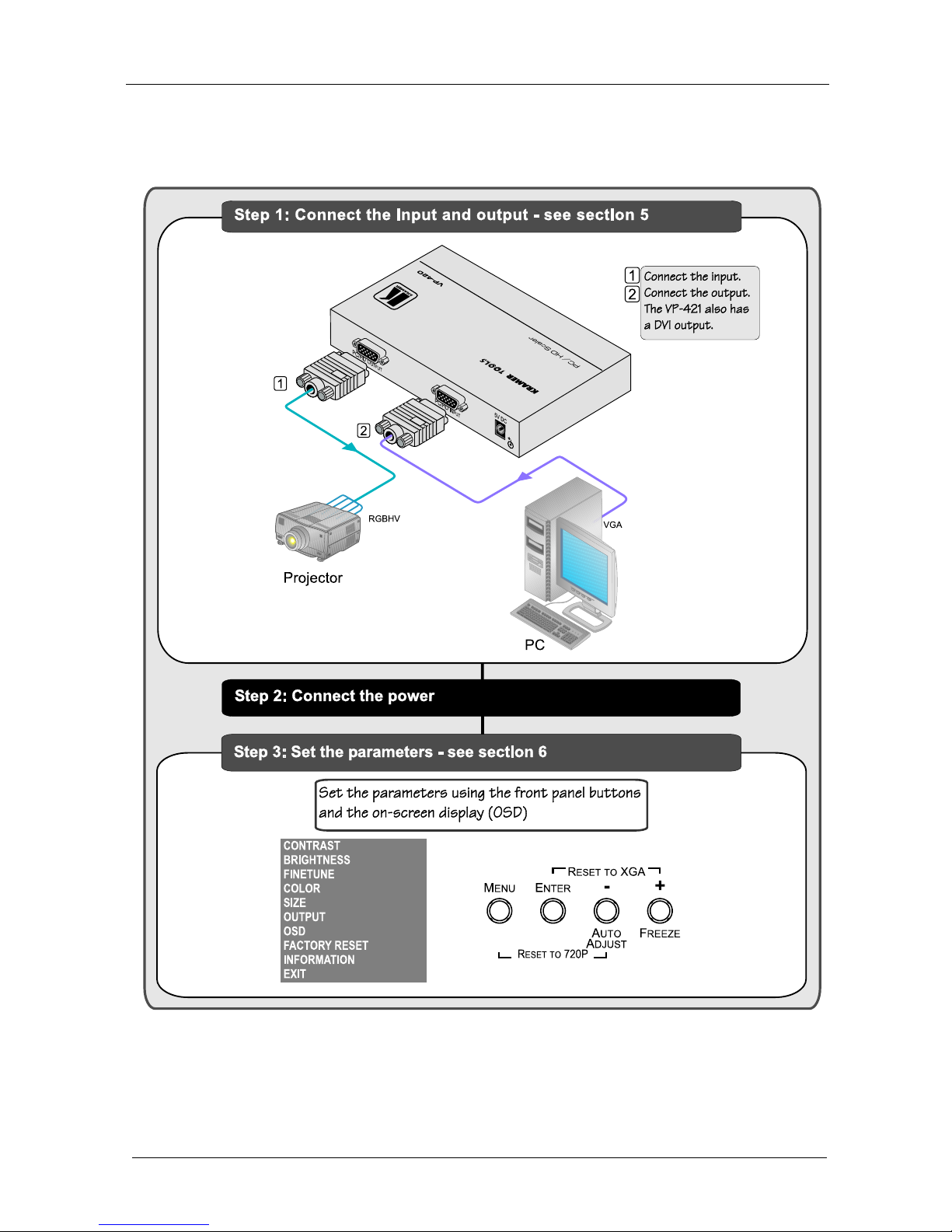

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

Overview

3 Overview

The Kramer VP-420/VP-421 PC/HD Scaler is a high-performance digital

scaler for computer graphics and HDTV signals. It up- or down-scales

computer graphics and HDTV signals to resolutions up to WUXGA and

1080p. The following output resolutions are supported:

PC: VGA (640x480), SVGA (800x600), XGA (1024x768), 1280x800,

SXGA (1280x1024), WXGA (1366x768), SXGA+ (1400x1050),

WXGA+ (1440x900), WSXGA (1680x1050), WUXGA (1920x1200)

HDTV: 480p, 480i, 576p, 576i, 720p @50/60Hz, 1080p @50/60Hz, 1080i

@50/60Hz.

The VP-420/VP-421 PC/HD Scaler also features:

An On-Screen Display (OSD) for easy setup and adjustment, accessible

via the IR remote control and via the front-panel buttons

A built-in ProcAmp for convenient signal adjustment

A non-volatile memory that retains the last settings used

Quick auto-adjust

Freeze button

RGBHV or component video input and/or output

The machine is fed from an external 5V DC source, making it suitable for

field operation.

Operate your VP-420/VP-421 directly via the front panel push buttons and

the on-screen display (OSD).

To achieve the best performance:

Use only good quality connection cables

to avoid interference,

deterioration in signal quality due to poor matching, and elevated

noise levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances that

may adversely influence signal quality and position your Kramer

VP-420/VP-421 away from moisture, excessive sunlight and dust

1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your PC/HD Scaler

Caution – No operator-serviceable parts inside unit.

Warning – Use only the Kramer Electronics input power

wall adapter that is provided with this unit

Warning – Disconnect power and unplug unit from wall

before installing or removing device or servicing unit.

4 Your PC/HD Scaler

For a description of the:

VP-420 PC/HD Scaler, see section 4.1

VP-421 PC/HD Scaler, see section 4.2

4.1 Your VP-420 PC/HD Scaler

Figure 1 and Table 1 define the VP-420 PC/HD Scaler:

1 For example, part number 2535-052002

Your PC/HD Scaler

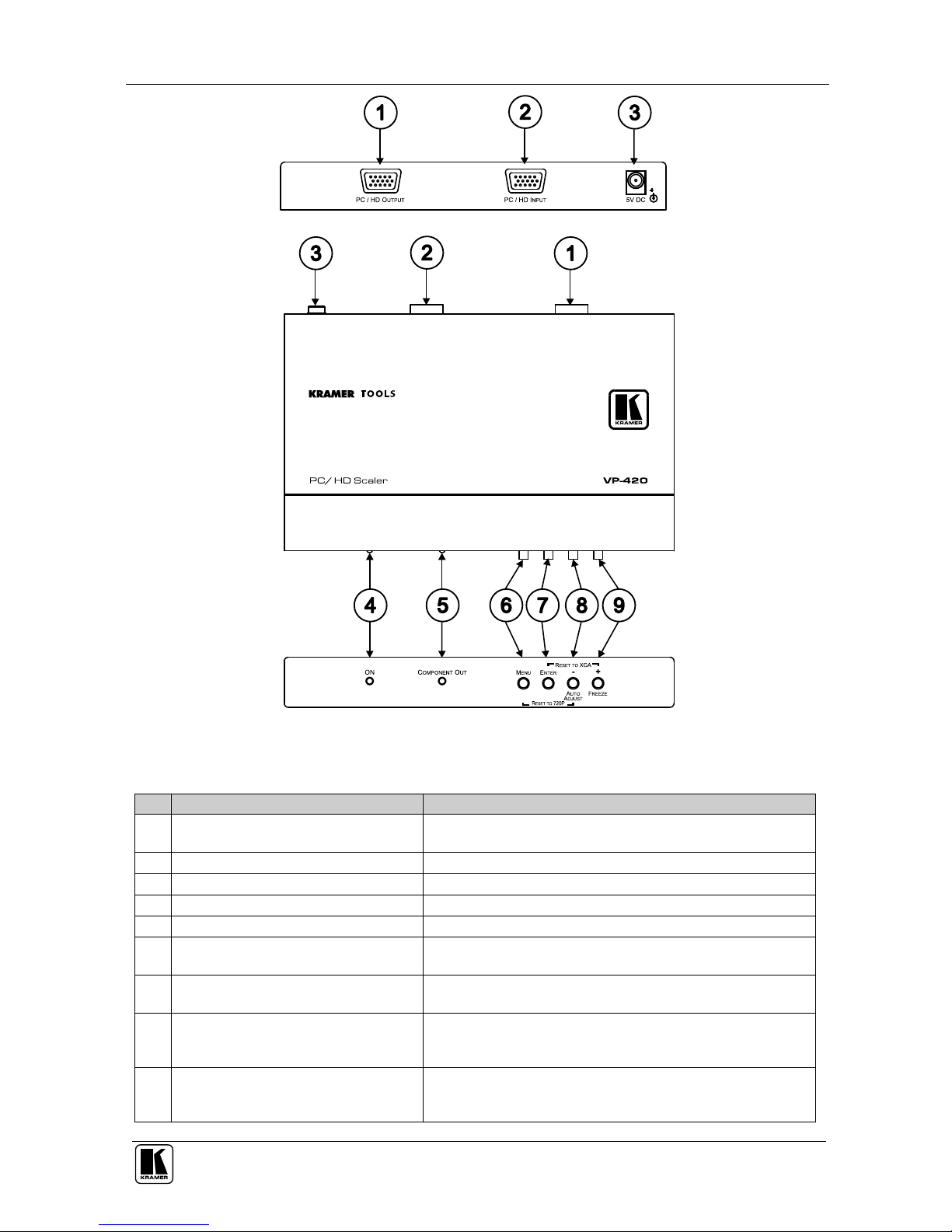

Figure 1: VP-420 PC/HD Scaler – Front and Rear View

Table 1: VP-420 PC/HD Scaler Front Panel Features

# Feature Function

1 PC/HD OUTPUT 15-pin HD

connector

Connects to computer graphics or HDTV acceptor

2 PC/HD INPUT 15-pin HD connector Connects to computer graphics or HDTV source

3 5V DC +5V DC connector for powering the unit

4 ON LED Lights when the unit is powered on

5 COMPONENT OUT LED Lights when component video is output

6 MENU button Press to enter/escape the on-screen display (OSD) menu.

Press together with the – button to reset to 720p

7 ENTER button In OSD, press to choose the highlighted menu item.

Press together with the + button to reset to XGA

8 – /AUTO ADJUST button In OSD, press to move backward through the list or to

decrement the parameter value. When not in OSD, press to

automatically adjust the picture to fit the display

9 +/FREEZE button In OSD, press to move forward through the list or to

increment the parameter value. When not in OSD, press to

freeze the display

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your PC/HD Scaler

4.2 Your VP-421 PC/HD Scaler

Figure 2 and Table 2 define the VP-421 PC/HD Scaler:

Figure 2: VP-421 PC/HD Scaler – Front and Rear View

Table 2: VP-421 PC/HD Scaler Front Panel Features

# Feature Function

1 PC/HD OUTPUT 15-pin HD

connector

Connects to computer graphics or HDTV acceptor

2 DVI OUTPUT DVI connector Connects to DVI acceptor

3 PC/HD INPUT 15-pin HD connector Connects to computer graphics or HDTV source

4 5V DC +5V DC connector for powering the unit

5 ON LED Lights when the unit is powered on

6 COMPONENT OUT LED Lights when component video is output

7 MENU button Press to view the on-screen display (OSD) menu.

Press together with the – button to reset the display to 720p

resolution

8 ENTER button In OSD, press to choose the highlighted menu item.

Press together with the + button to reset to XGA

Connecting the VP-420/VP-421 PC/HD Scaler

# Feature Function

9 – /AUTO ADJUST button In OSD, press to move backward through the list or to

decrement the parameter value. When not in OSD, press to

automatically adjust the picture to fit the display

10 +/FREEZE button In OSD, press to move forward through the list or to

increment the parameter value. When not in OSD, press to

freeze the display

5 Connecting the VP-420/VP-421 PC/HD Scaler

To connect your VP-420/VP-421, as illustrated in the example in Figure 3

do the following:

1. Connect a computer graphics or HDTV source to the PC/HD INPUT 15-pin

HD connector.

2. Connect to the PC/HD OUTPUT 15-pin HD connector to a computer

graphics or HDTV acceptor as follows:

When connecting to an XGA acceptor (RGBHV), then

connect to the acceptor’s XGA connector

When connecting to a component acceptor (YPbPr), then

connect as shown in Table 3

Table 3: 15-pin HD PINOUT for HD

PIN # Signal

1 Pr

2 Y

3 Pb

6, 7, 8 Ground

3. If connecting a VP-421, connect the DVI OUTPUT to a DVI acceptor

4. Connect the 5V DC power adapter to the power socket and connect the

adapter to the mains electricity (not shown in Figure 3).

1 The VP-421 outputs on both the 15-pin HD connector and the DVI connector. You can connect to either output or to both of

them simultaneously

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Operating the VP-420/VP-421

Figure 3: Connecting the VP-420 PC/HD Scaler

6 Operating the VP-420/VP-421

The VP-420/VP-421 is operated directly via the front panel buttons, and via

the OSD menu (see section 6.2).

6.1 Using the Front Panel Buttons

During normal operation (without the OSD), the front panel buttons

perform the following functions:

Pressing MENU opens the on-screen display (OSD) main menu (see

section 6.2), the next press closes the OSD

Pressing +/FREEZE freezes the display, the next press unfreezes the

display

Pressing – /AUTO ADJUST automatically centers the display

Pressing MENU and –/AUTO ADJUST together resets the display to

720p and the COMPONENT OUT LED lights

Pressing +/FREEZE and ENTER together resets the display to XGA

and the COMPONENT OUT LED turns off
