-428H2 Quick Start (P/N: 2900-300855QS REV 1)

P/N:

2900- 300855QS

Rev:

Scan for full manual

VP-428H2 Quick Start Guide

This guide helps you install and use your VP-428H2 for the first time.

Go to www.kramerav.com/downloads/VP-428H2 to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

VP-428H2 4K HDBT Transmitter/Scaler

1 Bracket set

1 Quick start guide

1 Power adapter and cord

4 Rubber feet

Step 2: Get to know your VP-428H2

Feature

Function

PROG USB Connector

Connects to a USB memory stick for programming upgrade.

2 ON LED Lights green when the unit is powered on.

IR IN 3.5mm Mini Jack

Connects to an IR sensor.

IR OUT 3.5mm Mini Jack

Connects to an IR emitter.

5 INPUT SELECT Button Press to cycle between inputs.

INPUT SELECT LEDs The selected input lights.

6 STEP-IN Button Press to activate the input on the switcher to which the VP-428H2 is connected.

7 MENU Button Press to enter/exit the on-screen display (OSD) menu. Press together with the – button to

reset to 1080p.

8 ENTER Button In OSD, press to choose the highlighted menu item. Press together with the +/FREEZE

button to reset to XGA.

9 – In OSD, press to move back through the list or to decrement the parameter value.

10 +/FREEZE Button In OSD, press to move forward through the list or to increment the parameter value. When

not in OSD, press to freeze the display.

DP IN DisplayPort Connector

Connect to a DisplayPort source.

HDMI IN Connector

Connect to an HDMI source.

13 PC IN 15-pin HD Connector Connect to a computer graphics source.

Feature

Function

AUDIO IN 3.5mm Mini Jack

Connects to an unbalanced stereo audio source.

15 DATA (G, Rx, Tx)Terminal Block

Connectors

Connect to a source for tunneling control commands via HDBaseT.

16 CTRL (G, Rx, Tx)Terminal Block

Connectors

Connect to the PC or the remote controller to control VP-428H2.

17 ETHERNET RJ-45 Connector Connect to a PC via a LAN to tunnel Ethernet data via HDBT.

HDBT OUT RJ-45 Connector

Connect to an HDBaseT receiver.

19 48V DC Power Terminal Block

Connector

Connect to the Kramer power adapter.

Step 3: Install the VP-428H2

Install VP-428H2 using one of the following methods:

•Attach the rubber feet and place the unit on a flat surface.

•Fasten a bracket (included) on each side of the unit and attach it to a flat surface.

For more information go to www.kramerav.com/downloads/VP-428H2.

•Mount the unit in a rack using an optional RK-T2B rack adapter.

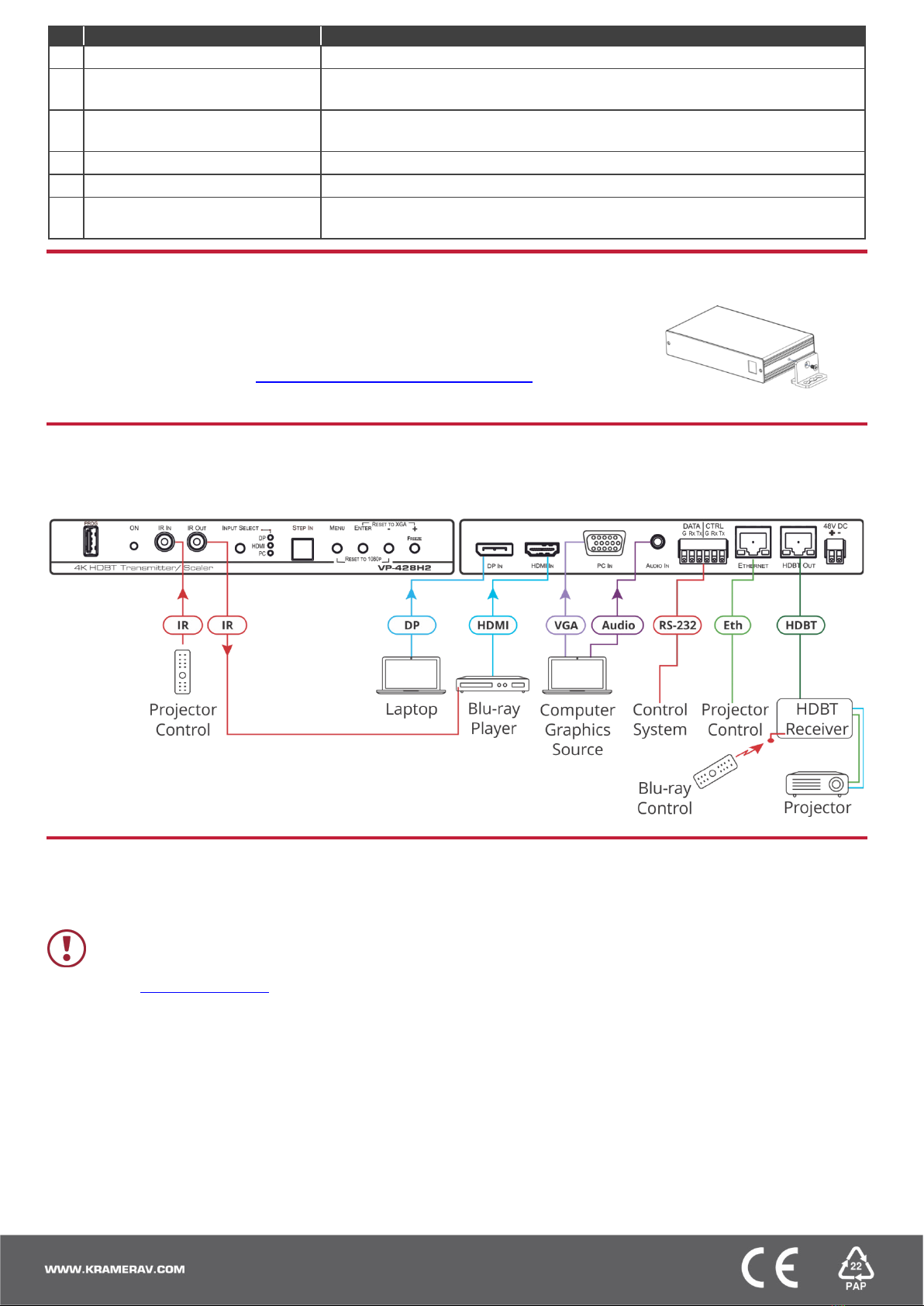

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your VP-428H2. For best results, we recommend that you

always use Kramer high-performance cables to connect AV equipment to the VP-428H2.

Step 5: Connect the power

Connect the 48V DC power adapter to the VP-428H2 and plug the adapter into the mains.

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the Kramer Electronics power supply that is provided with the unit.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

See www.KramerAV.com for updated safety information.
