KYMCO BET & WIN 50 Bedienungsanleitung
BET &WIN 50
PREFACE
This Service Manual describes the
technical features and servicing
procedures for the KYMCO B&W 50.
Section 1 contains the precautions for
all operations stated in this manual.
Read them carefully before any
operation is started.
Section 2 is the removal/installation
procedures for the frame covers which
are subject to higher removal/installation
frequency during maintenance and
servicing operations.
Section 3 describes the inspection/
adjustment procedures, safety rules and
service information for each part, starting
from periodic maintenance.
Sections 5 through 12 give instructions
for disassembly, assembly and adjustment
of engine parts. Section 13 is the
removal/ installation of chassis. Section
15 states the testing and measuring
methods of electrical equipment.
Most sections start with an assembly or
system illustration and troubleshooting
for the section. The subsequent pages
give detailed procedures for the section.
KWANG YANG MOTOR CO., LTD.
OVERSEAS SALES DEPARTMENT
OVERSEAS SERVICE SECTION
TABLE OF CONTENTS
GENERAL INFORMATION
1
EXHAUST MUFFLER/FRAME COVERS
2
INSPECTION/ADJUSTMENT
3
LUBRICATION SYSTEM
4
ENGINE REMOVAL/INSTALLATION
5
CYLINDER HEAD/CYLINDER/PISTON
6
KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
7
FINAL REDUCTION
8
A.C. GENERATOR
9
CRANKCASE/CRANKSHAFT
10
COOLING SYSTEM
11
CARBURETOR
12
STEERING HANDLEBAR/FRONT
WHEEL/FRONT BRAKE/FRONT
SHOCK ABSORBER/FRONT FORK
13
REAR BRAKE/REAR BRAKE
DRUN/REAR SHOCK ABSORBER`
14
ELECTRICAL EQUIPMENT
15
INSTRUMENT/SWITCHES/LIGHTS
16
EVAPORATIVE/EXHAUST EMISSION
CONTROL SYSTEM
17
CHASSIS ELECTRICAL
EQUIPMENT
ENGINE
The information and contents included in
this manual may be different from the
motorcycle in case specifications are
changed.
°Ø
E/M
www.PlanDeGraissage.org
1. GENERAL INFORMATION
1-0
BET &WIN 50
1
__________________________________________________________________________________
__________________________________________________________________________________
__________________________________________________________________________________
__________________________________________________________________________________
__________________________________________________________________________________
GENERAL INFORMATION
__________________________________________________________________________________
ENGINE SERIAL NUMBER------------------------------------------- 1- 1
SPECIFICATIONS ------------------------------------------------------ 1- 2
SERVICE PRECAUTIONS--------------------------------------------- 1- 3
TORQUE VALUES ----------------------------------------------------- 1-13
SPECIAL TOOLS ------------------------------------------------------- 1-14
LUBRICATION POINTS----------------------------------------------- 1-15
WIRING DIAGRAM ---------------------------------------------------- 1-21
TROUBLESHOOTING ------------------------------------------------- 1-22
1
www.PlanDeGraissage.org
1. GENERAL INFORMATION
1-1
BET &WIN 50

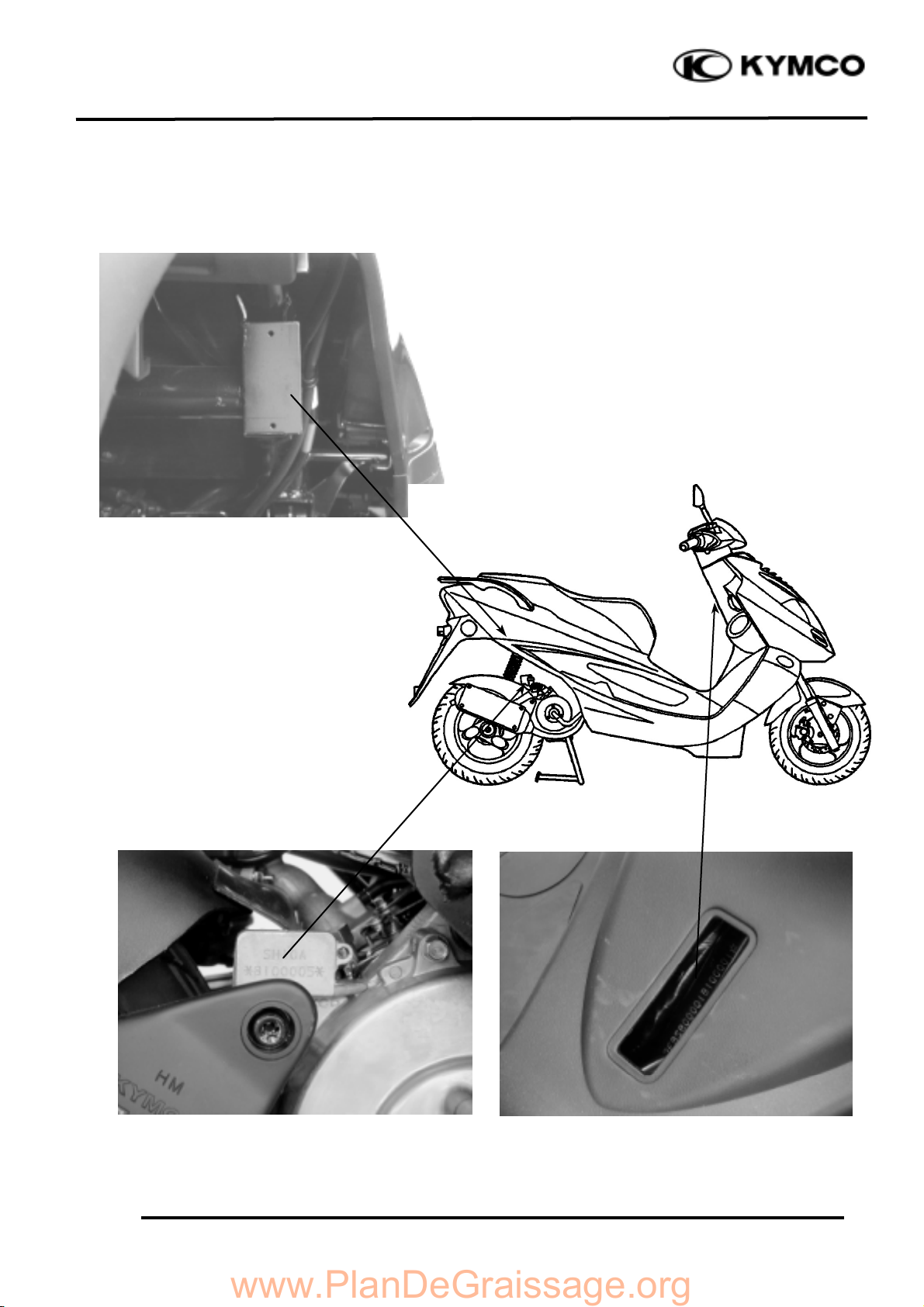

ENGINE SERIAL NUMBER
Location of Engine Serial Number
Location of Frame Serial Number
Vehicle Identification Serial Number
www.PlanDeGraissage.org
1. GENERAL INFORMATION
1-2
BET &WIN 50
SPECIFICATIONS
Name & Model No.
B&W50
Overall length
1940mm
Overall width
740mm
Overall height
1173mm
Wheel base
1352mm
Engine type
Water cooled 2-stroke
Displacement
49.4cc
Fuel Used
nonleaded gasoline
Front wheel
52.5
Net weight (kg)
Rear wheel
67.5
Total
120
Front wheel
79
Gross weight(kg)
Rear wheel
114
Total
193
Front wheel
120/70-12 56J
Rear wheel
130/70-12 59J
Ground clearance
155mm
Perform
-
Braking distance (m)
4.4m /30km/H
ance
Min. turning radius
2300mm
Starting system
Starting motor &
Kick starter
Type
Gasoline,2-stroke
Cylinder arrangement
Single cylinder
Combustion chamber type
Semi-sphere
Bore x stroke (mm)
39.0 x 41.4
Compression ratio
7.2:1
Compression pressure
(kg/cm_-rpm)
11.8
Max. output (kw/rpm)
3.09/6500
Max. torque (kg-m/rpm)
0.5/6000
Intake
Open
Port
(1mm)
Close
timin
g
Exhaust
Open
(1mm)
Close
Valve
Intake
clearance (cold)
Exhaust
Idle speed (rpm)
2000±100rpm
Lubrication type
Separate type
Oil pump type
Plunger type
Oil filter type
Full-flow filtration
Oil capacity
1.1 liters
Exchanging
capacity
0.9 liters
Cooling Type
Water cooling
Air cleaner type & No
Sponge wet
Gear oil capacity
0.12 liters
Fuel capacity
10 liters
Type
¢fi¢–
Piston dia.
13
Venturi dia.
14 equivalent
Type
CDI
Ignition timing
13.5°±2°/2000rpm
Spark plug
NGK
BR8HSA
Spark plug gap
0.6_0.7mm
Battery
Capacity
12V4AH
Clutch
Type
Dry multi-disc clutch
Type
Non-stage transmission
Operation
Automatic
centrifugal
type
Type
Two-stage reduction
Reduction
1st
ratio
2nd
Front
Caster angle
Axle
Connecting rod
Tire pressure
Front
1.75
(kg/cm_)
Rear
2.25
Turning
Left
42.5°
angle
Right
42.5°
Brake system
Front
Disk brake
type
Rear
Drum brake
Suspension
Front
Telescope
type
Rear
Unit
Frame type
Under pipe
Tires
Engine
Fuel System
Carburetor
Electrical Power Drive System
Reduction
Gear
Moving Device Damping
Device
Ignition System
System
Transmis-
sion Gear
www.PlanDeGraissage.org
1. GENERAL INFORMATION
1-3
BET &WIN 50

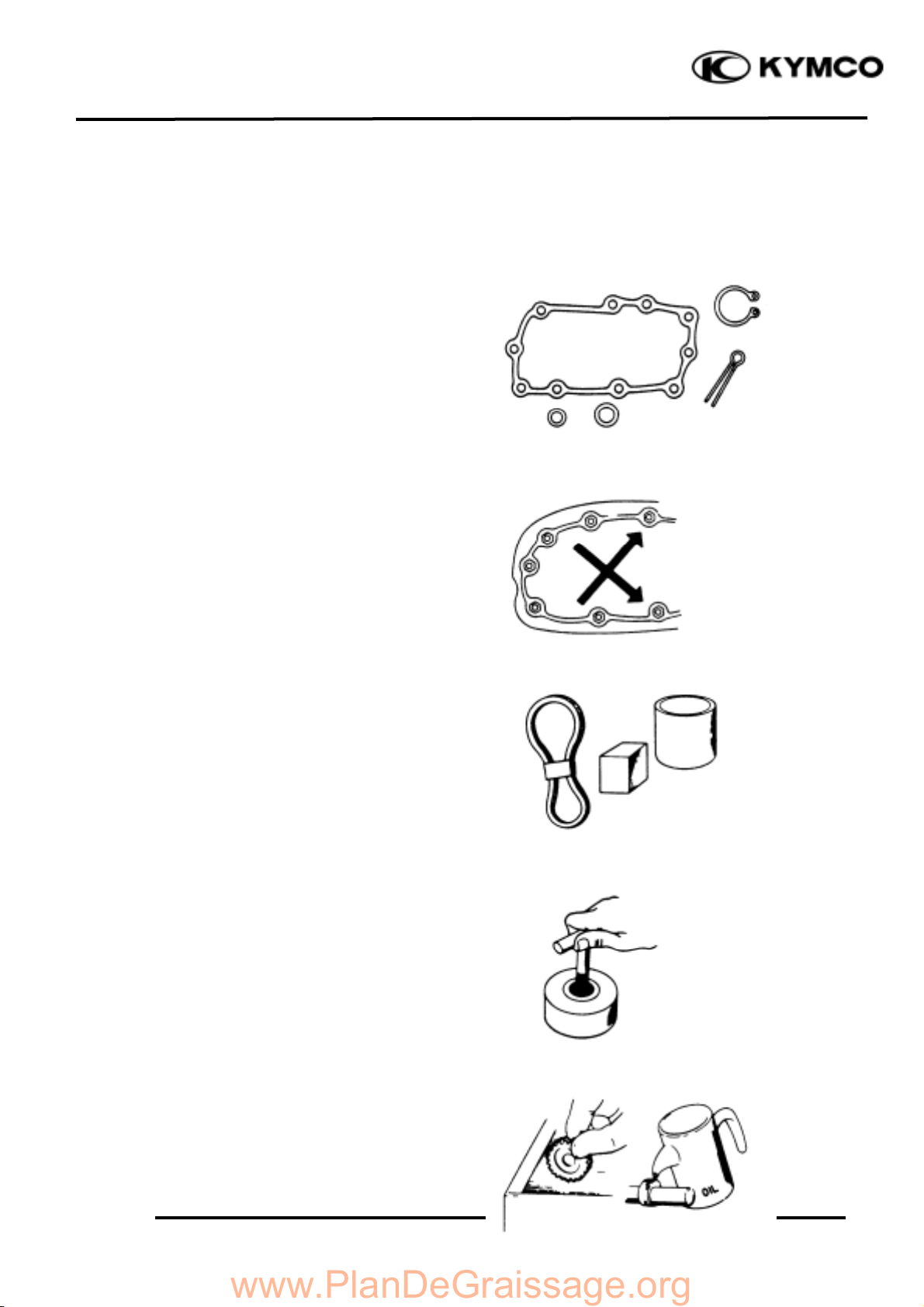

SERVICE PRECAUTIONS
Make sure to install new gaskets, O-
rings, circlips, cotter pins, etc. when
reassembling.
When tightening bolts or nuts, begin with
larger-diameter to smaller ones at several
times, and tighten to the specified torque
diagonally.
Use genuine parts and lubricants.
When servicing the motorcycle, be sure to
use special tools for removal and
installation.
After disassembly, clean removed parts.
Lubricate sliding surfaces with engine oil
before reassembly.
KYMCO
KYMCO
KYMCO
www.PlanDeGraissage.org
1. GENERAL INFORMATION
1-4
BET &WIN 50

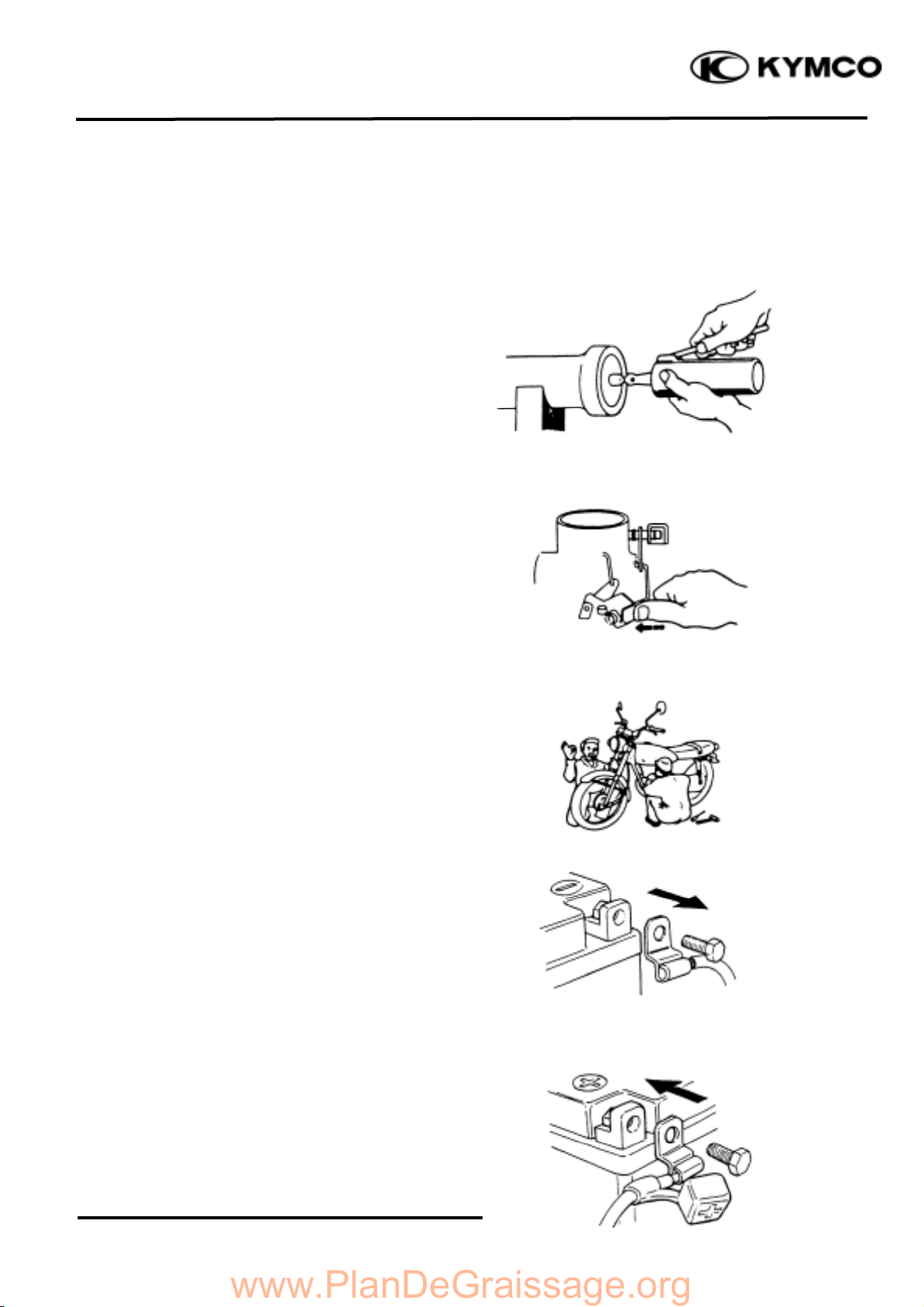

Apply or add designated greases and
lubricants to the specified lubrication
points.
After reassembly, check all parts for
proper tightening and operation.
When two persons work together, pay
attention to the mutual working safety.
Disconnect the battery negative (-)
terminal before operation.
When using a spanner or other tools,
make sure not to damage the motorcycle
surface.
After operation, check all connecting
points, fasteners, and lines for proper
connection and installation.
When connecting the battery, the positive
(+) terminal must be connected first.
After connection, apply grease to the
battery terminals.
Terminal caps shall be installed securely.
KYMCO
www.PlanDeGraissage.org
1. GENERAL INFORMATION
1-5
BET &WIN 50

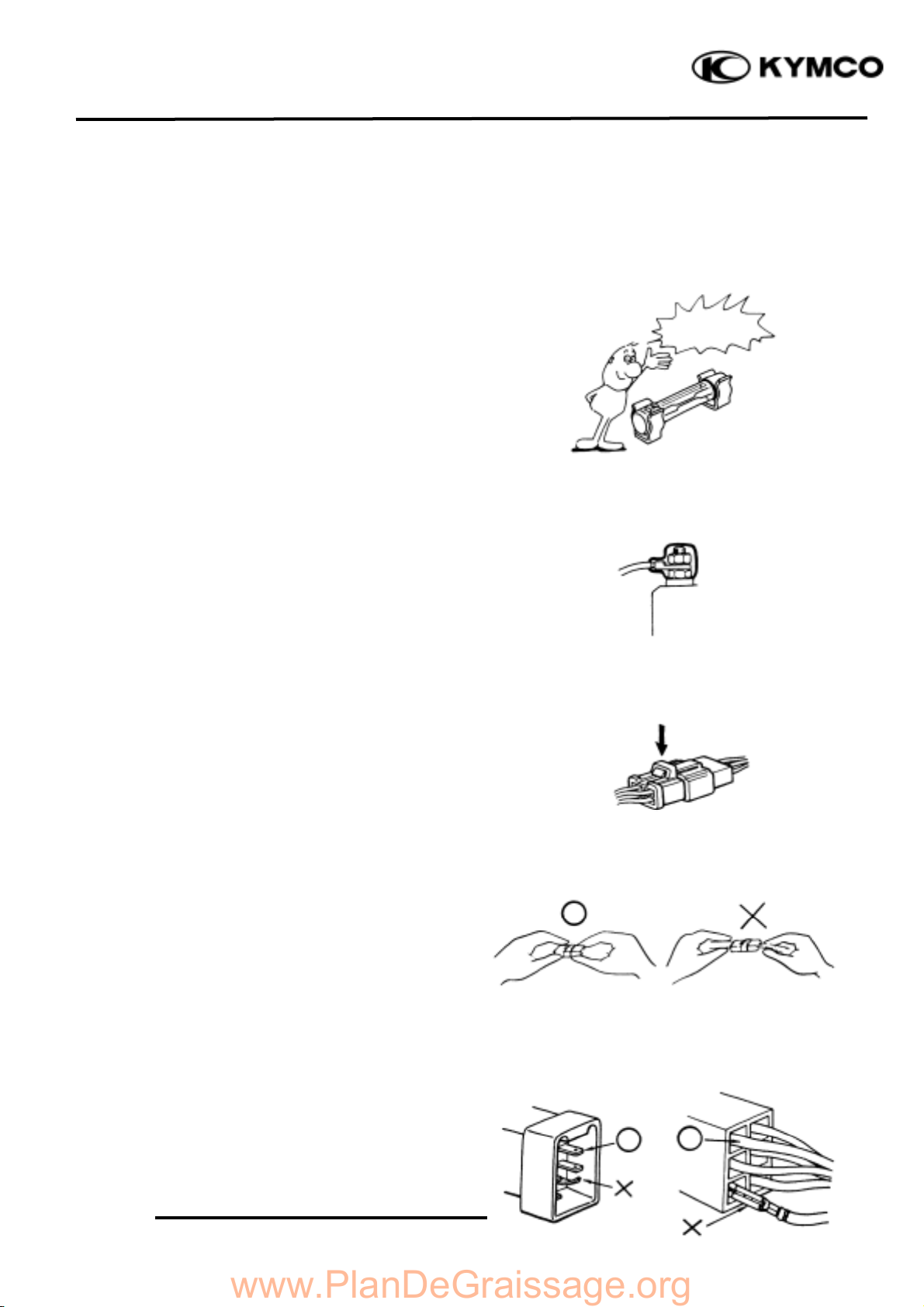

If the fuse is burned out, find the cause
and repair it. Replace it with a new one
according to the specified capacity.
After operation, terminal caps shall be
installed securely.
When taking out the connector, the lock
on the connector shall be released before
operation.
Hold the connector body when
connecting or disconnecting it.
Do not pull the connector wire.
Check if any connector terminal is
bending, protruding or loose.
Confirm
Capacity
www.PlanDeGraissage.org
1. GENERAL INFORMATION
1-6
BET &WIN 50

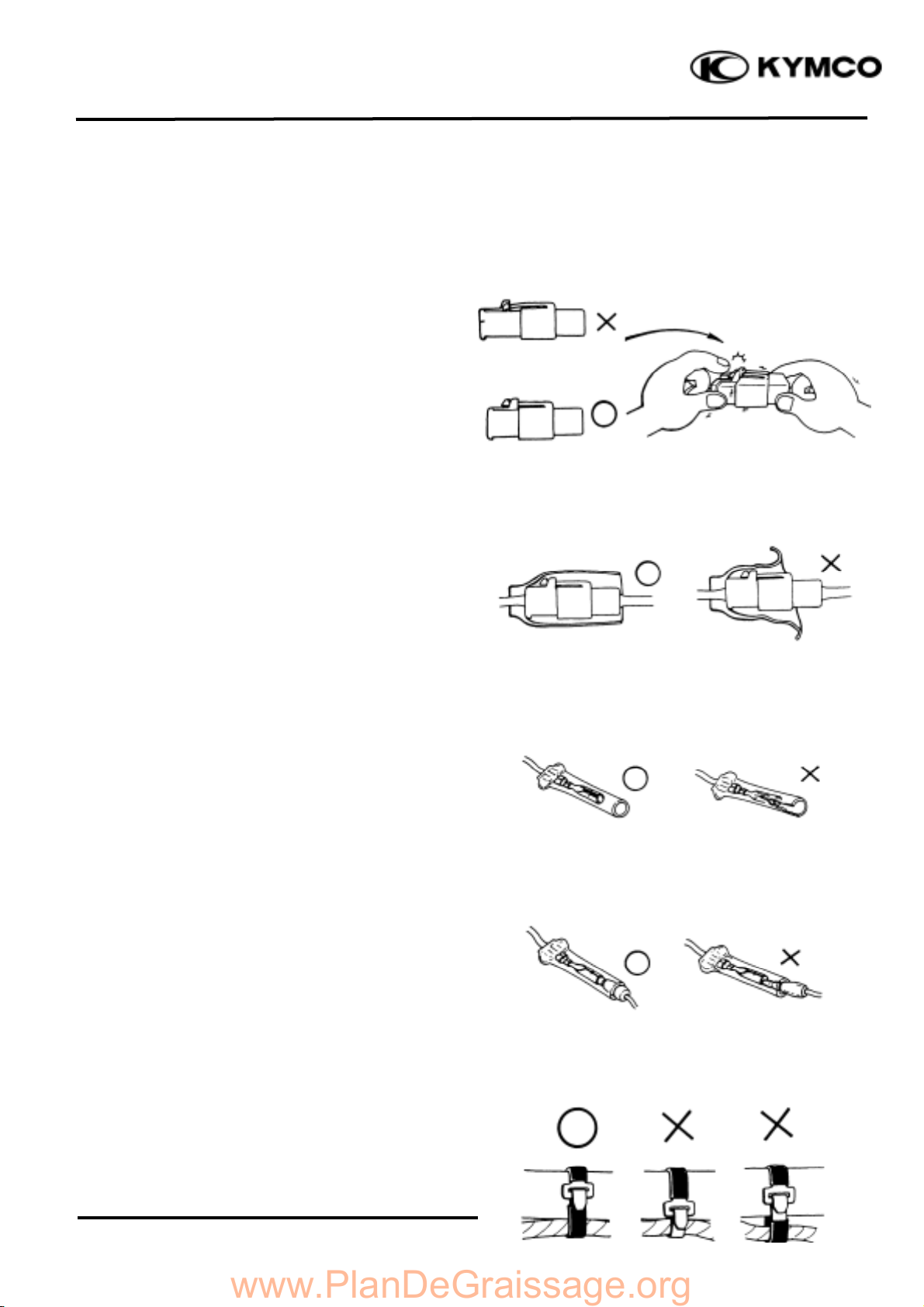

The connector shall be inserted
completely.
If the double connector has a lock, lock
it at the correct position.
Check if there is any loose wire.
Before connecting a terminal, check for
damaged terminal cover or loose
negative terminal.
Check the double connector cover for
proper coverage and installation.
Insert the terminal completely.
Check the terminal cover for proper
coverage.
Do not make the terminal cover opening
face up.
Secure wire harnesses to the frame with
their respective wire bands at the
designated locations.
Tighten the bands so that only the insulated
surfaces contact the wire harnesses.
Snapping!
www.PlanDeGraissage.org
1. GENERAL INFORMATION
1-7
BET &WIN 50

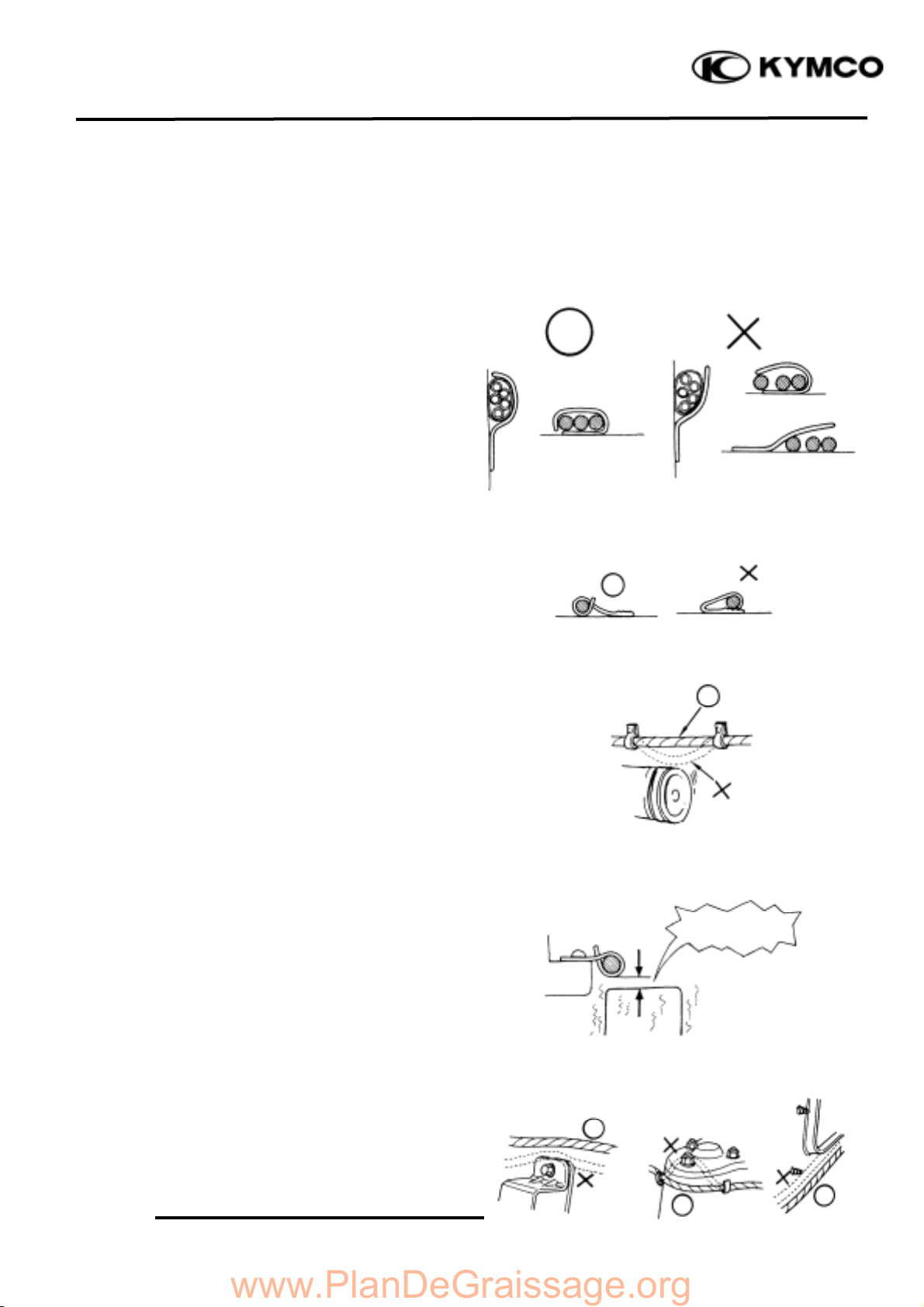

After clamping, check each wire to make
sure it is secure.
Do not squeeze wires against the weld or
its clamp.
After clamping, check each harness to
make sure that it is not interfering with
any moving or sliding parts.
When fixing the wire harnesses, do not
make it contact the parts which will
generate high heat.
Route wire harnesses to avoid sharp
edges or corners. Avoid the projected
ends of bolts and screws.
Route wire harnesses passing through the
side of bolts and screws. Avoid the
projected ends of bolts and screws.
No Contact !
www.PlanDeGraissage.org
1. GENERAL INFORMATION
1-8
BET &WIN 50

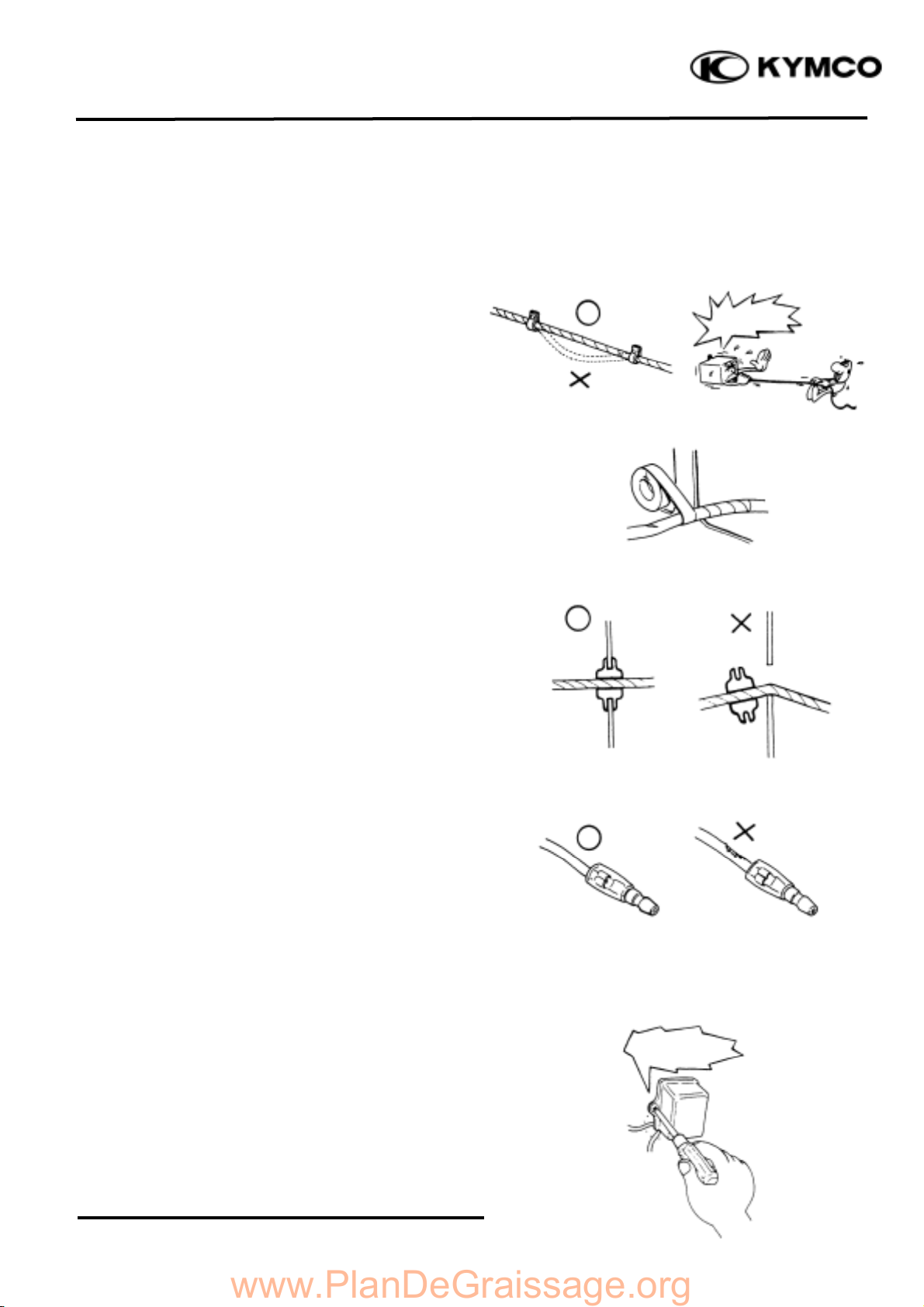

Route harnesses so they are neither
pulled tight nor have excessive slack.
Protect wires and harnesses with
electrical tape or tube if they contact a
sharp edge or corner.
When rubber protecting cover is used to
protect the wire harnesses, it shall be
installed securely.
Do not break the sheath of wire.
If a wire or harness is with a broken
sheath, repair by wrapping it with
protective tape or replace it.
When installing other parts, do not press
or squeeze the wires.
Do not
pull too
tight!
Do not press or
squeeze the wire.
www.PlanDeGraissage.org
