Larson Electronics EPL-TP-2XRUL10 Bedienungsanleitung

EPL-TP-2XRUL10

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

1of 3

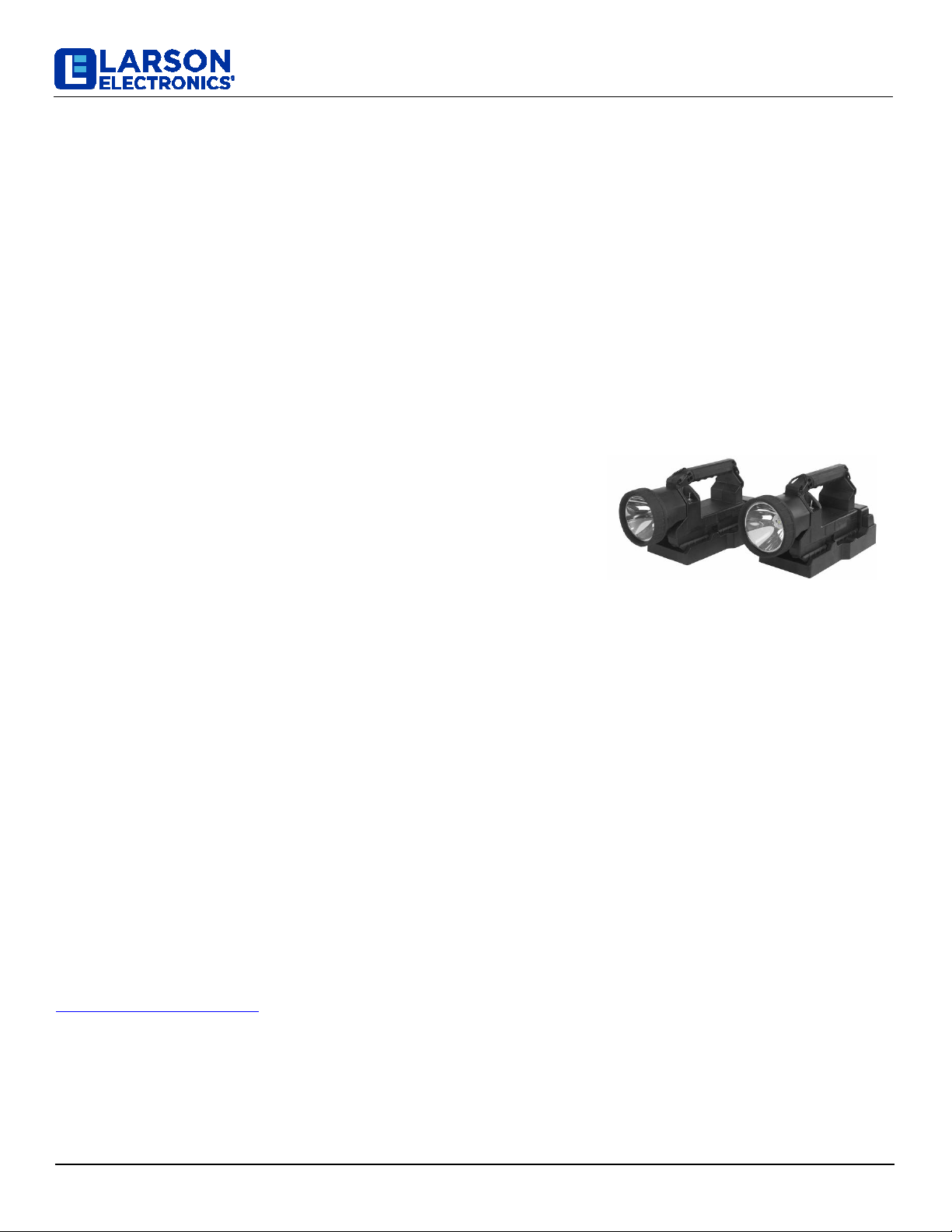

Explosion Proof Rechargeable Light Tower

Two Portable Light Heads - 16 Hour Runtime

Instruction Manual

Do not attempt operation until you are familiar with all warnings, precautions, and procedures outlined within this

instruction sheet. Read carefully before operating. Retain these instructions for future reference.

The EPL-TP-2XRUL10 Explosion Proof Rechargeable LED Light Tower is Class 1 Divisions 1 & 2 and Class 2 Divisions 1

& 2 approved and provides up to 16 hours of runtime on a single charge. Two high output removable LED assemblies,

versatile charging options, lithium-ion batteries, and articulating lamp heads are only a few of its features. The durability

and power of this rechargeable portable light tower make it ideal for applications including emergency services, utility

work, hazardous locations and more. With proper care and maintenance, this light tower will provide long, dependable

service. Please take a moment to read this instruction sheet before using your new lantern. It provides important safety

and operating instructions.

NOTICE

•Before using the lantern or battery charger, read all instructions and cautionary markings on the unit.

CAUTION: Do not attempt to use that charger to recharge any other product. Also do not attempt to use any other

charger to recharge your lantern.

•Do not operate a damaged charger. Replace damaged cords or charger immediately. Do not try to repair a

damaged lantern or charger yourself. Should your charger fail to operate for any reason, contact our service

center, Larson Electronics at 1-800-369-6671, for further instructions.

•Do not abuse the cord. Never carry the charger by the cord or disconnect the charger from a receptacle by

pulling the cord.

•Unplug power adapter and remove lantern from charger before performing any routine cleaning or maintenance.

•Do not place any metal objects onto the charging terminal located in the charger.

•Do not incinerate or leave the battery pack near a heat source such as a radiator, fireplace, stove, or any other

heat-generating appliance. When exposed to high temperatures, the battery pack could explode and possibly

cause a fire.

•Do not disassemble or mistreat a battery pack or store a battery pack where it could come in contact with

metal objects that could short circuit the battery pack terminals. The resulting current can cause high

temperatures and damage to the battery pack and also can cause burns and possibly fire.

•Please refer to local ordinances concerning battery recycling and disposal.

•Use of this product for other than a lighting device is not recommended. Manufacturer specifically

disclaims liability for other than recommended use.

•The direct wire feature for this charger is intended for power sources between 12 to 24VDC. Attempting to

direct wire to any other power source will cause severe damage to the charger.

•Be sure to check the AC adapter voltage rating to ensure that the required voltage and frequency match the

available power source. On the right side of the lantern is a low battery LED indicator.

*For 4 and 6 cell lanterns, approximately 30 minutes of runtime remains when the indicator is activated.

*For 8 cell lanterns, approximately 60 minutes of runtime remains when the indicator is activated.

•If your lantern includes a carrying strap, attach the strap to the rings using the quick connect clips provided

on the strap.

EPL-TP-2XRUL10

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

2of 3

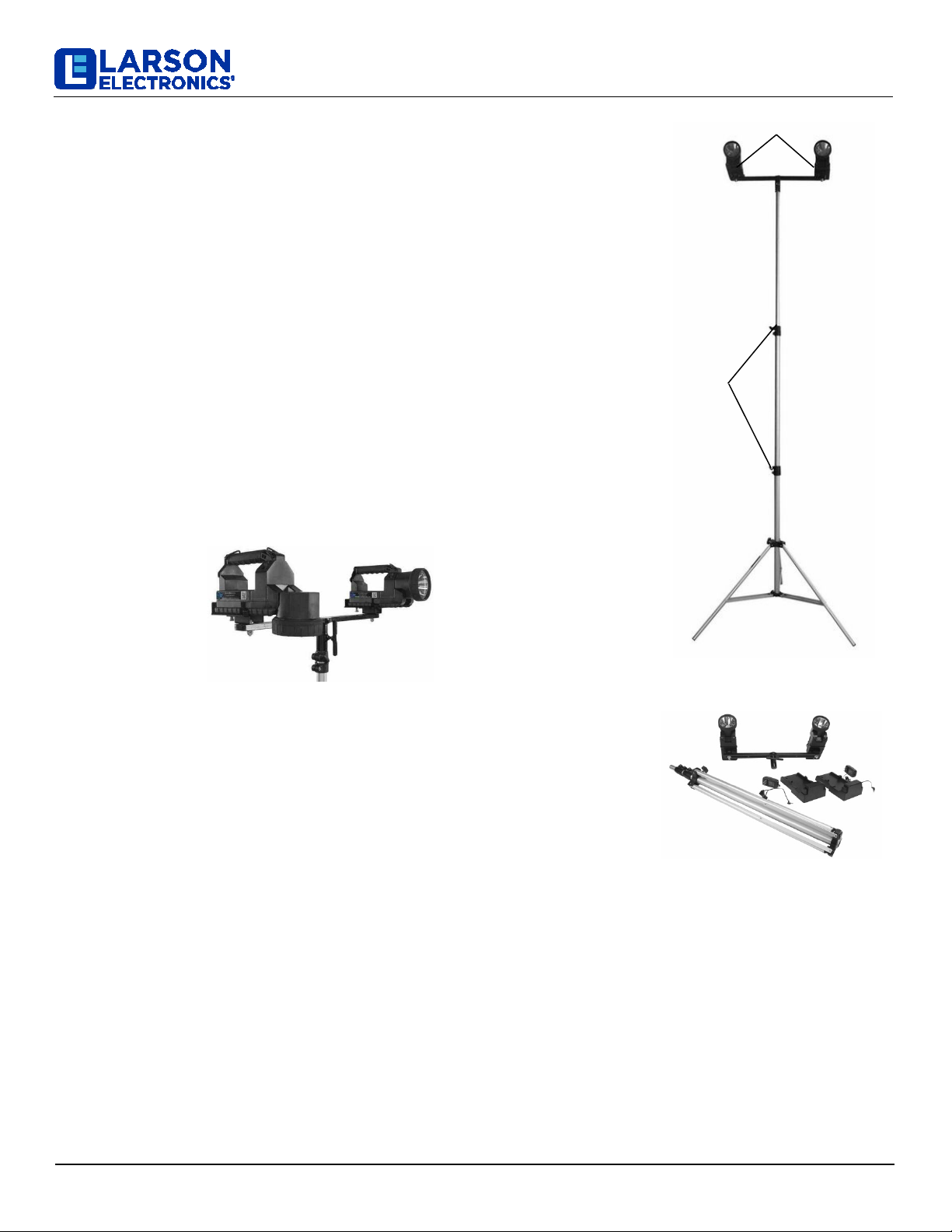

Light Head

Adjustment

Points

-Leg Sleeve

USING THE TRIPOD

1. To assemble the tripod, begin by loosening the black adjustment knob

on the tripod base. Slide the center pole through the adjustment sleeve

until the legs are fully deployed. Tighten adjustment knob so legs stay

fixed in place. Now you are ready to install top portion.

2. Position light head over top pole on tripod and tighten black adjustment

knob until snug.

3. Loosen black adjustment knob for each sleeve to extend tripod. Extend

top pole, then bottom pole when elevating.

4. Tighten adjustment knob once desired height is achieved.

5. Proceed to the steps below for lamp operation.

OPERATION

The removable light head features 2 Explosion Proof LED work lights with

rechargeable battery. Power is controlled individually via the power switch on

each light. Do not look directly into lights when powering.

Vertical orientation of each lamp can be adjusted independently by moving the

light head.

Each light head can be detached for portable use as needed. Simply release the

locking tab and slide the light out and up. When replacing the light, be sure

locking tab clicks in place. Entire light head T bar can be detached for stowing or

transport.

MAINTENANCE

Keep the charger free of dirt and moisture. Your charger can be cleaned with

mild soap and a damp towel. Avoid harsh detergents, abrasives, and solvents

that could damage the plastic. If wet, disconnect power adapter and allow to dry

for 2-3 days before attempting use. Periodically clean charger, contacts on

charger and lantern with electrical contact de-oxidizer. Note: For long-term storage,

discharge battery 50%, unplug adapter and remove lantern from charge base to

prevent damage to battery. To prevent accidental lighting, when packing for

transportation or storage, it is recommended that you disengage the bulb from the

power source by turning the lens ring 1/4 turn counter clockwise.

BULB REPLACEMENT

1. To replace the bulb, simply unscrew the lens ring assembly from the lantern.

2. Remove the reflector. Try not to touch the reflector surface.

3. If the bulb is hot, wait for it to cool, and then pull the bulb straight out of the bulb spring.

4. Install a new bulb.

Note: When replacing dual filament bulb, align posts on base of lamp with appropriate slots in bulb spring

mount in head. Both single and dual filament amps are pre-focused and do not need to be adjusted.

5. Replace the reflector and screw the lens ring assembly back onto the lantern.

6. Be sure to screw the lens ring assembly on firmly, but do not over-tighten.

7. Check O-ring each time bulb is replaced. If necessary, lubricate O-ring and inside lip of lens ring with

silicone grease.

8. Replace worn, scratched or cracked O-rings.

EPL-TP-2XRUL10

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

3of 3

BATTERY REPLACEMENT

1. To replace battery pack, simply remove the six screws from the bottom of the lantern and

remove the cover.

2. Disconnect the battery from the plug and replace with new battery pack by joining male and

female plugs together.

3. Make sure to place pack to rear of lantern housing such that is in contact with rear screw posts.

4. Replace cover and install screws and verify that cover is flush against lantern housing. Do not

over-tighten!

MOUNTING THE CHARGER

•The charger can be mounted in any position.

•Use the 4 screws provided to safely secure charger to mounting surface. Use caution to not over-

tighten mounting screws.

•The charger housing is not weatherproof or submersible. Care should be taken to locate the

charger in a clean, dry place.

INSERTING LANTERN IN CHARGE BASE

The charger is equipped with tow prongs that align with notches in the

base of the lantern. Simply align these parts and apply minimum force

to slide the lantern back into the charger until the lantern latches into

the charger base. Using excessive force while inserting lantern may

cause damage to charger.

CHARGING OPTIONS

WARNING: Use only adapter supplied with charger. Use of any other adapter may cause damage to the

charger and lantern.

The RUL-10 can be charged using the supplied 120 VAC wall adapter plug or by direct wiring to a 12-24 VDC

power source (not supplied). For the direct wire option, the wire and co-axial jack from the wall plug adapter

can be cut off and used to make connections to the charge base. When mounting in any vehicle, please have

product professionally installed to prevent any safety hazards, personal injury and possible damage to vehicle

or product. The positive lead wire from a 12-24 VDC source must be connected to the center terminal of the

co-axial jack. The negative lead wire from the 12-24 VDC source must be connected to the center terminal of

the co-axial jack. It is recommended that a 5 amp, time delay fuse (not supplied) be connected in a series to

the positive lead of the DC power supply before the co-axial jack.

USE AND CARE

Always check damaged or worn out parts before using the work light. When work light is not in use, store it in a secure

place out of the reach of children. Inspect for good working condition prior to storage and before re-use.

These instructions may not cover all details or variations of this product for your equipment or installation requirements.

Should further information not covered by these instructions be required, please contact Larson Electronics by email at

sales@larsonelectronics.com or by phone at 1-800-369-6671 for further assistance.

Please visit larsonelectronics.com for Warranty and Return information.
