Lawmate PV-500EVO Bedienungsanleitung

CHAPTER 01 OVERVIEW 02

02 FUNCTION MODES 05

03 BASIC OPERATION 06

04 INTRODUCTION OF ALL SETTING FUNCTIONS 10

05 VIDEO PLAYBACK 22

06 VIDEO EDITING 25

07 PHOTO BROWSING 26

08 PHOTO EDITING MODE 27

09 SUPPORTED IMAGE FILE FORMAT 29

10 RECORD 30

11 REMOTE CONTROLLER 34

12 SUPPORTED VIDEO FILE FORMAT 35

13 SPECIFICATIONS 36

14 IMPORTANT 37

15 NOTE 40

PV-500EVO User Manual

TABLE OF CONTENT

Overview

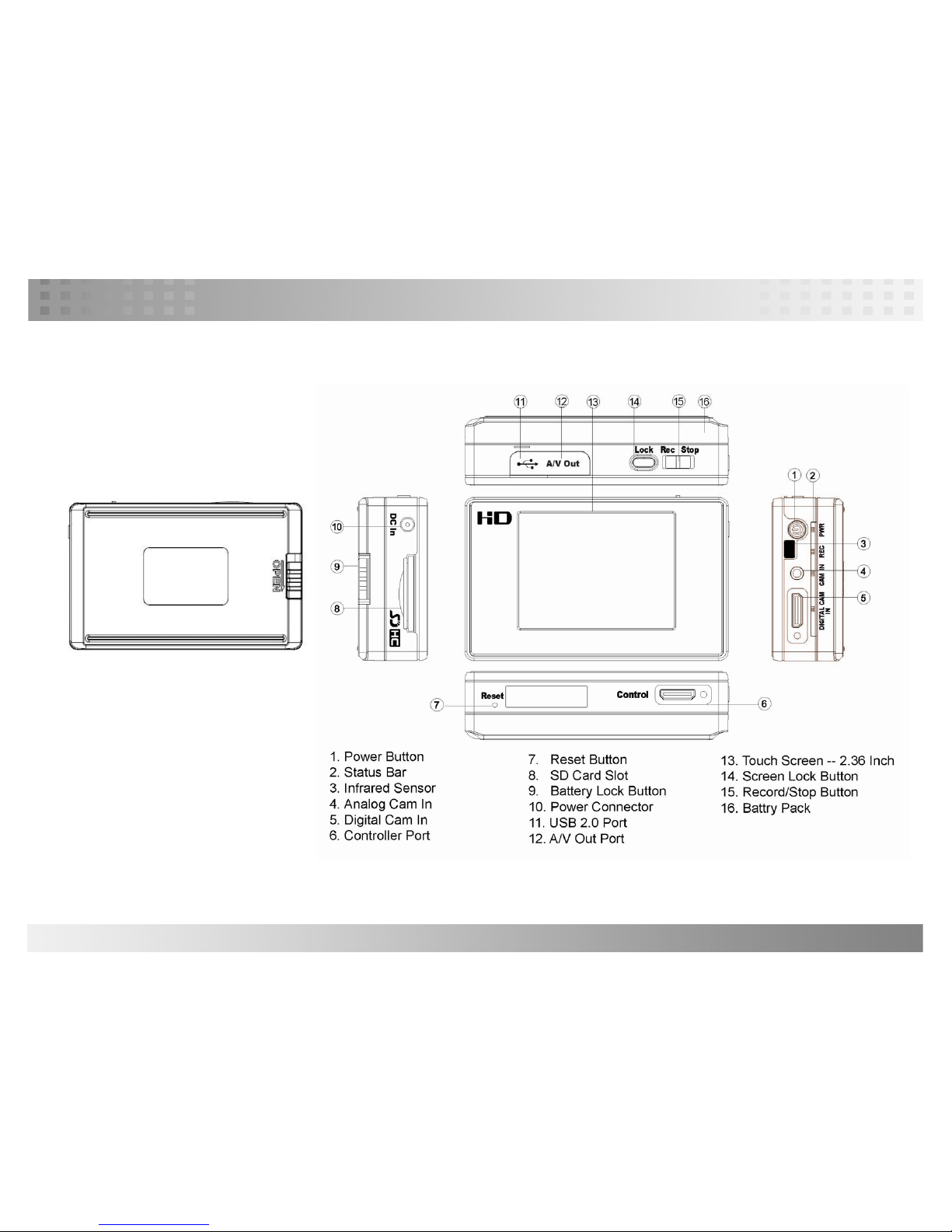

PV-500EVO Main Device

PV-500EVO User Manual

Overview

Remote control

PV-500EVO User Manual

Overview

Accessories

IR Remote Controller DC 5V Charger USB Cable

AV Cable (Camera) RCA Cable (TV) Earphone

Camera Pouch Cable Controller Controller Cable

Li-ion Battery

PV-500EVO User Manual

Function Modes

Image File

Storage /

Playback

Functional

Settings

Video File

Storage /

Playback

Recording

Function

PV-500EVO User Manual

Basic operation

Turn on/ off

To Do this

Turn On Press Power On/ Off button for 1 sec. Greeting

screen appears.

Turn Off Press Power On/Off button for 1 sec. Or press

Power button on the remote control.

Using the Touch Screen

Tap any application to start or tap an item in the list to select.

Tap icon to return last page or return back to main menu.

Tap icon or to move change menu page.

Tap icon to start function setting.

Adjust Volume

When video is replayed on DVR, tap icon / from the screen or the volume button on the remote

controller to adjust volume. Volume varies in 10 levels.

Volume status is displayed on the lower left corner of display.

PV-500EVO User Manual

Basic operation

Record button

● Start Recording:

Press the REC button on the PV-500EVO or the button on the IR remote

controller to start recording.

● Stop Recording: Press STOP button or the button on the IR remote controller

to stop recording.

Link with other equipments

● External Video Recording – Analogue Camera

Plug in an external camera into CAM IN socket to enable

recording.

● External Video Recording – Digital Camera

Plug in an external camera into DIGITAL CAM IN socket to

enable recording.

PV-500EVO User Manual PV-500EVO User Manual

Microphone

350/450/550 TV Line Camera

Video In

Audio In

Connect to other brand

of camera

Microphone

1.3 Mega Pixel Cam

Basic operation

● Output to TV Display:

Plug an RCA cable in AV-OUT output image on TV.

IMPORTANT:

To enable image output, note the display setting, Setting

> Preview > Display, required to change to “TV” instead

of “LCD”.

● Connect to PC:

● Connect to Wire Controller:

1. Connect the two ends of A/B type USB cable from PV-500EVO

to PC.

2. An indication of “USB Mode” appears on the screen for 5 sec-

onds after installation to initiate charging.

PV-500EVO User Manual

Basic operation

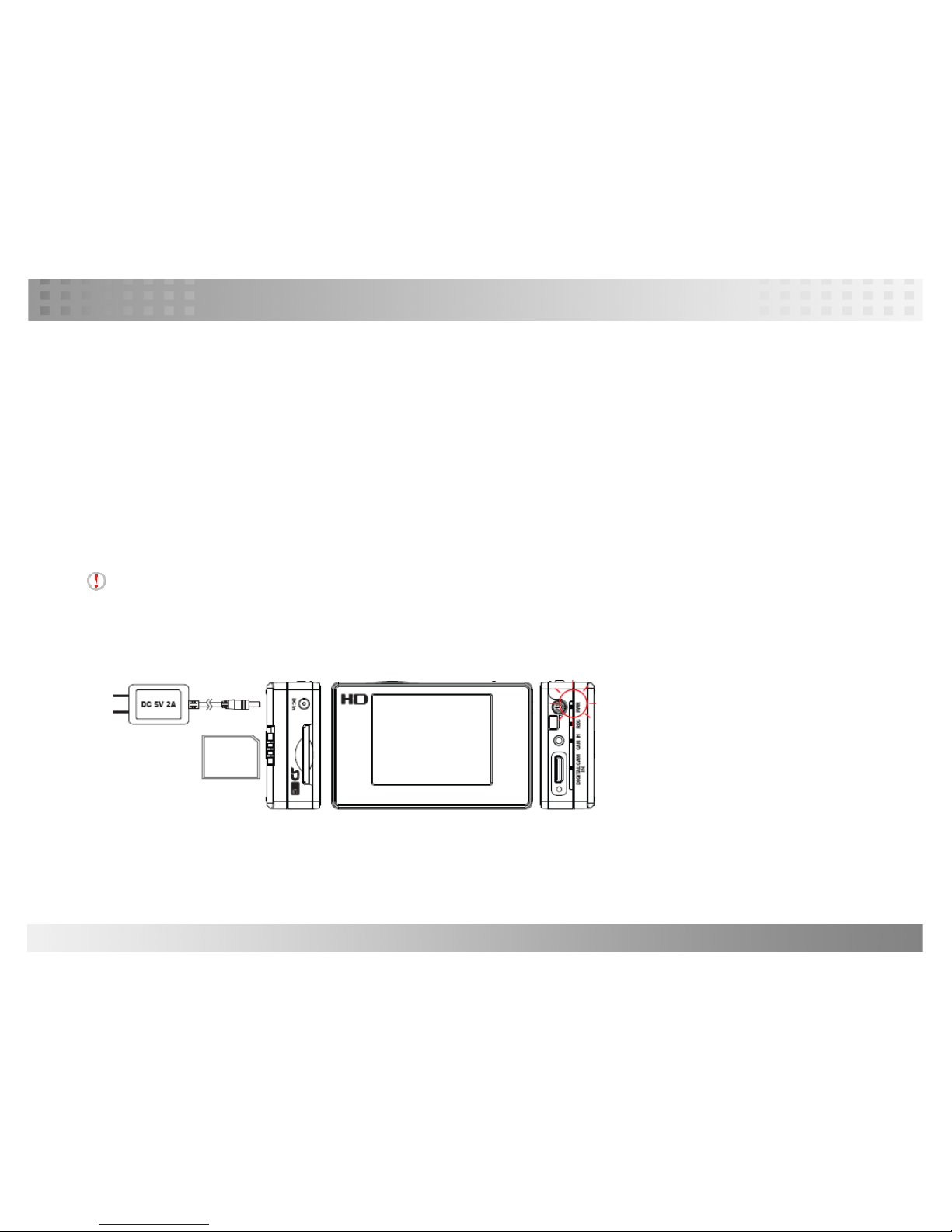

● Charging:

When the battery is low, the power LED light flashes green light and the meter shows a red bar on the battery gauge at

lower right corner of the screen. This means that you must charge the battery immediately. Connect the main device

with DC adapter and then plug the adapter into a power outlet. The LED light will flash orange light meaning that it is

charging.

Important: Please charge the battery for 12 hours continuously without disconnection on the first time use.

The LED light turns off after charging is completed. The adapter should be unplugged after charg-

ing is completed to well maintain battery life span.

PV-500EVO User Manual
