Life Gear 97320 Bedienungsanleitung

PACE MAKER PRO

OWNER’S MANUAL

MODEL#97320

The specifications of this product may vary from this photo,

subject to change without notice.

PAGE OF

CONTENTS

ONE YEAR

LIMITED

WARRANTY

Warranty 1

Important Safety

Instructions 2

Overview Drawing 4

Parts List 5

Hardware Packing List 7

Assembly Instructions 8

Operation 11

Folding Up and Setting

Down the Treadmill 12

Manual lncline

Adjustment 13

Console Operation 14

Using Your Treadmill 17

Lubrication and Running

Belt Adjustment 19

Fitness Tip 20

LifeGear Inc. warrants to the

original purchaser that this

product is free from defects in

material and workmanship when

used for the purpose intended,

under the conditions that it has

been installed and operated in

accordance with LifeGear's

Owner's Manual. LifeGear's

obligation under this warranty is

limited to replacing or repairing,

free of charge, any parts which

may prove to be defective under

normal home use. This warranty

does not include any damage

caused by improper operation,

misuse or commercial

application.

From the date of purchase, the

frame is warranted to be free

from defects for 1 (one) year.

This warranty is extended only

to the original owner and is not

transferable. When ordering

replacement parts please have

the following information ready:

1. Owner's Manual

2. Model Number

3. Description of Parts

4. Part Number

5. Date of Purchase

IMPORTANT SAFETY INSTRUCTIONS

Observe the following prior to use of the treadmill:

DANGER: To reduce the risk of electric shock, please observe the following:

zAlways unplug the treadmill from the electrical outlet immediately after using and before cleaning,

assembling, or servicing.

NOTE: Failure to follow these instructions may lead to personal injury and cause damage to the

treadmill.

WARNING: To reduce the risk of burns, fire, electric shock please observe the following:

zNever leaves the treadmill unattended when plugged in. Disconnect by turning off the master power

switch, and unplugging from outlet.

zNever operate this treadmill if it has a damaged cord or plug is not working properly, if it has been

dropped or damaged, or if it has been exposed to water.

zIf the supply cord is damaged, it must be replaced by the manufacture, its service Agent or similarly

qualified person in order to avoid a hazard.

zDo not attempt any maintenance or adjustments other than those described in this manual. Should

any problems arise, discontinue use and consult an Authorized Service Representative.

zDo not use outdoors.

zDo not operate where aerosol (spray can) products are being used or where oxygen is being

administered.

zDo not pull the treadmill by its power cord or use the cord as a

handle.

zNever operate the treadmill with the air openings blocked. Keep air

openings free of lint, hair, and the like.

zClose supervision is necessary if this treadmill is used by, or near

children, people with disabilities, or pets.

zKeep Dry-do not operates in a wet or moist condition. Save these

instructions.

zDo not operate under a blanket. Excessive heating can occur and

cause fire, electrical shock, or injury to people.

zKeep electrical cord away from heated surfaces.

zNever insert any object into any opening.

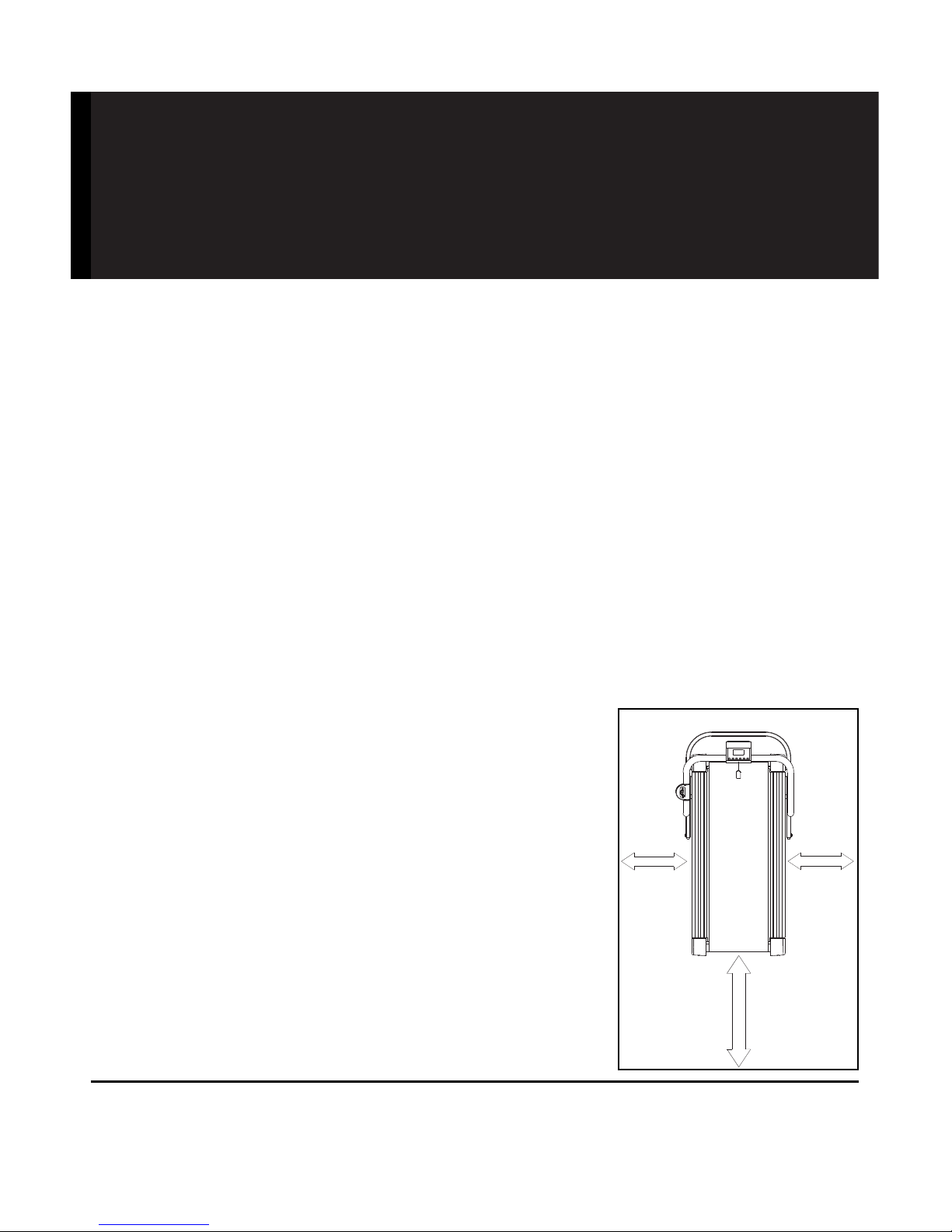

zKeep the treadmill on a solid, level surface with sides at least two feet

from any wall. Be sure the area around the treadmill remains clear

during use and has adequate clearance, see illustration below.

WARNING: Connect the treadmill to a properly grounded outlet only.

FRONT

REAR

TOP

VIEW

2 FEET MIN. 2 FEET MIN.

4 FEET MINIMUM

LEFT

SIDE RIGHT

SIDE

zThis product must be grounded. If it should malfunction or break down, grounding provides a path

of least resistance for electric current - reducing the risk of electric shock. This treadmill is

equipped with a cord having an equipment grounding connector and a grounding plug. The plug

must be plugged into an appropriate outlet that is properly installed and grounded in accordance

with all local codes and ordinances.

DANGER: Improper connection of the treadmill grounding connector can result in the risk of

electric shock. Check with a qualified electrician, if you are in doubt as to whether the

product is properly grounded. Do not modify the plug provided with the treadmill. If it

will not fit your outlet, have a properly grounded outlet installed by a qualified

electrician.

zThis unit must be plugged into a nominal 230 volt 50/60 hz, which has a grounding.

zKeep hands clear of all moving parts. Never place hands, feet under the treadmill.

zDo not use the treadmill on a carpet that is greater than 1/2 inch in height.

zBefore each use, check that the running belt is aligned and centered on the treadmill bed and all

visible fasteners on the treadmill are sufficiently tightened and secure.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM CONSULT YOUR PHYSICIAN. THIS IS

ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PEOPLE WITH PRE-EXISTING

HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. WE

ASSUME NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR

THROUGH THE USE OF THIS PRODUCT.

DO NOT OPERATE THIS EXERCISE EQUIPMENT WITHOUT PROPERLY FITTED GUARDS, AS THE

MOVING PARTS CAN PRESENT A RISK OF SERIOUS INJURY TO YOUNG CHILDREN.

CAUTION: Read all instructions carefully before operating this product. Retain this Owner's Manual

for future reference.

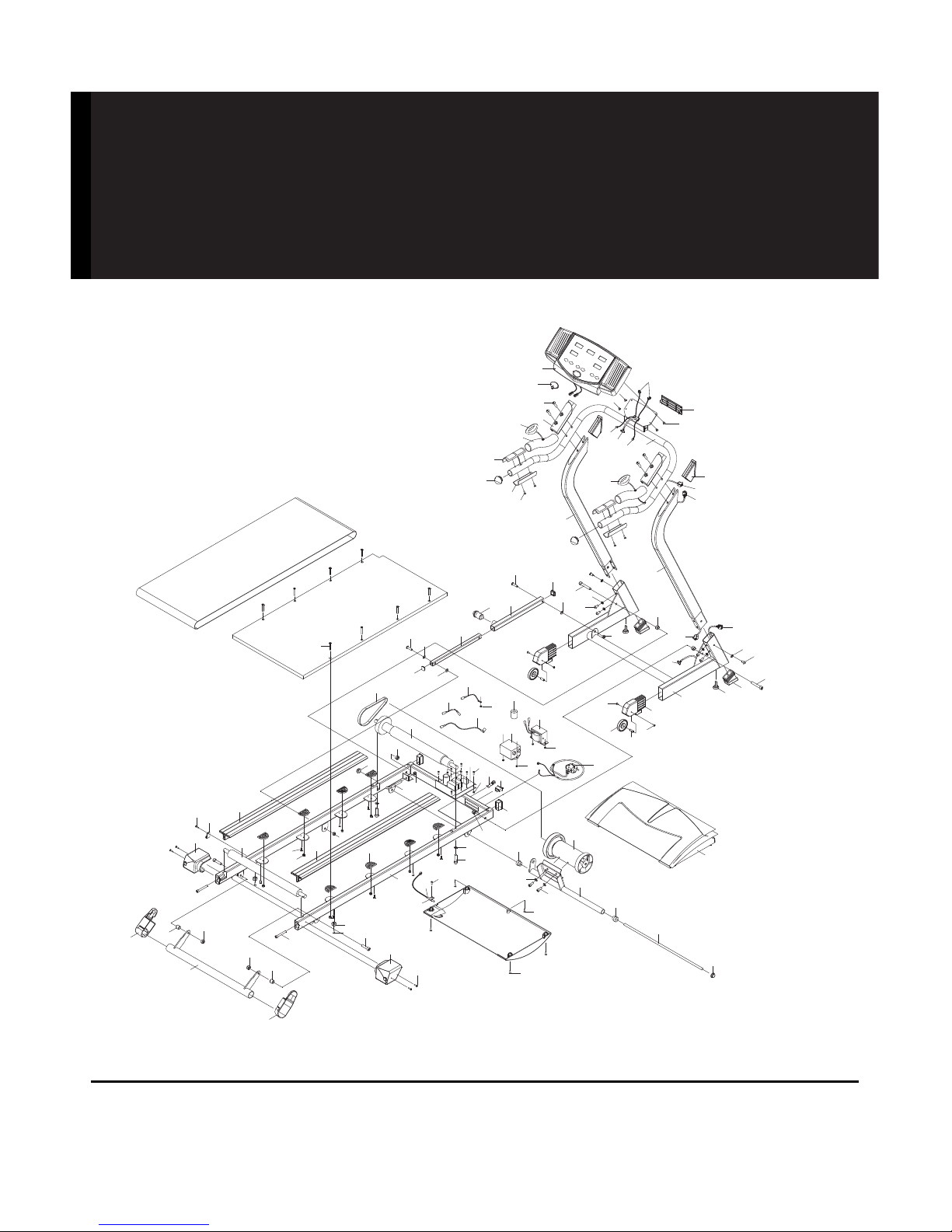

OVERVIEW DRAWING

PARTS LIST

Part # Description Quantity Part # Description Quantity

1 Main Frame 1

2 Base Frame 1

3 Adjustable Pad 2

4 End Cap for #2 2

5 Move Wheel 2

6 Wheel 2

7 Rod for Move Wheel 2

8 Screw (M4*10) 4

9 Running Deck 1

10 Front Roller, Drive 1

11 Rear Roller, Tension 1

12 Running Belt 1

13 Motor Base 1

14 Bushing 2

15 Axis 1

16 Drive Motor 1

17 Bracket for Drive Motor 1

18 PCB Motor Controller 1

19 Drive Belt 1

20 Sensor 1

21 Bracket for Sensor 2

22 Switch, AC Power 1

23 Rubber Bumper 8

24 Side Rail 2

25 Bolt (M8*60) 2

26 Screw (M4*16) 13

27 Screw (M6*35) 8

28 Nut (M6) 8

29 Nut (M8) 2

30 End Cap (25*50) 2

31 Dust Cover, Up 1

32 Dust Cover, Lower 1

33 Screw (M4*60) 4

34 L-Handrail 1

35 R-Handrail 1

36 Handlebar 1

37 End Cap for Handlebar 2

38 Computer 1

39 Computer Bracket Cover 1

40 Bolt (M5*10) 4

41 Safety Magnet 1

42 Handlebar Adorner 2

43 Bolt (M8*50) 4

44 End Cap (30*60) 2

45 Foam Grip 2

46 Spacer 2

47 Cap Nut 2

48 Bolt (M10*60) 2

49 Nut (M10) 4

50 Bolt (M8*16) 6

51 Nut 1

52 Safety Tube A 1

53 Safety Tube B 1

54 Bolt (M8*40) 1

55 Spring Washer (M8) 11

56 Nylon Washer 2

57 Spring Knob 1

58 Foot Pad 2

59 L-Rear Cap 1

60 R-Rear Cap 1

61 Incline Beam 1

62 Cover for Incline Beam 2

63 Bolt (M10*40) 2

64 Bushing 2

Part # Description Quantity

65 Tapping Screw (ST4*10) 4

66 Handpulse Cover-Upper

W/Wire 2

67 Handpulse Cover-Lower 2

68 Screw (M3*20) 4

69 Bolt (M8*35) 1

70 Screw (M8*12) 2

71 Bolt (M8*45) 2

72 Screw (M4*12) 7

73 Sensor Cable I (850 mm.) 1

74 Sensor Cable II (1100 mm.) 1

75 Sensor Cable III (600 mm.) 1

76 Speed Button W/Wire 1

77 End Cap ( 25) 1

78 End Cap ( 20) 1

79 Fuse Box 1

80 Cable, Power Plug 1

81 Nylon Nut (M4) 7

82 Earth Lead 1

83 Cable Switch/PCB 1

84 Wire for Fuse Box 1

85 Inductance (34MH-40MH) 1

86 Wave Filter (06SS4-2DC1) 1

87 Ring for Cable Power 1

88 Mode Button w/Wire 1

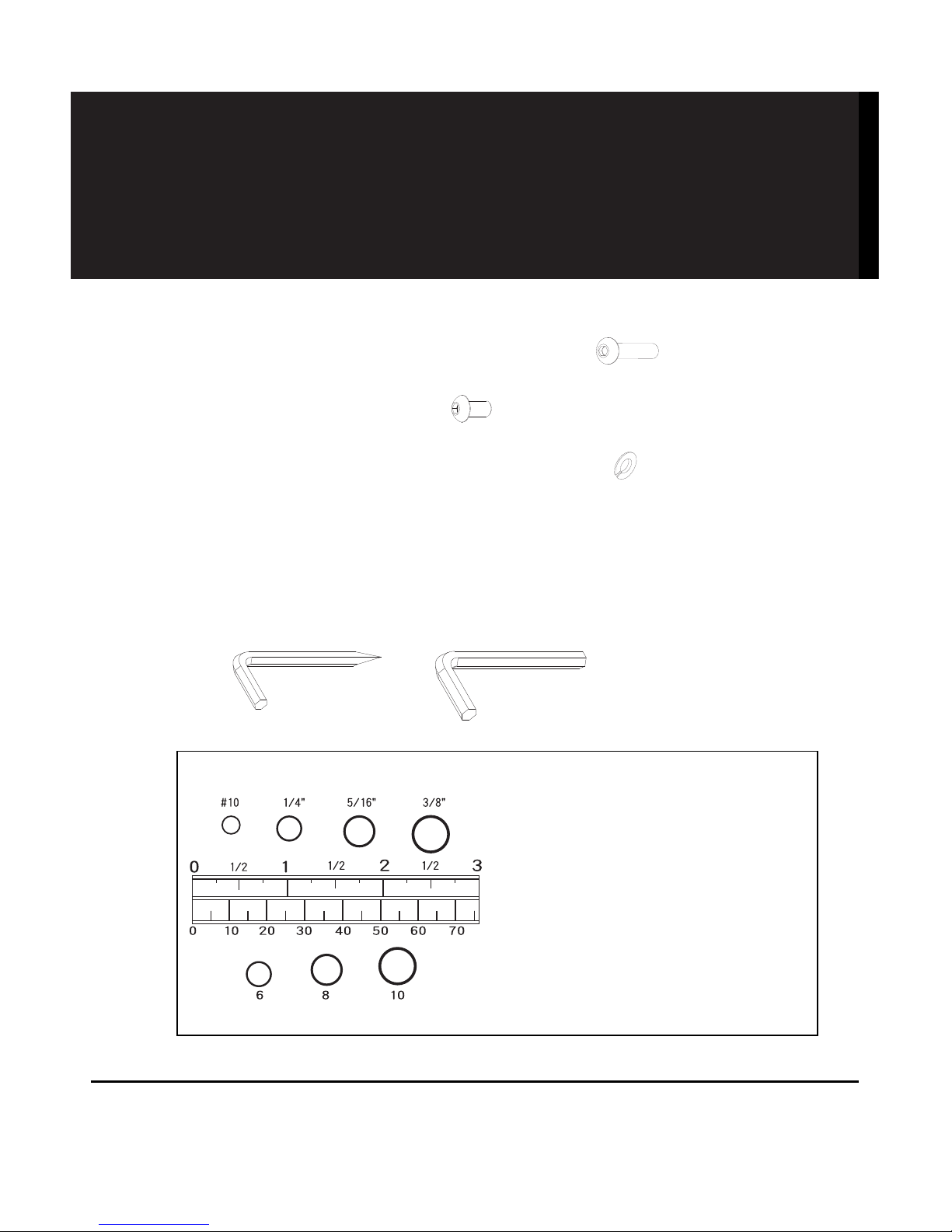

HARDWARE

PACKING LIST

Part # Description Quantity

43 Bolt (M8*50) ------------------------------------------------------------------------------------------------4

50 Bolt (M8*16) --------------------------------------------------------------------------------------6

55 Spring Washer (M8)----------------------------------------------------------------------------6

NOTE: 1. Above described parts are all the parts you need to assemble this machine. Before

you start to assemble, please check the hardware packing to make sure they are

included.

2. Please find tools in the hardware pack to help you assemble this machine easier.

PLACE WASHER, BOLT S END OR

SCREW ON CIRCLE TO CHECK FOR

CORRECT SIZE.

INCHES

MILLIMETERS

THANK YOU ASSEMBLY

INSTRUCTIONS

Thank you for purchasing your

new exercise product. This

exercise machine will help you

enjoy a lifetime of beneficial

exercise providing a

cardiovas-cular and muscle

toning workout in the

convenience of your own home.

This manual is designed to help

you easily assemble, adjust, and

use this machine. Please read

this manual carefully. For the

sake of familiarizing yourself

with the parts identified in the

instructions, please first study

the overview drawing.

Set all parts in a clear area on

the floor and remove the

packing materials. Refer to the

parts list for help to identify the

parts. To assemble the machine,

see the following pages.

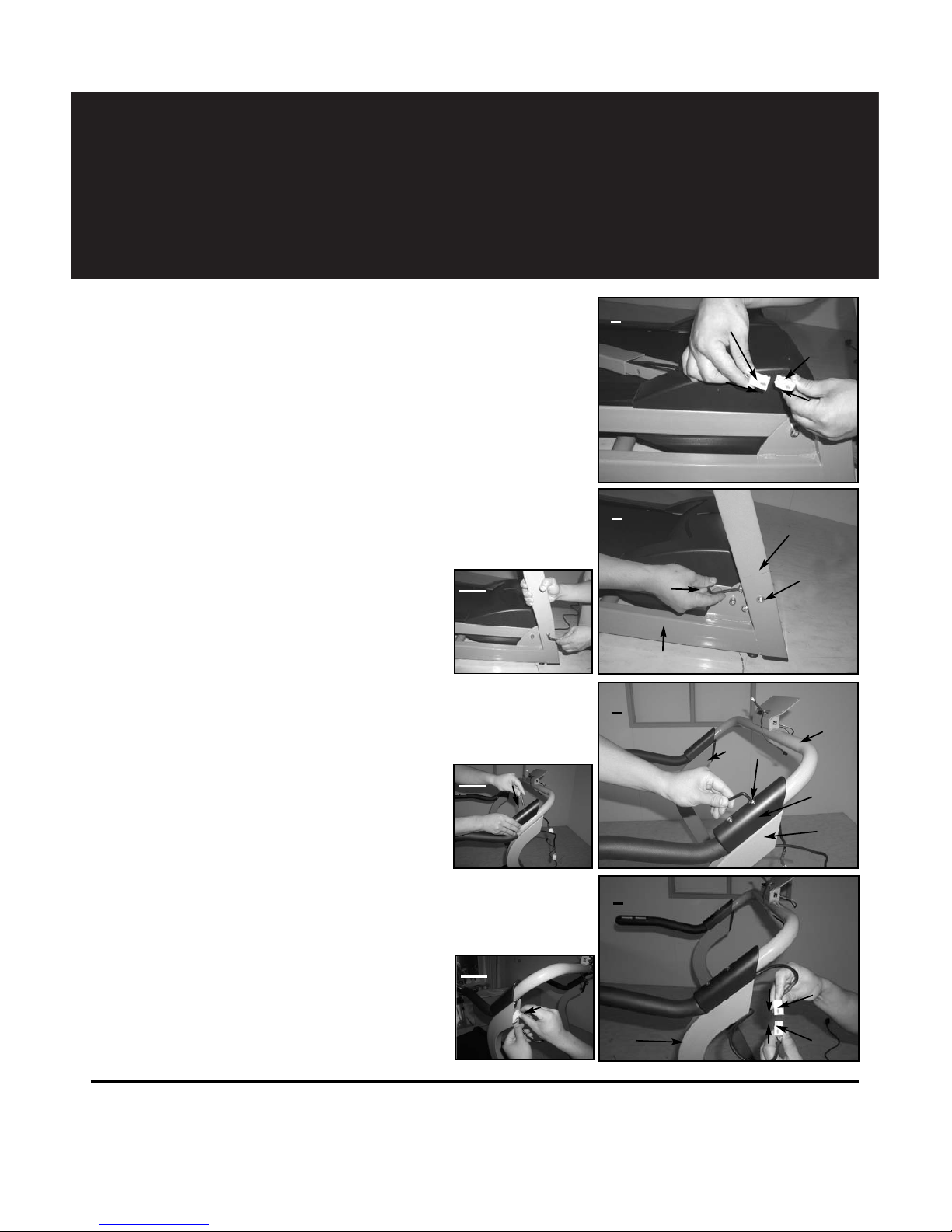

STEP 1&2

Install Handrails

1. Connect the Sensor Cable I (#73) and Sensor Cable II (#74).

2. Fasten the R-Handrail (#35) to the Base Frame (#2)

with three M8*16 Bolts (#50) and M8 Spring Washers (#55).

Repeat this step to assemble L-Handrail (#34). Careful not

to crimp,pinch or otherwise damage the

cable and cable connections.

Install Handlebar

3. Attach the Handlebar (#36) to the top of the Handrails

(#34 & #35) with two Handlebar Adorners

(#42) and four M8*50 Bolts (#43).

4. Connect the Sensor Cable II (#74) and Sensor Cable III (#75).

Place the connection inside of R-Handrail (#35). Careful

not to crimp, pinch or otherwise damage the cable and cable

connections.

2-1

3-1

4-1

55 & 50
