Life Gear 97430 Bedienungsanleitung

2010, Feb.

HERCULES PROGRAMMABLE

MOTORIZED TREADMILL

MODEL#97430/97431

OWNER'S MANUAL

TABLE OF CONTENTS

ONE YEAR LIMTED WARRANTY

LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose

intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under

this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use. This warranty

does not include any damage caused by improper operation, misuse or commercial application.

From the date of purchase, the frame is warranted to be free from defects for 1 (one) year. This warranty is extended only to the original owner

and is not transferable. When ordering replacement parts please have the following information ready:

WARRANTY

WARRANTY 1

SAFETY INSTRUCTIONS 2

OVERVIEWDRAWING 4

PARTS LIST 5

HARDWARE PACKING LIST & TOOLS 7

ASSEMBLY INSTRUCTIONS 8

FOLDINGUP& SETTINGDOWNTHETREADMILL 10

COMPUTER OPERATION 11

TROUBLE SHOOTINGGUIDE 18

RUNNINGBELT ADJUSTMENT & LUBRICATION 19

WARM UP AND COOLDOWN ROUTINE 20

1. Owner's Manual

2. Model Number

3.Description of Parts

4.Part Number

5.Date of Purchase

Basic precautions should always be

followed, including the following safety instructions when

using this treadmill: Read all instructions before using this treadmill.

DANGER: To reduce the risk of electric shock, please read the following:

zAlways unplug the treadmill from the electrical outlet immediately after using and befor cleaning,

assembling, or servicing.

NOTE: Failure to follow these instructions may lead to personal injury and cause damage to the treadmill.

WARNING: To reduce the risk of burns, fire, electric shock or injury to any persons, please read the following:

zNever leave the treadmill unattended when plugged in. Disconnect by turning off the master power switch, and unplugging

from outlet when not in use and before putting on or taking off parts.

zUse this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the

manufacturer.

zNever operate this treadmill if it has a damaged cord or plug, or if it is not working properly. If it has been dropped or damaged, or

been exposed to water, return the appliance to a service center for examination and repair.

zDo not attempt any maintenance or adjustments other than those described in this manual. Should any problems arise, discontinue

use and consult an Authorized Service Representative.

zNever operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.

zDo not use the treadmill outdoors.

zDo not pull the treadmill by its power cord or use the cord as a handle.

zKeep children and pets away from the equipment while in use. This machine is designed for adults only.

zDo not operate where aerosol (spray) products are being used or where oxygen is being administered.

zKeep Dry - do not operate in a wet or moist condition. Save these instructions.

zDo not operate the treadmill near a blanket. Excessive heating can occur and cause fire, electrical shock, or injury to user.

zKeep electrical cord away from heated surfaces.

zNever insert any object into any opening.

zKeep the treadmill on a solid, level surface with the minimum safety area clearance of 2000mm x 1000mm of the treadmill.

Be sure the area around the treadmill remains clear during use and has adequate clearance.

zThis treadmill is for household use only.

zWear comfortable and suitable clothing when using the treadmill. Do not use the treadmill barefoot, in only

socks or in sandals, always wear athletic shoes. Never wear loose clothing because it could run the risk

of getting caught in the treadmill.

zOnly one person should be on the treadmill while in use.

zAlways hold on to the handrails while using the treadmill.

zAlways make sure the storage latch is in place when folding and

moving the treadmill.

SAFETY INSTRUCTIONS

zDo not leave children who are under 12

year-old unsupervised near or on the treadmill.

zIf the supply cord is damaged, it must be replaced by the manufacture, its

service agent or similarly qualified persons in order to avoid a hazard.

zThis appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety. Children should be

supervised to ensure that they do not play with the appliance.

zPull up the Safety Tether Key for emergency stop. Reinstall the Safety Tether Key onto the Computer Console. Press the

START button to begin exercise again.

Note: It is the obligation of the owner to review and explain these safety precautions to all users of this treadmill.

WARNING: Connect the treadmill to a properly grounded outlet only.

SAVE THESE INSTRUCTIONS

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current

reducing the risk of electric shock. * This treadmill is equipped with a cord having equipment grounding connector and a

grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with

all local codes and ordinances.

DANGER: Improper connection of the treadmill grounding connector can result in the risk of electric shock. Check with a qualified

electrician, if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the treadmill. If it will

not fit your outlet, have a properly grounded outlet installed by a qualified electrician.

This product is for use on a nominal 220 volt circuit and has a grounding plug. Make sure that the product is connected to an outlet

having the same configuration as the plug.

zThis unit must be plugged into a nominal 220 volt 50/60 hz, which has a grounding.

zKeep hands clear of all moving parts. Never place hands, feet under the treadmill.

zDo not use the treadmill on a carpet that is greater than 1/2 inch in height.

zBefore using the treadmill, check that the running belt is aligned and centered on the treadmill bed and all visible

fasteners on the treadmill are sufficiently tightened and secure.

WARNING: Before beginning any exercise program consult your physician. This is especially important for the persons who

are over 35 years old or who have pre-existing health problems. Read all

instructions before using any fitness equipment. We assume no responsibility for personal injury or property

damage sustained by or through the use of this product. Do not operate this exercise equipment

without properly fitted guards, as the moving parts can present a risk of serious injury to young

children.

CAUTION: Read all instructions carefully before operating this product.

Retain this Owner's Manual for future reference.

SAFETY INSTRUCTIONS

20L

20R

24R

24L

35R

35L

86 80 81

75 72

72 75

74 46

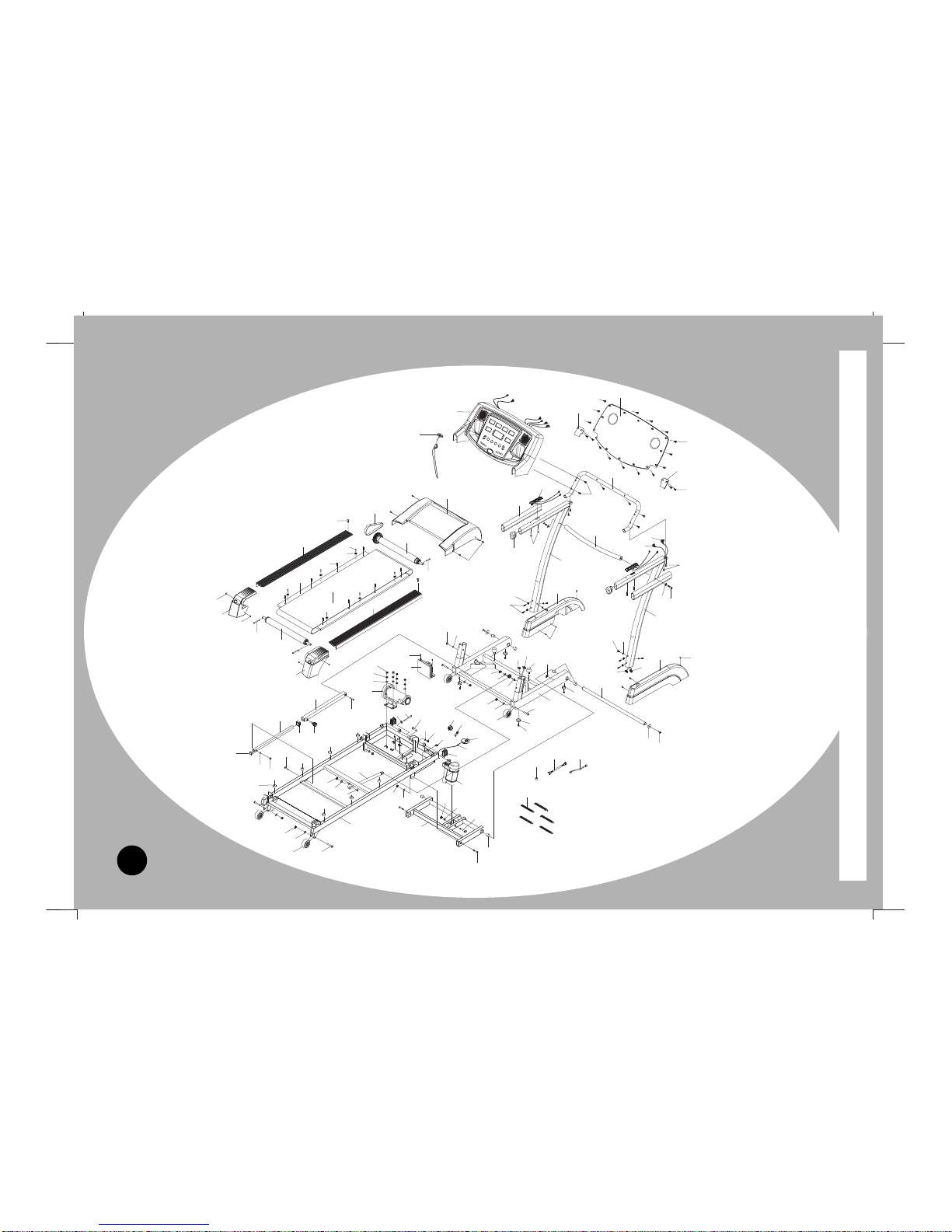

OVERVIEWDRAWING

PARTS LIST

Part # Description Quantity Part # Description Quantity

001 Belt (190-J-5) 1

002 Running Belt (t1.8x430x2690) 1

003 RunningDeck (t18x596x1200) (97430) 1

003 RunningDeck (t20x596x1200) (97431) 1

004 Motor (97430) 1

004 Motor (97431) 1

005R Right Rear Cap 1

005L Left Rear Cap 1

006 Side Rail (34.5x85x1035) 2

007 Motor Cover 1

008 Spring Knob (M16xØ8) 1

009 Wheel (Ø8.1xØ77.5x33.5) 2

010 Wheel (Ø8.2xØ62x33.5) 2

011 Handlebar End Cap 2

012 Foam Grip (Ø47xØ53x455) 2

013 Gas Spring 1

014 Deck Bumper (Ø6xØ25xt16) 8

015 Deck Bumper (M6xt23xØ32) 2

016 Rubber Pad Ø6xØ24xt15 4

017 Plastic Bushing 1

018 Bushing 6

019 Lift Motor 1

020R Right Cover for Stabilizer 1

020L Left Cover for Stabilizer 1

021 Wire Plug 2

022 Computer 1

023 Computer Bottom Cover 1

024R Right Computer Plate 1

024L Left Computer Plate 1

025 Bottom Section Power Wire (1100mm) 1

026 Middle Section Power Wire (1200mm) 1

027 Safety Tether Key 1

028 Power Socket 1

029 Switch, AC Power 1

030

031 Circuit Breaker 1

032 Hand Pulse Sensor w/Wire (500mm) 2

033 Main Frame 1

034 Stabilizer 1

035R Right Handlebar Support 1

035L Left Handlebar Support 1

036 Power Cord Board 1

037 Front Roller 1

038 Rear Roller 1

039 Center Bar 1

040 Computer Bracket 1

041 Satety Tube A 1

042 Satety Tube B 1

043 Incline Bracket 1

044 Axle 1

045 Washer for Deck 6

046 M8x100mm. Hexagon Head Bolt 1

PARTS LIST

Part # Description Quantity Part # Description Quantity

047 M10x45mm. Hexagon Head Bolt 1

048 M10x90mm. Hexagon Head Bolt 1

049

050 M10x45mm. Bolt 2

051 M8x50mm. Bolt 6

052 M8 x45mm. Bolt 1

053 M8x35mm. Bolt 1

054 M8x25mm. Bolt 2

055 M8x20mm. Bolt 2

056 M8x15mm. Bolt 8

057 M6x15mm. Bolt 8

058 M8x65mm. Bolt 3

059 M6x38mm. Bolt 8

060 M3x45mm. Screw 4

061

062 M4x16mm. Phillips Screw 10

063

064 M4x10 Phillips Screw (Electrophoresis) 4

065

066 M3x25mm. Round Head Phillips Screw 2

067 M4x22mm. Round Head Phillips Screw 16

068 M4x15mm. Round Head Phillips Screw 14

069

070

071 M10 Nylon Nut 4

072 M8 Nylon Nut 12

073 Spring Washer Ø8.1xØ12.3xt2.1 4

074 Washer Ø10.5xØ20xt2.0 4

075 Washer Ø8.4xØ16xt1.6 14

076 Curve Washer Ø8.4xØ16xt1.6 6

077 Washer Ø8.2xØ32xt3.0 2

078 Sensor Cable I (1000mm) 1

079 Sensor Cable II (1200mm) 1

080 Wire (300mm) 1

081 Wire (150mm) 1

082 Power Cord 1

083 Nylon Bundling Strip 5

084 Square End Cap 1

085 Ring for Cable Power 1

086 End Cap ( 25x50) 2

087 Wire Cap 1

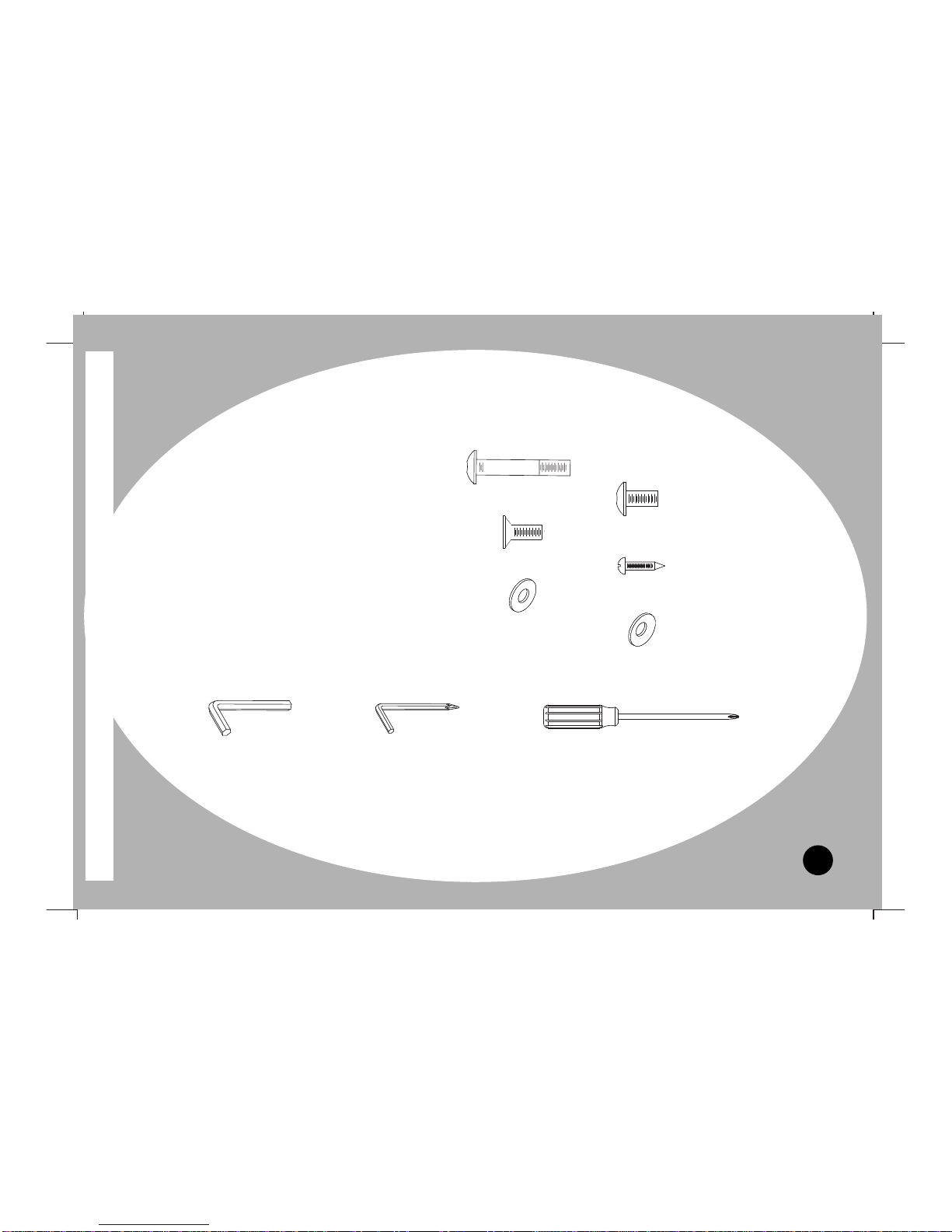

HARDWARE PACKING LIST & TOOLS

51 M8x50mm. Bolt ----------------------------------------------------------------------------------------------2

56 M8x15mm. Bolt ----------------------------------------------------------------------------------------------8

57 M6x15mm. Bolt ----------------------------------------------------------------------------------------------4

67 M4x22mm. Round Head Phillips Screw---------------------------------------------------------------10

75 Washer Ø8.4xØ16xt1.6------------------------------------------------------------------------------------4

76 Curve Washer Ø8.4xØ16xt1.6 --------------------------------------------------------------------------6

Part # Description Quantity

Allen Wrench

1 PC Phillips Screwdriver

1 PC

Allen Wrench/Phillips Screwdriver

1 PC

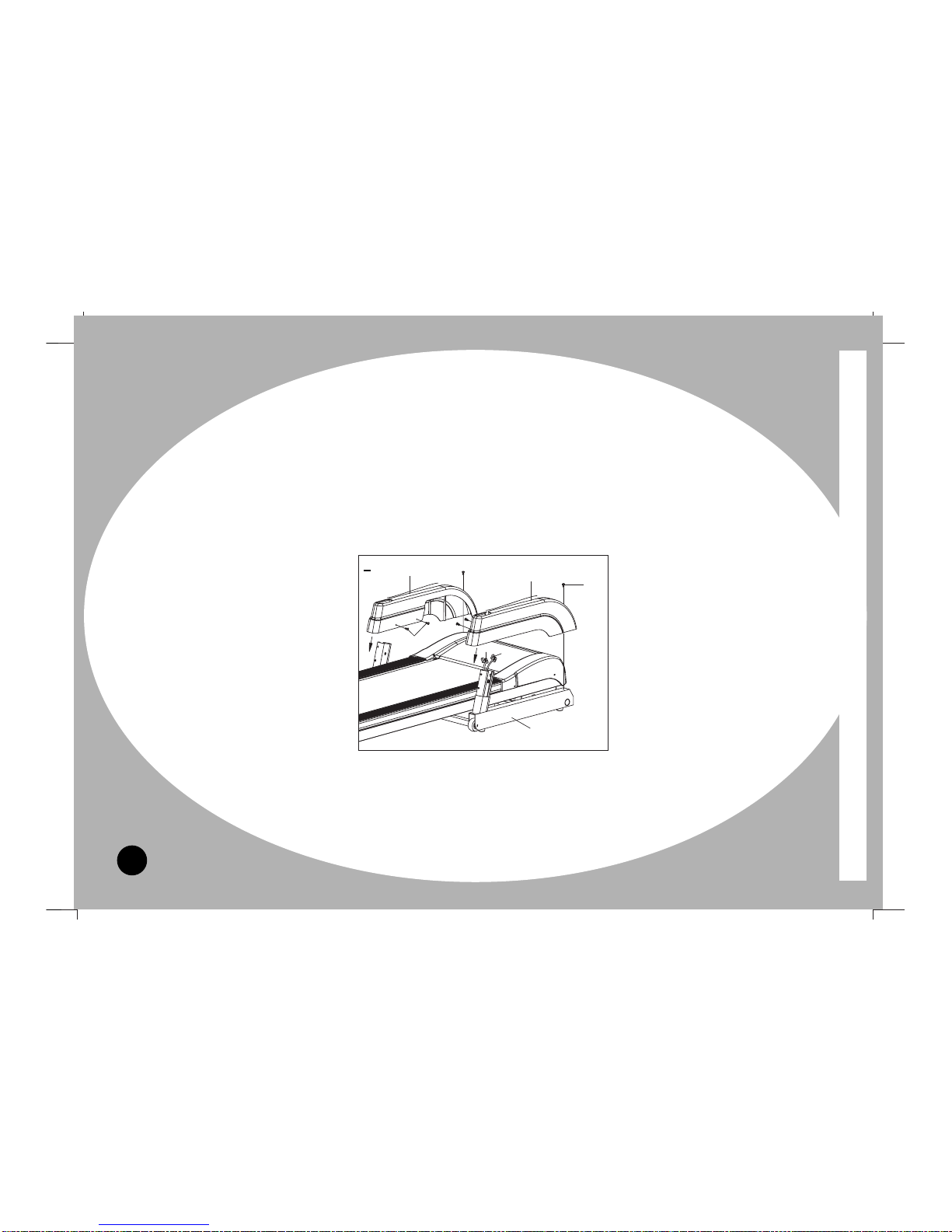

Step 1

Attach the Right and Left Covers for Stabilizer (20R, 20L) onto the Stabilizer (34) with six M4x22mm. Round Head Phillips

Screws (67).

ASSEMBLY INSTRUCTIONS

20L 20R

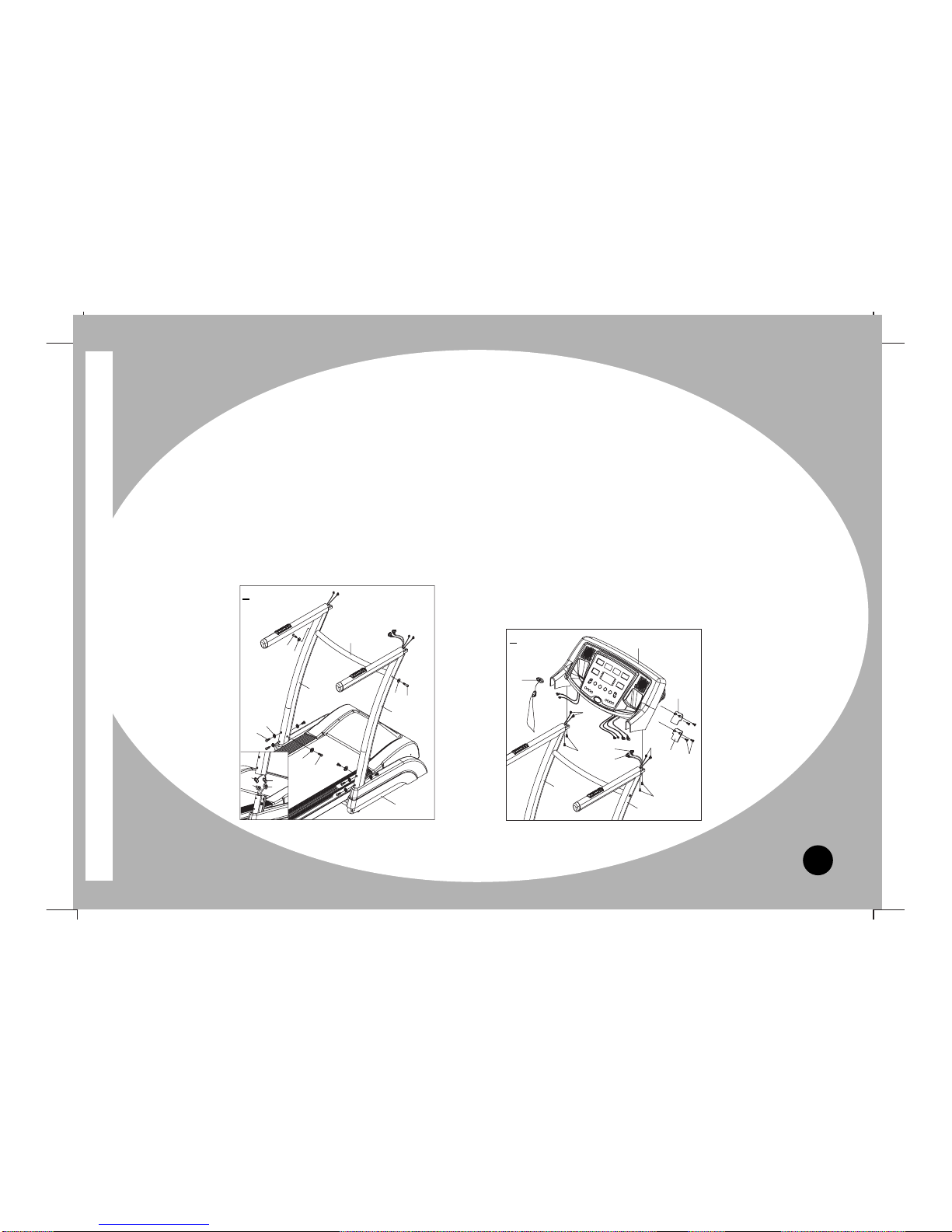

Step 2

Connect the Bottom Section Power Wire (25) and Sensor Cable I (78) from the

Stabilizer (34) to the Middle Section Power Wire (26) and Sensor Cable II (79) from the Right

Handlebar Support (35R).

Attach the Right and Left Handlebar Supports (35R, 35L) onto the Stabilizer (34) with eight M8x15mm. Bolts

(56), six Ø8.4xØ16xt1.6 Curve Washers (76), and two Ø8.4xØ16xt1.6 Washers (75).

Attach the Center Bar (39) onto the Right and Left Handlebar Supports (35R, 35L) with two M8x50mm. Bolts (51) and

Ø8.4xØ16xt1.6 Washers (75).

Step 3

Connect the Middle Section Power Wire (26), Hand Pulse Sensor Wires (32), and Sensor Cable II (79) to the wires that come from the

Computer (22). Then attach the Computer (22) to the Right and Left Handlebar Supports (35R, 35L) with four M6x15mm. Bolts (57). Attach the

Right and Left Computer Plates (24R, 24L) onto the back of the Computer (22) with four M4x22mm. Round Head Phillips Screws (67). Finally,

install the Safety Tether Key (27) onto the Computer (22).

ASSEMBLY INSTRUCTIONS

35R

35L

78 25

35R

35L

24R

24L

57 67
