Lightolier IS-CWL280612 Bedienungsanleitung

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Architectural Decorative IS-CWL280612

Page 1 of 3 Instruction Sheet for Assembly and Installation

Read and understand these instructions before installing luminaire

This luminaire is intended for installation in accordance with the National Electrical Code and local regulations. To assure full compliance with local codes and

regulations, check with your local electrical inspector before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

Direct Luminaire Mounting Track Mounting

Direct Luminaire Mounting

with Track

Luminaires must be installed by a qualified electrician in

accordance with all national and local electrical and construction

codes and regulation.

Make sure power is OFF

Mounting Options

25 @ 4 ft (1219 mm)

CLMT2548

Architectural Decorative IS-CWL280612

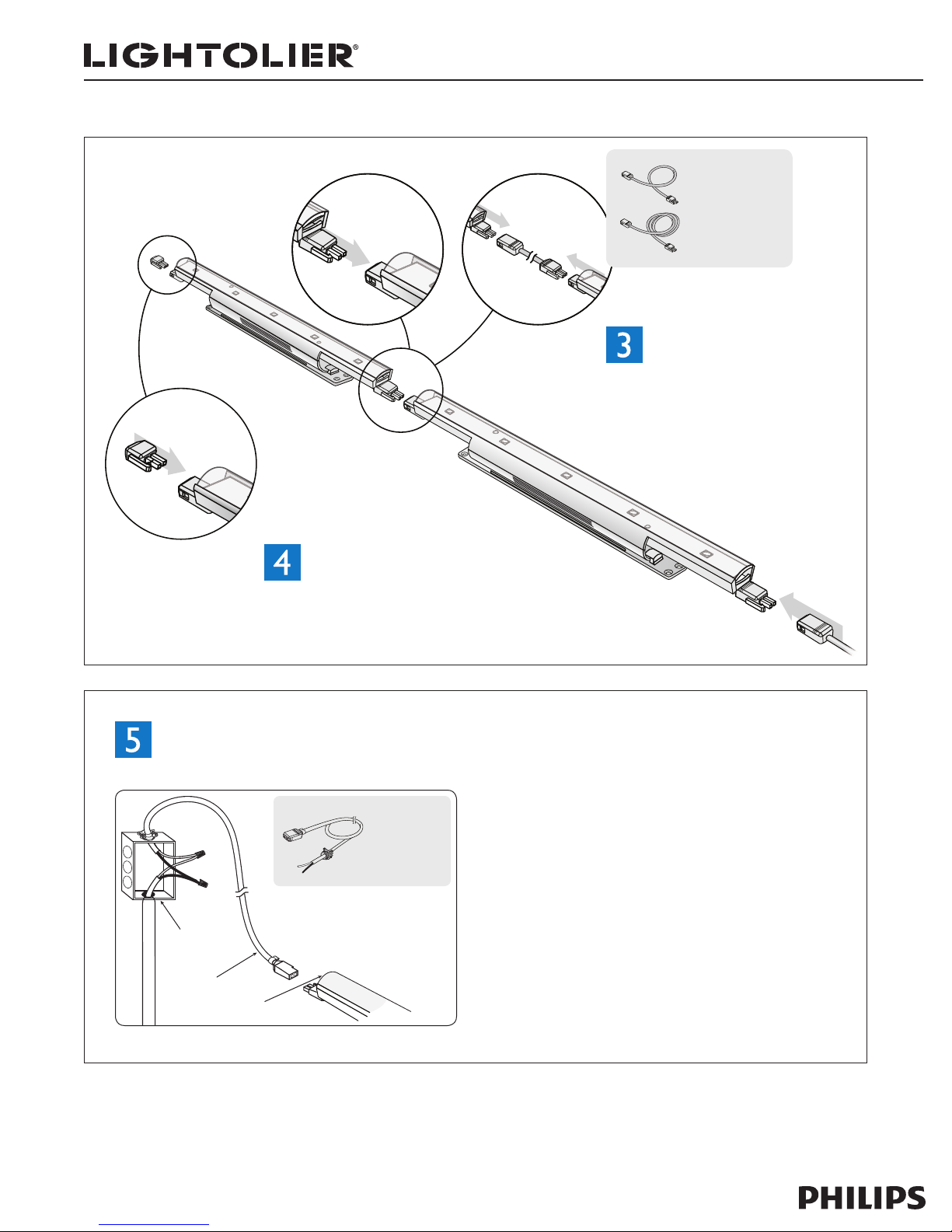

Page 2 of 3 Instruction Sheet for Assembly and Installation

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

CLICK!

Connect the leader cable — make connections at J-Box (by others) then attach luminaire (see IS-CWLPC120).

Leader Cable

Luminaire

J-Box

(by others)

10 ft (3.05 m)

CWLPC120

Connect additional luminaires

either luminaire-to-luminaire

or via Jumper Cable

Attach Terminator

1 ft (305 mm)

CWLJC12

—

5 ft (1.5 m)

CWLJC60

Architectural Decorative IS-CWL280612

Page 3 of 3 Instruction Sheet for Assembly and Installation

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

��0º

�0º

��0º

�80º

Turn the power ON

Rotate each luminaire to aim the 110° beam

B Do not attempt to install or use a luminaire until you read and understand the

installation instructions and safety labels.

B Do not use a luminaire if the lens, housing, or power cables are damaged.

B Luminaire have line voltage risk of shock and no user serviceable parts. Do

not attempt to open them.

B Do not use a luminaire for any voltage for which it is not rated. Do not

exceed the specified voltage and current input for any luminaire.

B Ensure that main power supply is off before installing or wiring a luminaire.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: 1) This device may not cause harmful interference. 2)

This device must accept any interference received, including interference that

may cause undesired operation.

CDo not hot swap luminaire. Ensure that power to the series is off before

connecting or disconnecting individual luminaires.

C Caution: Led Radiation Do Not Stare Into Beam Class 2 Led Product

Item Type Part Number

Concealed White LED Adjustable, 12 inch (305 mm), 120 VAC 2800 K CWL281212

4200 K CWL421212

Concealed White LED Adjustable, 6 inch (152 mm), 120 VAC 2800 K CWL280612

4200 K CWL420612

Mounting Track 25 @ 4 ft (1219 mm) CLMT2548

Leader Cable, Permanent 10 ft (3.05 m) CWLPC120

Jumper Cable 1 ft (305 mm) CWLJC12

5 ft (1.5 m) CWLJC60
