Lytecaster®Recessed Downlighting 1045

Page 1 of 2 5" Aperture Deep Anodized Reflector Trim

Features

1. Reflector: Hydroformed aluminum, .040" thick (18 ga.); 38˚ shielding angle;

specular clear diffuse, or gold finish; matte white trim flange.

2. Frame-In Kit: (1002P1 standard frame shown). Other frames listed above

and shown on the right. See Frame-In Kit specification sheets for more

details.

Options & Accessories

Extra Wide Flange Trim Ring: 1957 - 7" 0.D.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

1045/1003R

0™Non-IC

Remodeler Ring

7 3/16"

1045/1004IC/N

0™Convertible

IC/Non-IC

7 1/2"

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

1045

Specular

Gold

1046

Specular

Clear

1046CD

Clear Diffuse

Incandescent Fluorescent

Frame-In Kit Ceiling Type Lamping Height Frame-In Kit Ceiling Type Lamping Height

1002P1

1003R

1000P1

Non-IC

Non-IC Remodeler

Non IC

100W A19 6 3/4"

6 3/4"

1001F13U Series UniFrame™

Non-IC

(1) Quad/Triple 13W (GX24q-1) 6 5/16"

1001F18U Series UniFrame™

Non-IC

(1) Triple 18W (GX24q-2) 6 5/16"

1000IC

1000AICM

1004ICX/N

AirSeal®IC

60W A19 7 5/16"

7 5/16"

7 1/4"

1001F26U Series UniFrame™

Non-IC

(1) Triple 26W (GX24q-3) 6 5/16"

1004F13 Series IC (1) Quad/Triple 13W (GX24q-1) 7 1/2"

1004F18 Series IC (1) Quad/Triple 18W (GX24q-2) 7 1/2"

1004IC/N

1004ICR

AirSeal® IC

IC Remodeler

40W A19 7 1/2"

7 1/2"

1004F26* Series IC (1) Quad/Triple 26W (GX24q-2) 7 1/2"

1001F13ICU/N Performance IC (1) Quad/Triple 13W (GX24q-1) 7 1/4"

1004IC/N

1004ICR

Non-IC

Non-IC Remodeler

60W A19 7 1/2"

7 1/2"

1001F18ICU/N Performance IC (1) Triple 18W (GX24q-2) 7 1/4"

1001F26ICU/N Performance IC (1) Triple 26W (GX24q-3) 7 1/4"

1001FDICMX1/N Performance IC

Advance Mark 10

Dimming 120V

(1)Triple 26W (GX24q-3) 7 1/4"

1001FDICMX2/N Performance IC

Advance Mark 10

Dimming 277V

(1) Triple 26W (GX24q-3) 7 1/4"

1910XFH1 Conversion Kit (1) Quad 13W (GX23-2) 6 3/4"

*Lightolier recommends the use of triple tube lamps.

1045/1002P1 Series

Standard Incandescent

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

# 1013

Lytecaster®Recessed Downlighting 1045

Page 1 of 2 5" Aperture Deep Anodized Reflector Trim

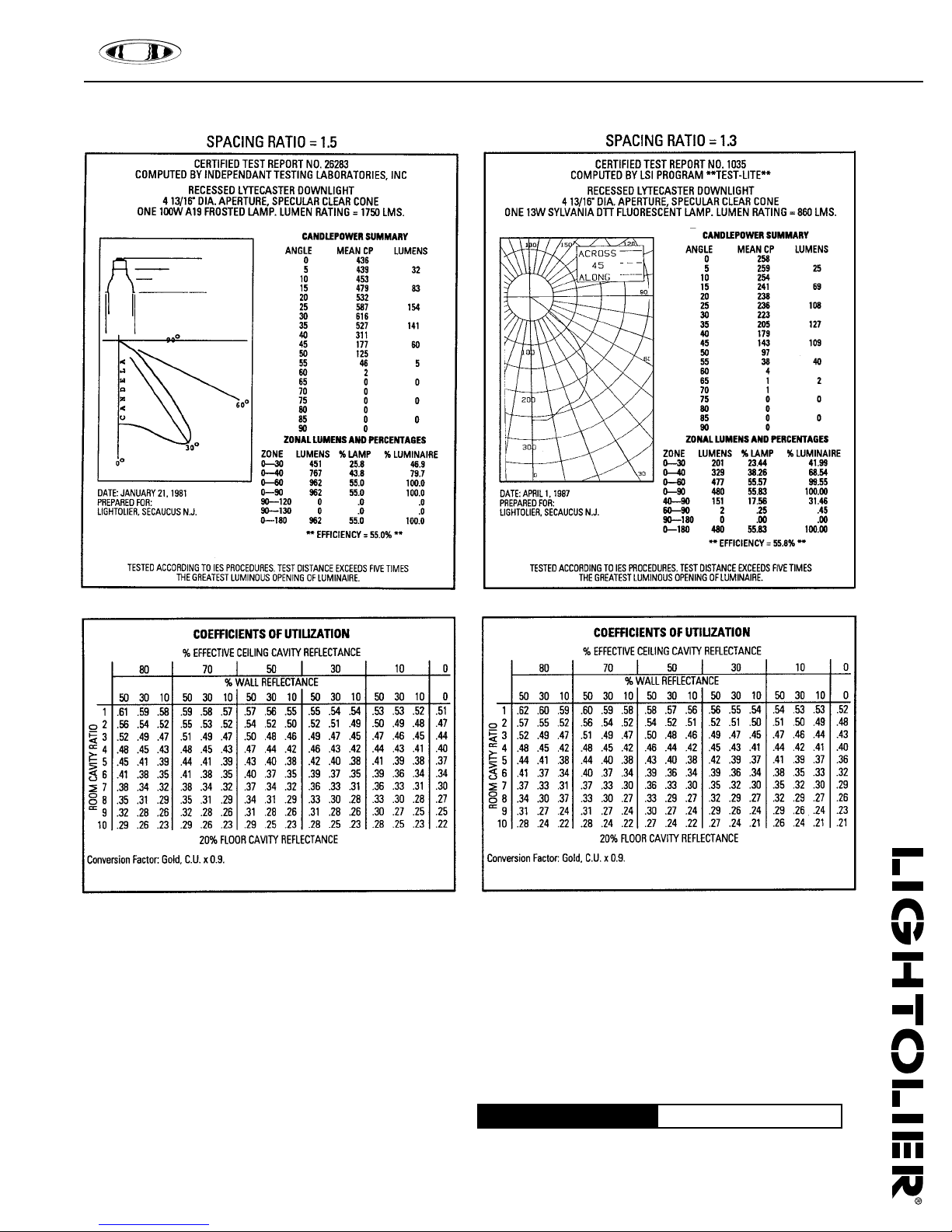

Tconvert lighting data for a lower wattage incandescent lamp of the same type, multiply the footcandle (or candlepower) values by the ratiof the lumens of the two lamps.

The coefficients of utilization remain the same.
