Lightolier Lytespan 23C39MR Bedienungsanleitung

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytespan® Track Lighting System 23C39MR

Page 1 of 2 Alcyon HID 39W CMH MR16 Cylinder

Ordering Information

Catalog No. Finish Mounting Lamps

23C39MRAL Aluminum For use with Lytespan Radius, Basic and Advent 39W MR16 GX10 Base Ceramic Metal Halide

23C39MRBK Black Track. Not compatible with extension wands or

23C39MRWH White slope ceiling adapters. For monopoint applications

refer to spec sheet 6172.

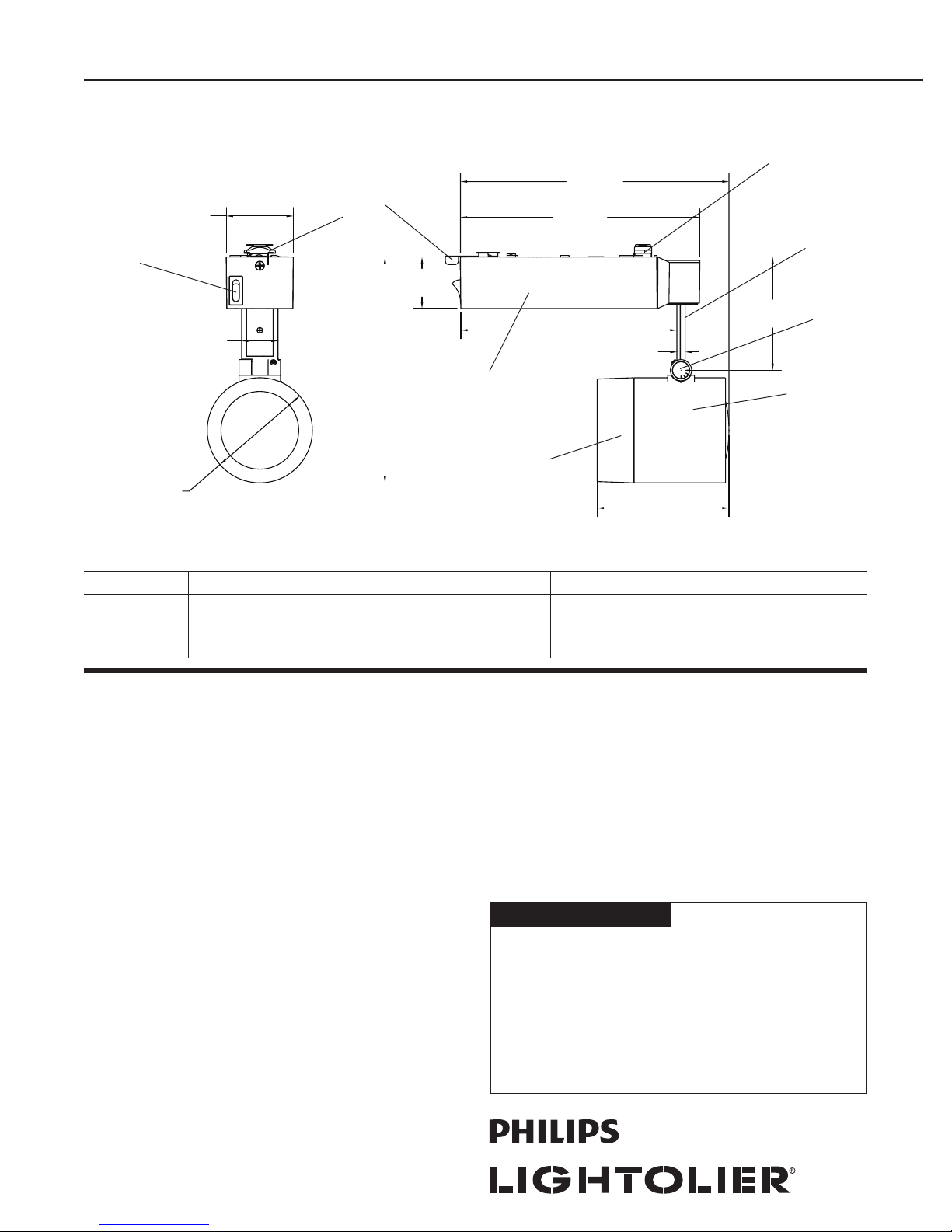

Features

1. Track Attachment Fitting: Locking lever for mechanical/

electrical connection.

2. Brass Contact: Extends for connection to second circuit (Advent track only).

3. Horizontal Pivot: Wireless stem profile with 365° horizontal rotation.

Position may be locked using an allen key.

4. Vertical Pivot: 0-90° vertical adjustment with aiming indicator. Position

may be locked using an allen key.

5. Fixture Housing: Die cast aluminum

6. Ballast Housing: Molded polycarbonate

7. On/Off Switch: Rocker switch to disconnect power to the ballast.

8. Accessory Cartridge: Hinged and captive; retaining ring included. Inside

painted black to reduce glare.

9. Safety Locking Lever: Locks ballast housing to track.

Finish

All Painted finishes are baked enamel.

Accessories

Accessory Holder: Integral

Accessories: Accepts 1 snoot plus 2 lenses or 1 louver plus 1 lens.

Lens: AF25, ADF25 Series

Louver: AL25HC

Electrical

Electronic Ballast

Input Voltage: 120V, 50/60Hz

Power Factor: .9

Input Power: 45W

Max. Input Current: 0.40A

ANSI Code: C(M)130

Do not use on dimming circuit.

Labels

UL, cUL

7 13/16"

[199 mm]

3 7/8"

[98 mm]

6 5/8"

[168 mm]

1 1/2"

[38 mm]

[178 mm]

1/4"

[6 mm]

6 5/16"

[160 mm]

3 5/16"

[84 mm]

3 1/16"

[ 78 mm]

1 1/16"

[27 mm]

1 15/16"

[50 mm] 2

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan® Track Lighting System 23C39MR

Page 2 of 2 Alcyon HID 39W CMH MR16 Cylinder

5,500 10,000

GE CMH39MR16/930FL

25°

16,000 10,000

GE CMH39MR16/930SP

12°

D FC L W D C FC L W D C FC L W D C FC L W

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length D Distance

W Beam Width A Aiming Angle

C Distance to center beam FC Footcandles

L and W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp manu-

facturers for availability and performance.

CBCP = Center Beam Candle Power.

6' 1.7' 397 1.8' 1.5'

8' 2.9' 143 3.0' 2.6'

10' 4.0' 73 4.2' 3.6'

12' 5.2' 44 5.4' 4.6'

3' 5.2' 76 6.2' 2.7'

4' 6.9' 43 8.3' 3.5'

5' 8.7' 28 10.4' 4.4'

6' 10.4' 19 12.5 5.3'

3' 1.0' 1945 0.9' 0.6'

4' 2.0' 486 1.9' 1.3'

5' 3.0' 216 2.8' 1.9'

6' 4.0' 122 3.7' 2.5'

6' 344 1.8' 1.8'

8' 153 2.7' 2.7'

10' 86 3.5' 3.5'

12' 55 4.4' 4.4'

8' 1.7' 1155 0.8' 0.7'

10' 2.9' 416 1.4' 1.2'

12' 4.0' 212 2.0' 1.7'

14' 5.2' 128' 2.5' 2.2'

3' 5.2' 222 2.6' 1.3'

4' 6.9' 125 3.5' 1.7'

5' 8.7' 80 4.3' 2.1'

6' 10.4' 56 5.2' 2.5'

3' 1.0' 5657 0.4' 0.3'

4' 2.0' 1414 0.9' 0.6'

5' 3.0' 629 1.3' 0.9'

6' 4.0' 354 1.7' 1.2'

8' 1000 0.8 0.8'

10' 444 1.3' 1.3'

12' 250 1.7' 1.7'

14' 160 2.1' 2.1'

3,000 10,000

GE CMH39MR16/930W

40°

6' 3.5' 54 6.1' 5.0'

8' 4.6' 30 8.1' 6.7'

10' 5.8' 19 10.2' 8.4'

12' 6.9' 14 12.2' 10.1'

2' 3.5' 94 9.7' 2.9'

3' 5.2' 42 14.5' 4.4'

4' 6.9' 23 19.3' 5.8'

5' 8.7' 5 24.2' 7.3'

2' 2.0' 265 3.4' 2.1'

3' 3.0' 118 5.0' 3.1'

4' 4.0' 66 6.7' 4.1'

5' 5.0' 42 8.4' 5.1'

6' 83 4.4' 4.4'

8' 47 5.8' 5.8'

10' 30 7.3' 7.3'

12' 21 8.7' 8.7'

Note: For Champagne Bronze (CCZ), multiply FC values by 0.64. CCZ Champagne Bronze reﬂector "warms" the beam to 2700K.
