Lightolier POWER EXTENSION CONNECTOR Bedienungsanleitung

P

READANDUNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE lNSTRUCTfON SHEET NO.

This fixture is intended for installation in accordanrx?with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. Toprevent electrical shock, turnoff electricity at fuse box before proceeding. IS:6046

Retain these instructions for maintenance reference. R0992 Page 1of 2

POWER EXTENSION CONNECTOR

FOR USE WITH BASIC LYTESPAN@TRACK SYSTEMS ONLY.

The POWER EXTENSION CONNECTOR allows power to be jumped from one

track, around or through structural obstacles, to another track unit. [t replaces the

DEAD END COVER at the end of an Individual track unit or arun of track units.

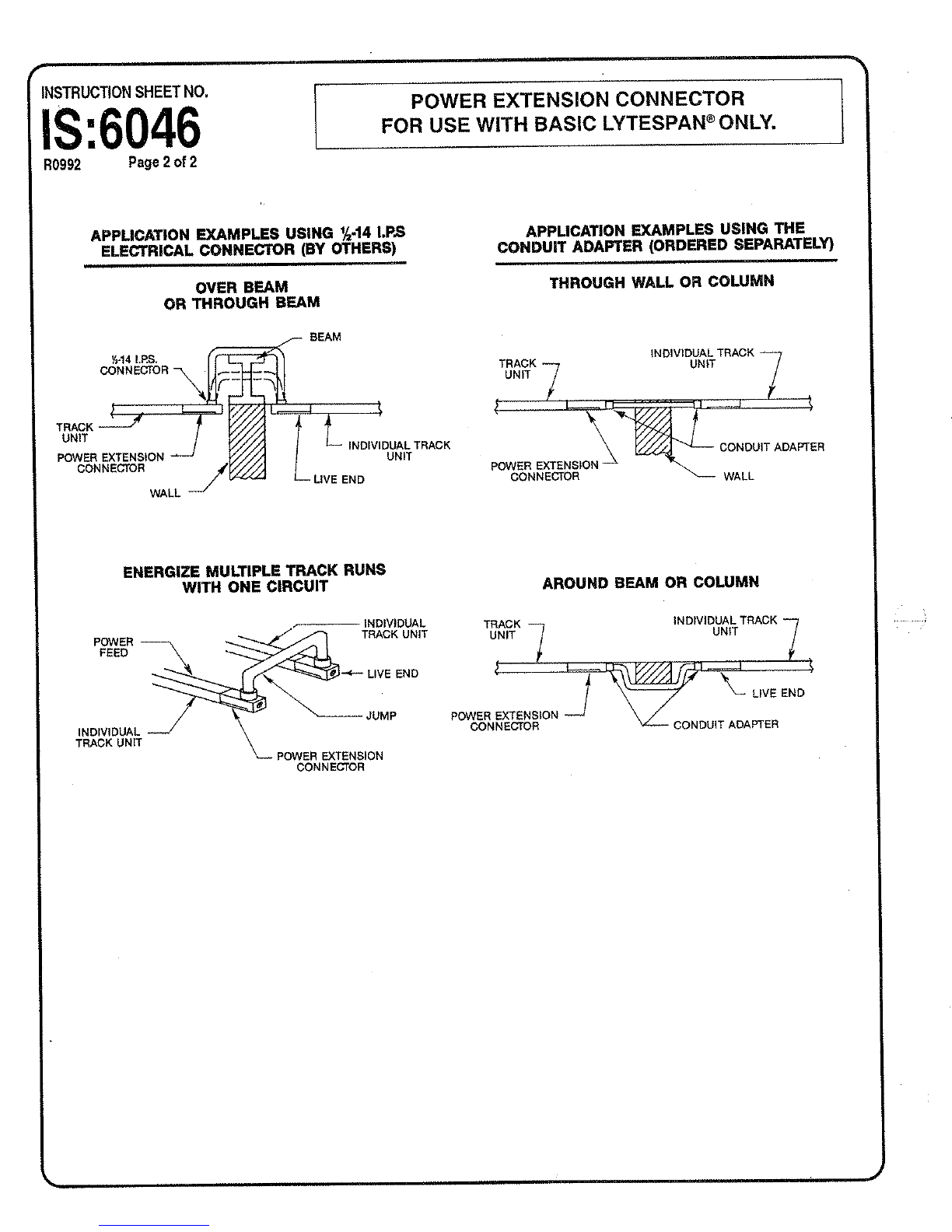

Power can be fed intoor removedfromthe POWER EXTENSION CONNECTOR

by using any of the power feed-in kits available for Basic Lytespan. Afew examples

are shown here.

CAUTION:

.TURN OFF POWER AT FUSE BOX BEFORE INSTALLING

TRACK.

“INSTRUCTIONS FOR GROUNDING PER INSTRUCTION SHEET e

B

TRACK

OF THE FEED-IN KIT MUST BE FOLLOWED. FAILURE TO DO \_

UNIT

SO MAY RESULT IN AHAZARDOUS CONDITION, DEAD END

COVER

~USE ONLY #12 GA. SOLID COPPER WIRE IN CONNECTORS TO

MAINTAIN PROPER RATING OF TRACK.

.OBSERVE POLARITY, WHITE (NEUTRAL) WIRE MUST BE

CONNECTED TO TERMINAL MARKED “NEUT”. FAILURE TO

OBSERVE POLARITY MAY RESULT IN AN ELECTRICAL

HAZARD,

.DO NOT USE TRACK AS ACONDUIT SUPPORT.

INDEPENDENT CONDUIT SUPPORTS (SUCH AS SUITABLE

CONDUIT STRAPS) MUST BE USED TO AITACH THE CONDUIT

INSTALLATION TO THE BUILDING STRUCTURE.

INSTALLING THE POWER EXTENSION CONNECTOR TRACK

UNIT

1. Remove the DEAD END COVER from the track.

2. Insert the POWER EXTENSION CONNECTOR in place of the DEAD —SCREW

END COVER. Tighten SCREW.

3. Follow the instructions provided with the power feed-in kit being used. POWER EXTENSION

NOTE: Power can be fed into or removed from the POWER CONNECTOR

EXTENSION CONNECTOR by using astandard 1/2” -14 I.P.S.

ELECTRICAL CONNECTOR (not included). See Track Instruction

Sheet 1S:6020.

1-1<> 1=1 iC> LIER“

EWAH?!!WEY%Y
