Lilin IPR414/418ESX3 Bedienungsanleitung

D/N CMOS HD VARI-FOCAL INFRARED IP CAMERA

INSTRUCTION MANUAL

MERIT LILIN ENT. CO., LTD

http://www.meritlilin.com 66-IPR414CSE

IPR414/418ESX3

All the safety and operating instructions should be read before the unit is operated.

The safety and operating instructions should be retained for future reference.

All warnings on the unit and in the operating instructions should be adhered to.

All operating and user instructions should be followed.

Only a qualified electrician should make electrical connections.

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

All cable runs must be within permissible distance.

This unit must be properly and securely mounted to a supporting structure capable of sustaining the weight

of the unit.

IMPORTANT SAFEGUARDS

SAFETY PRECAUTIONS

1. Read Instructions

2. Retain Instructions

3. Head Warnings

4. Follow Instructions

5. Electrical Connections

6. Attachments

7. Cable Runs

8. Mounting

CAUTION

RISK OF ELECTRIC SHOCK

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT OPEN COVER.

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated "dangerous voltage" within the

product's enclosure that may be of sufficient magnitude

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

to constitute a risk of electric shock to persons.

the literature accompanying the unit.

Unpack carefully. Electronic components can be damaged if improperly handled or dropped. If an item appears

to have been damaged in shipment, replace it properly in its carton and notify the shipper.

Be sure to save:

1. The shipping carton and packaging material. They are the safest material in which to make future shipments

of the equipment.

2. This Installation and Operating Instruction.

If the unit ever needs repair service, the customer should contact our dealer or branch for authorization to

return and shipping instructions.

UNPACKING

SERVICE

Do not drop or strike this equipment.

Do not install the equipment near any naked flames or heat sources

Do not expose this unit ot rain, moisture, smoke or dust environment.

Do not cover the opening of the cabinet with cloth and plastic or to install this unit in poor

ventilated places. Allow 10cm between this unit and its surroundings

Do not continue to operate the unit under abnormal conditions such as detection of smoke,

strange smell or no display on screen while power is turned on.

Do not touch the power connection with wet hands.

Do not damage the power cord or leave it under pressure.

Do not operate this unit near magnet, speaker system, etc., to avoid unnecessary magnetic

interference.

Connection cables should be grounded properly.

Caution

Executive Summary

IPR414/418ESX3 is an outdoor HD Infrared IP camera build in H.264 AVC (Advanced Video

Coding) video compression. H.264 AVC video compression engine supports high definition video

quality, 720P resolution, bandwidth efficiency with PPPoE and DDNS.

Also it provides higher bit rate of internet and diverse alarm functions such as external alarm

or movement video detection E-mail or FTP. Moreover, IPR414/418ESX can do remote

surveillance with Java or Windows Mobile cell phone. The software R&D engineer can use HTTP

protocol (HTTPAPI) to develop related software, and integrate them with existing application

software system.

IPR414/418ESX is ideal solution for remote video monitoring via Internet.

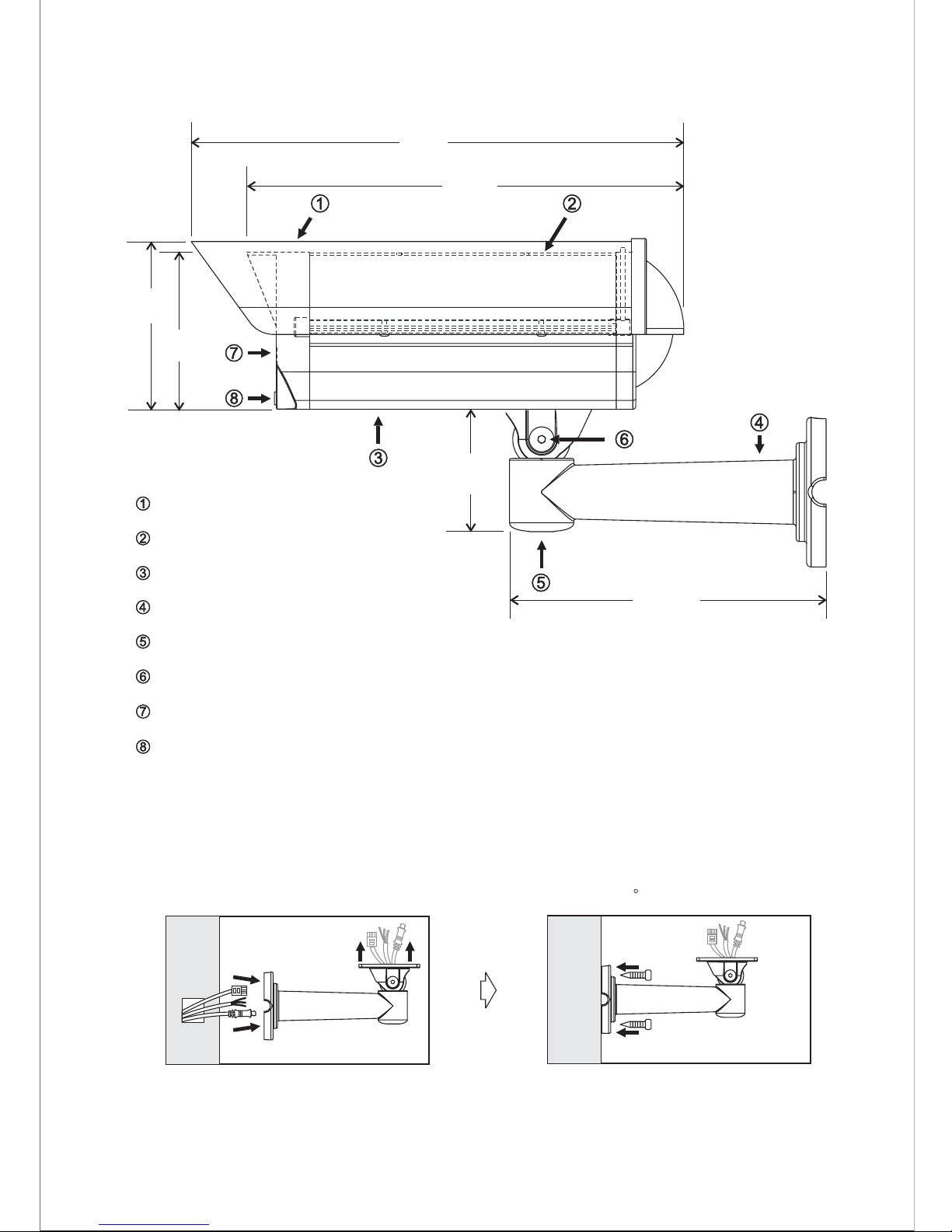

Unit : mm

105

112

347

387

211.5

82.55

SUN SHIELD

TOP COVER

BOTTOM CHASSIS

BRACKET

PAN ADJUSTMENT SCREW

TILT ADJUSTMENT SCREW

WINDOW

SENSOR CAP

Chapter 1. Part Description & Dimension

Chapter 2. Installation

1. Take out the bracket from the box first. Put the power cable, RJ-45 network cable and video

cable through the bracket and then fix it ot the wall (FIG.1 & FIG.2)

FIG. 1 FIG. 2

2. Secondly, take out the camera body and open the top cover with screw driver (FIG.3)

FIG. 3

3. Put the power cable, RJ-45 network cable and video cable through the bracket rubble first and

then go through the bottom of camera body (FIG.4). Plug and fix the power cable to the terminal,

plug the RJ-45 network cable to RJ-45 LAN connector, and plug the video cable to output of the

camera (FIG.5).

FIG. 4

FIG. 6

4. Next, use the provided 1/4"-20UNC screws (silver-4pcs) to fix the camera body on the bracket

with hexagon screw driver (FIG.6)

Note :

When using two-cord

power cable, please

connect them to

"Live" and "Neutral".

Live

Earth

Neutral

FIG. 5

FIG. 7

5. Loosen the pan and tilt adjustment screw on the bracket to turn the camera body to the desired

angle and then tighten the screws (FIG.7)

6. First, adjust the lens on focus and zoom to form the optimal video image after that tighten the

screws. Adjust the IRIS level VR to form the optimal image brightness (FIG.8).

FIG. 9 FIG. 10

7. Replace the top cover and tighten the screws (FIG.9 & FIG.10)

FOCUS or ZOOM

FIG. 8

ZOOM or FOCUS

IRIS LEVEL

Chapter 3. System Overview

Top View

AlarmIn/Out &Audio In/Out

Connector

SDCard Connector

VideoOutJack

LoadDefault Button

RJ-45Jack

Input/Output Device

Component Description

GND

AUDIO OUT

AUDIO IN

GND

DIN

COM

+5V OUT

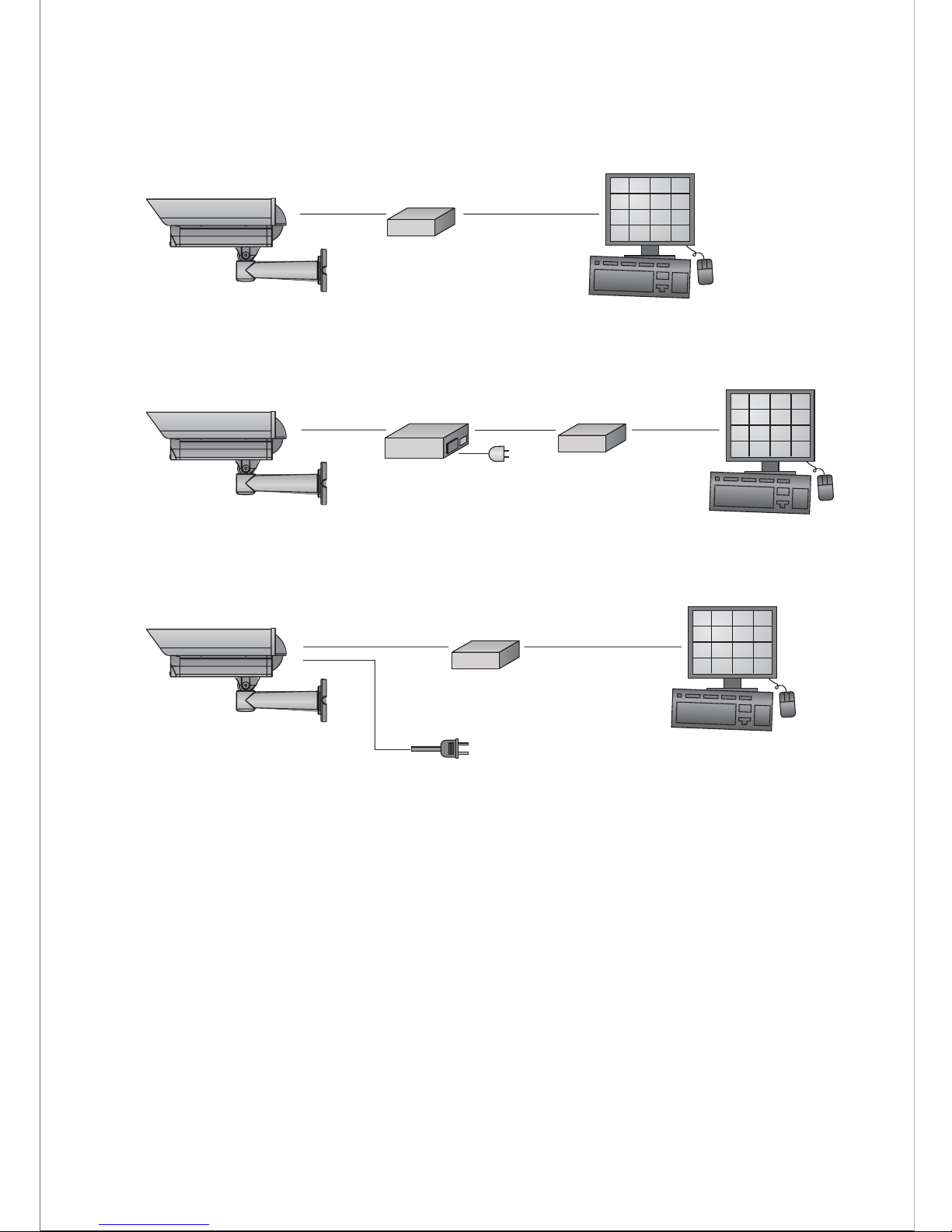

Chapter 4. System Architectures

For connecting IPR414/418ESX to the network, please follow one of the system architectures:

(1) Hardware Installation using a PoE Switch.

IPR414/418ESX

PoE+(30W)

Switch

LAN LAN / Internet

IPR414/418ESX

PoE+(30W)

Power Injector

LAN LAN / Internet

Non-PoE Switch

LAN

IPR414/418ESX PC

LAN LAN / Internet

Non-PoE Switch

(2) Hardware Installation using a non-PoE Switch.

(3) Hardware Installation using a AC24V or AC100~240V.

AC24V or AC100~240V

Chapter 5. Specifications

Model No.

Lens

Power Input Voltage

Effective Pixels

Pick Up Element

Chip Size

Scanning System

Infrared Cut Filter

Minimum Illumination

Back Light Compensation

White Balance

Electrical Shutter

Power Consumption

Live Video Output

Operating Temperature

IP Rating

Infrared

LED Beam Spread

Peak Wavelength

Radiant Distance

Dimension

Weight

Focal Length

Iris

Angleofview

IPR414ESX3

AC24V ( 10%)

1280(H) x 800(V) = 1,024,000 (pixel)

1/4" Progressive scan CMOS sensor

3.88mm(H) x 2.43mm(V)

Progressive Scan

Auto / Schedule / Day(Color) / Night(Mono)

Color: 2Lux at F1.2 , Mono: 0.4Lux at F1.2 , 0Lux with IR

Auto

Auto / 3200K / 4700K / 5600K / 6500K / 7500K / 9300K

1/60s ~ 20,000s

17W (PoE+, 20W)

PoE+ (IEEE 802.3at compliant)

CVBS 1.0Vp-p, 75ohm

IP66

850nm

-10 ~ +50 (14 ~ 122 )

Body:120mm(W) x 112mm(H) x 387mm(D), Bracket: 211.5mm(L)

2200g

40M

IPR418ESX3

Design and specifications are subject to change without notice.

OUTDOOR D/N CMOS HD VARI-FOCAL INFRARED IP CAMERA

AC100~240V

Window 78 Heat Resistant Glass

3~9mm

F1.2

62.3 ~ 21.2

45.8 ~ 15.9

79.7 ~ 26.5

66-IPR414CSE-1

Design and specifications are subject to change without notice.

Video Compression

Resolution

Frame Rate

Video Streaming

Video Bitrate

Users

Digital Zoom

Multiple Profile

Security

Maintenance

Network Protocols

Mobile Phone and PDA

Alarm/Motion

Client PC Requirement

CPU, Memory

Network Interface

CMX

Video Display

System Integration

SD Card recording

Two-way audio

Alarm Input / Output

H.264/AVC, Motion JPEG

720P(1280x768) / VGA(640x384) / CIF(320x192)

Up to 720P 30FPS shared by profiles

TRSP: RTP/HTTP, RTP/TCP, RTP/UDP

128Kbps ~ 5Mbps

8 simultaneous each profile

Yes

Image upload over FTP, e-mail by motion detection, and external alarm inputs

Stream 4 profiles: H.264 at 720P, JPEG at 720P, H.264 at VGA, JPEG at CIF

Firmware update via HTTP

Firmware available at web site

IP, TCP, UDP, HTTP, SMTP, ESMTP, NTP, DDNS, FTP, ARP, DHCP,

PPPoE, DNS, Telnet, ONVIF

Free eMobile software for Java mobile phone, Windows Mobile 5/6,

PDA, BlackBerry, and iPhone

Base64 HTTP encryption

Multiple user access levels with password protection

10 user accounts available

Events triggered by built-in motion detection

15x10 motion detection zone

Alarm/Motion triggering recording into SD card

OS: Windows 2000, Windows XP, Windows Vista

Browser: Windows Internet Explore 5.0 or above

CPU: Intel Pentium 4 1.8GHz or above

RAM: 1GB or above, Independent Display Card

Embedded SoC, ARM9, 500MHz, 64MB DDR, 8MB flash memory

10Mbps / 100Mbps Base-T, RJ-45

Free CMX support

LILIN Universal ActiveX / Quick Time

ONVIF

Support SD/SDHC card for circular recording (card is not included)

G.711 / PCM

Embedded Linux 2.4.19

Digital 1 input(TTL, +3~5V) / 1 output (N.O.)

NETWORK

D/N CMOS HD VARI-FOCAL INFRARED IP CAMERA

INSTRUCTION MANUAL

MERIT LILIN ENT. CO., LTD

http://www.meritlilin.com 66-IPR414CSE

IPR414/418ESX3
