D/N 1080P HD Infrared IP Camera

IMPORTANT SAFEGUARDS

GRAPHIC SYMBOL EXPLANATION

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated "dangerous voltage" within the product's enclosure

that may be of sufficient magnitude to constitute a risk of electric

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

shock to persons.

accompanying the unit.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION：

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED

BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS

CAUTION

Do not drop or strike this equipment.

Do not install the equipment near any naked flames or heat

sources.

Do not expose this unit to rain or excessive moisture, avoid

smoke and dust.

Do not cover cloth or to install this unit in poorly ventilated

places.

Do not continue to operate if there appears to be fault.

Do not touch the power connection with wet hands.

Do not damage the power cord or leave it under pressure.

Sensitive electronics inside are vulnerable to excessive shock.

Excessive heat could damage this unit.

Please the camera in an environmental housing for protection.

If the camera gets wet, unplug it and have it checked by

qualified service personnel.

This may lead to overheating.

If the unit ceases to function, contact qualified service

personnel for help.

Risk of short circuit or electric shock.

Risk of fire or shock circuit.

CONGRATULATIONS

Thank you for purchasing this D/N 1080P HD Infrared IP Camera.

You now own one of the many fine network products we

manufactured. This product has been carefully inspected under

rigid quality control and should reach you in perfect condition.

With reasonable care, it will provide years of reliable performance.

We recommend that you read this installation and operation

manual thoroughly before installing and operation your new

system.

Here you will find all the information you need to set up and use

the system. If any questions are not answered in the manual,

please contact your dealer.

Before proceeding, please read and observe all instructions and

warnings contained in this manual. Retain this manual with the

original bill of sale for future reference and, if necessary, warranty

service.

When unpacking your new camera, check for missing or damaged

items. If any item is missing, or if damage is evident,

I . Contact your dealer for

assistance.

DO NOT

NSTALL OR OPERATE THIS PRODUCT

IPR722ES & LR7022E series is an 2 megapixel day&night 1080P

HD Infrared IP Camera, built-in H.264 AVC (Advanced Video

Coding) video compression. H.264 AVC video compression

engine supports high definition video quality, 1080P(1920x1080)

resolution, bandwidth efficiency with PPPoE and DDNS.

Also it provides higher bit rate of internet and diverse alarm

functions such as movement video detection e-mail or FTP.

Moreover, IPR722ES & LR7022E series can do remote

surveillance with iPad, iPhone or Android cell phone. The

software R&D engineer can use HTTP protocol(HTTPAPI) or

ONVIF protocol to develop related software, and integrate them

with existing application software system.

IPR722ES & LR7022E is ideal solution for remote video

monitoring via internet.

Executive Summary

PART DESCRIPTION & DIMENSION

154

101

72.5

Unit: mm

TOP COVER

BOTTOM CHASSIS

BRACKET

PAN ADJUSTMENT SCREW

TILT ADJUSTMENT SCREW

WINDOW

RJ-45 NETWORK CONNECTOR (Support PoE)

DC POWER INPUT JACK (DC12V 10%)

RESET KEY

To restore the server to factory default setting.

NETWORK INDICATOR LEDS

Green (LINK): While cable of network is connecting the LED is light.

Orange (ACT): When data is communicating, the LED is flashed.

INSTALLATION

DC power input

Network cable

FIG. 1 FIG. 2

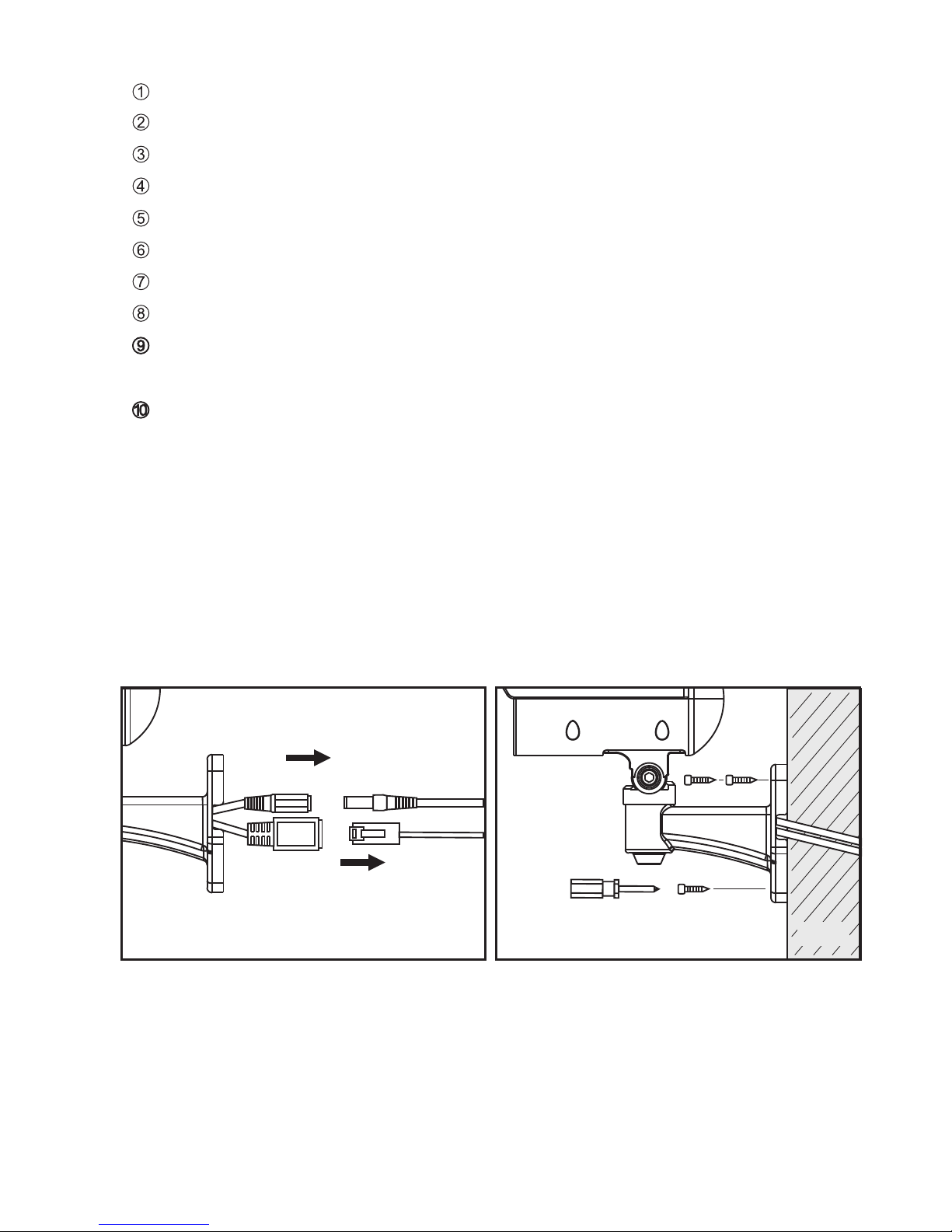

1. Take out the IP camera from the inner box first. Plug the network cable and

power cable to RJ-45 network connector and DC power input jack of the IP

camera(FIG.1). Then fix bracket to the wall(FIG.2).

4. L-type Hex Key Wrench

FIG. 3

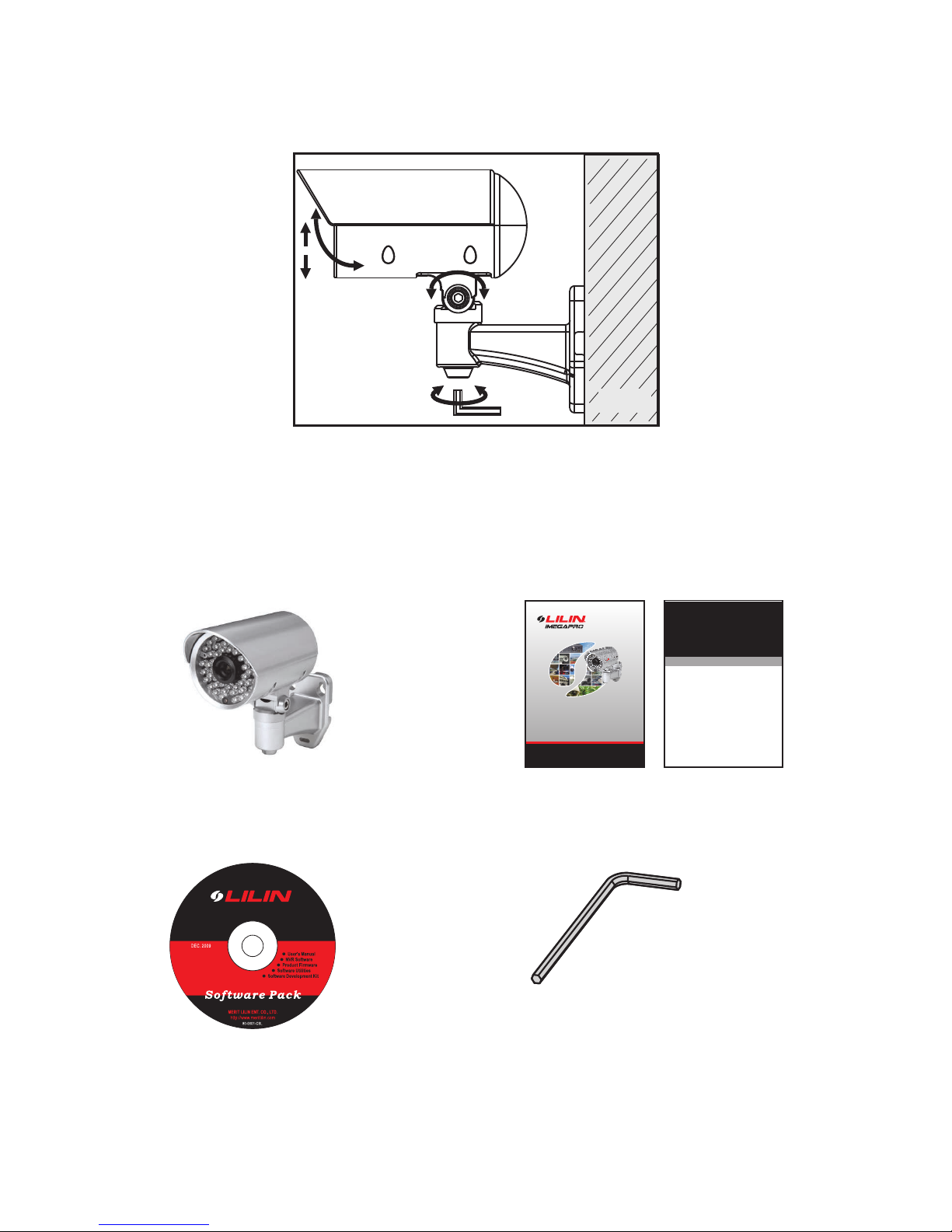

2. Loosen the pan and tilt adjustment screw on the bracket to turn the camera

body to the desired angle and then tighten the screws(FIG.3).　

In st r u ct i on M an u al

IPR722ES / LR7022E

D/N 1080P HD Infrared IP Camera

1. D/N 1080P HD Infrared IP

Camera　

2. Instruction Manual

3. CD Software Pack

IPD552EX2.2/4.2 N/P

H.264 HD IP Cameras

INSTRUCTION MANUAL

PRODUCTION COMPONENTS

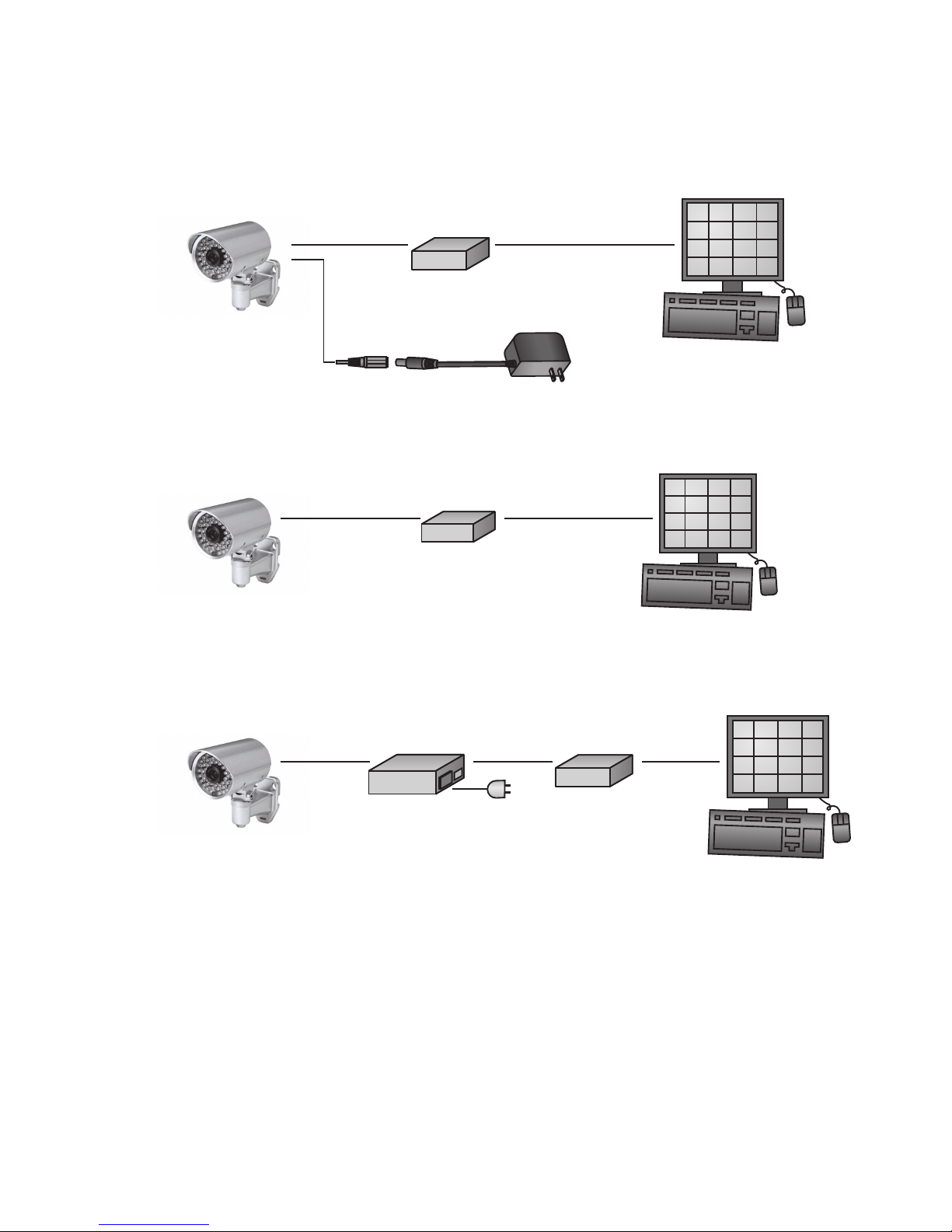

For connecting IPR722ES & LR7022E series to the network, please follow one of the

system architectures:

(1). Use DC12V power adapter and network switch connected to a network.

SYSTEM ARCHITECTURES

LAN LAN / Internet

Non-PoE Switch

HD Infrared

IP Camera

DC12V Adaptor

PoE+(30W)

Switch

LAN LAN / Internet

(2). Use with PoE of the network switch connected to the network.

(3). Use PoE power injector and the network switch connected to the network.

LAN LAN / Internet

Non-PoE Switch

LAN

PoE+(30W)

Power Injector

HD Infrared

IP Camera

HD Infrared

IP Camera

For the convenience of users, restore the factory default settings will revert to the

default IP address 192.168.0.200.

NOTE

EMERGENCY FACTORY DEFAULT

Use hardware to restore factory default settings, follow these steps:

1. Hold "RESET" key 10 seconds, then release.

2. After about 40 seconds, the network LED light is off, and then lit.

3. This camera has completed the factory default settings, and then reboot.

4. Use IPScan software search for this IP device.

5. Using a Internet browser open the IP device.

6. Enter the default username "admin" and password "pass" to operate.
