Lilin UHG1182E Bedienungsanleitung

SG1122E

UFG1122E

UHG1182E

D/N 1080P60 HD IP Camera

D/N 1080P120 HD IP Camera

D/N 4K Ultra HD IP Camera

66-UHG1182CSM

Quick Installation Guide

CAUTION

 Do not drop or strike this equipment

 Do not install the equipment near any naked flames or heat

sources

 Do not expose this unit to rain, moisture, smoke or dust

environment

 Do not cover the opening of the cabinet with cloth and plastic

or to install this unit in poor ventilated places. Allow 10cm

between this unit and its surroundings

 Do not continue to operate the unit under abnormal conditions

such as detection of smoke, strange smell or no display on

screen while power is turned on

 Do not touch the power connection with wet hands

 Do not damage the power cord or leave it under pressure

 Do not operate this unit near magnet, speaker system, etc., to

avoid unnecessary magnetic interference

 onnection cables should be grounded properly

The ITE is to be connected only to PoE networks without

routing to the outside plant.

L’ITE ne doit être connecté que sur un réseau PoE sans

routage vers l’ali entation extérieure.

Product Overview

English

Unit: mm

- 1 -

① Lens Mount ap

② Focal Length Adjustment Ring and Locking Screw

③ Microphone

④ Light Sensor

⑤ Auto Iris onnector (4-Pin Socket)

⑥ Power LED

⑦ Live Video R A Jack

⑧ Reset Key

⑨ RJ-45 Network onnector and Indicator LEDs

Green(LINK): Network connection. This LED lit.

Orange(A T): Data communications. This LED flashes.

(This network camera support PoE)

⑩ Audio Input 3.5mm Phone Jack

⑪ Audio Output 3.5mm Phone Jack

⑫ D 12V Power Input Jack (D 12V ±10 %)

⑬ Micro SD ard Slot

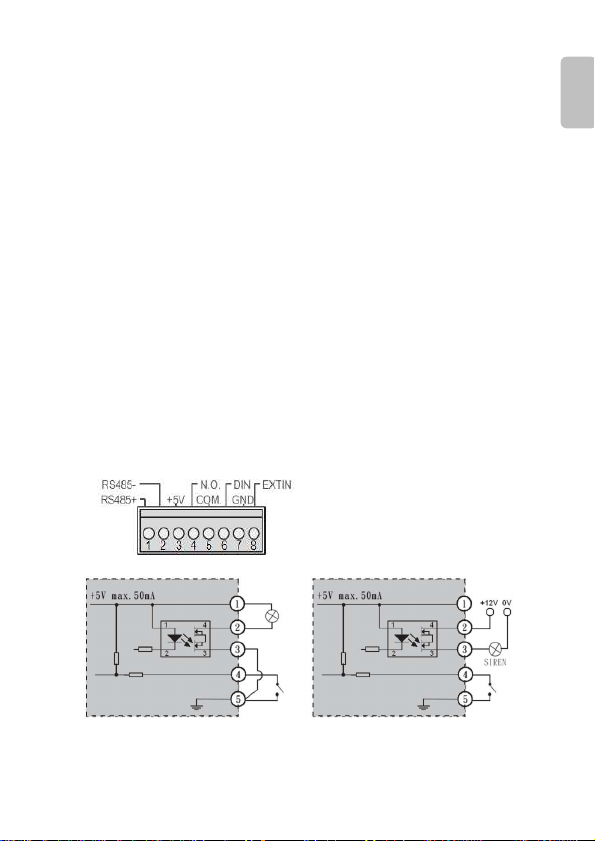

⑭ Alarm In/Out, Extin & RS-485 Terminal

●

Extin: IR cut removable external control input.

English

- 2 -

Installation

●

SUITABLE LENSES

Lenses used must be either or S mount type. The protrusion

behind the mounting surface must fit within the following

requirements:

●

FITTING THE LENS

1. Remove the lens mount cap.

2. Screw in the mount ring until it is secured. (When using a S

mount lens, skip this step.)

3. Screw in the lens until it is secure.

4. Insert the lens plug into the AUTO IRIS connector. (when fitting

a manual iris lens, skip this step.)

5. Adjust the focal length by turning the focal length adjustment

ring.

(Use hexagon screw driver to loose or tighten the screw.)

English

- 3 -

CAUTION

Keep the lens mount cap on the camera when not attaching to a

lens.

●

FITTING THE CAMERA

1. The mounting hole is on the top or bottom of the camera.

2. Tighten the screw to the mounting hole. Please refer to the

following diagram.

English

- 4 -

System Architectures

For connecting HD IP cameras to the network, please follow one of

the system architectures:

(1).

Use a D 12V power adapter and a network switch to connect to

the network.

(2). Use a PoE network switch to connect to the network.

(3). Use a PoE power injector and a network switch to connect to

the network.

English

- 5 -

Emergency Factory Default

To restore factory default settings by hardware, please follow these

steps:

1. Hold “RESET Key” for 10 seconds, then release.

2. After about 40 seconds, the network LED light should turn off,

and the back on again.

3. This camera has completed the factory default settings, and can

then reboot.

4. Search for the IP device using the IPScan software.

5. Start the IP device via Internet browser.

6. Enter the default username “admin” and password “pass” to

operate.

NOTE:

For user convenience, restoring the factory default settings

will revert to the default IP address 192.168.0.200.

Before Accessing IP Cameras

Before accessing the IP camera, make sure that the camera’s RJ-45

network, audio, and power cables are properly connected. To set the

IP address, consult your network administrator for an available IP

address. The default IP address for each IP camera is 192.168.0.200.

Users can use the default IP address for verifying the camera’s

network connection.

Software Requirements

Merit LILIN Universal ActiveX software components are required for

web interface display of JPEG or H.264 Full HD video. When you

dialog box will prompt the installation of the LILIN Universal ActiveX.

lick Install to download it.

English

- 6 -

Configuring IP Addresses by IPScan Software

To configure an IP address using the IP scan tool, you can copy the

IPScan software from the installation D, and paste to your

computer. Alternatively, you can execute the IPScan software from

the installation D, or download the software from the Merit LILIN

website (www.meritlilin.com). To change the settings of the IP

address, subnet mask, gateway, or HTTP port, you can follow the

steps below:

1. Run the IPScan software.

2. lick Refresh. All available devices should be listed in the device

list.

3. Select your device from the list provided.

4. hange the IP address, subnet mask, gateway, or HTTP port for

the IP camera.

5. lick Apply to submit the settings.

6. lick Refresh to verify the settings.

English

- 7 -

Configuring IP Addresses via Web Interface

To change an IP address via web interface, type the default IP

address (192.168.0.200) in the Internet browser and follow the steps

below:

1. Login to the H.264 Full HD IP camera by the default username

“admin” and default password “pass”

2. lick Basic Mode configuration hyperlink.

3. lick Network->General hyperlink.

4. hange the IP address, subnet mask, gateway, or HTTP port for

the IP camera.

5. lick Sub it to verify the settings.

Internet Browser Settings & Application Required

Make sure your Internet browser allows the signed ActiveX plug-in

to work on your computer. Set “Download Signed ActiveX plug-in

controls” to “Prompt” and “Run ActiveX control and plug-in” to

“Enable”. You can set this option via Internet Explorer-> Tools->

Options-> Security Settings.

English

- 8 -
