Lilin IPR414/418ESX3 Bedienungsanleitung
Instruction Manual
66-IPR414CSE
IPR414/418ESX3 / IPR414/418EMX 3.6/2.4
IPR434/438ESX 3.6/2.4
MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
D/N Megapixel HD Vari-Focal
Infrared IP Camera
IMPORTANT SAFEGUARDS
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
shock to persons.
accompanying the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
CAUTION
Do not drop or strike this equipment.
Do not install the equipment near any naked flames or heat
sources.
Do not expose this unit to rain or excessive moisture, avoid
smoke and dust.
Do not cover cloth or to install this unit in poorly ventilated
places.
Do not continue to operate if there appears to be fault.
Do not touch the power connection with wet hands.
Do not damage the power cord or leave it under pressure.
Sensitive electronics inside are vulnerable to excessive shock.
Excessive heat could damage this unit.
Please the camera in an environmental housing for protection.
If the camera gets wet, unplug it and have it checked by
qualified service personnel.
This may lead to overheating.
If the unit ceases to function, contact qualified service
personnel for help.
Risk of short circuit or electric shock.
Risk of fire or shock circuit.
IPR414/418ESX(720P) / IPR414/418EMX(1.3MP) / IPR434/
438ESX(3MP) is an D/N Megapixel HD Vari-Focal Infrared IP
Camera, built-in H.264 AVC(Advanced Video Coding) video
compression. H.264 AVC video compression engine supports high
definition video quality, 720P(1280x768)/ SXGA(1280x1024)/
QXGA(2048x1536) resolution, bandwidth efficiency with PPPoE
and DDNS.
Also it provides higher bit rate of internet and diverse alarm
functions such as movement video detection e-mail or FTP.
Moreover, IPR41/ IPR43 series can do remote surveillance with
iPad, iPhone or Android cell phone. The software R&D engineer
can use HTTP protocol(HTTPAPI) or ONVIF protocol to develop
related software, and integrate them with existing application
software system.
D/N Megapixel HD Vari-Focal Infrared IP Camera is ideal solution
for remote video monitoring via internet.
Executive Summary
SUN SHIELD
TOP COVER
BOTTOM CHASSIS
BRACKET
PAN ADJUSTMENT SCREW
TILT ADJUSTMENT SCREW
WINDOW
SENSOR CAP
Unit: mm
PART DESCRIPTION & DIMENSION
105
112
347
387
211.5
82.55
1
2
3
4
5
6
7
8
INSTALLATION
FIG. 1
1. Take out the bracket from the box first. Put the power cable, RJ-45 network cable
and video cable through the bracket and then fix it ot the wall (FIG.1 & FIG.2)。
FIG. 2
2. Secondly, take out the camera body and open the top cover with screw driver
。(FIG.3)
FIG. 3
3. Put the power cable, RJ-45 network cable and video cable through the bracket
rubble first and then go through the bottom of camera body (FIG.4). Plug and fix
the power cable to the terminal, plug the RJ-45 network cable to RJ-45 LAN
connector, and plug the video cable to output of the camera (FIG.5).
LN
FIG. 4 FIG. 5
When using two-cord
power cable, please
connect them to
"Live" and "Neutral".
Live
Earth
Neutral
4. Next, use the provided 1/4"-20UNC screws (silver-4pcs) to fix the camera body
on the bracket with hexagon screw driver (FIG.6)。
5. Loosen the pan and tilt adjustment screw on the bracket to turn the camera body
to the desired angle and then tighten the screws (FIG.7)。
FIG. 6
FIG. 7
FOCUS or ZOOM
FIG. 8
ZOOM or FOCUS
IRIS LEVEL
VR
6. First, adjust the lens on focus and zoom to form the optimal video image after
that tighten the screws. Adjust the IRIS level VR to form the optimal image
brightness (FIG.8).
7. Replace the top cover and tighten the screws (FIG.9 & FIG.10)。
FIG. 9 FIG. 10
SYSTEM OVERVIEW
Top View
GND
AUDIO OUT
AUDIO IN
GND
DIN
COM
NO
+5V OUT
AUDIO OUT
AUDIO IN
GND
DIN
COM
NO
+5V OUT
GND
IPR414/418ESX
IPR414/418EMX
IPR434/438ESX
Input/Output Device Component Description
Alarm In/Out & Audio In/Out
Connector
SD Card Connector
RJ-45 Jack
Video Out Jack
Load Default Button
1
2
3
4
5
Instruction Manual
IPR312SX3 / IPR31EMX3 / IPR320ESX3.6
D/N Megapixel HD Vandal Resistant
Dome IR IP Camera

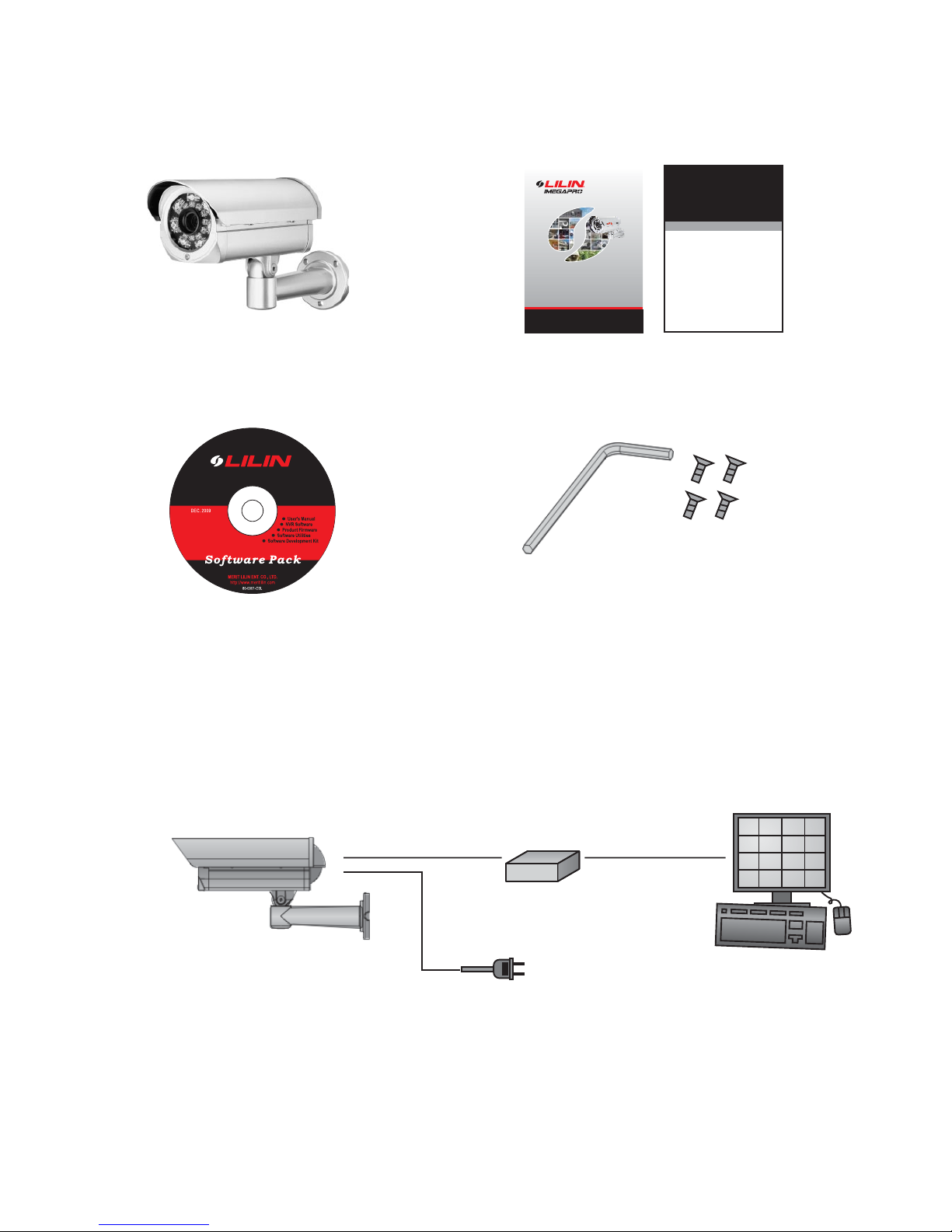

1. D/N Megapixel HD Vari-Focal
Infrared IP Camera
2. Instruction Manual
3. CD Software Pack
IPD552EX2.2/4.2 N/P
H.264 HD IP Cameras
INSTRUCTION MANUAL
PRODUCTION COMPONENTS
For connecting IPR414/418ESX/ IPR414/418EMX/ IPR434/438ESX to the network,
please follow one of the system architectures:
(1). Use AC24V or AC100~240V and network switch connected to a network.
SYSTEM ARCHITECTURES
4. L type Hex Key Wrench & Screws
1/4"-20UNC screws
(silver-4pcs)
D/N Megapixel HD
Vari-Focal IR IP Camera
PC
LAN LAN / Internet
Non-PoE Switch
AC24V or AC100~240V
