Lilin FD2452E Bedienungsanleitung
FD2452E
D/N Megapixel 360° Panorama Dome IP Camera
Quick Installation Guide
CAUTION
Do not drop or strike this equipment
Do not install the equipment near any naked flames or heat
sources
Do not expose this unit to rain, moisture, smoke or dust
environment
Do not cover the opening of the cabinet with cloth and
plastic or to install this unit in poor ventilated places. Allow
10cm between this unit and its surroundings
Do not continue to operate the unit under abnormal
conditions such as detection of smoke, strange smell or no
display on screen while power is turned on
Do not touch the power connection with wet hands
Do not damage the power cord or leave it under pressure
Do not operate this unit near magnet, speaker system, etc., to
avoid unnecessary magnetic interference
onnection cables should be grounded properly
Product Overview
① Alarm In/Out Terminal
② Audio Input 3.5mm Phone Jack (Red)
③ Audio Output 3.5mm Phone Jack (Green)
④ Live Video Output BN Jack
⑤ RJ-45 Network onnector (Support PoE)
⑥ D Power Input Jack (D 12V ±10%)
⑦ Top over
⑧ Micro SD ARD SLOT (Support SD/SDH )
⑨ Reset Key
To restore the server to factory default setting.
⑩ Lens
⑪ Light Sensor
⑫ Microphone
English
Unit: mm
- 1 -
Installation
Installation Structural Drawing
Embedded Mounting Attached Mounting
( eiling base is optional)
English
- 2 -
●
Embedded Mounting (False eiling)

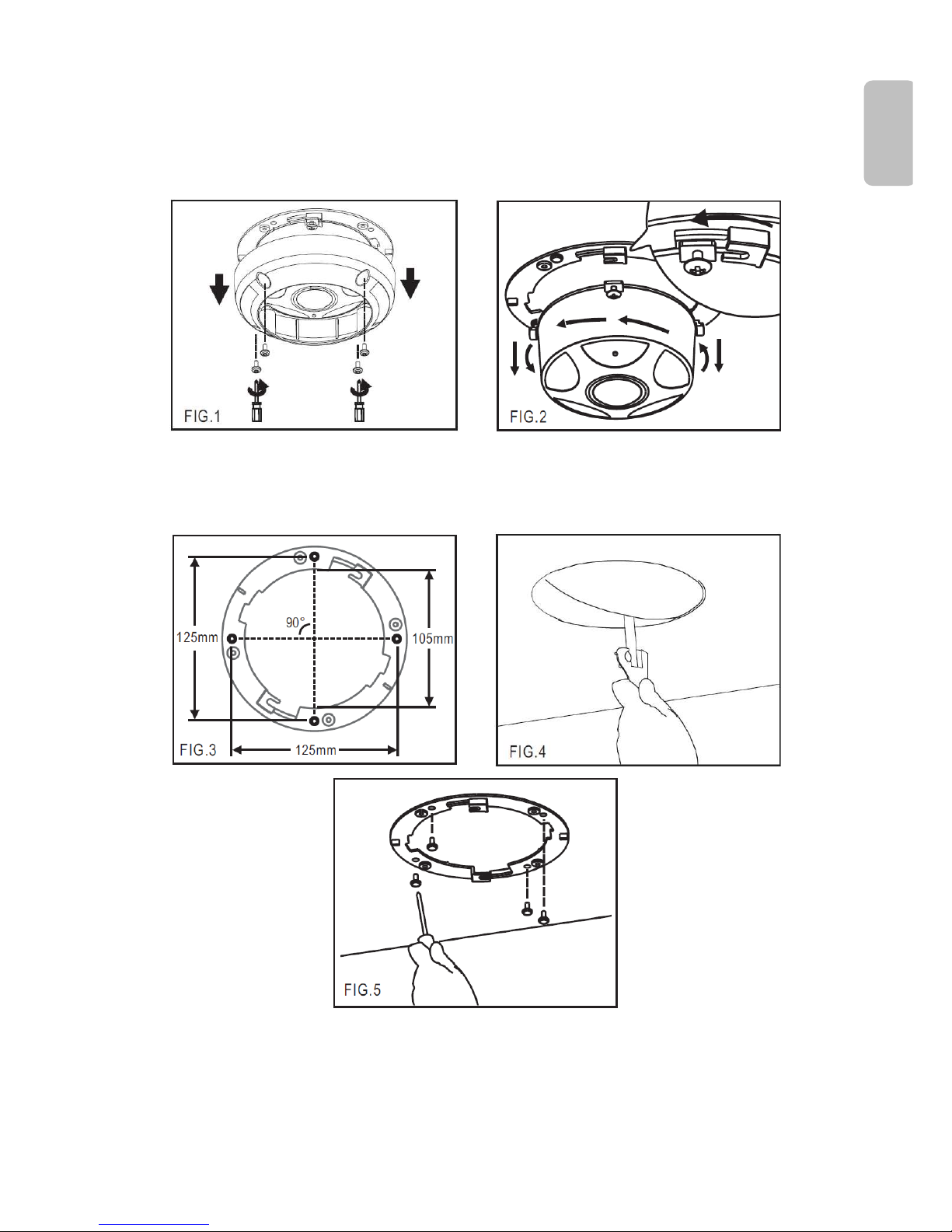

1. Please use the screw driver to untighten the screws on the top
cover (FIG. 1), and to untighten the screws on the cylinder (FIG. 2).
2. Based on the hole site diagram below to cut the circle of diameter
3.6-4.1 inches (90-105mm) (FIG.3, FIG. 4, FIG. 5).
3. onnect the network cable to RJ-45 network port and connect
power cable to D power input jack of the IP camera (FIG.6)
English
- 3 -
4. Attach the camera body to the fixed ring (FIG. 7). Tighten the
screws to fix the camera body (FIG. 8).
5. Put the decorative ring on the camera body. Ring’s positioning
column should be between camera body positioning column and
screw nut (FIG. 9). Rotate the decorative ring counter clockwise
until its position column touch the camera body positioning
column. Tighten the 4 screws (FIG. 10).
English
- 4 -
●
Attached Mounting (Fixed eiling)
1. amera base size and screw location (FIG.11)，and tighten the four
tapping screws into the ceiling (FIG.12).
2. The fixed ring placed on the base (FIG.13). Tighten the four
screws into the base (FIG. 14).
3. onnect the network cable to RJ-45 network port and connect
power cable to D power input jack of the IP camera (FIG.15)
English
- 5 -
4. Attach the camera body to the fixed ring. amera body screw hole
should be aligning to fixed ring’s latch position (FIG.16). Tighten
the two screws to fix the camera body (FIG.17).
5. Put the decorative ring on the camera body. Ring’s positioning
column should be between camera body positioning column and
screw nut (FIG.18). Rotate the decorative ring counter clockwise
until its position column touch the camera body positioning
column. Tighten the 4 screws (FIG.19).
- 6 -
English
System Architectures
For connecting HD IP cameras to the network, please follow one of
the system architectures:
(1). Use a D 12V power adapter and a network switch to connect to
the network.
(2). Use a PoE network switch to connect to the network.
(3). Use a PoE power injector and a network switch to connect to the
network.
English
- 7 -
Emergency Factory Default
To restore factory default settings by hardware, please follow these
steps:
1. Hold “RESET Key” for 10 seconds, then release.
2. After about 40 seconds, the network LED light should turn off,
and the back on again.
3. This camera has completed the factory default settings, and can
then reboot.
4. Search for the IP device using the IPScan software.
5. Start the IP device via Internet browser.
6. Enter the default username “admin” and password “pass” to
operate.
NOTE: For user convenience, restoring the factory default settings
will revert to the default IP address 192.168.0.200.
Before Accessing IP Cameras
Before accessing the IP camera, make sure that the camera’s RJ-45
network, audio, and power cables are properly connected. To set the
IP address, consult your network administrator for an available IP
address. The default IP address for each IP camera is 192.168.0.200.
Users can use the default IP address for verifying the camera’s
network connection.
Software Requirements
Merit LILIN Universal ActiveX software components are required for
web interface display of JPEG or H.264 Full HD video. When you
login to the IP camera by Internet Explorer, the security warning
dialog box will prompt the installation of the LILIN Universal ActiveX.
lick Install to download it.
English
