Lilin IPR712S Bedienungsanleitung
Instruction Manual
66-IPR712CSE
IPR712S / IPR712M / IPR722S 4.3/6
MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
D/N Megapixel HD Infrared IP Camera
IMPORTANT SAFEGUARDS
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
shock to persons.
accompanying the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
CAUTION
Do not drop or strike this equipment.
Do not install the equipment near any naked flames or heat
sources.
Do not expose this unit to rain or excessive moisture, avoid
smoke and dust.
Do not cover cloth or to install this unit in poorly ventilated
places.
Do not continue to operate if there appears to be fault.
Do not touch the power connection with wet hands.
Do not damage the power cord or leave it under pressure.
Sensitive electronics inside are vulnerable to excessive shock.
Excessive heat could damage this unit.
Please the camera in an environmental housing for protection.
If the camera gets wet, unplug it and have it checked by
qualified service personnel.
This may lead to overheating.
If the unit ceases to function, contact qualified service
personnel for help.
Risk of short circuit or electric shock.
Risk of fire or shock circuit.
CONGRATULATIONS
Thank you for purchasing this D/N Megapixel HD Infrared IP
Camera. You now own one of the many fine network products
we manufactured. This product has been carefully inspected
under rigid quality control and should reach you in perfect
condition. With reasonable care, it will provide years of reliable
performance.
We recommend that you read this installation and operation
manual thoroughly before installing and operation your new
system.
Here you will find all the information you need to set up and use
the system. If any questions are not answered in the manual,
please contact your dealer.
Before proceeding, please read and observe all instructions and
warnings contained in this manual. Retain this manual with the
original bill of sale for future reference and, if necessary, warranty
service.
When unpacking your new camera, check for missing or damaged
items. If any item is missing, or if damage is evident,
I . Contact your dealer for
assistance.
DO NOT
NSTALL OR OPERATE THIS PRODUCT
IPR712S(720P)/ IPR712M(1.3MP)/ IPR722S(1080P) series is an
D/N Megapixel HD Infrared IP Camera, built-in H.264 AVC
(Advanced Video Coding) video compression. H.264 AVC video
compression engine supports high definition video quality, 720P
(1280x768)/ SXGA(1280x1024)/ 1080P(1920x1080) resolution,
bandwidth efficiency with PPPoE and DDNS.
Also it provides higher bit rate of internet and diverse alarm
functions such as movement video detection e-mail or FTP.
Moreover, IPR712S / IPR712M/ IPR722S can do remote
surveillance with iPad, iPhone or Android cell phone. The
software R&D engineer can use HTTP protocol(HTTPAPI) or
ONVIF protocol to develop related software, and integrate them
with existing application software system.
D/N Megapixel HD Infrared IP Camera is ideal solution for remote
video monitoring via internet.
Executive Summary
PART DESCRIPTION & DIMENSION
154
101
72.5
67
82
IPR712S
Unit: mm
154
101
72.5
67
82
IPR712M / IPR722S
Unit: mm
TOP COVER
BOTTOM CHASSIS
BRACKET
PAN ADJUSTMENT SCREW
TILT ADJUSTMENT SCREW
WINDOW
RJ-45 NETWORK CONNECTOR
DC POWER INPUT JACK (DC12V 10%)
SD CARD SLOT (IPR712S Support)
This network camera is compliant with SD/SDHC card.
RESET KEY
To restore the server to factory default setting.
NETWORK INDICATOR LEDS
Green (LINK): While cable of network is connecting the LED is light.
Orange (ACT): When data is communicating, the LED is flashed.
±
INSTALLATION
IPR712S
DC power input
Network cable
FIG. 1 FIG. 2
1. Take out the IP camera from the inner box first. Plug the network cable and
power cable to RJ-45 network connector and DC power input jack of the IP
camera(FIG.1). Then fix bracket to the wall(FIG.2).
FIG. 3
2. Installation SD card, please loosen the screws of top cover with screw driver
(FIG.3). Put the SD card to SD card slot(FIG.4).
FIG. 4
3. Replace the top cover and tighten the screws(FIG.5&FIG.6).
FIG. 6
FIG. 5
FIG. 7
4. Loosen the pan and tilt adjustment screw on the bracket to turn the camera
body to the desired angle and then tighten the screws(FIG.7).
IPR712M / IPR722S

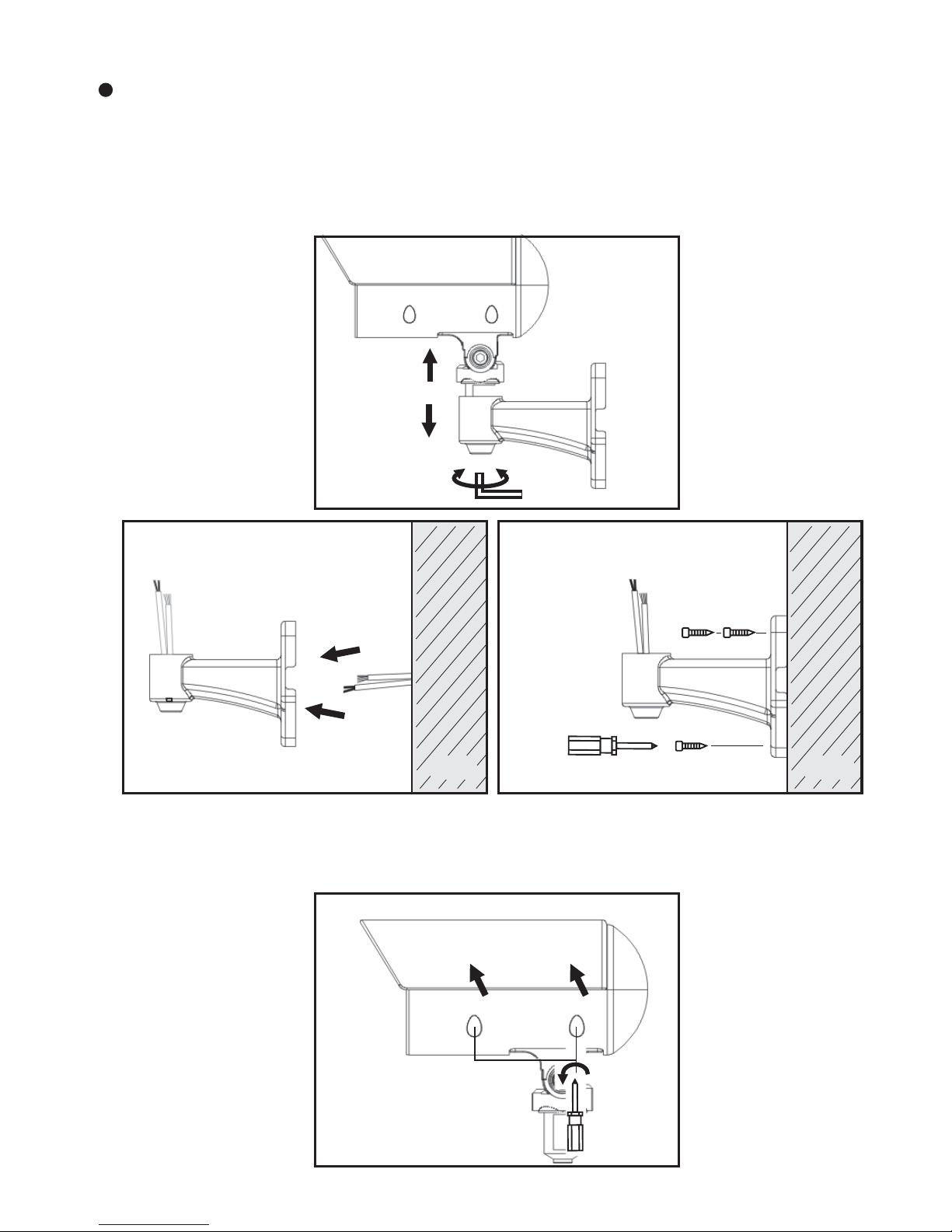

1. Take out the IP camera from the inner box first. Loosen the pan adjustment screw
with hexagon screw driver. Then, separated the bracket from the camera body
(FIG.1). Put the power cable and network cable through the bracket and then
fix it to the wall(FIG.2&FIG.3).
FIG.1
FIG.3
FIG.2
FIG.4
2. Open the top cover with screw driver(FIG.4).
